BTC -1x
Bluetooth® Remote Transceiver
Overview
BTC-1X Remote Transceiver accessory enables
the user the ability to wirelessly stream source
content from any Bluetooth enabled device to
a Russound multiroom audio system. The BTC-
1X connects via a single CAT 5 RJ-45 terminated
cable. The CAT-5 cable carries power and balanced
audio signals to the Bluetooth RJ-45 jack on the
Russound multiroom products. The compact BTC-
1X transceiver can sit on a at surface, hide behind
other equipment or be placed in a standard
electrical box behind a wall-plate. This versatility
allows for the Bluetooth transceiver to be placed
in the most optimal position. Most Bluetooth
products have very limited range based on near
eld usage. With the BTC-1X the user can listen to
streaming wireless music and move throughout
the listening area without interruption.
The BTC-1X can also be programmed using a
micro USB cable. This feature o ers a speci c
security code and the ability to name each BTC-
1X connected in the system. This is handy when
multiple Bluetooth transceivers are wired in close
proximity to each other.
Russound, Inc.
5 Forbes Rd., Newmarket, NH 03857, USA
tel 603.659.5170 • fax 603.659.5388 www.russound.com
technical support: 866.888.7466
e-mail: tech@russound.com
28-1384 06.06.14
Testing
Verify the green LED is lit on the BTC-1X Remote
Transceiver.
Turn on a Bluetooth® enabled source i.e. media player,
smartphone, or computer. Open the menu Bluetooth
and enable the pairing feature on the device. Select the
Russound BTC-1X product by its con gured name from
the list of available Bluetooth enabled products. Enter PIN
number 0000 to complete pairing.
Select the desired audio from the device and start the
playback.
Connection Instructions
Read all instructions before starting the installation.
1. Determine the ideal location of the BTC-1X within the
room
2. Wire the CAT-5 from the controller to the BTC-1X
location
3. Add RJ-45 connectors to the CAT-5, follow the RJ-45
T568A Wiring Standard (show diagram)
4. Plug in each end of the RJ-45 into the appropriate jack
on the controller labeled Bluetooth and the BTC-1X RJ-
45 jack.
5. If you are planning more than one BTC-1X in a home,
it is suggested that you program each BTC-1X. Follow
the programming instructions noted below.
Programming instructions
The BTC-1X comes con gured with the Name Russound
and Passkey 0000. To create a more secure network, it is
recommended that a unique Name and Passkey be created
at the time of installation and provided to the homeowner.
Follow the steps below to create a unique Name and
Passkey for each BTC-1X.
Note: CAT-5 cable must be connected during
programming to provide power to BTC-1X.
1. Plug in the micro USB cable (included) to the USB
programming port in the BTC-1X. (see diagram)
2. Connect the micro USB cable to the USB port on the PC.
3. Download the BSK-1 programming software from the
dealer portal at www.russound.com.
4. Launch the BTC-1X Con guration Tool software.
5. Enter a unique Name and a numeric Passkey (minimum
4 digits), then Write to device.
6. Disconnect the micro USB cable from the BTC-1X rst,
then cycle the power on the BTC-1X by removing the
CAT-5. Cycling the power will reboot the BTC-1X with
the assigned custom Name and Passkey.

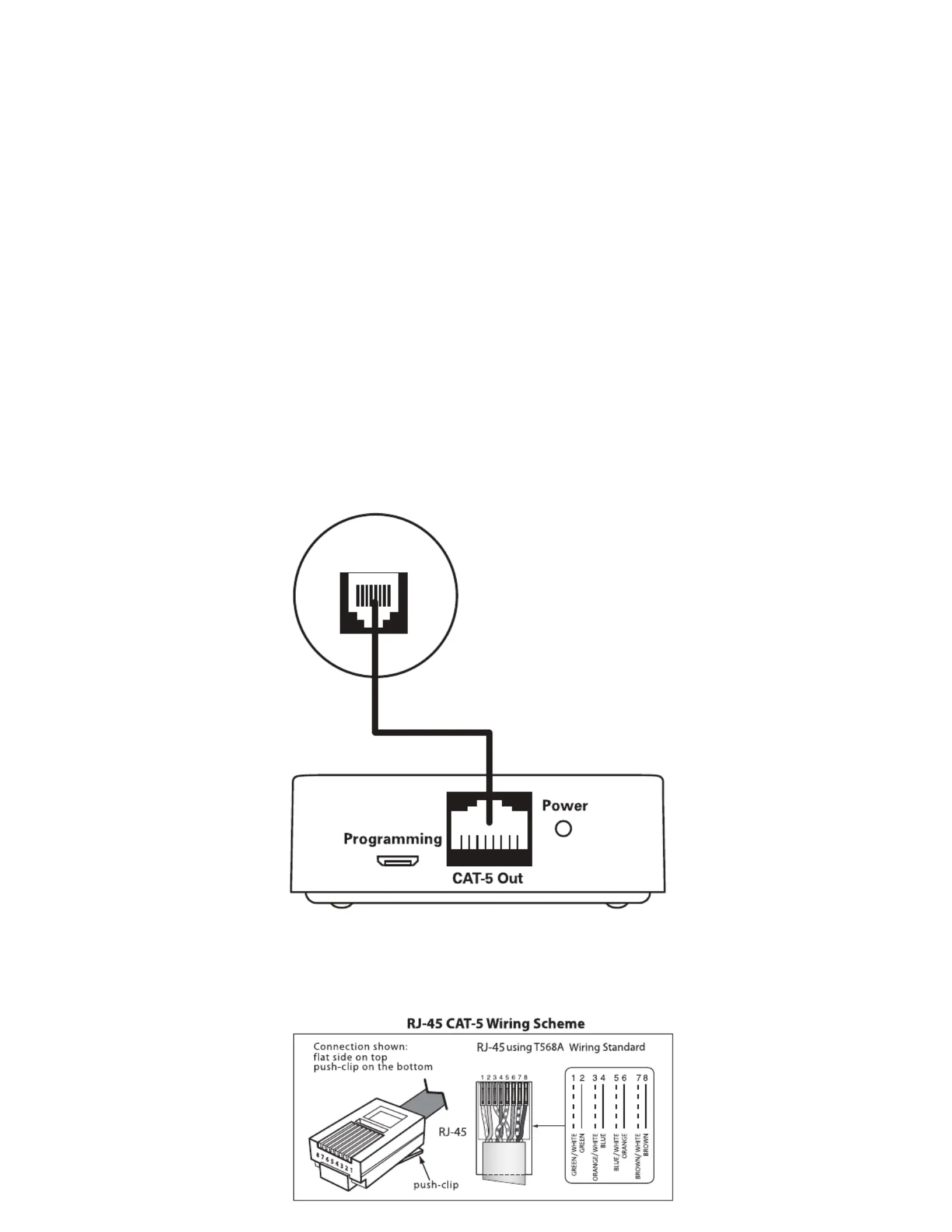

Connection Diagram
Bluetooth
BTC-1X
Bluetooth CAT-5 Jack
on Russound controller
Source Con guration
The BTC-1X is supported by Russound controllers with
Bluetooth capability.
Refer to the Russound controller instruction manuals to
connect and enable the Bluetooth source input.
Important Considerations
1. Disconnect the power cord to Russound controller
before making any connections to the BTC-1X.
2. Verify all connections are correct and polarity on the
connectors are correct. Follow T568A connections on
all RJ-45 connections as show in the diagram.
3. Keep all power cords away from all signal cables.
If you have to cross power cables, do so at 90 degrees
and don’t run the cables parallel with one another.
Keep a distance of 12” away if running parallel to
avoid induced noise on the CAT-5 cable.
4. Choose reliable signal cable and / or patch cords.
