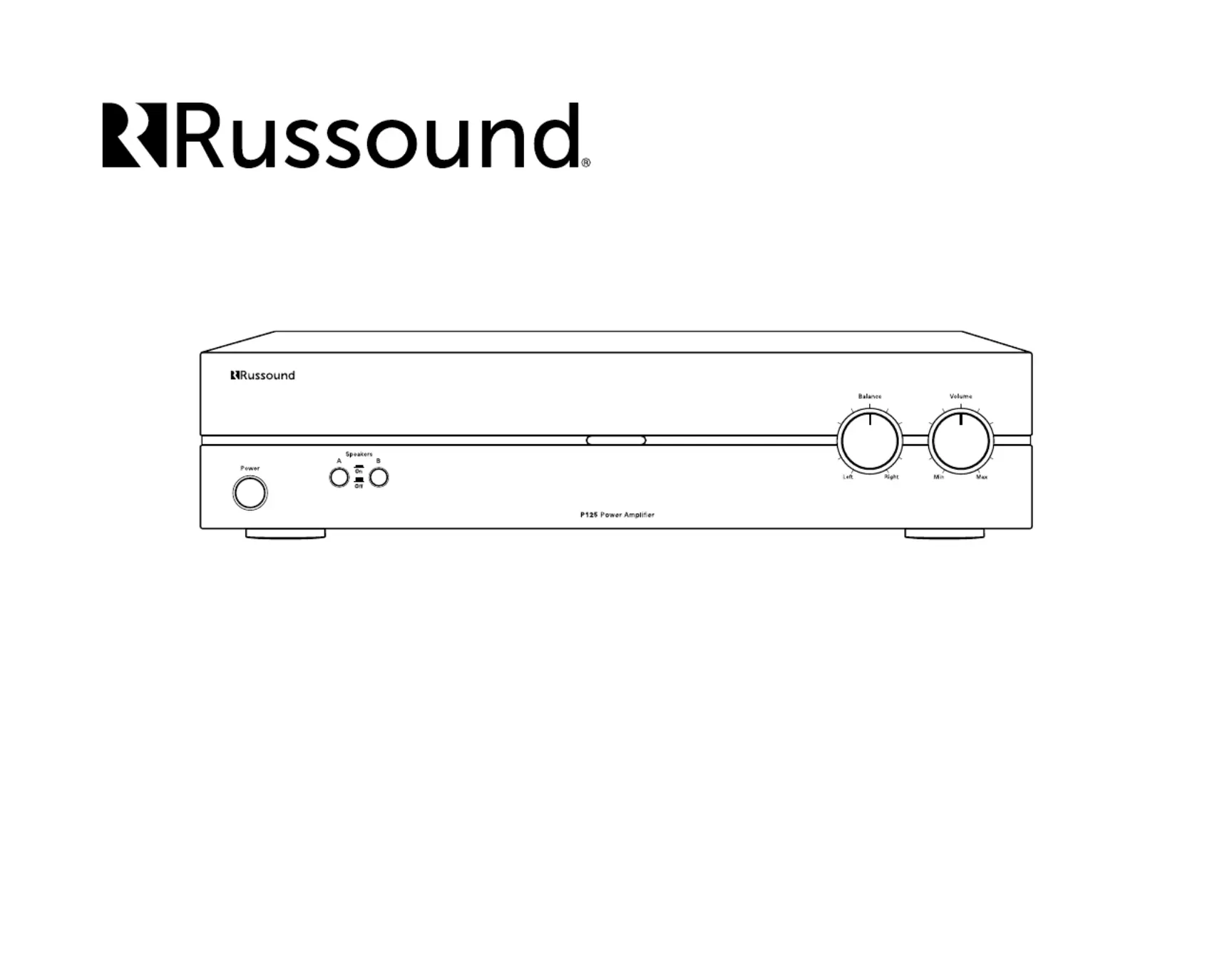

P125 Dual Source Power Amplier
Installation Manual
2 Russound P125 Installation Manual
The lightning ash with arrowhead symbol, within an
equilateral triangle, is intended to alert the user to the
presence of uninsulated dangerous voltage within the
product’s enclosure that may be of sucient magnitude
to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in the
literature accompanying the appliance.
Safety Instructions
1. Read Instructions - All the safety and operating
instructions should be read before the appliance is
operated.
2. Retain Instructions - The safety and operating
instructions should be retained for future reference.
3. Heed Warnings - All warnings on the appliance in the
operating instructions should be adhered to.
4. Follow Instructions - All operating and user
instructions should be followed.
5. Water and Moisture - The appliance should not
be used near water; for example, near a bathtub,
washbowl, kitchen sink, laundry tub, in a wet
basement, or near a swimming pool. The apparatus
shall not be exposed to dripping or splashing liquids
and no objects lled with liquids, such as vases, shall
be placed on the apparatus.
SAFETY INSTRUCTIONS
6. Carts and Stands - The appliance should
be used only with a cart or stand that is
recommended by the manufacturer.
An appliance and cart combination
should be moved with care. Quick
stops, excessive force and uneven
surfaces may cause the appliance and
cart combination to overturn.
7. Location of the Amplier - Do not mount this unit
under a kitchen cabinet. Do not expose the amplier
to direct sun light or heating units as the amplier
internal components’ temperature may rise and
shorten the life of the components. Avoid damp and
dusty places.
8. Ventilation - The appliance should be situated so
that its location or position does not interfere with
its proper ventilation. For example, the appliance
should not be situated on a bed, sofa, rug, or similar
surface that may block the ventilation openings, or
placed in a built-in installation, such as a bookcase or
cabinet that may impede the ow of air through the
ventilation openings.
9. Heat - The appliance should be situated away from
heat sources such as radiators, heat registers, stoves,
or other appliances (including ampliers) that
produce heat.
10. Power Sources - The appliance should be connected
to a power supply only of the type described in
the operating instructions or as marked on the
appliance.
11. Grounding or Polarization - Precaution should be
taken so that the grounding or polarization means of
an appliance is not defeated.
12. Power Cord Protection - Power supply cords should
be routed so that they are not likely to be walked
on or pinched by items placed upon or against
them, paying particular attention to cords at plugs,
receptacles, and the point where they exit from the
appliance.
13. Main Power Disconnect - The power switch is a single-
pole switch. When the switch is in the “O” position,
the appliance is not completely disconnected from
the main power. The main power plug is used as the
disconnect device and shall remain readily operable.
When installing the product, ensure that the plug is
easily accessible.
14. Cleaning - The appliance should be cleaned only as
recommended by the manufacturer.
15. Non-Use Periods - The power cord of the appliance
should be unplugged from the outlet when left
unused for a long period of time. To remove all power
(supply mains) from the appliance, remove the plug
from the wall outlet.
16. Object and Liquid Entry - Care should be taken so that
objects do not fall and liquids are not spilled into the
enclosure through the openings.
17. Servicing - The user should not attempt to service the
appliance beyond that described in the operating
instructions. All other servicing should be referred to
qualied service personnel.
18. Damage Requiring Service - The appliance should be
serviced by qualied service personnel when:
A. The power supply cord or the plug has been
damaged.
B. Objects have fallen, liquid has been spilled into the
appliance;
C. The appliance has been exposed to rain; or
D. The appliance does not appear to operate
normally; or
E. The appliance has been dropped or the enclosure
is damaged.
CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE THE COVER. NO USER-
SERVICEABLE PARTS INSIDE. REFER SERVICING
TO QUALIFIED SERVICE PERSONNEL.
WARNING: TO REDUCE THE RISK OF FIRE
OR ELECTRIC SHOCK, DO NOT EXPOSE THIS
APPLIANCE TO RAIN OR MOISTURE.
3
Russound P125 Installation Manual
Safety Instructions .................................................................................................................. 2
Product Overview .................................................................................................................. 4
Front and Rear Panels ............................................................................................................ 5
System Conguration - Stereo Mode ............................................................................... 6
System Diagram - Stereo Mode.......................................................................................... 7
System Conguration - Bridged Mode ............................................................................ 8
System Conguration - Basic Speaker Connection ..................................................... 9
System Conguration - External Volume Control ........................................................ 9
Technical Specications ......................................................................................................10
Warranty ...................................................................................................................................11
CLEARANCE REQUIREMENTS / TABLE OF CONTENTS
When installing the P125 Amplier, the clearances shown here MUST be kept
for proper ventilation of the amplier.
Table of ContentsClearance Requirements
