Sida 1/20
XZone70V
Streaming Mixer Amplier
Installation Manual
XZ one70V Streaming Audio Amplifier
Level
Syst em VolumeMic Vol ume
Clip
2XZone70V Installation Manual
NOTICE:
IF YOU ARE NOT A RUSSOUND CERTIFIED INSTALLER,
YOU WILL NOT BE ABLE TO INSTALL AND CONFIGURE
THIS PRODUCT
INTERNET CONNECTION REQUIRED
FOR PRODUCT INSTALLATION
There are two things that must be done at the time of installation of this
product that require a working internet connection:
1. Enter valid Russound Certied Installer credentials. The XZone70V is
shipped in a locked state. It cannot be operated without rst being congured
by a Russound Certied Installer.
If you are a custom installation professional and wish to become authorized as a
Russound Certied Installer, please contact your Russound Sales Representative
for more information.
Note: If you are a Russound Certied Installer and you plan on installing this
product on a job site that may not have working internet access, please
congure the unit at your shop or other location where internet access is
available BEFORE you take it to the job site.
2. Firmware may be updated easily through Web Cong conguration. An
internet connection is required for obtaining the most recent rmware.
Note: If an internet connection will not be available at the place of installation,
please download the latest rmware from the Russound website to a laptop
before going to the job site.

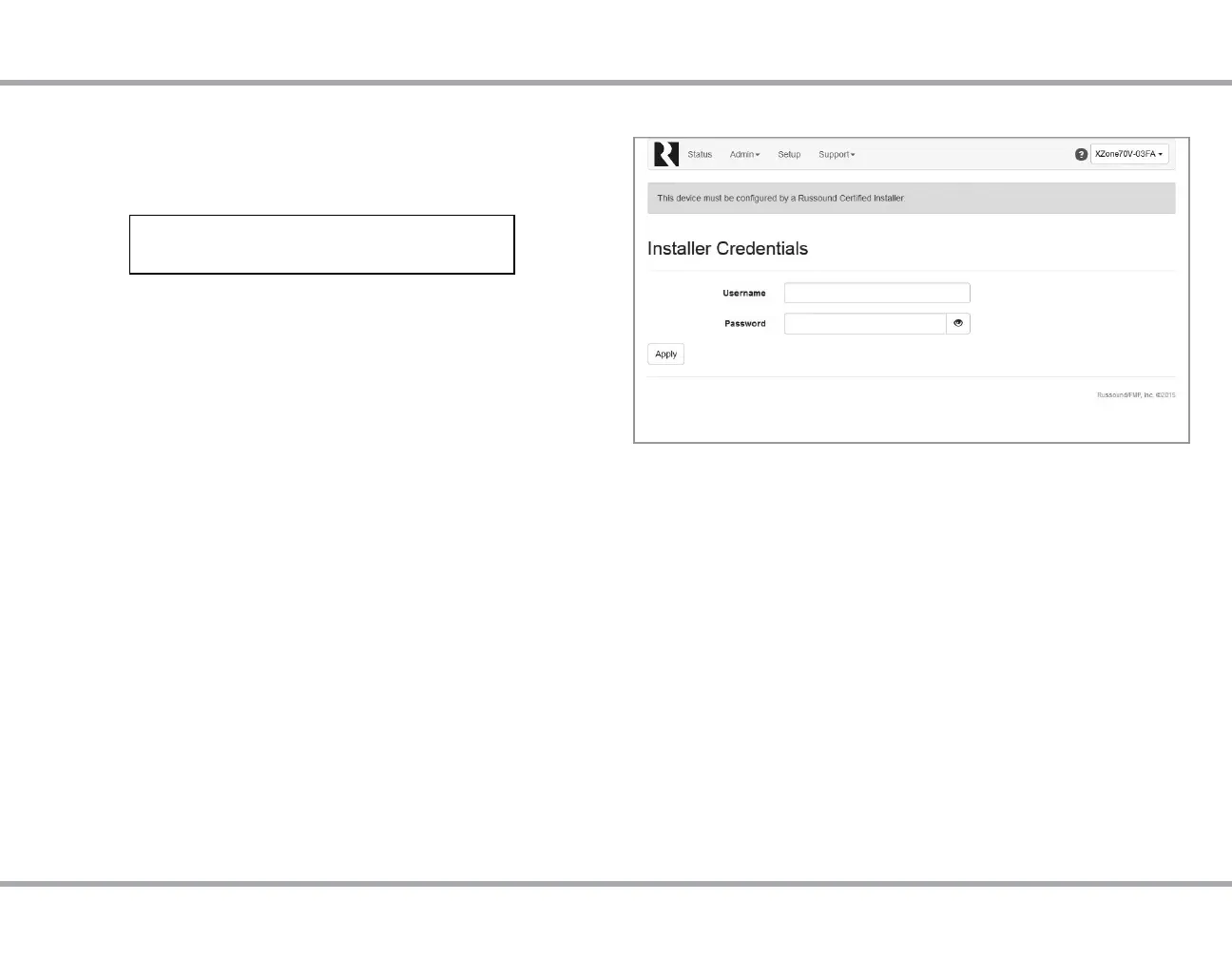

Installer Credential Entry
When the XZone70V is shipped from Russound, it will only operate in a "locked"
state. In this state, no audio or control is available. In order to unlock the system,
valid Russound Certied Installer credentials must be entered using the Web
Cong.
When the XZone70V is rst powered on, a message will appear on any
compatible user interfaces and the MyRussound App indicating that the device
must be unlocked. The message will contain the IP address of the XZone70V.
Using your mobile device or computer, browse to the XZone70V IP address (type
http:// and then the IP address).
If you are using the MyRussound App, the IP address appears as a link that will
direct you to Web Cong via your local web browser.
If you do not have a valid Russound Certied Installer credential, please
contact your Russound Sales Representative.
Lockdown Feature
RUSSOUND CERTIFIED INSTALLER REQUIRED
3XZone70V Installation Manual
Product Overview 3 ...................................................................................................................
Web Conguration..................................................................................................................4
Front and Back Panel 5 ..............................................................................................................
Ethernet Connection and Factory Reset 6 .........................................................................
Installation Overview 6-8 .........................................................................................................
Conguration 9 ............................................................................................................................
Network Settings 10 ...................................................................................................................
Conguration Streaming Service Accounts 11 .................................................................
Troubleshooting 11 ....................................................................................................................
Connection Diagrams 12 ..........................................................................................................
70/100V Wiring .......................................................................................................................13
Troubleshooting 14 ....................................................................................................................
Network Best Practices 15 ........................................................................................................
Technical Specications 15 ......................................................................................................
Limited Warranty ...................................................................................................................16
Safety Instructions 18-19 .........................................................................................................
TABLE OF CONTENTS
Product Overview
Thank you for choosing the Russound XZone70V Streaming Mixer Amplier
as your audio solution. The Russound XZone70V features built-in XStream
technology, enabling popular streaming content from the cloud, local
network, AirPlay™ enabled tablets and phones - all from a single component.
The built-in audio streamer oers the best audio content from the internet or
even a user’s personal networked audio collection using DLNA. The rear panel
includes an auxiliary input port and USB port for playing content from a Flash
Drive or an externally powered USB hard drive.
PRODUCT OVERVIEW
Features:
• Full Support for High Res Audio
• Licensed Music Option for Commercial Music Performance
• Powerful High Quality 70v/100v/4Ω Amplier
• Integrated Mic Input With Ducking And Support For Phantom Power
• Wall-Mounted Touchscreen or App Control
• Built-In High Pass Filter
• Auxiliary Input Option Included
• Removable Screw-down Connectors
• Flexible Mounting Options
• Trusted 2-year Warranty

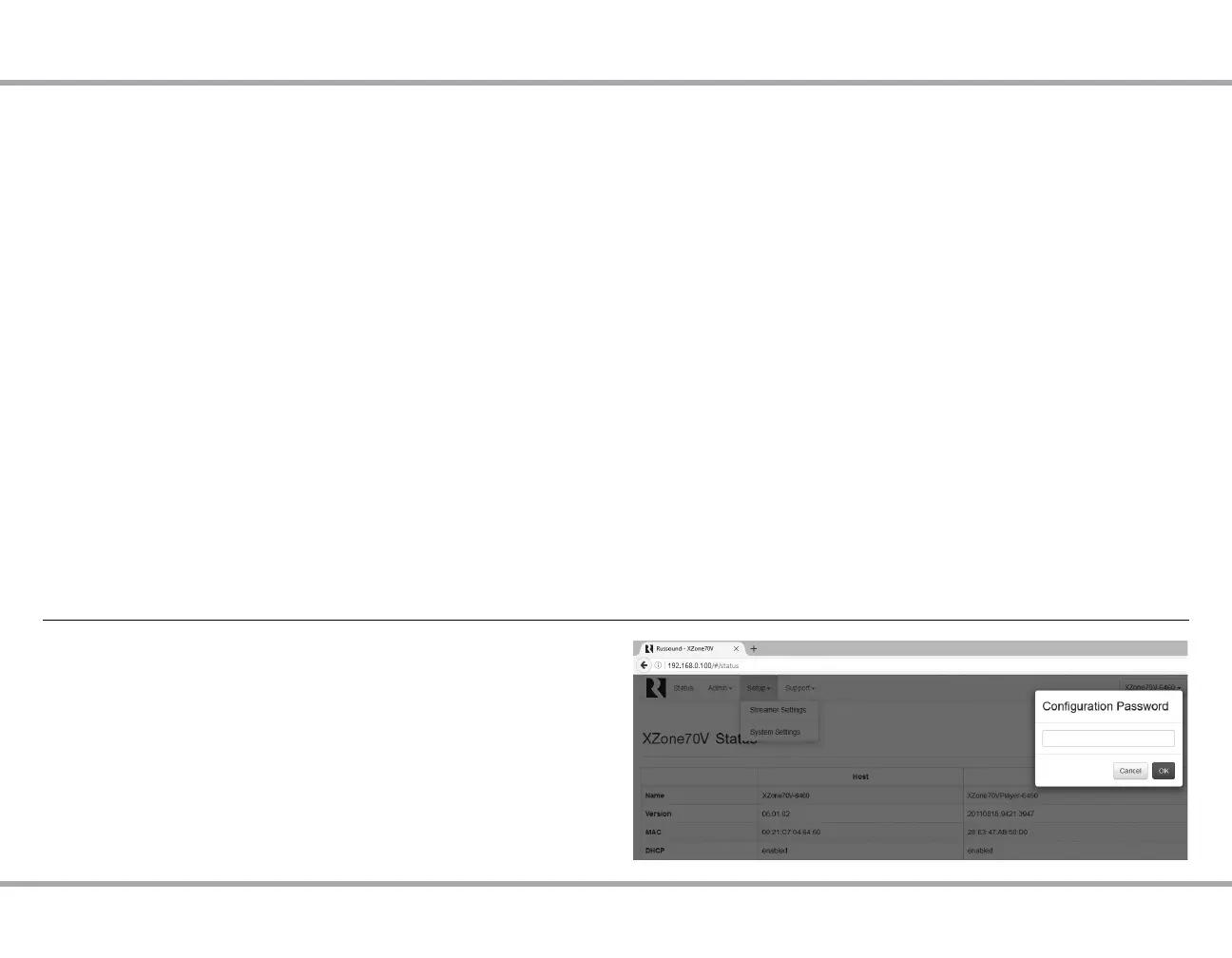

Conguration Password
In order to prevent unauthorized changes to conguration settings, a default
password of has been created that will be required to be russound123
entered prior to changing any conguration settings. Enter this password
when prompted for a Conguration Password.
This password is separate from the Russound Certied Installer password that
is used to unlock the controller and cannot be modied.
