Assembly Instructions for Natural Furniture, Models: NF203, NF213, NFV49
Thank you for choosing the Natural Furniture line from Sanus Systems. If you have any questions regarding this or any
other Sanus Systems product, please contact us at 800.359.5520 or visit us at www.sanus.com. Our customer service
representatives can assist you quickly with any issues regarding assembly or missing parts. Check carefully to make sure
none of the parts are missing or defective. Never use defective parts. Replacement parts for products purchased from an
authorized dealer will be shipped directly to you. Please call Sanus Systems before returning products to retail stores.

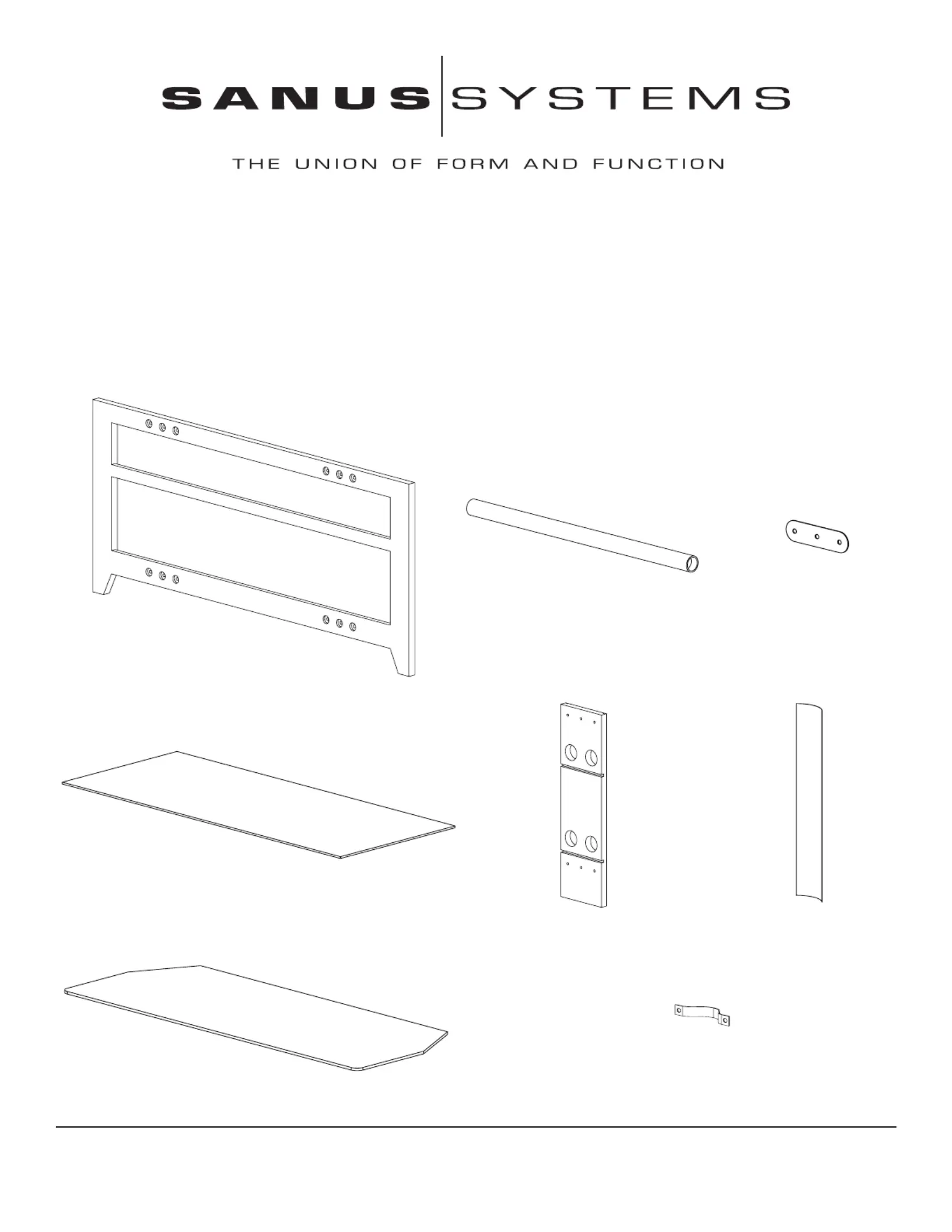

Supplied Parts List: ( )Threaded fasteners are shown full size
Sanus Systems 2221 Hwy 36 West, Saint Paul, MN 55113 04.06.06 (100043)
Customer Service: 800.359.5520. See complementary Sanus products at www.sanus.com
Steel Cross Tube- B
Qty. 12
Front Frame - A
Qty. 1
Wire Strap - H
Qty. 4
Top Glass Shelf - G
Qty. 1
Glass Shelf - D
Qty. 2
Plastic Wire Cover - F
Qty. 2
Three Hole Plate - C
Qty. 8
Rear Support - E
Qty. 2
Step 1: Attach the Cross Tubes to the Front Frame
Position the Front Frame ( ) as shown in Diagram 1; then, thread each Decorative Face Bolt ( ) through the Front Frame, A K
a Three Hole Plate ( ) and into a Steel Cross Tube ( ). C B
Repeat this process until all twelve Steel Cross Tubes ( ) are fastened to the Front Frame ( ) as shown in Diagram 1. B A
Firmly hand tighten each Steel Cross Tube ( ).B
Allen Bolt - I
Qty. 12
Washer - J
Qty. 4
Decorative Face Bolt - K
Qty. 12
Allen Key - M
Qty. 1
Glass Protector - L
Qty. 8
Diagram 1
A
K
CB
Step 2: Attach Rear Supports
NOTE: The Rear Supports (E) must be positioned with set of three holes closest to the edge toward the top and the
horizontal slots facing the Front Frame (A).
Thread an Allen Bolt ( ) through a Washer ( ), the middle hole in a Rear Support ( ), the middle hole in a Three Hole Plate I J E
( ), and into the middle Steel Cross Tube ( ), as shown in Diagram 2. Repeat this procedure until all four middle Allen Bolts, C B
accompanying Washers, and Rear Supports are attached to the middle Steel Cross Tubes.
Thread an Allen Bolt ( ) through each hole of the Wire Straps ( ), the Rear Supports ( ), each outer hole of the Three Hole I H E
Plates ( ), and into the outer Steel Cross Tubes ( ) as shown in Diagram 2.C B
Using the Allen Key ( ), tighten all twelve Allen Bolts ( ).M I
Diagram 2
C
Three holes near
edge toward top.
Horizontal
Slot
H
I
J
E
B
I
Step 3: Install Glass Shelves
NOTE: Make sure the round edges of the Glass Shelves are to the sides and the at edge ts into the horizontal
slot in the Rear Support.
Install the Glass Shelves ( ), and the D E) so the back of each Glass Shelf ts into the horizontal slot in the Rear Support (
front of the Glass Shelf sits down into the groove in the Front Frame ( ) as shown in Diagram 3.A
Diagram 3
D
A
E
Horizontal
Slot
