Assembly Instructions for Natural Furniture, Model: NF204
Thank you for choosing the Natural Furniture line from Sanus Systems. If you have any questions
regarding this or any other Sanus Systems product, contact us at 800.359.5520 or visit us at
www.sanus.com. Our customer service representatives will assist you with any issues regarding
assembly or missing parts. Check to make sure none of the parts are missing or defective. Never
use defective parts. Replacement parts for products purchased from an authorized dealer will be
shipped directly to you. Please call Sanus Systems before returning products to retail stores.

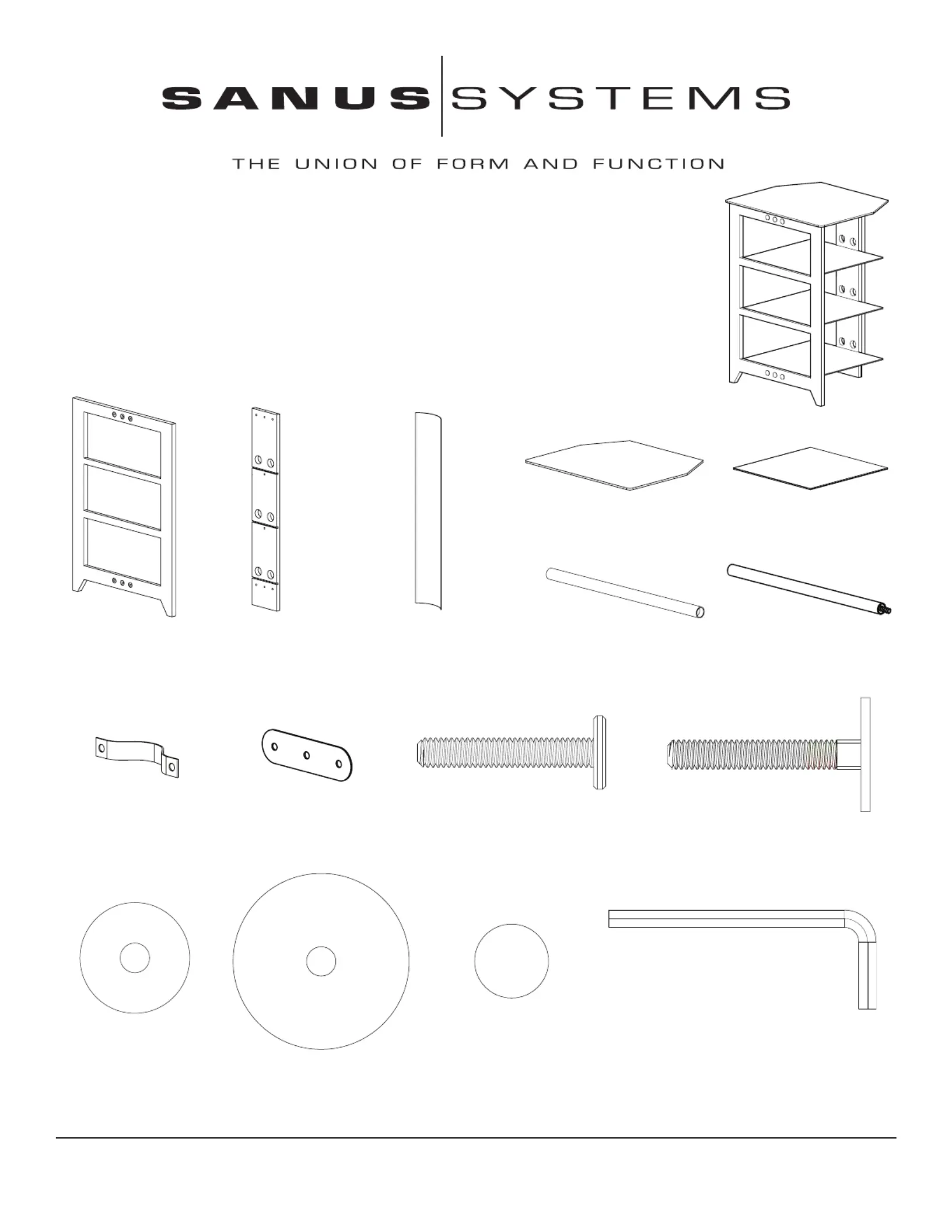

Supplied Parts and Hardware: ( )Threaded are fasteners shown full size
Sanus Systems 2221 Hwy 36 West. St. Paul, MN 55113 04.11.06 (100041)
Customer Service 800.359.5520 See complementary Sanus products at www.sanus.com
Front Frame - A
Qty. 1
Rear Frame - B
Qty. 1
Glass Top Shelf - D
Qty. 1
Glass Mid Shelf - E
Qty. 3
Cross Tube - F
Qty. 6
Wire Strap - H
Qty. 2
Three Hole Plate - I
Qty. 4
Cross Tube W/ Stud - G
Qty. 2
1.5 in. Washer - M
Qty. 4
Decorative Face Bolt - K
Qty. 6
1 in. Washer - L
Qty. 4
Allen Key - O
Qty. 1
Glass Protector - N
Qty. 4
Allen Bolt - J
Qty. 8
Plastic Wire Cover - C
Qty. 1

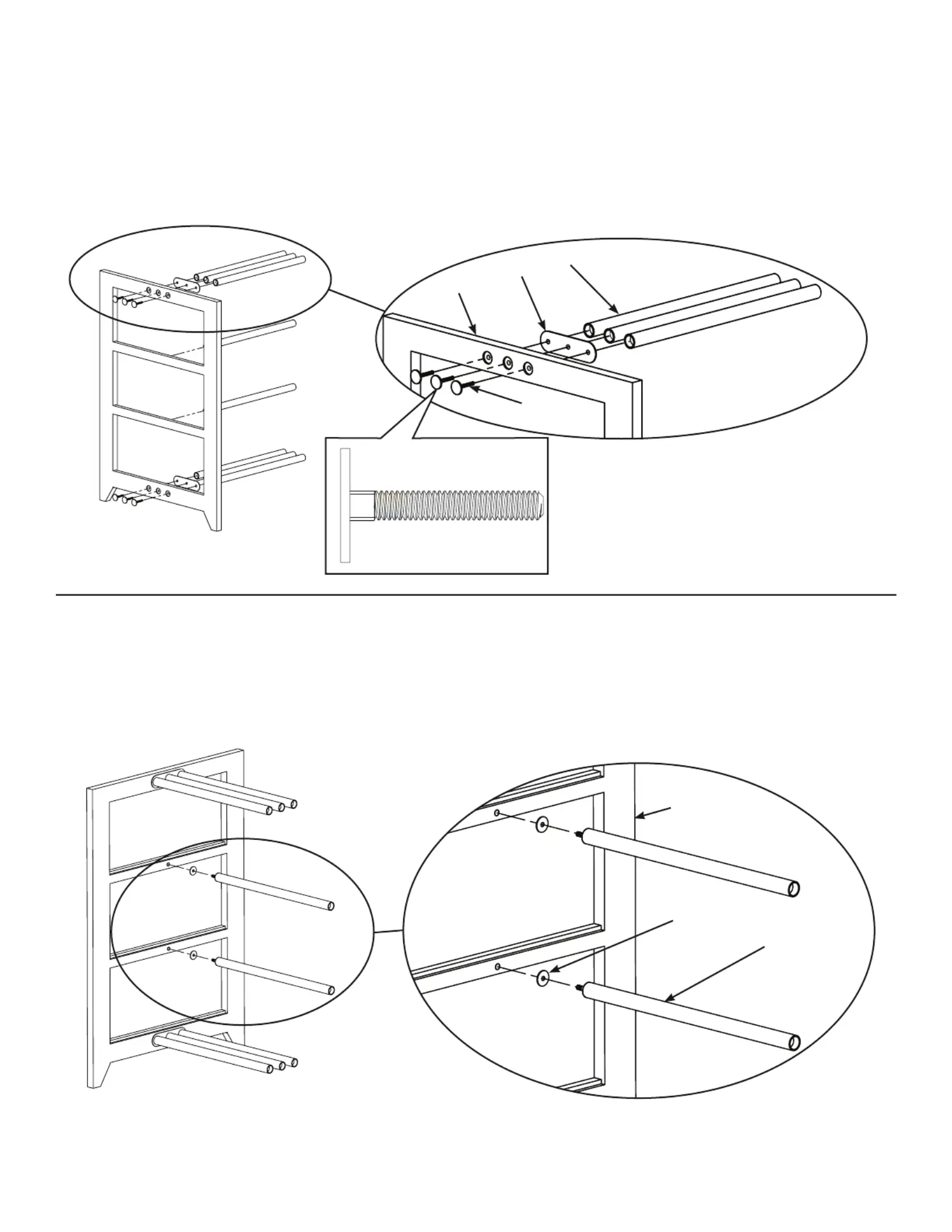

Step 1: Attach Cross Tubes to Front Frame
NOTE: For ease of assembly, lay the Front Fame face down on a soft at surface after inserting the six Decorative
Face Bolts.
Insert six Decorative Face Bolts ( ) through the Front Frame ( ). Slide a Three Hole Plate ( ) over the Decorative Face K A I
Bolts; then, screw a Cross Tube ( ) onto each Decorative Face Bolt. Firmly hand tighten each Cross Tube.F
Diagram 1
K
IF
A
Step 2: Attach Cross Tubes W/Stud to Front Frame
Place a 1” Washer ( ) on the threaded stud of each Cross tube W/Stud ( ) and screw them into the Front Frame ( ). Firmly L G A
hand tighten each Cross Tube W/Stud.
Diagram 2
G
L
A

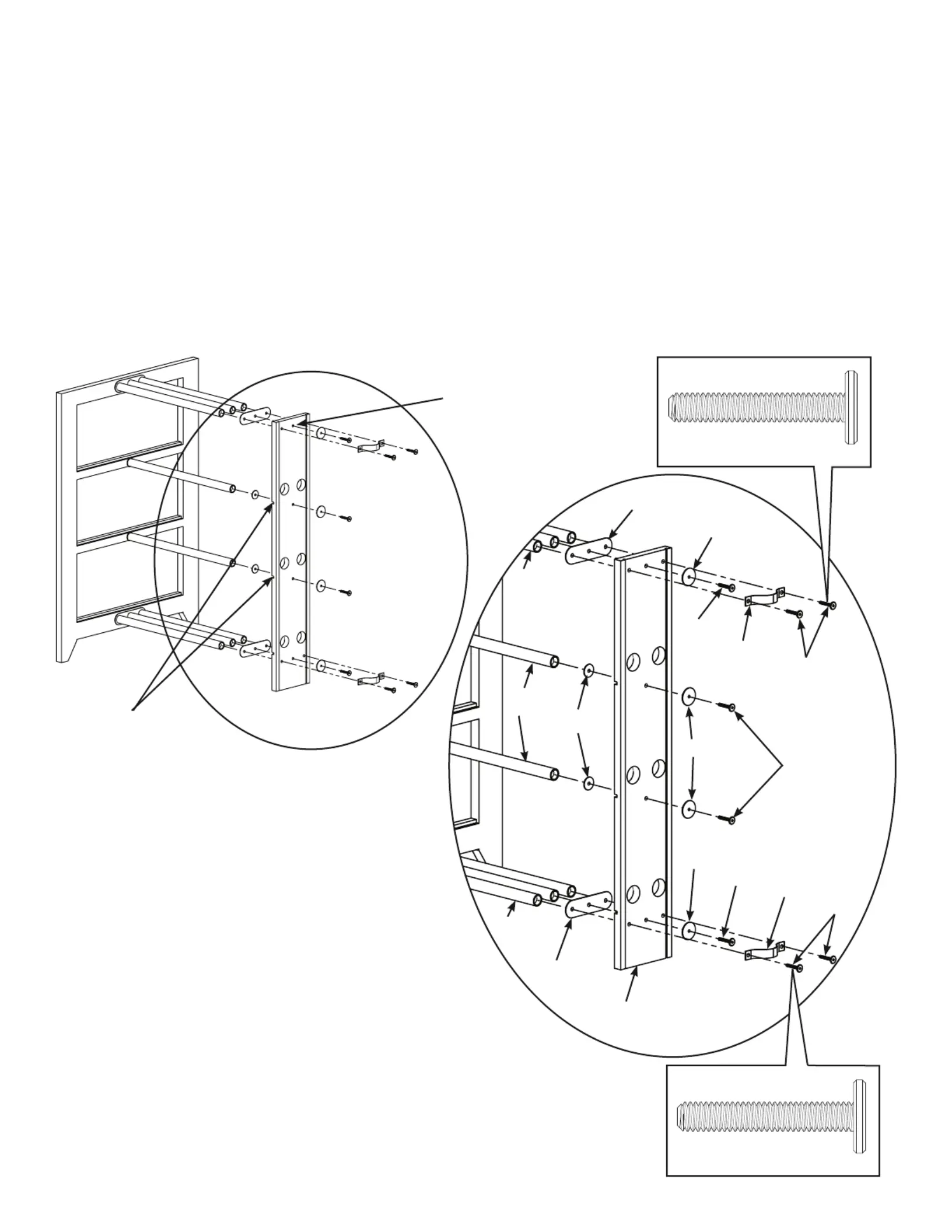

Step 3: Attach Rear Frame to Front Frame and Cross Tubes
With The Cross Tubes (F,G) still facing up, and the Front Frame (A) still on a soft, at surface, place a 1” Washer (L) on each
Cross tube W/Stud ( ) and a Three Hole Plate ( ) on the remaining Cross Tubes ( ). G I F
NOTE: Horizontal grooves in the Rear Frame must be facing the Front Frame and the three holes closest to the
edge of the Rear Frame must be aligned toward the top of the Front Frame.
Align the holes in the Rear Frame ( ) with the holes in the Cross Tubes; then, using a 1.5” Washer ( ) and Allen B M
Bolt ( ), secure the Rear Frame to the Cross Tubes ( ) using the Allen Key ( ).J F O
Using 1.5” Washer ( ) and Allen Bolt ( ), secure the Rear Frames to the two center Cross Tubes W/Studs ( ) using the Allen M J G
Key ( ).O
Using Allen Bolts ( ) and Allen Key ( ), secure the two Wire Straps ( ) to the Rear Frame.J O H
Diagram 3
F
I
M
J
H
J
G
L
M
J
Three holes near
edge toward top.
F
I
J
H
M
J
B
Horizontal
Groove
