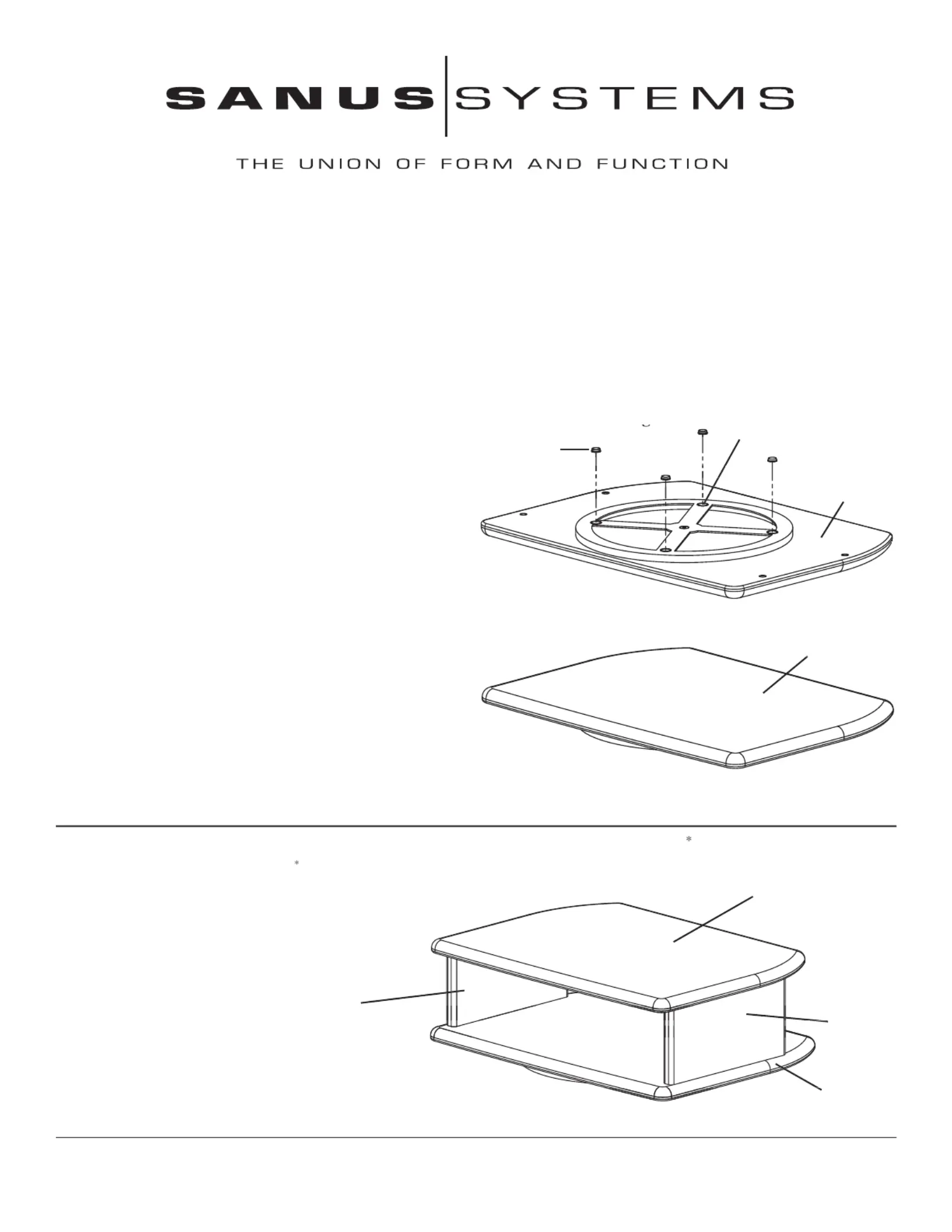

Assembly Instructions for Television Turntables

TV13, TV20, TV27, TV32

Congratulations on your purchase! Sanus Systems Television Turntables

are functional, attractive, and inexpensive. They

are ﬁ nished with a black powder that is both durable and beautiful. Please check carefully to make sure there are no miss-

ing or defective parts. Never use defective parts. Improper assembly may cause damage or injury. If you do not understand

these directions, or have any questions about this assembly please contact Sanus at 800.359.5520 or www.sanus.com. We

can quickly assist you with installation questions and missing or damaged parts.

Supplied Parts:

(1) Television Turntable

Supplied Parts:

(1) Self Adhesive Protective Feet (pad of 4)

Diagram 1

Step 1:

Position the Turntable so the black nylon swivel is facing

up. Locate the circles at the end of each spoke. Next, place a

Adhesive Foot inside each circle, as shown in Diagram 1.

NOTE: If you are going to use the optional TV-VCR Kit,

Proceed to the instructions for those at the bottom of the

page, otherwise, proceed to Step 2.

Step 2:

Flip the Turntable over and place it in the desired position

on a shelf or cabinet so the Adhesive Feet are facing down

and are in direct contact with the shelf or cabinet as shown

in Diagram 2.

Assembly Instructions for Optional TV-VCR Kit

TV-VCR Kit will not work with the TV13 Turntable

Circle

Adhesive

Bottom of

Foot

Turntable

Diagram 2

Top of Turntable

Contents:

(1) Base

Contents:

(2) Support Pillars

Contents:

(4) Plastic Dowels

Contents:

(4) Allen bolts

Contents:

(1) Allen Wrench

Sanus Systems 2221 Highway 36 W. St. Paul, MN 55113

800.359.5520 www.sanus.com 7.6.04

TV Turntable (sold separate)

Support

Pillar Support

Pillar

Base

Step 1:

Remove the swivel from the TV Turntable by removing the

Phillips Screw in the center of the swivel as shown in the Dia-

gram to the right.

Step 2:

Use the same Phillips Screw removed from Step 1 to fasten the

swivel to the base of the TV-VCR Kit. Insert the Phillips screw

through the center hole of the swivel and proceed to thread it

into the appropriate pilot hole in the center of the TV-VCR

Kit as shown in the Diagram on the right. Tighten the Phillips

Screw with a phillips screw driver until tight.

NOTE: When using the TV20 use the front Pilot Hole. When

Using the TV27 or TV32 use the rear Pilot Hole.

Step 3:

Insert the Plastic Dowels into the larger holes in the Support

Pillar as shown in the Diagram on the right. Gently tap the Plas-

tic Dowels in with a hammer if needed. Repeat step for the

other Support Pillar.

Step 4:

Thread the Allen Bolts up through the Base of the TV-VCR Kit,

and into the corresponding holes in the Support Pillar. Tighten

Allen Bolts with the provided Allen Key until they are tight.

Step 5:

Add the TV Turntable to the TV-VCR Kit by setting the Turn-

table on top of the Support Pillars so the dowels in the Support

Pillars line up with the holes in the bottom side of the turntable.

Press the Turntable down ﬁ rmly until the bottom of the Turn-

table is ﬂ ush with the top of the Support Pillars.

Phillips Screw

Bottom of

Turntable

Phillips Screw

TV-VCR Kit Base

Front Pilot Hole Rear Pilot Hole

Plastic Dowels

Larger Hole

Support Pillar

Top of TV-VCR Base

Nylon Swivel is

Allen Bolts Located on the Bottom

Top of TV Turntable

Plastic

Dowel

Top of TV-VCR Kit

Front of Assembly

Sanus Systems 2221 Highway 36 W. St. Paul, MN 55113

800.359.5520 www.sanus.com 7.6.04
