Assembly Instructions for Model: VMPO
Thank You for your purchase of a Sanus Systems Vision Mount! The VMPO is designed to securely attach a Flat Panel LCD to a cabinet
or an armoire. It will allow the ability to pull the TV out and swivel. It can also be used with a VM200 for tilting LCDs or a VMPL50
for Plasmas.
Safety Warning: If you do not understand these directions, or have any doubts about the safety of the installation, please call a qualified
contractor or contact Sanus at 800.359.5520 or www.sanus.com. Check carefully to make sure that there are no missing or defective
parts. Our customer service representatives can quickly assist you with installation questions and missing or damaged parts. Replace-
ment parts for products purchased through authorized dealers will be shipped directly to you. Never use defective parts. Improper instal-
lation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified by Sanus Systems.
Sanus Systems can not be liable for damage or injury caused by incorrect mounting, incorrect assembly, or incorrect use. Please call
Sanus Systems before returning products to the point of purchase.
Required Tools: Drill, 1/4” Drill Bit, wrench or socket set, phillips screw driver

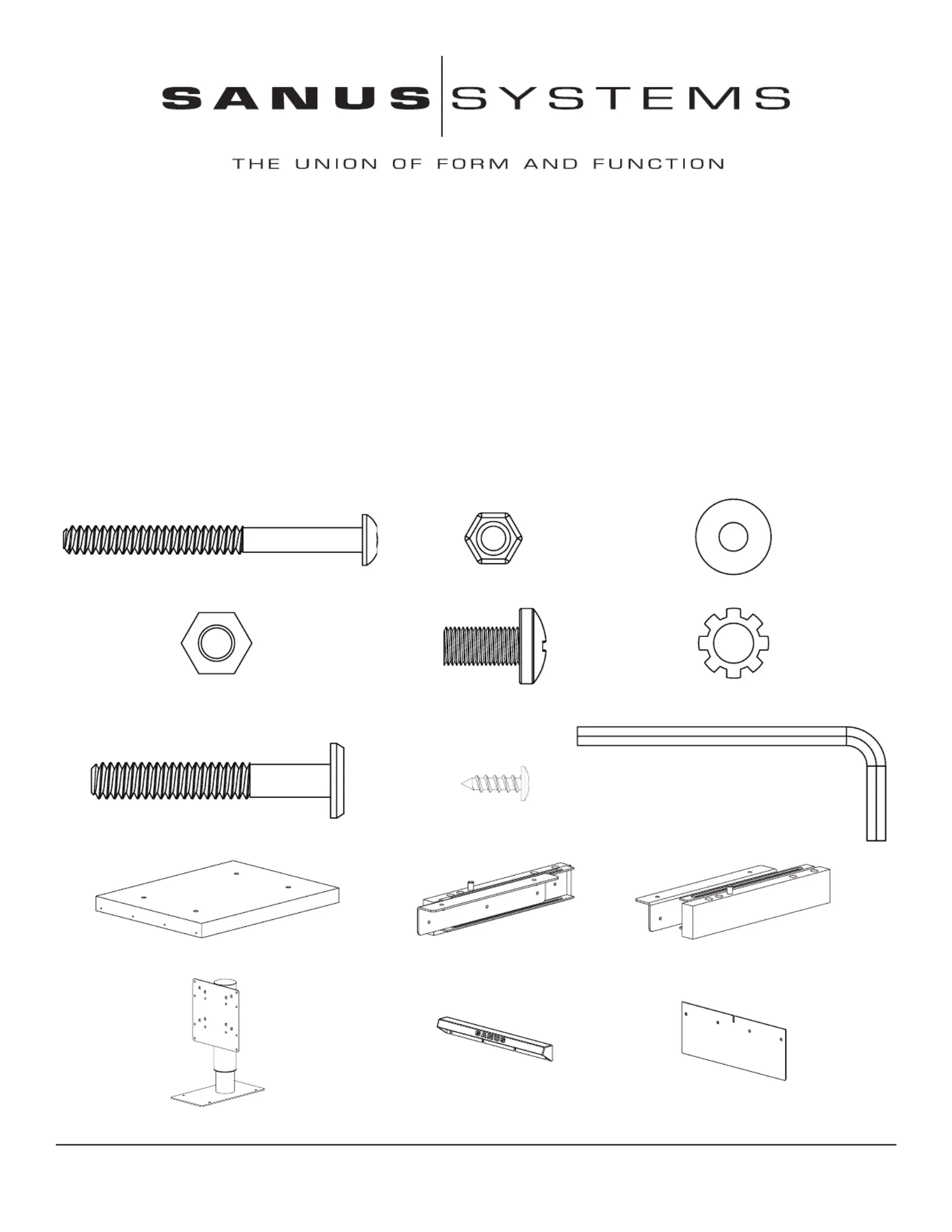

Check carefully to ensure that no hardware or parts are missing
Note: Hardware shown at actual size *Some items not shown at same scale
(6) Button Head Bolt - a (6) 1/4 20 Nut - b (6) Washer - c
(4) M8 Nut - d (4) M8 x 16 Bolt - e (4) M8 Lock Washer - f
(4) Furniture Bolt - g (4) Wood Screw - h (1) Allen Key - i
(1) Base - j (1) Left Glide - k (1) Right Glide - l
(1) Top Assembly - m * (1) Handle - n (1) Front Cover - o
Sanus Systems 2221 Hwy 36 West, Saint Paul, MN 55113 4.05.05
Customer Service: 800.359.5520. See complementary Sanus products at www.sanus.com
TV Attachment Hardware:
(4) M4 x 10 Bolt - p (4) M4 x 30 Bolt - q (4) M6 x 12 Bolt - r (4) M6 x 35 Bolt - s
(4) M4 Lock Washer - t (4) M6 Lock Washer - u (4) M4 Spacer - v (4) M6 Spacer - w
Step 1: Prepare Holes in Mounting Surface
Section A: Mounting the VMPO to the Sanus CFAR47cb
On the bottom side of the Mid Shelf on the CFAR47cb you should see 6 starter holes that have been pre-drilled in a pattern that is shown
in Diagram 1. With a Drill and a 1/4” Drill Bit, proceed to drill out all 6 holes so they go all the way through the shelf.
Mounting the VMPO to any other surface
Tape the Paper Template provided to the desired shelf the VMPO is to be mounted on. Using a Drill and a 1/4” Drill Bit, drill a hole in
each marked location (6 total) in the Shelf. You should have 6 drilled holes that match the pattern shown in Diagram 1.
Note: Diagram 1 is a Cutaway View
Diagram 1
Mounting Surface
Hole Pattern
WARNING: It is the responsibility of the installer to verify the surface the VMPO is mounted to is secured so that it will NOT
tip forward when the television is pulled out into its extended position. The mounting surface must be capable of supporting 5
times the total weight of the television and the mount.
Step 2: Attach Glides to Mounting Surface
To mount the Glides (k,l), insert a Button Head Bolt (a) through each indicated hole in the wood portion of the Glide, the Shelf you are
mounting the VMPO to, a Washer (c), and finally thread a 1/4 20 Nut (b) onto the end. See the Detailed View of Diagram 2 for assistance.
Tighten the Nut with a wrench until tight. Repeat the process until all 3 Button Head Bolts are fastened securely on each Glide.
Note: Make sure the end of the Glide with a Dowel is facing the front of the Shelf.
Detailed View
Diagram 2
a
k
mounting surface
c
b
Step 3: Reposition the Dowels (optional)
To have the VMPO extend further, simply remove the Dowels by lifting them out of the Glides (k,l) and placing them in the front hole
location as shown in Diagram 3.
WARNING: Proceed with this step at your own risk!
Note: Sanus Always recommends fastening the cabinet or armoire to the wall! If you choose to remove this Dowel, it is the
responsibility of the installer to verify the mounting surface is capable of supporting the weight of the television in the fully
extended position.
Diagram 3
Dowel
k l
front location
