Verify Speaker Plug Fit
IMPORTANT SAFETY INSTRUCTIONS
PLEASE READ ENTIRE MANUAL PRIOR TO USE – SAVE THESE INSTRUCTIONS
CAUTION: Avoid potential personal injuries and property damage!
●Please read through these instructions completely to be sure you’re comfortable with this easy install process.
●Do not use this product for any purpose not explicitly specified by manufacturer.
●Manufacturer is not responsible for damage or injury caused by incorrect assembly or use.
●If you do not understand these instructions or have doubts about the safety of the installation, assembly or use of this product,
contact Customer Service
Tools Required
Tape Measure
This product conforms to and should be properly grounded in compliance with requirements of the current National Electrical Code or
codes administered by local authorities.
All electrical products may present a possible shock or fire hazard if improperly installed or used. This product may bear the mark of a
Nationally Recognized Testing Laboratory and should be installed in conformance with current local and/or the National Electrical Code.
WARNING: RISK OF FIRE AND SHOCK. Do not connect the modules 01 or 02 to any other circuits or outlets.
CAUTION: RISK OF FIRE AND SHOCK. ONLY intended for use on 15 ampere branch circuits.
CAUTION: RISK OF FIRE AND SHOCK. Do not install power supply cord 03 within wall cavity.
Pencil Phillips Screwdriver
Paint (optional)
Surfaces are paintable
to match your decor
Electric Drill
WARNING: This product contains small items that could be a choking hazard if swallowed.
Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not
return the damaged item to your dealer; contact Customer Service. Never use damaged parts!
MAX
1 ⅛ in. (29 mm)
BEFORE DRILLING ANY HOLES:
Make sure your speaker plug fits in
the upper module 01 .
Verify Wall Compatibility
Legrand AV Inc. and its aliated corporations and subsidiaries (collectively, “Legrand”), intend to make this manual accurate and complete. However, Legrand makes no claim that the
information contained herein covers all details, conditions, or variations. Nor does it provide for every possible contingency in connection with the installation or use of this product. The
information contained in this document is subject to change without notice or obligation of any kind. Legrand makes no representation of warranty, expressed or implied, regarding the
information contained herein. Legrand assumes no responsibility for accuracy, completeness or suciency of the information contained in this document.
©2020 Legrand AV Inc. All rights reserved. SANUS is a Legrand brand. SANUS and the SANUS logo are trademarks of Legrand.
Legrand AV INC. 6436 City West Parkway; Eden Prairie, MN 55344 USA

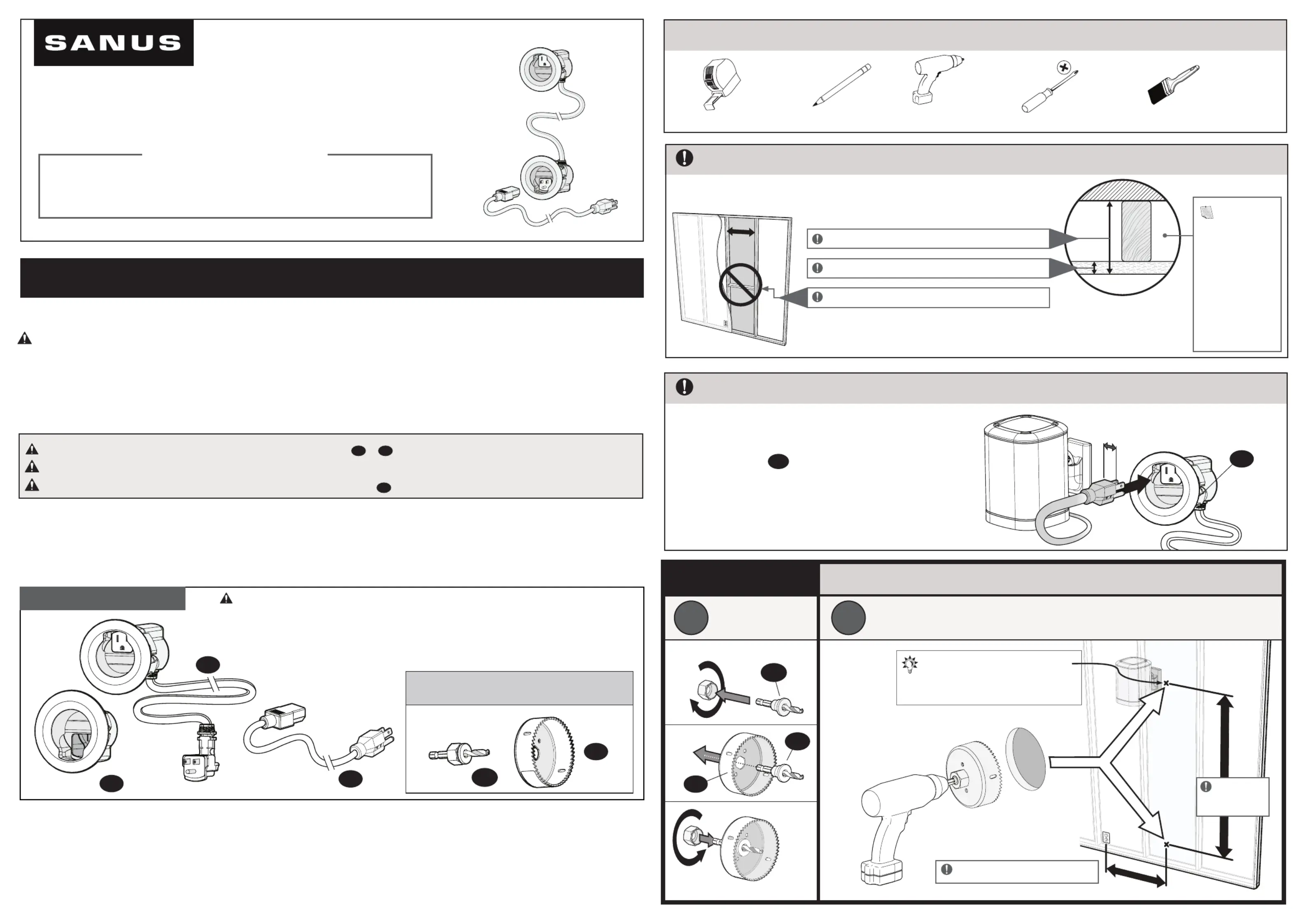

STEP 1
v
Upper Module
Driver Bit
(hole saw)
Hole Saw
3 in.
Lower Module Power Supply Cord 03 04
05
02
01
Assemble the
Hole Saw
abDrill Holes
Drill Holes
TIP: Drill the top hole on the
less visible side, of your speaker.
05
04
04
01
Maximum Distance: 6 feet
Maximum
Height:
10 feet
1025682 03/20
Model WSIWP1-W1
OWNERS GUIDE
IN-WALL CABLE KIT
Before getting started, let’s make sure this product is perfect for you!
Included
Supplied Parts
This Cable Kit is designed to fit into both interior
and exterior walls constructed with:
Minimum Space into Wall: 3 in.
Minimum Drywall Thickness: 1/2 in. (MAX: 1 in.)
No Fire Block Stud in the cavity *
NOTE:
The cable Pass-
Through Width is
1.75 inch.
Walls with blown-
in type insulation
may require
removal of some
insulation inside
the cavity.
Drywall
Stud
Back Wall
We’ll Make It Stress-Free
If you have any questions along the way, just give us a call.
800-359-5520 or, chat at SANUS.com/chatSP
We’re ready to help!
* A horizontal fire block stud requires a 1.75 inch hole to pass the power cord.
This requires removal, then repair of drywall, to gain access to that stud.
We recommend you consult a professional.
STEP 5
Plug In Cables
Insert Modules in Wall Secure Modules
STEP 3 STEP 4STEP 2
Route Cables
REMOVAL
Speaker
Plug
Standard Outlet
a
c
Speaker
Power Cord
bRemove
trim plate
Turn screws to
remove module
Loosen ONLY enough
to remove module.
Unplug
power cords
Low Voltage Cable(s)
Low Voltage Cable(s)
DO NOT over tighten screws
NOTE: The gaskets can be
removed for larger cables.
DO NOT loosen
the screws
TIP: Use a fish
tape, to pull the cables
through the wall.
Replace Trim
Plate
Replace Trim
Plate
Remove
Trim Plate
Remove
Trim Plate
02
01
02
01
01
01
03
02
Low Voltage
Cable(s)
[if needed]
3X
3X
