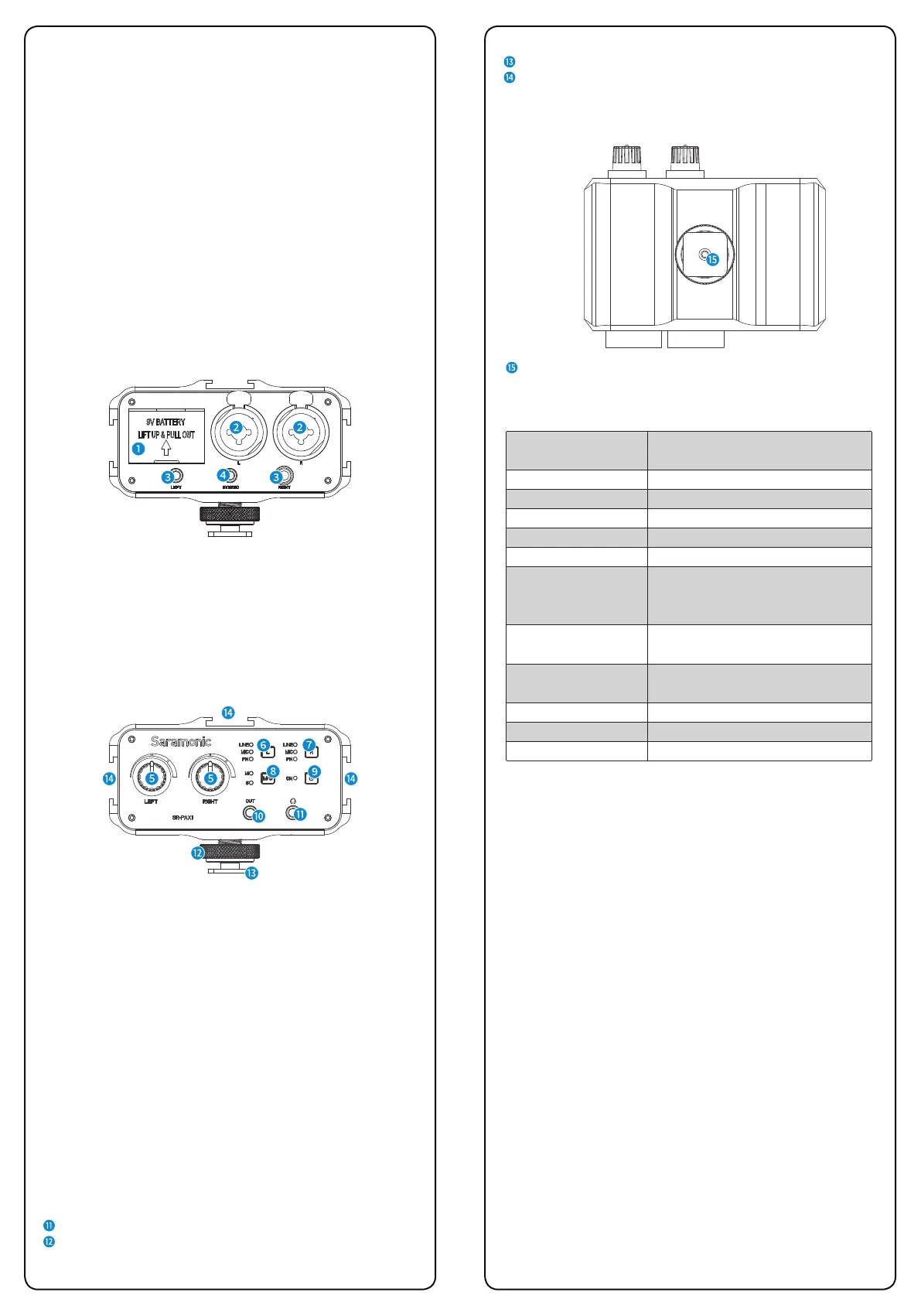

❶ Battery compartment
Operates on a 9 volt battery (not included). You could use a
lithium type battery for longer operating time.
❷ For microphone: two balanced XLR inputs.
For guitar: two 1/4" (6.35mm) mono standard inputs.
❸ Left and right mono 1/8" (3.5 mm) mini-Jack inputs.
❹ Stereo 1/8" (3.5 mm) mini-Jack input.
❺ Dual Trim Control Knobs
Adjust the signal of each channel to the optimum recording levels.
❻ Left Channel Control Button
Control the inputs of left channel. Select LINE or MIC or Phantom
level for the left channel.
❼ Right Channel Control Button
Control the inputs of right channel. Select LINE or MIC or Phantom
level for the right channel.
❽ Mono/Stereo Button (M/S)
When recording one channel, please use the mono(M) setting. The
signal will be sent to both left and right channels. When recording
two channels, please use the stereo(S) setting. The level of each
channel can be controlled individually.
❾ Power Button
Main power switch for SR-PAX1.
❿ Output (OUT)
Stereo 1/8" (3.5 mm) output jack. Use the included signal
transmission line to send the audio signal from the adapter to your
camera.
3.5mm Headphone Output for Monitoring
Lock Knob
Product trod t In uc ion
G rene al Intro c sdu tion
The Saramonic SR-PAX1 is a two-channel audio mixer with phantom
power, specially designed for mirrorless digital camera, DSLR camera and
camcorder with a microphone jack. It is a compact and lightweight mixer
ideal for recording professional quality audio from two sources and mixing
them into your camera.
With two sets of inputs, the SR-PAX1 accepts signals from a wide variety
of mic or line level sources such as balanced XLR microphones, wireless
microphones, guitars, or any musical instruments with a 6.35mm
connector. The 3.5mm inputs are also ideal for connecting audio devices
with a 3.5mm output such as a smart phone or an MP3 player. The input
levels of each channel can be easily controlled with the dual control knobs.
A phone jack allows you to monitor the audio in real time. The SR-PAX1
makes your recording work much easier.
Prod t cuc Stru ture
Set Up Guide
① Install the battery.
Lift up and pull out the drawer from the battery compartment.
Insert 9V battery into place aligning + and - polarity as shown.
Slide the drawer closed until it clicks into place.
② Mount the SR-PAX1 on your camera’s hot shoe. Spin counter-clockwise
to tighten up the mixer with the camera. Or mount the mixer to a
tripod with the tripod socket on the bottom of the mixer.
③ Connect the supplied signal transmission line from the output jack
(OUT) of mixer to the MIC input of camera. If there is a Mic/ Line switch
on the camera, select it to Mic.
④ Connect microphones to the XLR inputs or 3.5mm inputs, or other
audio sources to the 6.35mm inputs.
⑤ Long press the power button to turn on the SR-PAX1.
⑥ Set the LINE/MIC/PH buttons.
When using self-powered microphones and wireless systems, set to
MIC for microphone.
When using guitar or other audio devices, please set to LINE.
When using microphones operating on phantom power, please set to
PH for phantom power. 5 volt phantom power is offered for 3.5mm
microphone jacks and 48 volt phantom power is offered for XLR jacks.
Specification
Input
Output
Phone
Frequency Response
THD
SNR
L & R Gain
Phantom Power
Power Indicator
Power Requirements
Weight
Dimensions
XLR & 6.3mm jacks x2
1 /8" (3.5 mm) jacks x3
1/8" (3.5 mm) jacks x1
1/8" (3.5 mm) jacks x1
20 Hz to 20 Khz, +/-1 dB
Less than 0.01% @ 1 kHz, -30 dBu input
74dBu @ 1 kHz, -30 dBu input
LINE: -30dBu
MIC: 0dBu
MIC/PH: 0dBu
for XLR jacks: 48V power supplies
for 1/8" (3.5 mm) jacks: 5V power supplies
Power on: LED indicator in blue
Low battery: LED indicator in red
9 V alkaline or lithium battery (Not included)
357g
(L×W×H) 101.2mm × 85.0mm ×65.5mm
1/4” Female Screw hole
Standard Cold Shoe
Three Integrated Mounting Shoes
Attach a variety of microphones or other accessories.
www.saramonic.com
The Saramonic logo is trademark which is registered
and owned by Saramonic International.
COPYRIGHT 2011-2021 SARAMONIC INTERNATIONAL
( A brand of DSQN )
Email: info@saramonic.com
SR-PAX1
⑦ Set the M/S switch according to your needs. Please refer to Product
Structure ❽ Mono/Stereo Button.
⑧ Set the volume control knobs to low to avoid excessively loud audio
from damaging your hearing. Plug an headphone into the phone
jack to monitor the sound.
⑨ We suggest you to do a test recording and playback the audio to see if
it is acceptable. When testing, you could adjust the knobs flexibly to
get the the optimum signal levels.
Packing List
One SR-PAX1 main unit
One signal transmission line
User manual
Warranty card
NOTE: Please DO NOT set to PH when recording with microphones
that do not operate on phantom power, like wireless receivers,
mixing boards or any unbalanced device, because it may damage
both the mixer and audio device.
The SR-PAX1 is specially designed for mirrorless digital
camera, DSLR camera and camcorder with a microphone
jack. It is ideal for recording professional quality audio
from two sources and mixing them into your camera.
TWO-CHANNEL AUDIO
MIXER WITH PHANTOM POWER
