FD-1
WATER FLOOD DETECTOR
fd1_en 09/17
The FD-1 detector senses the presence of water leaks or flooding in rooms with plumbing.
This manual applies to the detector with electronics version 1.4 (or newer).
1. Features
External flood sensor.
Supply voltage control.
LED indicator.
Tamper protection against cover removal and tearing enclosure from the wall.
2. Description
The alarm is triggered approximately 4 seconds after the water level
reaches the height at which the flood sensor electrodes are installed.
During the alarm condition the relay contacts are open and the LED
is ON. The alarm ends a few seconds after the water level drops
below the height at which the flood sensor electrodes are installed.
Supply voltage control
In the event of a prolonged voltage drop below 9 V (±5%), the
detector will signal a trouble. The trouble is indicated by the
activation of alarm relay and the steady light of LED indicator. The
trouble signaling will continue as long as the trouble persists.

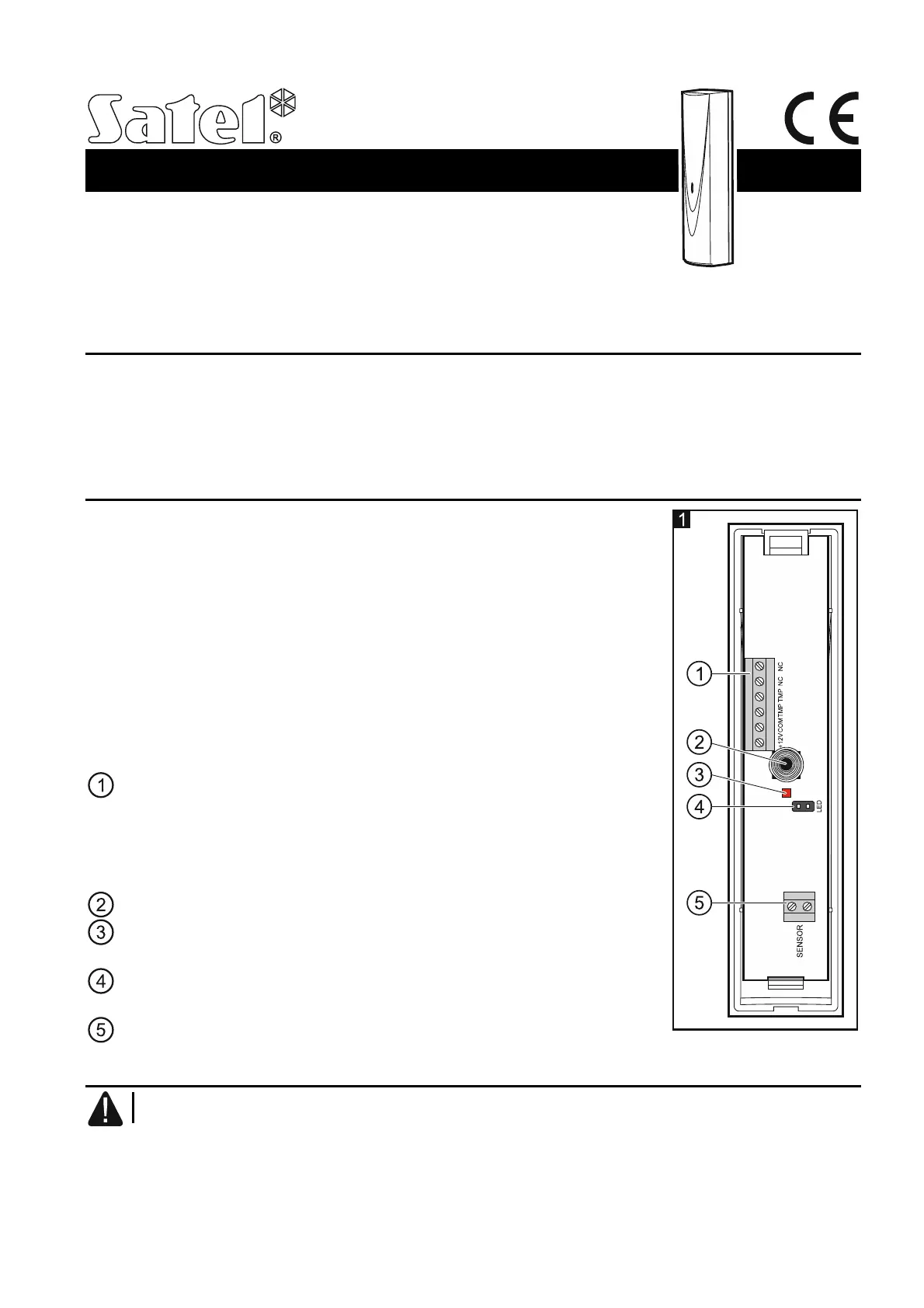

Electronics board
terminals:
+12V - power input.
COM - common ground.
TMP - tamper output (NC).
NC - alarm output (NC relay).
tamper contact.
LED indicating the relay status. It lights red when the relay is
open.
pins for enabling/disabling the LED indicator. The LED indicator
is enabled when jumper is placed on the pins.
terminals for the flood sensor connection.
3. Installation
Disconnect power before making any electrical connections.
The detector is designed for indoor operation.
1. Select the place where the detector is to be installed.
2. Open the detector enclosure (Fig. 2).
3. Make the wire entry opening in the enclosure base.
4. Run the wires through the opening made.
2 FD-1 SATEL
5. Pull the flood sensor wires through the hole in the enclosure.
6. Use screws to fix the enclosure base to the mounting surface (Fig. 4). Wall plugs (screw
anchors) and screws are included in the detector delivery set.
7. Connect the wires to the detector terminals.
8. Close the detector enclosure.
9. Test the detector for proper operation, by submerging the flood sensor in water.
10. Secure the flood sensor wires and the flood sensor itself (Fig. 5). The detector is now
ready for work.
4. Specifications
Supply voltage .................................................................................................12 V DC (±15%)
Standby current consumption ........................................................................................ 2.5 mA
Maximum current consumption ......................................................................................... 4 mA
Relay contacts rating (resistive load) .............................................................. 40 mA / 16 V DC
Flood sensor cable length....................................................................................................3 m
Environmental class.................................................................................................................II
Operating temperature range.............................................................................-10 °C...+55 °C
Enclosure dimensions................................................................................... 26 x 112 x 29 mm
Weight................................................................................................................................. 81 g
The declaration of conformity may be consulted at www.satel.eu/ce
SATEL sp. z o.o. • ul. Budowlanych 66 • 80-298 Gda sk • POLAND ń
tel. +48 58 320 94 00
www.satel.eu
