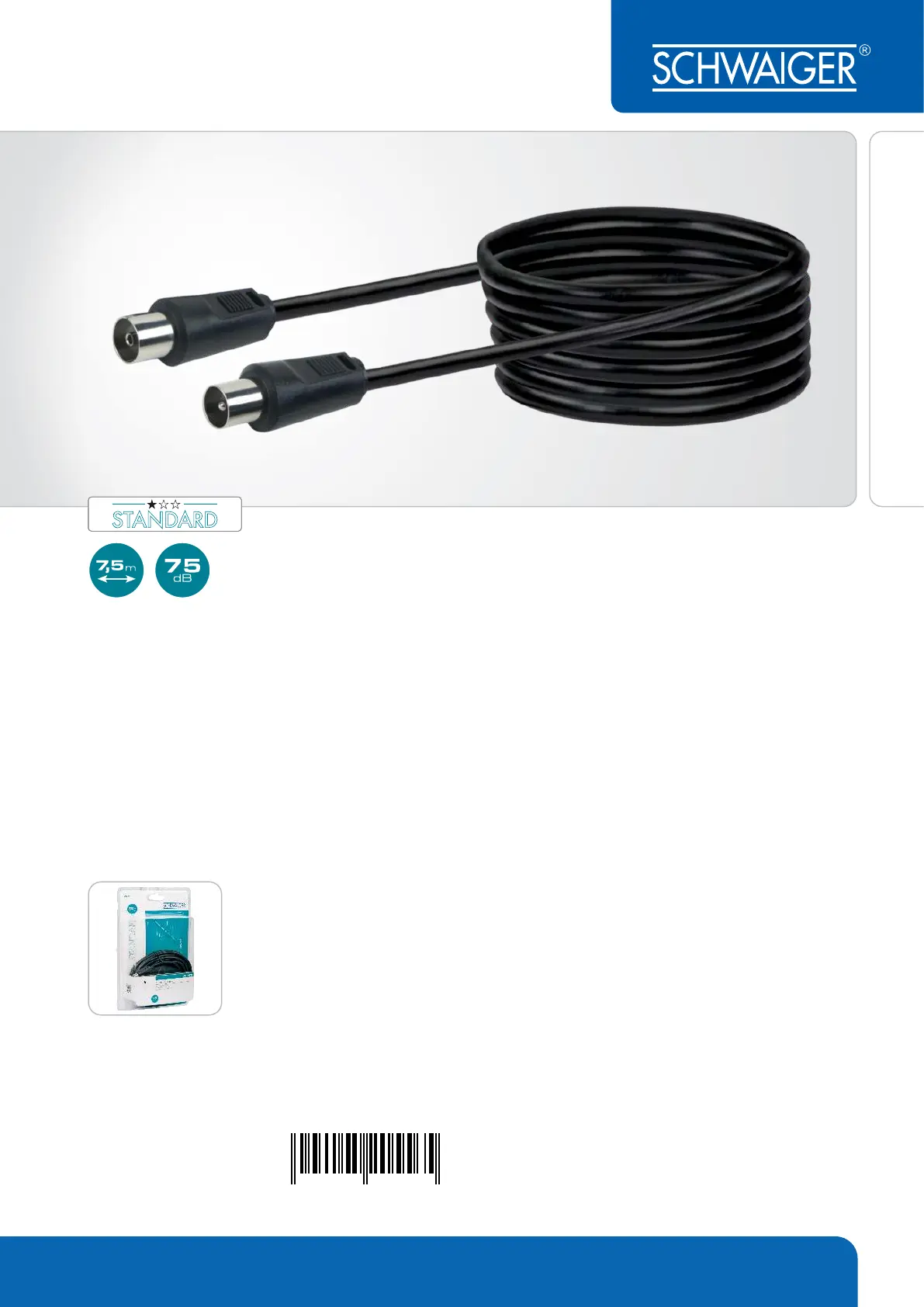

Antenna Connection Cable (75 dB)

IEC plug > IEC jack

This SCHWAIGER® antenna connection cable

is suitable for antenna systems and cable TV

systems. It is shielded twice, which makes it

less prone to any kind of signal interference.

The cable is used between the antenna socket

and a receiver.

ARTICLE INFORMATION

Article Nr KVK75 533

EAN 4004005205565

4 004005 205565

Last updated: 23.03.2016

productinformation

Schwaiger GmbH Würzburger Str. 17 90579 Langenzenn Tel. +49 (09101) 702-0 Fax +49 (09101) 702-196 www.schwaiger.de info@schwaiger.de

Errors, variations and changes concerning technical data and illustrations are subject to change. Our General Terms and Conditions for the Supply of Goods and Services apply.

ANTENNA

FEATURES (KVK75 533)

• shielded twice for less electromagnetic signal interference

• shielding consists of aluminium foil and wire mesh

• for connecting a device equipped with an antenna

connection to an antenna socket

• example for connection: antenna socket > cable receiver

TECHNICAL DATA

quality * Standard

Connections 1x IEC connector

1x IEC jack

Impedance 75 Ohm

Plugs plastic

contact: metal

Cable design 0.5 mm (inner conductor)

2.8 mm (dielectric)

5 mm (sheath)

Shielding value 75 dB

Shielding shielded twice

Inner conductor CCS

Cable length 7.5 m

Colour black

packaging sealed blister SBL04

    

 Außenisolation

 Schirmgeﬂecht

 Aluminiumfolie

 Dielektrikum (Innenisolation)

 Innenleiter

 Exterior insulation

 Braid

 Aluminium foil

 Dielectric (inner insulation)

 Inner conductor
