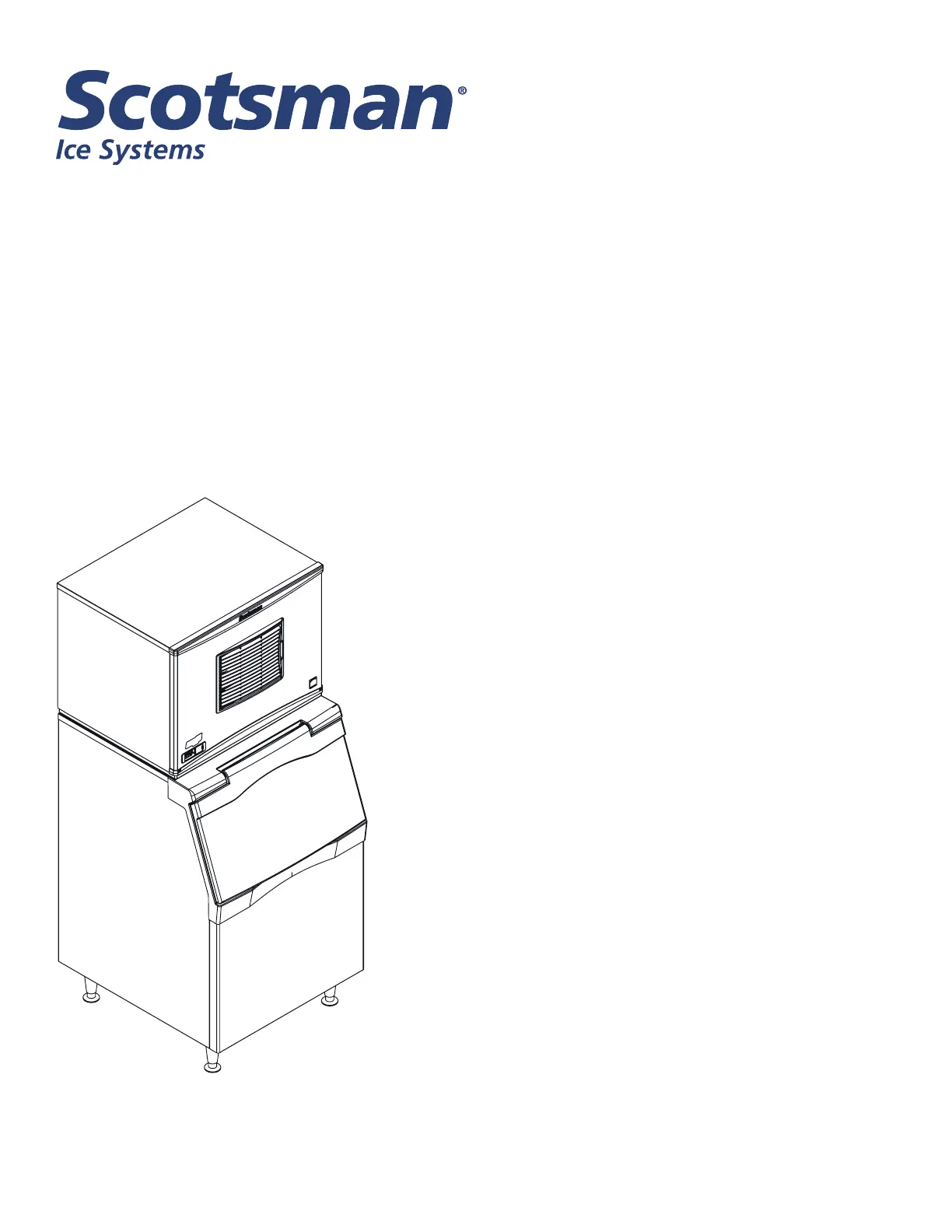

Installation and User’s Manual for
Modular Cuber
Prodigy Plus E Series Models C0322, C0522,
C0722, C0330, C0530, C0630, C0830 and C1030
C0322 through C1030 E Series
Air and Water Cooled User Manual
July 2018
Page 1
Introduction
The design of this modular cuber is the result of years
of experience and testing. Standard features include
front accessible indicator lights and on-off switches
that provide the user with fast access to critical
information and easy operational control.
Keep this manual for future reference.
This installation and user manual is divided into
three main sections: Installation, which provides
the trade person with the information needed to
set up and install this product; Use and Operation,
which provides the user with the information to use
the product; and Maintenance, which provides the
user with the information needed keep it operating
efciently.
Note any Caution or Warning symbols when they
appear on the product or in this manual. They indicate
potential hazards.
Contents
Installation: Product Specications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 2
Model Number Description Page 3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Product Description & Electrical Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 4
C0322 and C0522 Cabinet Layout Page 5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
C0722 Cabinet Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 6
C0330, C0530, C0630 Cabinet Layout Page 7 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
C0830 and C1030 Cabinet Layout Page 8 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Water Page 9 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Panel Removal Page 10 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Plumbing Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 11
Electrical . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 12
Final Check List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 13
Initial Start Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 14
Adjustments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 15
Use and Operation Page 16 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Control Switches. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 17
Cleaning, Sanitation and Maintenance Page 18 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Air cooled condenser lter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 20
What to do before calling for service Page 21 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
C0322 through C1030 E Series
Air and Water Cooled User Manual
October 2016
Page 2
Installation: Product Specications
Location Limitations:
The product is designed to be installed indoors, in a
controlled environment. Air cooled models discharge
very warm air into the room out the back. Space must
be allowed at the sides and back for air discharge.
Water cooled models discharge warm water into the
building’s drain.
Space needs to be provided on both sides and above
for service access.
Space Limitations
Note: Although the machine will function, ice capacity
of air cooled machines will be signicantly reduced
with minimal clearance at the sides, back and top.
Some space is recommended for service and
maintenance purposes on all models. 6" of space
at the sides and back are required for adequate
operation. To get the most capacity, locate the
machine away from heat producing appliances and
heating ducts, and allow 12-18 inches of space at
the sides and top for good air ow.
Airow is in the front, out the back. Attach a bafe kit
to the back when an air cooled unit is installed with
minimal side and top clearance. See the next page for
kit numbers.
Environmental Limitations
Minimum Maximum
Air temperature 50oF. 100oF.
Water temperature 40oF. 100oF.
Water pressure 20 psi 80 psi
Power supply – acceptable voltage ranges
Minimum Maximum
115 volt model 104 volts 126 volts
230 volt model 198 volts 253 volts
Warranty Information
The warranty statement for this product is provided
separately from this manual. Refer to it for applicable
coverage. In general warranty covers defects
in material or workmanship. It does not cover
maintenance, corrections to installations, or situations
when the machine is operated in circumstances that
exceed the limitations printed above.
Product Information
The product is a modular cuber. That type of machine
is designed to be placed on an ice storage bin or
an ice dispenser. Many installations only require the
matching bin, but some also require an adapter to
be placed between the bin and the cuber or between
the dispenser and the cuber. This product cannot be
stacked. See the chart for application information.
Air Flow
