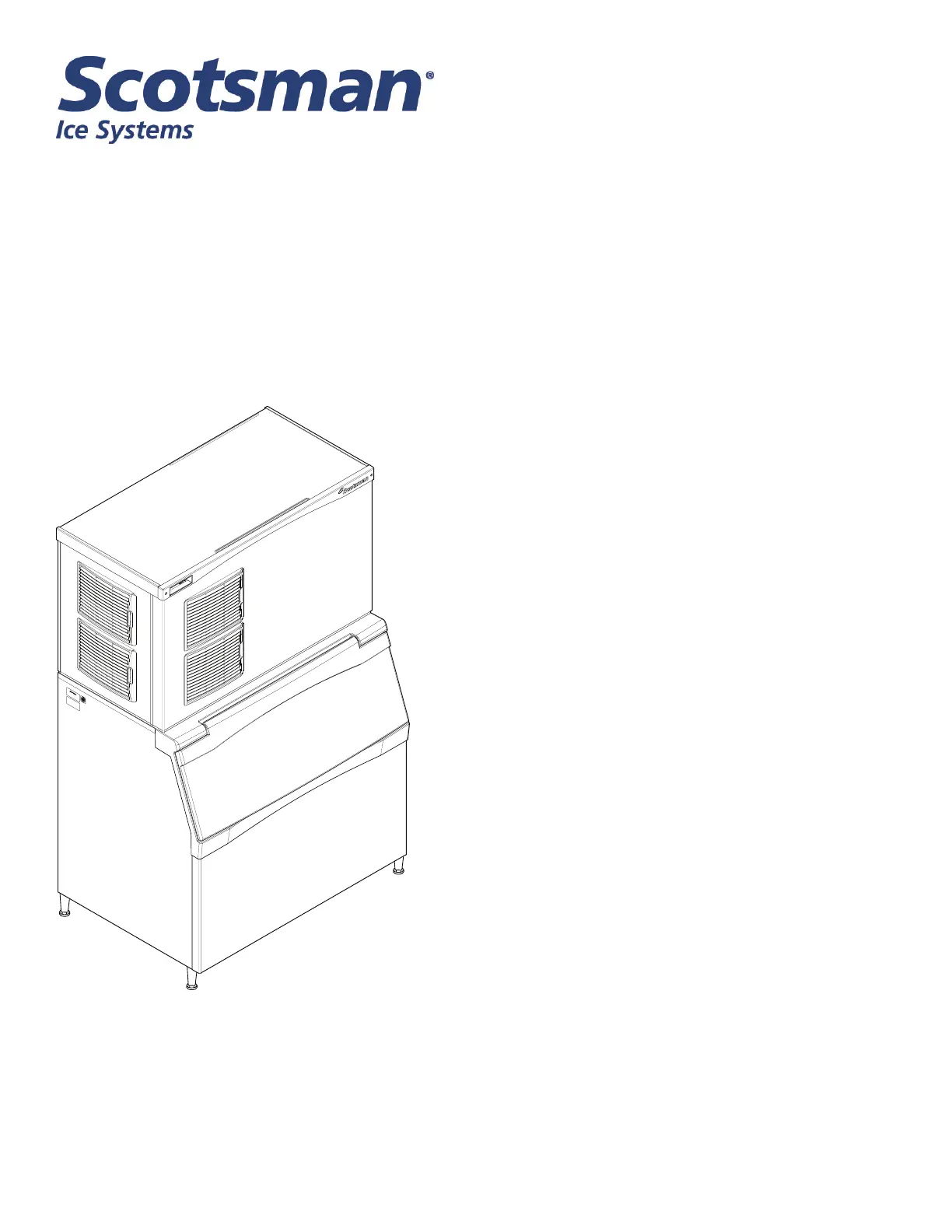

Installation and User’s Manual

Models C1448, C1848, C2148W

C1448, C1848, C2148W

Air and Water Cooled User Manual

November 2006

Page 1

The design of this modular cuber is the result of years

of experience and testing. Standard features include

front accessible indicator lights and on-off switches

that provide the user with fast access to critical

information and easy operational control.

When desired, optional controls can add features

like ultrasonic bin ice level sensing, seven day

programmable bin ice level setting, remote lock out

and more.

This installation and user manual is divided into

three main sections: Installation, which provides

the trade person with the information needed to

set up and install this product; Use and Operation,

which provides the user with the information to use

the product; and Maintenance, which provides the

user with the information needed keep it operating

efciently.

Introduction

Contents

Installation: Product Specications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 2

Product Information Page 3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Product Description & Electrical Requirements Page 4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Cabinet Layout, Air Cooled Page 5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Cabinet Layout, Water Cooled Page 6 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Water Page 7 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Panel Removal Page 8 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Uncrate and Set Up Page 9 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Plumbing Requirements Page 10 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Drains Page 11 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Electrical Page 12 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Final Check List Page 13 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Initial Start Up Page 14 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Adjustments Page 15 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Water ush setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 16

Use and Operation Page 17 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Switches Page 18 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Options and Other Information Page 19 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Cleaning, Sanitation and Maintenance Page 20 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Air cooled condenser lter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 22

What to do before calling for service Page 23 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

C1448, C1848, C2148W

Air and Water Cooled User Manual

November 2006

Page 2

Installation: Product Specications

Location Limitations: The product is designed to be

installed indoors, in a controlled environment. Air

cooled models discharge very warm air into the room

out the back. Space must be allowed at the left side

and back for air intake and discharge.

Water cooled models discharge warm water into the

building’s drain. Space needs to be provided on both

sides and above for service access.

Space Limitations

Note: Although the machine will function, ice capacity

of air cooled machines will be signicantly reduced

with minimal clearance at the sides, back and

top. Some space is recommended for service and

maintenance purposes on all models.

6" of space at the sides and back are required for

adequate operation. To get the most capacity, locate

the machine away from heat producing appliances

and heating ducts. Provide several feet of space to

the left for maximum ice capacity.

Walls or other large machines near to the ice machine

might also cause a reduction in ice capacity. One foot

behind and two feet above will be required to make

rated capacity.

Airow is in the front, in the left side, out the back (as

viewed from the front).

Environmental Limitations

Minimum Maximum

Air temperature 50oF. 1 100oF.

Water

temperature

40oF. 100oF.

Water pressure 20 psi 80 psi

Power supply – acceptable voltage ranges

Minimum Maximum

208-230 volt

model

198 volts 253 volts

Warranty Information

The warranty statement for this product is provided

separately from this manual. Refer to it for applicable

coverage. In general warranty covers defects

in material or workmanship. It does not cover

maintenance, corrections to installations, or situations

when the machine is operated in circumstances that

exceed the limitations printed above

Airow
