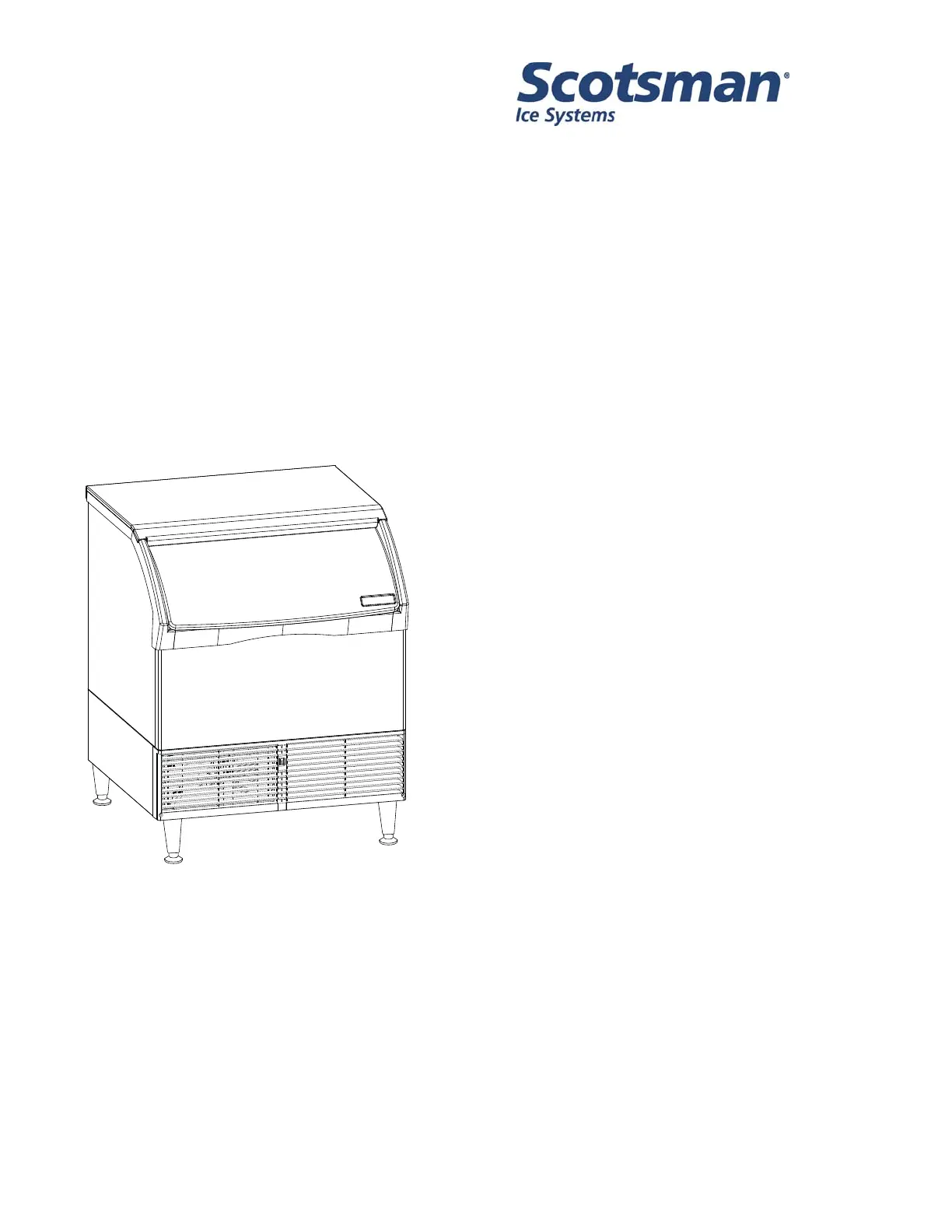

Installation and
User's Manual for
Self Contained Cubers
Models CU1526, CU2026 and CU3030
Introduction
The design of this cuber is the result of years of
experience and testing. Standard features include
a removable bin for service.
Keep this manual for future reference.
This installation and user manual is divided into
three main sections: Installation, which provides
the trade person with the information needed to set
up and install this product; Use and Operation,
which provides the user with the information to use
the product; and Maintenance, which provides the
user with the information needed keep it operating
efficiently.
Note any Caution or Warning symbols when they
appear on the product or in this manual. They
indicate potential hazards.
May 2008
Page 1
CU1526, CU2026, CU3030
User Manual
Table of Contents
Installation: Product Specifications Page 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Model Number Description Page 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Water Page 4..............................................
CU1526 and CU2026 Cabinet Layout Page 5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
CU3030 Cabinet Layout Page 6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Ice Storage Bin Removal Page 7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Plumbing Requirements Page 8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Electrical Page 9. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Final Check List Page 9. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Initial Start Up Page 10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Adjustments Page 11. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Use and Operation Page 12. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Control Switches Page 13. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cleaning, Sanitation and Maintenance Page 14. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
What to do before calling for service Page 16. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation: Product Specifications
Location Limitations:
The product is designed to be installed indoors, in
a controlled environment. Air cooled models
discharge very warm air into the room. Water
cooled models discharge warm water into the
building’s drain. Space needs to be provided for
service access.
Space Limitations
Do not block air flow at the front.
Airflow for air cooled models is in the front left and
out the front right; CU3030 air cooled models also
take air in from the bottom of the cabinet
Built In Situations:
•If built in under the counter with no space
above, the bin cannot be removed without
moving the unit.
•If built in with 1" or more clearance above the
unit, the bin can be removed without moving
the unit.
•If built in with between 1/2 and 1 inch of
clearance, releasing the top panel's back flap
prior to placement will allow removal of the
bin without moving the unit.
In most cases, CU3030 air cooled models installed
without legs or casters will experience reduced ice
making capacity.
Environmental Limitations
Minimum Maximum
Air temperature 50oF. 100oF.
Water temperature 40oF. 100oF.
Water pressure 20 psi 80 psi
Note: Ice making capacity will be severely reduced
for air cooled machines in hot environments, such
as those over 95 degrees.
Power supply – acceptable voltage ranges
Minimum Maximum
115 volt model 104 126
230 volt model 198 253
Warranty Information
The warranty statement for this product is provided
separately from this manual. Refer to it for
applicable coverage. In general warranty covers
defects in material or workmanship. It does not
cover maintenance, corrections to installations, or
situations when the machine is operated in
circumstances that exceed the limitations printed
above.
Product Information
The product is a self contained cuber with bin. That
type of machine is designed to be free standing or
it can be built in under the counter.
Options
Casters may be used in place of the supplied legs,
the kit number is KBC1.
When not using legs or casters, most codes
require sealing to the floor. Kit numbers to allow
sealing are KPUFM26 and KPUFM30.
May 2008
Page 2
CU1526, CU2026, CU3030
User Manual
Air Flow - Do Not Restrict
Room Temp Air In
Warm Air Out
