Scotsman CU50GA1A Bruksanvisning
Läs nedan 📖 manual på svenska för Scotsman CU50GA1A (16 sidor) i kategorin Ismaskin. Denna guide var användbar för 16 personer och betygsatt med 4.5 stjärnor i genomsnitt av 2 användare
Sida 1/16

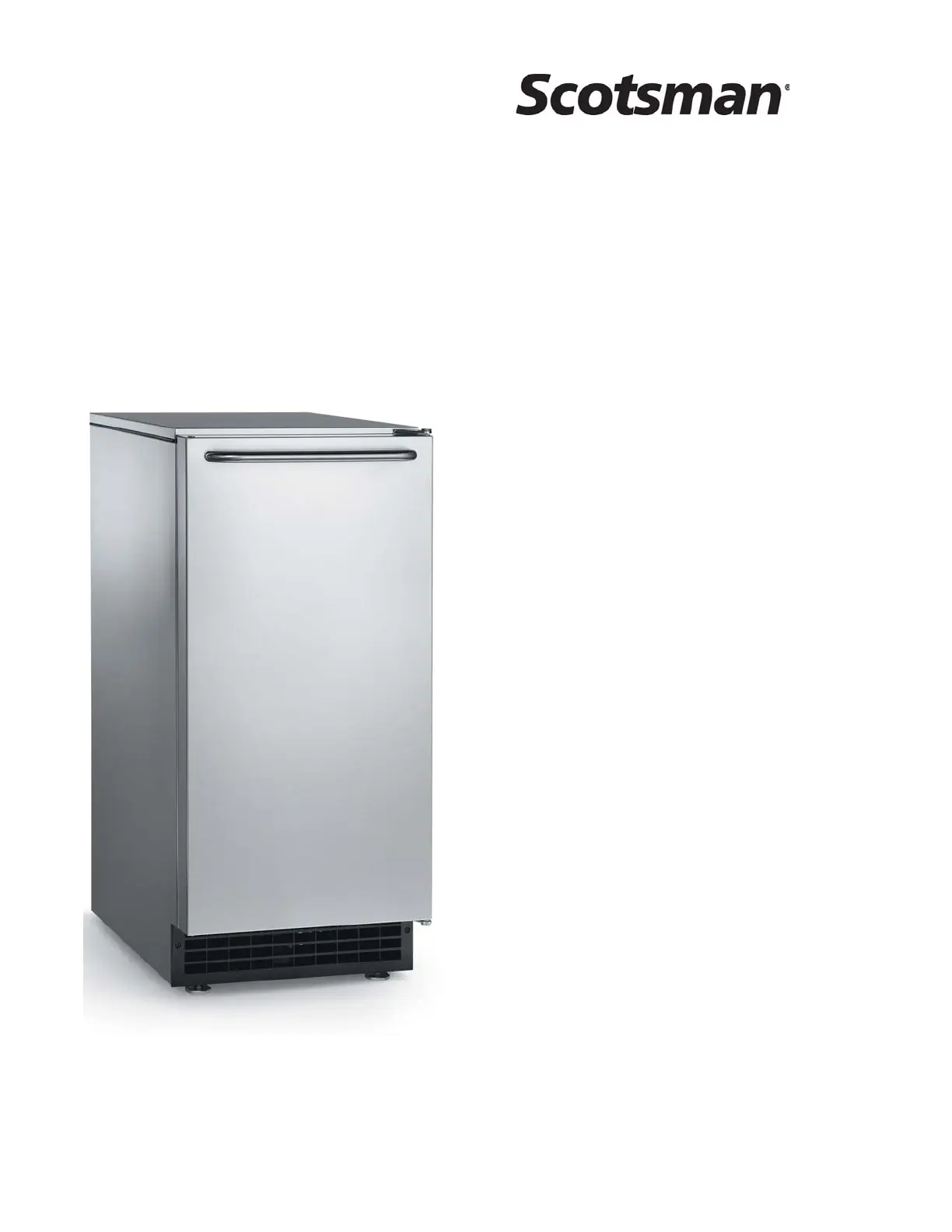

Installation and
User's Manual for
Cube Ice Machine
Model CU50
Introduction:
This ice machine is the result of Scotsman’s
decades of experience as an industry leader in the
design and manufacture of both commercial and
residential ice machines.
This manual includes the information needed to
install, start up and maintain the ice machine. Note
any Caution or Warning indicators, as they provide
notice of potential hazards. Keep this manual for
future reference.
March 2010
Page 1
CU50
Installation and User's Manual
Table of Contents
Specifications Page 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cabinet Layout Page 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Air flow & Control Panel Page 4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Water Quality Page 5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Door swing change Page 6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Notes for the Installer Page 7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation: Water & Drain Page 8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Gravity Drain Page 9. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Electrical Page 10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Start Up Page 11. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Use ............................................... Page 12
How to clean the condenser and winterize. Page 13. . . . . . . . . . . . . . . . . . . . . . . . . . .
Clean and Sanitize Ice Making System Page 14. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
What to do before calling for service Page 15. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Outdoor Use Notice:
Keep from freezing. Severe damage will occur to the unit if left in or operated in temperatures beyond
the limits listed in this manual. That damage is NOT covered by warranty.
Keep dry. Do not locate in low lying areas where puddles will accumulate.
Provide Shade: Heat gain from the sun will reduce the unit's ability to make and store ice, and
ultraviolet radiation from the sun can potentially damage the unit's plastic components.
Water Supply: Avoid a long run of hose or tubing exposed to the sun. Plastic water supply tubing
should be rated for potable water and include UV protection. Copper tubing is recommended.
Back Flow Prevention: The unit includes back flow prevention, no additional check valve is required.
Drainage: Do Not drain into swimming pool or onto grounds.
Operation: It is normal for the ice level in the storage bin to be low when unit is used in temperatures
below 65 degrees F.
Specifications
This ice machine is designed to be used indoors, in
a controlled environment, and under limited
conditions (see page 1), outdoors. It can be used in
a wide variety of environmental conditions, but
there are limits. Use outside of the listed limitations
is misuse and will void the warranty.
Air temperature limits:
The ice machine will operate adequately within the
limits, but functions best in temperatures between
70 and 80 degrees F.
•Minimum – 50 degrees F. (10oC)
•Maximum – 100 degrees F. (38oC)
Water temperature limits:
•Minimum – 40 degrees F. (4.5o
C)
•Maximum – 100 degrees F. (38oC)
Water pressure limits:
•Minimum – 20 psi (1.4 bar)
•Maximum – 80 psi (5.5 bar)
Because the ice machine is making a food product,
the water supply to the ice machine must be
potable, or fit for human consumption.
Other:
Indoor use and kickplate: You may remove the
stainless steel kickplate cover from the unit when
installed indoors. Leave the plastic kickplate on the
unit.
Note:The stainless steel kickplate cover must
remain on the unit when the unit is installed
outdoors.
Electrical voltage limits:
•Minimum - 104 volts
•Maximum – 126 volts
Models
•CU50GA-1A - gravity drain
•CU50PA-1A - pump drain
Options:
Kickplate Extension: In some situations the leg
levelers will be extended enough to become visible.
A kit to extend the kickplate over the legs is .KKPF
Cabinet Stability: In some free standing
installations it may be prudent to add a bracket that
secures the back of the cabinet to a wall. That kit
number is .KATB
Drain Conversion: A gravity drain model can be
converted to a drain pump model by installing a
drain pump kit. The drain pump kit consists of a
drain pump, wiring harness and associated tubing.
The part number is .A39462-021
Warranty Information
Warranty information is supplied separately from
this manual. Refer to it for coverage. In general, the
warranty covers defects in materials or
workmanship and does not cover corrections of
installation errors or maintenance.
May 2010
Page 2
CU50
Installation and User's Manual
Cabinet Dimensions
Width Depth, with door panel, handle adds 1 5/8" Height
14 7/8" 22 3/4" 33 3/8" to 34 3/8"
