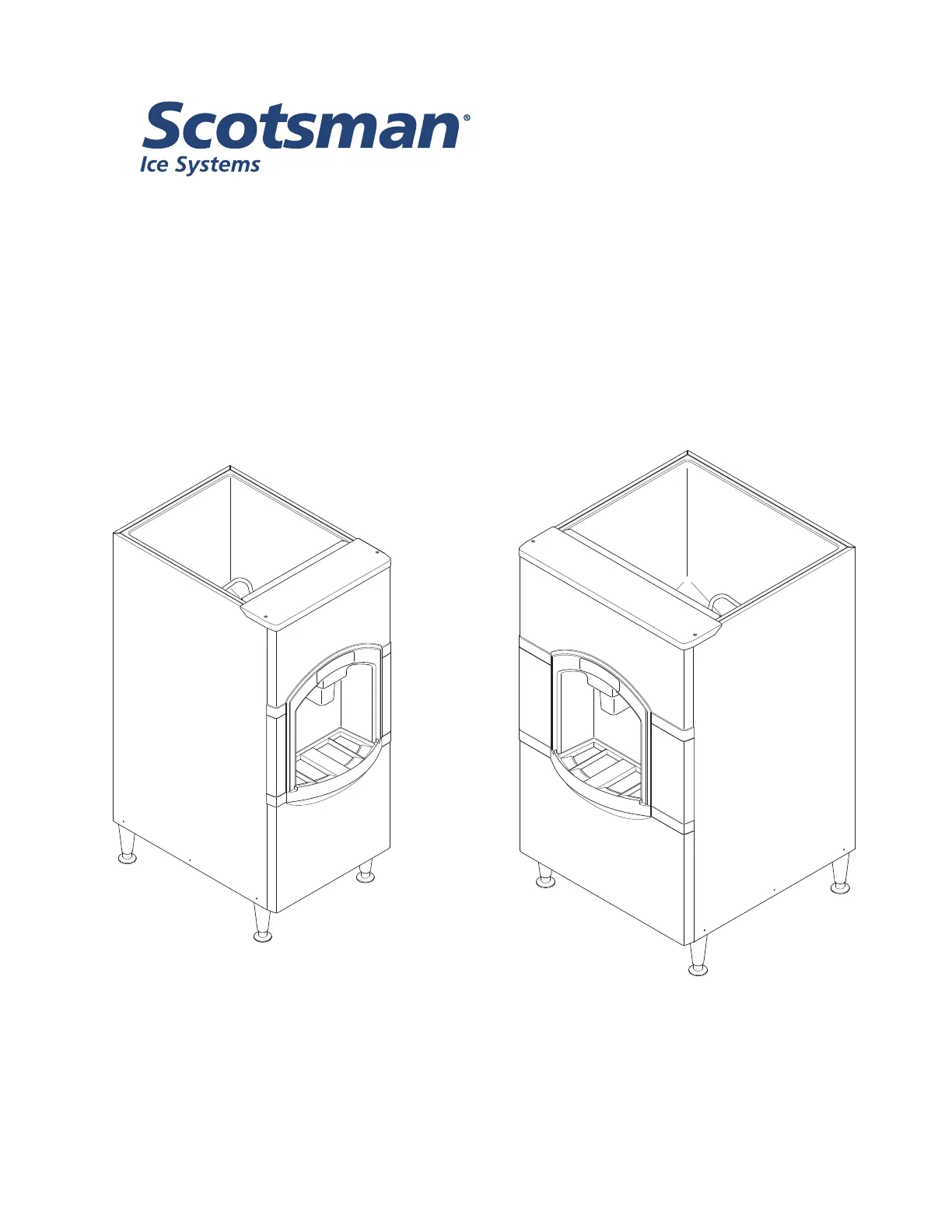

Product Manual for Ice Dispensers
Models HD22 HD30and
Introduction
To the owner or user: This product manual is a
source of information about the installation, start
up, cleaning, maintenance and repair of the
product.
HD22 and HD30
September 2003
Page 1
Table of Contents
Introduction Page1·················································
GeneralDescription Page2·············································
Specifications & Limitations Page 3· · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · ·
HD30 Dimensioned Illustration Page 4· · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · ·
HD22 Dimensioned Illustration Page 5· · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · ·
ProductDescription Page6·············································
Unpacking Page7··················································
Installation - Plumbing Page 8· · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · ·
Installation - Electrical and Ice Machine Assembly Page 9· · · · · · · · · · · · · · · · · · · · · · · · · · · · ·
Final Check List/Initial Start Up Page 10· · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · ·
Use ····················································· Page11
General Care and Cleaning Page 12· · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · ·
General Care And Cleaning - Continued Page 13· · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · ·
Maintenance Page14················································
Adjustments Page15·················································
ServiceDiagnosis Page16··············································
General Description
The HD22 is a hotel/motel ice dispenser. It is
designed to use a Scotsman C0322 or C0522
cube ice machine as the source for ice.
The HD30 is a wider version of the HD22 and is
designed to use a Scotsman C0330 or C0530
cuber as its source of ice. Additional models may
be used, see sales information for details. Flaked
or nugget ice is not recommended for use in these
dispensers.
Ice from the cuber falls into the insulated hopper,
where it is stored until needed. When a user
pushes the dispense chute a rotating wheel
scoops the ice up to the top front of the hopper
where there is an outlet to the ice chute.
HD22 and HD30
November 2011
Page 2
Model Dimensions
w” x h” x d”
with 6” leg
Basic Electrical
volts/hertz/phase
Model Description Bin Storage
Capacity, ARI rated
HD22B-1A 22 x 53 x 33 ½ 115/60/1 Basic 22” model, 60 Hz 120 lb
HD22B-6A 22 x 53 x 33 ½ 230/50/1 Basic 22” model, 50 Hz 120 lb
HD30B-1A 30 x 53 x 33 ½ 115/60/1 Basic 22” model, 60 Hz 180 lb
HD30W-1A 30 x 53 x 33 ½ 115/60/1 Water station model 180 lb
HD30B-6A 30 x 53 x 33 ½ 230/50/1 Basic 30” model, 50 Hz 180 lb
All 60 Hz models are supplied with an 11’ power cord, 50 Hz models have a 1.1 meter power cord. Basic
models dispense ice when their chute is pushed. Coin/token models discontinued in 2011.
Cuber Model Fits Dispenser Adapter
C0322 HD22 None Needed
C0522 or CB0522 HD22 None Needed
C0330 or CB0330 HD30 None Needed
C0530 or CB0530 HD30 None Needed
* Higher capacity cubers, C0630 or C0830, may also be used, but they require 230 volt power.
Basic Specifications
