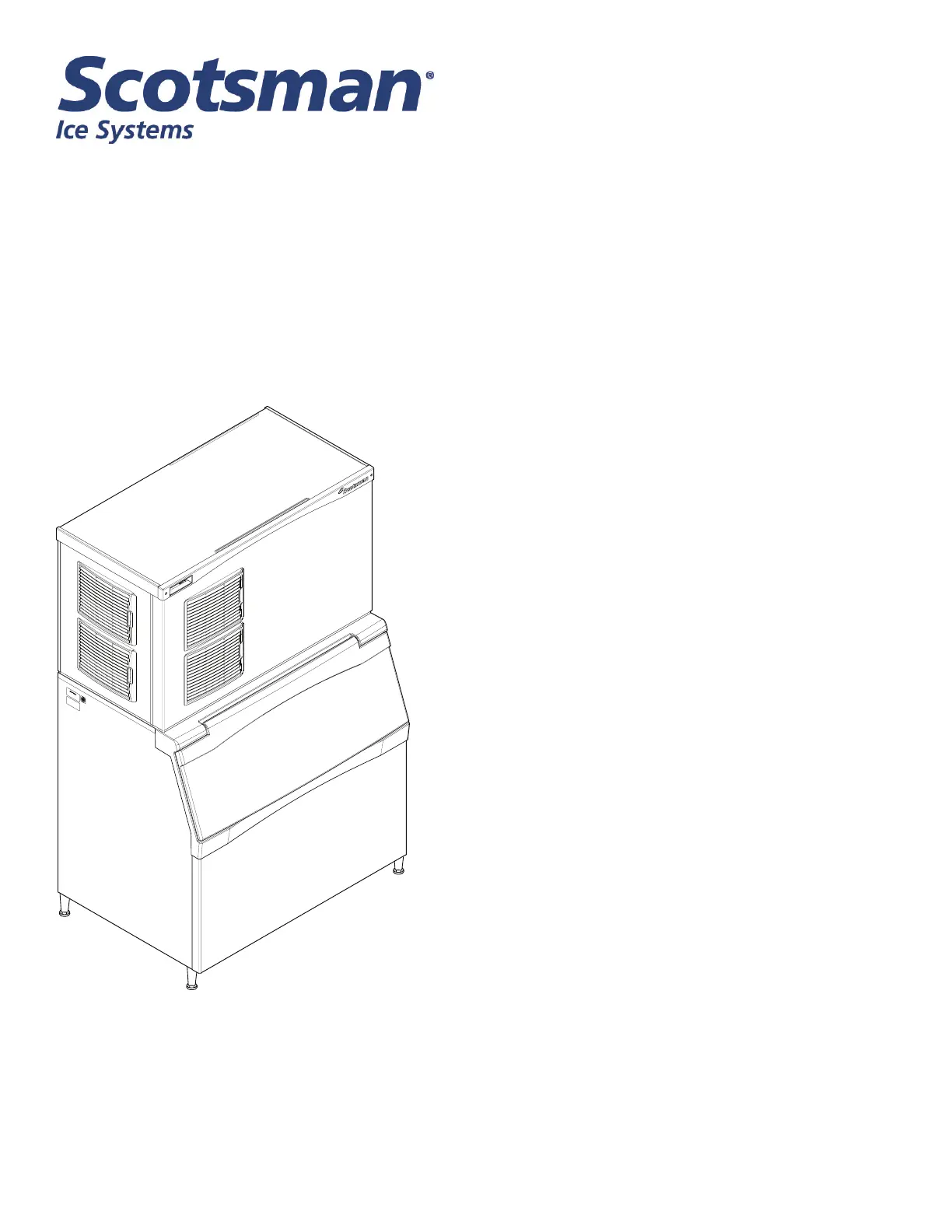

Installation and
User's Manual for
Modular Flaked & Nugget Ice Machines
Models F0522, F0822, F1222, F1522,
N0422, N0622, N0922 and N1322
Air Cooled, Water Cooled and Remote Air Cooled
Introduction
This ice machine is the result of years of
experience with flaked and nugget ice machines.
The latest in electronics has been coupled with the
time tested Scotsman flaked ice system to provide
reliable ice making and the features needed by
customers. The features include easily accessible
air filters, simple conductivity water level sensing,
evaporator clearing at shut down, photo-eye
sensing bin control and the ability to add options.
This user and installation manual is organized in
three main sections: installation, operation, and
maintenance.
July 2009
Page 1
N0422, F0522, N0622, F0822, N0922, F1222, N1322, F1522
Air, Water or Remote User Manual
Table of Contents
Installation: Page 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Location: Page 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
N0422, F0522, N0622, F0822, N0822 Cabinet Layout Page 4. . . . . . . . . . . . . . . . . . . . .
N0922, F1222, N1322, F1522 Cabinet Layout Page 5. . . . . . . . . . . . . . . . . . . . . . . . .
Unpacking & Install Prep Page 6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Water - Air or Water Cooled Page 7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Electrical - All Models Page 8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Refrigeration - Remote Condenser Models Page 9. . . . . . . . . . . . . . . . . . . . . . . . . . .
Remote Condenser Location - Limits Page 10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
For The Installer: Remote Condenser Page 11. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Precharged Line Routing - Remote Only Page 12. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Coupling Instructions - Remote Only Page 13. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Water - Remote Models Page 14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Final Check List Page 15. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Initial Start Up and Maintenance Page 16. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Maintenance: Scale Removal and Sanitation Page 17. . . . . . . . . . . . . . . . . . . . . . . . . .
Maintenance: Check Top Bearing Page 18. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Bearing Service Page 19. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Maintenance: Sensors Page 20. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Options Page 21. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
What to do before calling for service Page 22. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation:
This machine is designed to be used indoors, in a
controlled environment. Operation outside the limits
listed here will void the warranty.
Air temperature limits
Minimum Maximum
Ice maker 50oF. 100oF.
Remote
condenser -20oF. 120oF.
Water temperature limits
Minimum Maximum
All models 40oF. 100oF.
Water pressure limits (potable)
Minimum Maximum
All models 20 psi 80 psi
Water pressure limit to water cooled condenser is
150 PSI
Voltage limits
Minimum Maximum
115 volt 104 126
208-230 60 Hz 198 253
Minimum conductivity (RO water)
•10 microSiemens / CM
Water Quality (ice making circuit)
•Potable
The quality of the water supplied to the ice machine
will have an impact on the time between cleanings
and ultimately on the life of the product. Water can
contain impurities either in suspension or in
solution. Suspended solids can be filtered out. In
solution or dissolved solids cannot be filtered, they
must be diluted or treated. Water filters are
recommended to remove suspended solids. Some
filters have treatment in them for suspended solids.
Check with a water treatment service for a
recommendation.
RO water. This machine can be supplied with
Reverse Osmosis water, but the water conductivity
must be no less than 10 microSiemens/cm.
Potential for Airborne Contamination
Installing an ice machine near a source of yeast or
similar material can result in the need for more
frequent sanitation cleanings due to the tendency
of these materials to contaminate the machine.
Most water filters remove chlorine from the water
supply to the machine which contributes to this
situation. Testing has shown that using a filter that
does not remove chlorine, such as the Scotsman
Aqua Patrol, will greatly improve this situation.
Warranty Information
The warranty statement for this product is provided
separately from this manual. Refer to it for
applicable coverage. In general warranty covers
defects in material or workmanship. It does not
cover maintenance, corrections to installations, or
situations when the machine is operated in
circumstances that exceed the limitations printed
above.
November 2009
Page 2
N0422, F0522, N0622, F0822, N0922, F1222, N1322, F1522
Air, Water or Remote User Manual
