Sida 1/3
Cat. No. 005276
ME 102/104/105 System
Microphones | Lavalier Microphones
General Description
The ME 102/104/105 modular mini-microphone system fulfils profes-
sional demands for sound quality and rugged handling, and is suitable
for all areas of live work where a small and unobtrusive microphone is
needed for vocal and speech applications. Scratch-resistant matt finish:
anthracite or nickel.
Modules available for the ME 102/104/105 system Cat. No.
䊏 Microphone capsules including windshields
(available in anthracite / nickel)
ME 102 (+ MZW 102) 003876 / 003838
ME 104 (+ MZW 104) 004227 / 004228
ME 105 (+ MZW 104) 005301 / 005302
䊏 Copper wire cables (available in anthracite / grey)
KA 100-4 004233 / 004234
KA 100-1083 004399 / 004401
KA 100-60 004237 / 004238
KA 100-P 004241 / 004242
KA 100-5 004245 / 004246
KA 100-2R 004229 / 004230
䊏 Steel wire cables (available in anthracite / beige)
KA 100 S-4 004235 / 004236
KA 100 S-1083 004402 / 004403
KA 100 S-60 004239 / 004240
KA 100 S-P 004243 / 004244
KA 100 S-5 004247 / 004248
KA 100 S-2R 004231 / 004232
䊏 MZ 100 accessory set 004226
consisting of: 2 MZQ 102 (anthracite and grey)
2 MZQ 02 (anthracite and nickel)
2 ZH 100 (anthracite and beige)
1 carrying case
䊏 MZM 2 / MZM 10 magnetic mount set 001866
Technical Data ME 102/ME 104/ME 105
Pick-up pattern
ME 102 ......................................................................omni-directional
ME 104 ..................................................................................... cardioid
ME 105 ..........................................................................super-cardioid
Frequency response
ME 102 ............................................................ 40 – 20,000 Hz ± 3dB
ME 104/ME 105 ..........................................100 – 20,000 Hz ± 3dB
Sensitivity (free field, no load) (1 kHz)
ME 102 ................................................................. 10 mV/Pa ± 2.5 dB
ME 104 ....................................................................8 mV/Pa ± 2.5 dB
ME 105 ................................................................ 1.6 mV/Pa ± 2.5 dB
Nominal impedance
ME 102/ME 104 ...........................................................................1 k⍀
ME 105 ........................................................................................ 800 ⍀
Min. terminating impedance .............................4.7 k equivalent ⍀
noise level ME 102
A-weighted (DIN IEC 651) ........................................................ 21 dB
CCIR-weighted (CCIR 468-3) .................................................... 33 dB
Equivalent noise level ME 104
A-weighted (DIN IEC 651) ........................................................ 30 dB
CCIR-weighted (CCIR 468-3) .................................................... 38 dB
Equivalent noise level ME 105
A-weighted (DIN IEC 651) ........................................................ 31 dB
CCIR-weighted (CCIR 468-3) .................................................... 41 dB
Max. SPL (1 kHz)
ME 102 ................................................................127 dB (THD = 1 %)
ME 104/ME 105 ................................................133 dB (THD = 1 %)
Supply current ..............................................................appx. 250 µA
Dimensions .........................................Ø 6 x 12 mm (0.24˝ x 0.47˝)
Weight (without cable) ...............................................1 g (0.04 oz)
Frequency response ME 102
Frequency response ME 104/ME 105
ME 104ME 102 ME 105
ME 102/104/105 System
Microphones | Lavalier Microphones
KA 100-60
(K6/K6P)
MZW 102 MZW 104
ME 102,
omni-directional
ME 104,
cardioid
KA 100 ... KA 100 S...
KA 100-4
(SK 50,
SK 250, SK 5012)
KA 100-P
(phantom powering
12–48 V)
KA 100 S-P
(phantom powering
12–48 V)
KA 100 S-60
(K6/K6P)
KA 100 S-4
(SK 50,
SK 250, SK 5012)
KA 100-1083
(BF 1083,
SK 1063, SK 2032)
KA 100 S-1083
(BF 1083,
SK 1063, SK 2032)
KA 100-2R
(SK 2012)
KA 100 S-2R
(SK 2012)
KA 100 S-5
(open-ended cable)
KA 100-5
(open-ended cable)
MZW 104
ME 105,
super-cardioid
MZQ 102
Clip with cable routing,
for right-angled plugs only
ZH 100
Pin mount
("Dracula" clip)
MZQ 02
Crocodile clip
Metal gauze
windshields
Microphone
capsules
Connecting
cables
Accessories
System ME 102/104/105
Microphones | Lavalier Microphones
Example of an ME 102/104/105 system for connection to the SK 50 transmitter:
ME 102 Omni-directional microphone capsule with windshield
KA 100 S-4 Steel wire cable with straight plug
MZ 100 Accessory set, consisting of clips and a carrying case
Example of an ME 102/104/105 system for connection to the K6 modular system:
ME 104 Cardioid microphone capsule with windshield
KA 100-60 Copper wire cable with right-angled plug
MZ 100 Accessory set, consisting of clips and a carrying case
Example of an ME 102/104/105 system for connection to the SK 50 transmitter:
ME 105 Super-cardioid microphone capsule with windshield
KA 100-4 Copper wire cable with right-angled plug
MZ 100 Accessory set, consisting of clips and a carrying case

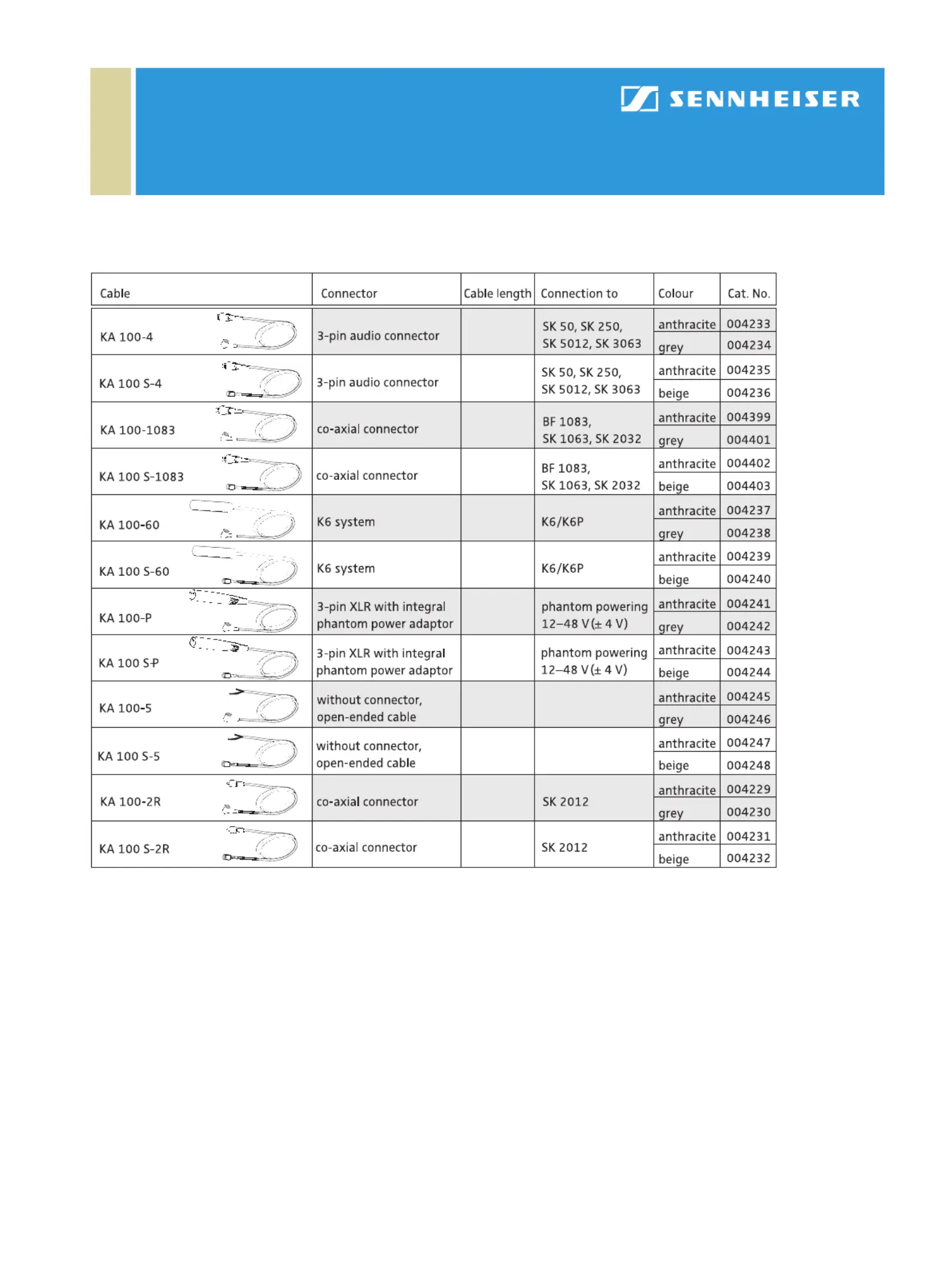

1.6 m
(5.25 ft)
1.6 m
(5.25 ft)
1.6 m
(5.25 ft)
1.6 m
(5.25 ft)
1.6 m
(5.25 ft)
1.6 m
(5.25 ft)
3.0 m
(9.84 ft)
3.0 m
(9.84 ft)
3.0 m
(9.84 ft)
3.0 m
(9.84 ft)
3.0 m
(9.84 ft)
3.0 m
(9.84 ft)
