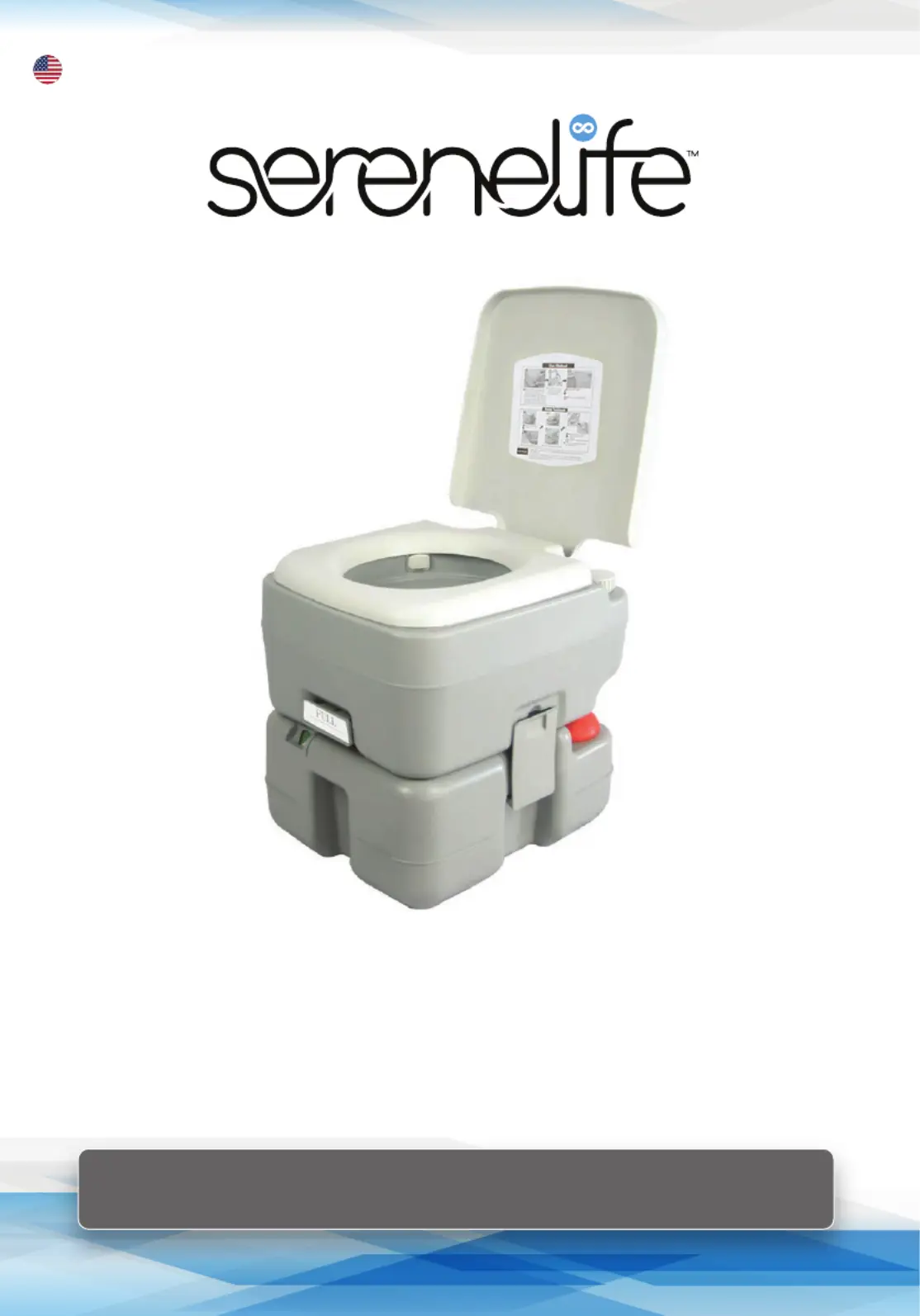

SLCATL320

User's Manual

Portable Toilet

SereneLifehome.com

www.SereneLifehome.com

Assembly & Care Instructions

IMPORTANT

Before using our product, please familiarise

yourself with the components.

Features

• High density polyethylene construction.

• Completely self contained.

• No external connections required.

• Secure clamps and latches.

• All parts are easily replaced by end users.

• 20L waste holding tank.

• 10L fresh water tank.

• Easy to carry and clean.

• Adult sized seat and lid are well constructed.

• Always flushes with clean water, no water is

re-circulated.

• Completely self-contained. No external water

or power connections.

• Fresh water capacity provides up to 50 flushes.

• Attractive matt finish conceals marks, and

allows scrubbing without damage.

• Double sealed drain valve protects against

leakage and odour.

• Heavy duty, corrosion resistant side latches lock

tanks together.

• Detached waste holding tank is easy to empty.

• Both tanks are single piece construction with

no leaking seams.

• Waste level indicator tells you when to empty.

• No splash rotating pour spout.

• Innovative T-type 3 way flush nozzle ensures

a full bowl coverage.

• Upgraded piston pump works more efficiently.

• Selectable bracket can increase the height.

Parts Listing

No.

Part No.

Description

CHH-T-009

Seat Cover

CHH-T-010

Seat

CHH-T-011

Hinge Pin

CHH-T-015

Piston Pump Assembly

CHH-T-019

Cap, Fresh Water Holding Tank

CHH-T-012

Fresh Water Holding Tank Assembly

CHH-T-021

Latch Assembly

CHH-T-003

Sealed C Ring

CHH-T-014

Slide Valve Assembly

CHH-T-004

Sealed D Ring

CHH-T-023

Cap. Rotating Pour Spout.

CHH-T-025

Rotating Pour Spout

CHH-T-024

Waste Holding Tank 20L

www.SereneLifehome.com

Assembly & Care Instructions

PREPARING FOR USE

1. Set the SLCATL320 on its front side so that

the cap on the waste holding tank is in a vertical

position. Remove the cap and add deodoriser

following instructions on the deodoriser container.

Tighten the cap firmly.

2. Set the toilet in an upright position and remove

the cap located on the right rear side of the fresh

water tank. Fill with fresh water up to the top of

the fresh water tank. Then tighten the cap firmly.

Caution:

A. Do not add deodoriser to top fresh water tank.

B. Avoid adding holding tank deodoriser through

bowl. Use cap on the bottom rear tank if possible.

Rinse o any spilled or splashed deodoriser

immediately.

C. Atmospheric pressure and temperature

changes may cause pressure build up in lower

holding tank. Caution should be used when first

opening the slide valve.

USE AND OPERATION

2. Depress Flush Pump to add water to the bowl.

3. After use, pull Slide Valve handle out.

4. Depress Flush Pump again to rinse the bowl.

5. Close Slide Valve by pushing in fully.

Bellows

Pump

Slide

Valve

EMPTYING WASTE HOLDING TANK

The has a 20L waste holding tank. It SLCATL320

should be emptied when contents reaches approxi-

mately 2cm below Slide Valve, or the level indicator

turns to red.

1. Separate tanks by pulling outward on side

latches, then lifting upward on water tank. Make

sure slide valve is completely closed.

2. Use moulded handle to carry the holding tank.

3. Remove pour spout cap while it is pointing

upward.

4. To avoid splashing, slowly pour contents out of

the tank. Add fresh water, close cap and shake tank

to rinse.

5. Remove cap and pour rinse water out of the tank.

Close cap firmly and assemble fresh water tank and

waste holding tank together again.

6. Prepare for continued use by following steps 1

and 2 of “Preparing for Use”.

SAFETY INSTRUCTION

1. Handle with care.

2. Avoid exposure to direct sunlight for extended

periods of time.

3. Avoid high temperatures over 50°C.

4. To avoid injury DO NOT lean against lid when

being used.

5. Ensure waste tank is cleaned regularly.

6. Suitable for use with any brand of portable toilet

chemicals and deodorisers.

MAINTENANCE

1. Lubricate Slide Valve seals periodically with

silicone spray or white grease lubricant.

2. The Slide Valve may be removed for cleaning or

inspection by simply unscrewing in a counter

clockwise direction.

3. Clean exterior of toilet with a mild, non-abrasive

bathroom cleaner.

STORAGE

To store our Portable Toilet when not in use:

1. Empty the top tank and waste holding tank.

2. Make sure all water is cleared from the bellows

pump by depressing pump several times.

3. Stored away from direct sunlight.

Note: A small amount of water may remain in the

top tank but will be harmless during storage.
