Sida 1/8

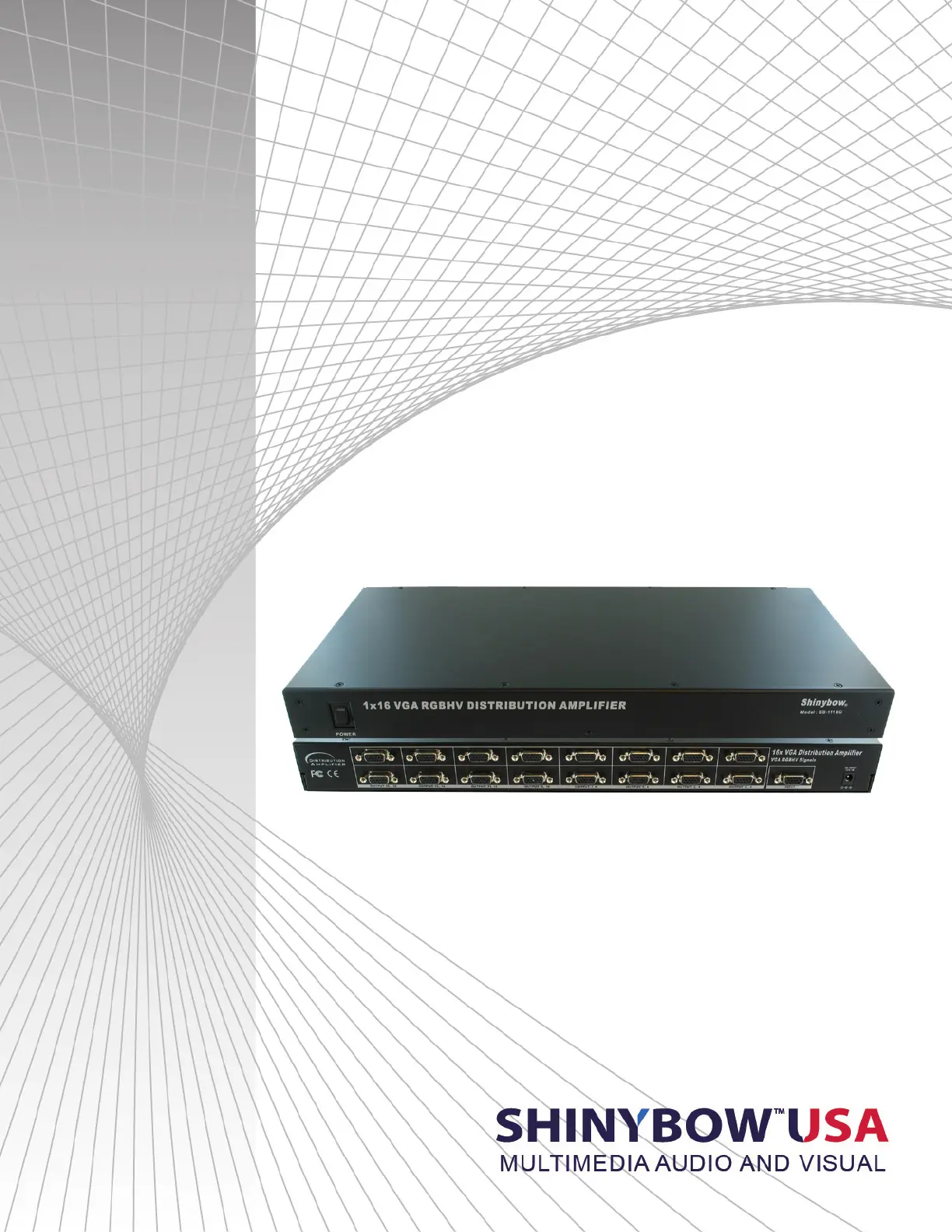

SB-1116

1x16 VGA (RGBHV) Amplier Splitter

INSTRUCTION MANUAL

SAFETY INFORMATION

1. To ensure the best results from this product, please read this manual and all other documentation before operating your equipment.

Retain all documentation for future reference.

2. Follow all instructions printed on unit chassis for proper operation.

3. To reduce the risk of re, do not spill water or other liquids into or on the unit, or operate the unit while standing in liquid.

4. Make sure power outlets conform to the power requirements listed on the back of the unit. Keep unit protected from rain, water and

excessive moisture.

5. Do not attempt to clean the unit with chemical solvents or aerosol cleaners, as this may damage the unit. Dust with a clean dry cloth.

6. Do not use the unit if the electrical power cord is frayed or broken. The power supply cords should be routed so that they are not

likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords and plugs, convenience

receptacles, and the point where they exit from the appliance.

7. Do not force switched or external connections in any way. They should all connect easily, without needing to be forced.

8. Always operate the unit with the AC ground wire connected to the electrical system ground. Precautions should be taken so that the

means of grounding of a piece of equipment is not defeated.

9. AC voltage must be correct and the same as that printed on the rear of the unit. Damage caused by connection to improper AC

voltage is not covered by any warranty.

10. Turn power off and disconnect unit from AC current before making connections.

11. Never hold a power switch in the “ON” position.

12. This unit should be installed in a cool dry place, away from sources of excessive heat, vibration, dust, moisture and cold. Do not use

the unit near stoves, heat registers, radiators, or other heat producing devices.

13. Do not block fan intake or exhaust ports. Do not operate equipment on a surface or in an environment which may impede the normal

ow of air around the unit, such as a bed, rug, carpet, or completely enclosed rack. If the unit is used in an extremely dusty or smoky

environment, the unit should be periodically “blown free” of foreign dust and matter.

14. To reduce the risk of electric shock, do not remove the cover. There are no user serviceable parts inside. Refer all servicing to

qualied service personnel. There are no user serviceable parts inside.

15. When moving the unit, disconnect input ports rst, then remove the power cable; nally, disconnect the interconnecting cables to

other devices.

16. Do not drive the inputs with a signal level greater than that required to drive equipment to full output.

17. The equipment power cord should be unplugged from the outlet when left unused for a long period of time.

18. Save the carton and packing material even if the equipment has arrived in good condition. Should you ever need to ship the unit,

use only the original factory packing.

19. Service Information Equipment should be serviced by qualied service personnel when:

A. The power supply cord or the plug has been damaged.

B. Objects have fallen, or liquid has been spilled into the equipment.

C. The equipment has been exposed to rain.

D. The equipment does not appear to operate normally, or exhibits a marked change in performance.

E. The equipment has been dropped, or the enclosure damaged.

THIS SAFETY INFORMATION IS OF A GENERAL NATURE AND MAY BE SUPERSEDED BY INSTRUCTIONS CONTAINED WITHIN THIS MANUAL.

CONTENTS

INTRODUCTION & CONTENTS ......................................1

FEATURES ....................................................................... 2

SPECIFICATIONS ............................................................ 2

TYPICAL HOOKUP & OPERATION ............................... 3

INTRODUCTION

Congratulations on your purchase of one of the most innovative

VGA Signal distribution products on the market today. The SB-

1116 provides (16) VGA outputs that are identical to the source

signal. This is useful for distributing high resolution VGA signals

from one computer to (16) different monitors. This ultrahigh speed

current feedback amplier with an excellent 5500V/as slew rate

results in a rise time of 545ps, making it ideal as a pulse amplier.

The high slew rate lowers the effect of slew rate limiting and

results in the large signal bandwidth of 440MHz (G=+2), a small

signal bandwidth of (-3dB) 1000MHz (G=+1) delivers computer

resolutions up to 2048x2048 at distances up to 150 feet away

without signal deterioration. Signal quality is maintained over a

wide bandwidth with worst-case distortion of -40dBc@250MHz

(G=+10, 1Vpp). Input and output connectors are HD-15 female

type. The SB-1116 is housed in a 19 inch rack mountable metal

case, (1) RU high. All units are +12VDC powered, a power

adaptor is included.

PACKAGE CONTENTS

Check that you have the following components;

• SB-1116 1x16 VGA Distribution Amplier

• Rack Mount Kit

• Users Guide

• AC/DC Adapter: 12VDC@1250mA

AC/DC Adaptor Types: CE/UL/SAA/BS

VGA RGBHV Distribution Ampliers Series

Thank you for purchasing the SB-1116G 1x16 VGA(RGBHV) Amplier Splitter. You will nd this unit easy to install and highly

reliable but it is essential that you read this manual thoroughly before attempting to use this amplier.

TABLE OF CONTENTS

SAFETY PRECAUTIONS

Please read all instructions before attempting to unpack, install or

operate this equipment and before connecting the power supply.

Please keep the following in mind as you unpack and install this

equipment:

• Always follow basic safety precautions to reduce the risk of re,

electrical shock and injury to persons.

• To prevent re or shock hazard, do not expose the unit to rain,

moisture or install this product near water.

• Never spill liquid of any kind on or into this product.

• Never push an object of any kind into this product through any

openings or empty slots in the unit, as you may damage parts

inside the unit.

• Do not attach the power supply cabling to building surfaces.

• Use only the supplied power supply unit (PSU). Do not use the

PSU if it is damaged.

• Do not allow anything to rest on the power cabling or allow any

weight to be placed upon it or any person walk on it.

• To protect the unit from overheating, do not block any vents or

openings in the unit housing that provide ventilation and allow for

sufcient space for air to circulate around the unit.

DISCLAIMERS

The information in this manual has been carefully checked and

is believed to be accurate. We assume no responsibility for any

infringements of patents or other rights of third parties which may

result from its use.

We assume no responsibility for any inaccuracies that may be

contained in this document. We make no commitment to update

or to keep current the information contained in this document.

We reserve the right to make improvements to this document

and/or product at any time and without notice.

No part of this document may be reproduced, transmitted,

transcribed, stored in a retrieval system, or any of its part translated

into any language or computer le, in any form or by any means

— electronic, mechanical, magnetic, optical, chemical, manual,

or otherwise — without express written permission and consent.

Version 2.2 JUNE 2016

TRADEMARK ACKNOWLEDGMENTS

All products or service names mentioned in this document may

be trademarks of the companies with which they are associated.

CONFORMANCE TEST REPORT

FOR EN55020 / EN55024

REPORT NUMBER: ET93S-12-050-1

FOR FCC 47 CFR/Part 15 Subpart B

REPORT NUMBER: ET93S·12·050·02

Model Number: SB-1116

Comment Number: SB-1116(G), SB-1112(G), SB-1110(G), SB-1108(G),

SB-1106(G), SB-1104(G), SB-1102(G)

Input: VGA (RGBHV), HD-15Pin Connector

Output: VGA (RGBHV), HD-15Pin Connector

Power Supply: +DC12V@1250mA
