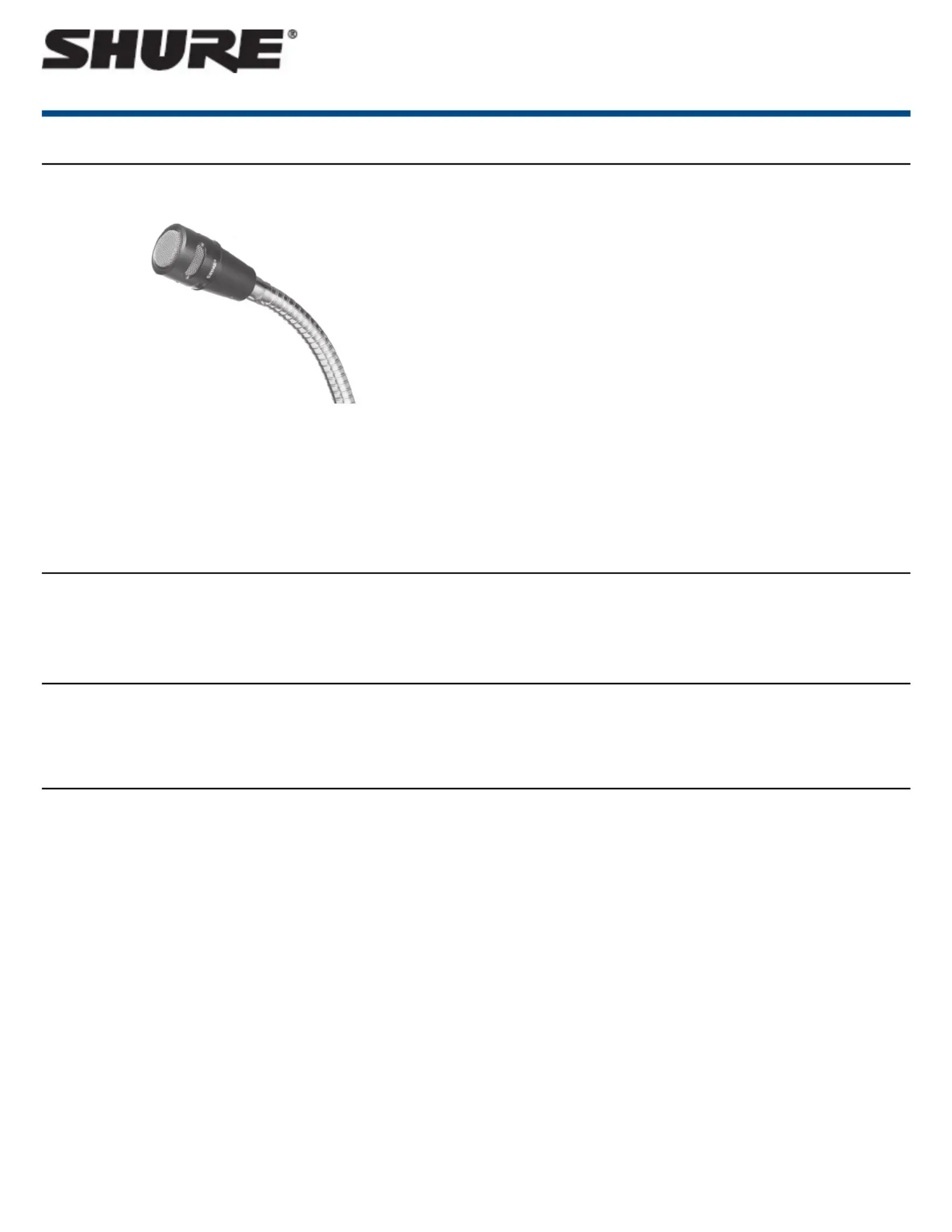

General Description
Developed for computer voice recognition applications, the 503BG microphone
offers excellent voice fidelity while reducing background noise. Also use the
503BG in other close-talking applications such as paging and talkback.
The 503BG features a low-impedance, moving coil type transducer with an
integral humbucking coil and an attached two-conductor shielded cable with
a built-in strain relief. It produces a frequency response with an essentially
constant output voltage over the voice spectrum when used close to the
sound source.
The 503BG's case is aluminum with a black enamel finish. It mounts to a
gooseneck, a fixed pipe or a microphone stand using a standard 5/8"-27
thread. To secure the mounted BG503, tighten the 4-40 screw with the sup-
plied #4 Allen (hex-head) wrench.
Features
• Optimized performance in voice processing and computer voice recogni-
tion applications.
• Smooth frequency response with excellent fidelity in the voice range.
• Cardioid pickup pattern and close-talking operation keep unwanted signals
and background noise at low levels.
• Constant output over voice spectrum when close-talked.
• Humbucking coil minimizes undesirable hum effects such as CRT inter-
ference.
• Low-impedance design permits long cable runs in extreme hum fields.
• Small unobtrusive design does not interfere with CRT visibility.
• Rugged and reliable for years of consistent operation.
Operation
For best performance, speak as close to the 503BG as comfort permits. A
distance of 1 to 5 cm (0.4 to 2 inches) provides the greatest discriminations
between voice and background noise.
Acoustic Considerations
The 503BG maximizes performance in close-talking applications through its
tailored frequency response, directionality and distance discrimination. It
optimizes and controls sounds within the 100 to 7000 Hz frequency range
and reduces sounds outside that range. The BG503 rejects noise through
its inherent directional properties and discriminates against distant sounds
in favor of close-range sounds.
Specifications
Type
Dynamic (moving coil), Unidirectional (Cardioid)
Frequency Response
100 to 7,000 Hz
Impedance
170 Ω actual
Output Clipping Level
open circuit voltage
-61.5 dBV/Pa (.84 mV) [1]
Polarity
Positive pressure on diaphragm produces positive voltage on white conductor with respect to black conductor
Hum Pickup
Maximum 15 dB equivalent SPL in m0e field
1/3©2017 Shure Incorporated
Model 503BG
Vocal Microphone
Cable
1.2 m (4 ft) two-conductor shielded
Housing
Aluminum with black enamel finish; stainless steel screen
Net Weight
128 g (4.5 oz.)
0
1 *cm
5 cm*
dB
Hz
* distance from speaker to microphone grille

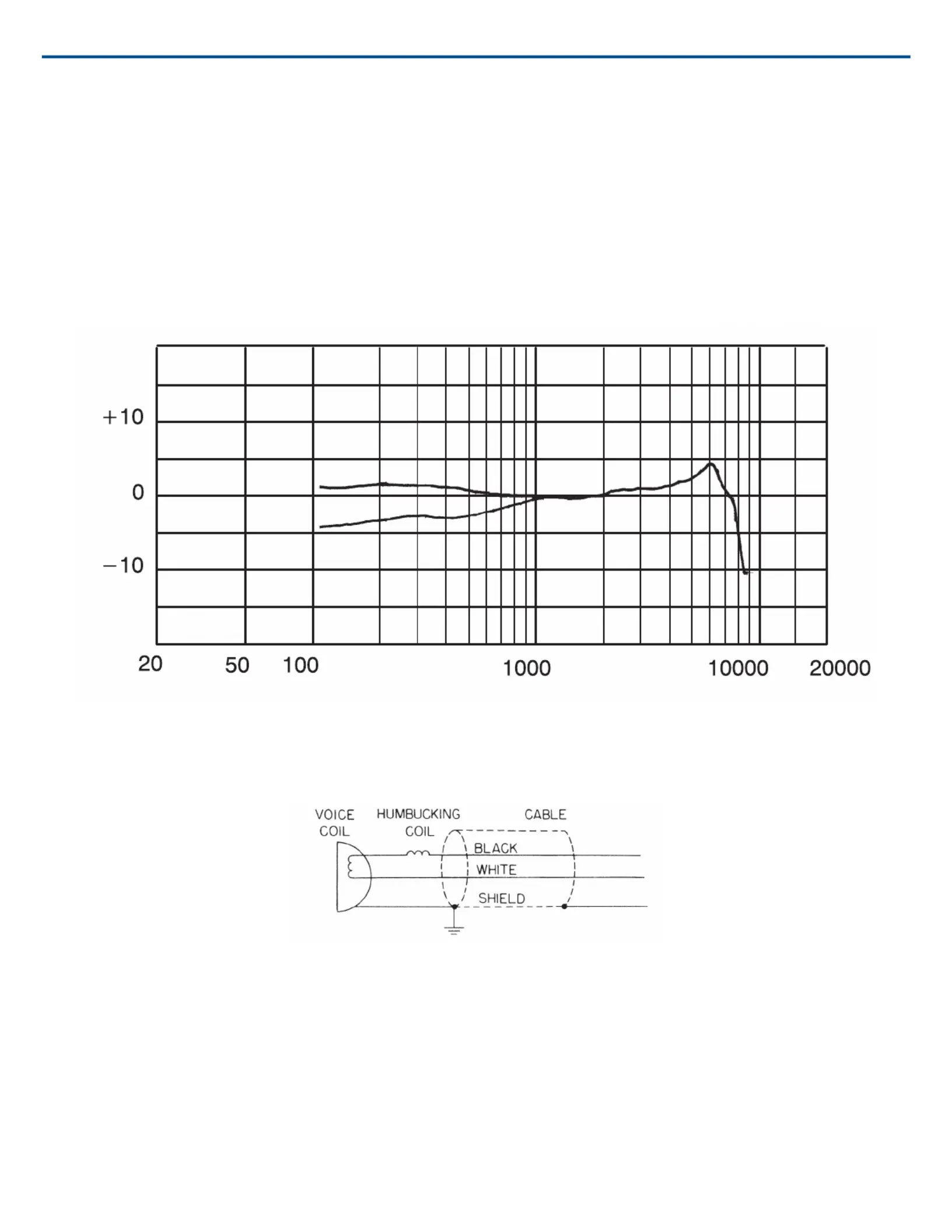

Typical Frequency Response
Internal Connections
0[1] 1 Pa = 94 dB SPL
Shure IncorporatedModel 503BG Vocal Microphone
2017/10/102/3
Overall Dimensions
Accessories
Optional Accessories
A120SIn-Line On/Off Switch (No Connectors, Requires Sol-
dering)
G-1212" Gooseneck, Chrome
G-1818" Gooseneck, Chrome
G6A6" Gooseneck-Side Vent, Chrome
G18A18" Gooseneck-Side Vent, Chrome
G12-CN12" Gooseneck with Attached Female XLR Connector,
Chrome
G18-CN18" Gooseneck with Attached Female XLR Connector,
Chrome
A12Mounting Flange, Matte Silver
A13HDMounting Flange, Heavy Duty, Matte Silver
Certifications
This product meets the Essential Requirements of all relevant European di-
rectives and is eligible for CE marking.
The CE Declaration of Conformity can be obtained from:
www.shure.com/europe/compliance
Authorized European representative:
Shure Europe GmbH
Headquarters Europe, Middle East & Africa
Department: EMEA Approval
Jakob-Dieffenbacher-Str. 12
75031 Eppingen, Germany
Phone: +49-7262-92 49 0
Fax: +49-7262-92 49 11 4
Email: info@shure.de
Shure IncorporatedModel 503BG Vocal Microphone
3/3
