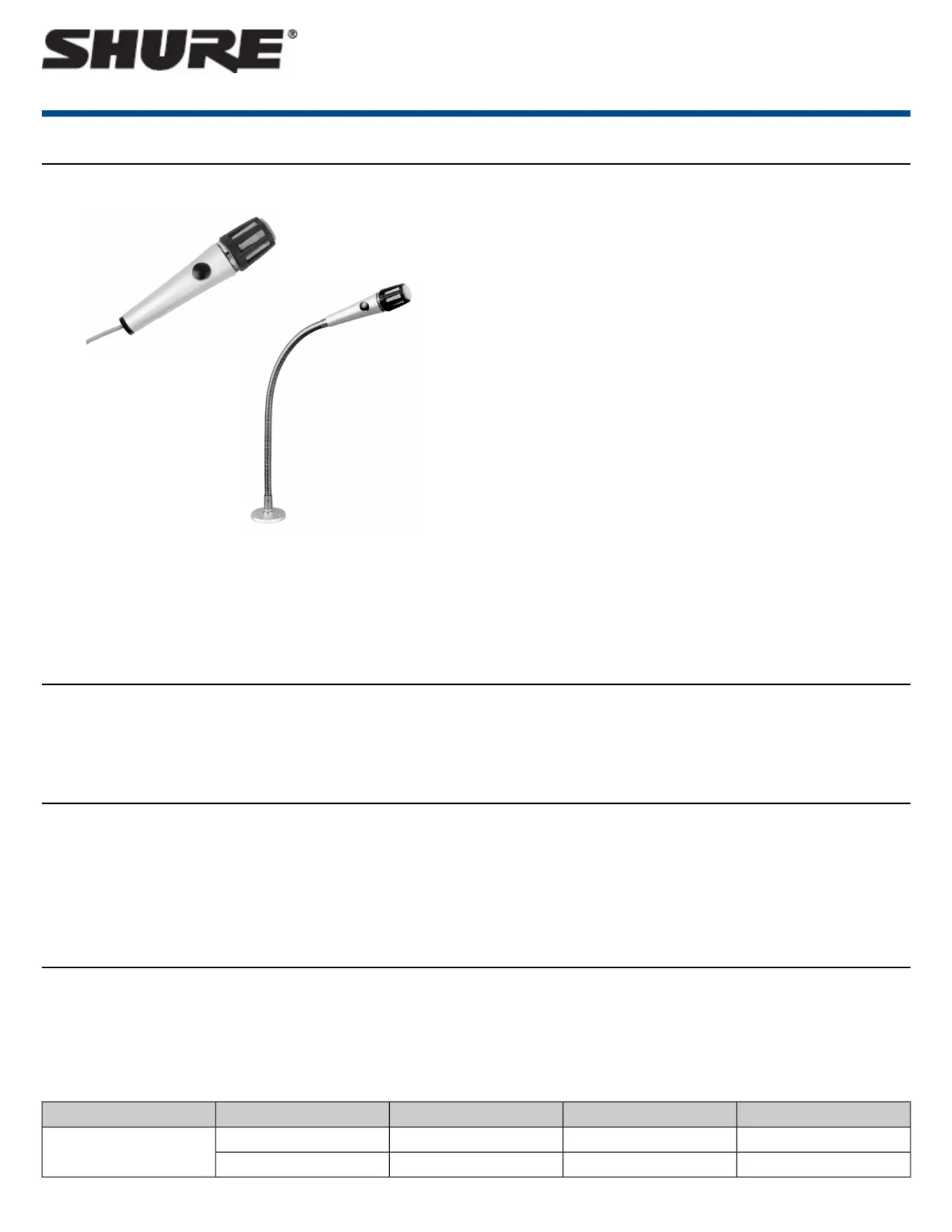

General Description
515SBGX
515SBG-18X
The Shure Models 515SBGX, 515SBG-18X, and 515SBG-18XF microphones
are low-impedance dynamic microphones designed to be mounted on flexible
goosenecks or fixed pips. Optimized frequency response and a unidirectional
(cardioid) pickup pattern makes them ideal for language labs, paging appli-
cations, and base station communications. They are also recommended for
use as talkback or cuing microphones in TV, film, and recording studios.
Because of their low impedance, these microphones retain their level and
response characteristics even when long lengths of cable are used.
All three models are supplied with a push-to-talk button and a four-conductor
cable (two conductors shielded).
Features
• Frequency response optimized for announcing, narration, and paging
applications
• Cardioid pickup pattern symmetrical about axis
• Neodymium magnet for high signal-to-noise ratio
• Shock-mounted cartridge for quiet operation and low stand/handling
noise
• Tough diecast locking grille and handle
• Built-in push-to-talk button controls microphone circuit and relay or control
circuit
• 45.7 cm (18 in.) gooseneck and mounting flange supplied (515SBG-18X
and 515SBG-18XF only)
Variations
Model 515SBGX: Does not include gooseneck or mounting flange.
Model 515SBG-18X: Includes gooseneck and 76.2 mm (3 in.) diameter
mounting flange.
Model 515SBG-18XF: Includes gooseneck and 44.4 mm (1-3/4 in.) diameter
mounting flange.
Mounting the 515SBG-18X and 515SBG-18XF
Mount the 515SBG-18X or 515SBG-18XF as follows:
1. Thread the supplied hexnut all the way down on the mounting flange.
2. Thread the gooseneck tightly on the flange.
3. Back the hexnut up against the gooseneck, and use a wrench to tighten
the nut firmly against the bottom of the gooseneck.
Mounting the 515SBX onto a Gooseneck
Mount the 515SBGX onto a gooseneck or fixed pipe with a 5/8 in- 27 thread
as follows:
1. Unscrew the black end cap from the microphone.
2. Remove the thin metal washer and the metal spacer.
3. Re-install the washer by sliding it back onto the cable and up into the
end of the microphone.
4. Slip the cable into the gooseneck or pipe and thread the microphone
firmly to the mount.
For additional service or parts information, please contact Shure's Service
department at 1-800-516-2525. Outside the United States, please contact
your authorized Shure Service Center.
Connections
These low-impedance microphones are designed for connection to microphone inputs rated at 75 to 300 ohms. Using balanced-line low-impedance cables
permits very long cable lengths without affecting response or level. The RED and BLACK cable leads are the microphone conductors for balanced-line connections;
the shield is connected to the amplifier ground.
For unbalanced operation, connect the BLACK lead to the shield, and use the RED lead as the microphone conductor.
The GREEN and WHITE cable leads are used to control an external relay or control circuit.
1/4 in. Phone PlugXLR ConnectorFunctionWire ColorInput Type
TipPin 2AudioRed
Unbalanced
SleevePin 3Audio GroundBlack
1/4©2017 Shure Incorporated
515SBGX
Voice Communication Microphones
1/4 in. Phone PlugXLR ConnectorFunctionWire ColorInput Type
SleevePin 1Chassis GroundShield
TipPin 2Audio +Red
Balanced RingPin 3Audio -Black
SleevePin 1Chassis GroundShield
Specifications
Type
Dynamic (moving coil)
Frequency Response
80 to 15,000 Hz
Polar Pattern
Cardioid
Impedance
150 Ωrated (180 Ωactual)
Output Clipping Level
at 1 kHz
-57 dBV/Pa[1] (1.4 mV)
Polarity
Positive pressure on diaphragm produces positive voltage on pin 1 (red wire) with respect to pin 2 (black wire).
Switch
Built-in, leaf-type, non-locking, Push-to-Talk
Shock Mount
Internal rubber vibration isolator
Cable
Highly durable cable with effective hum shielding, four conductors (two-shielded), plastic jacketed
1.8 m (70 in.) inch515SBGX:
1.3 m (51 in.)515SBGX-18X/18XF:
Housing
Silver finish die casting with black enamel diecast grille and stainless steel screen
Shure Incorporated515SBGX Voice Communication Microphones
2017/10/052/4
20 02000100 10000 050 010
9 8 7 6 5 4 392
+10
0
–10
Hz
dB
-20
+20
1 cm
(3/8 in.)
.06 cm
(2 ft.)
Typical Frequency Response
150
o
120
o
150
o
120
o
180
o
30
o
60
o
90
o
30
o
60
o
90
o
–5 dB
–10 dB
–15 dB
–20 dB
0
10000 Hz
6400 Hz
2500 Hz
150
o
120
o
150
o
120
o
180
o
30
o
60
o
90
o
30
o
60
o
90
o
–5 dB
–10 dB
–15 dB
–20 dB
0
1000 Hz
500 Hz
250 Hz
Typical Polar Patterns
51 in.
120 cm
1.5 in.
3.75 cm
6.5 in.
16.5 cm
0.85 in.
2 cm
Overall Dimensions
Shure Incorporated515SBGX Voice Communication Microphones
3/42017/10/05
