Sida 1/28

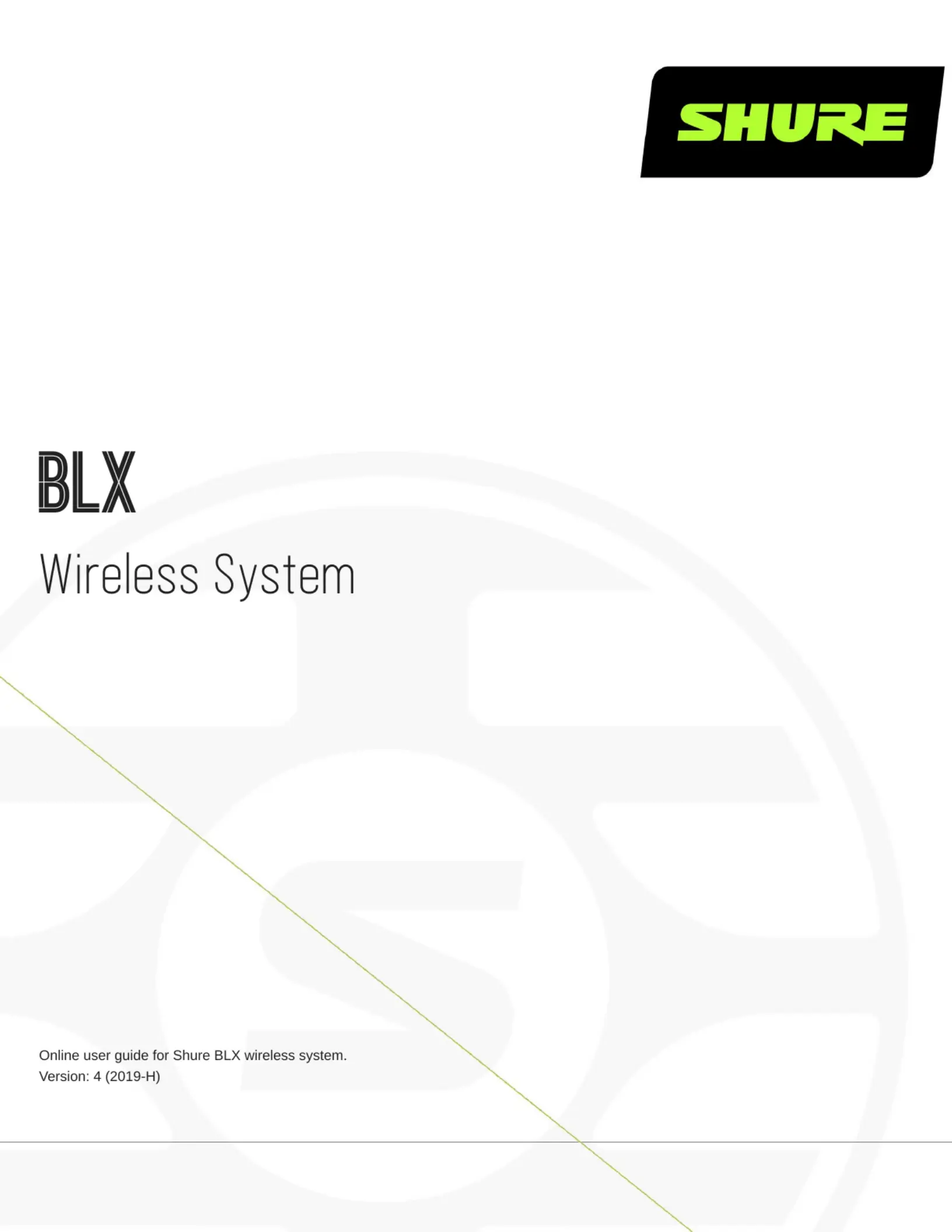

BLX
Wireless System
Online user guide for Shure BLX wireless system.
Version: 4 (2019-H)
Shure Incorporated
2/28
Table of Contents
Table of Contents
Table of Contents
Table of ContentsTable of Contents
BLXWireless System 3
IMPORTANT SAFETY INSTRUCTIONS 3
System Components 4
Quick Start Guide 4
Features 6
Front Panel 6
Back Panel 7
BLX1 7
BLX2 8
Single System Set Up 9
Setting Transmitter Group and Channel 10
Group (letter) 10
Channel (number) 10
Multiple System Setup 11
Manually Setting Receiver Group and Channel 12
Group (letter) 12
Channel (number) 12
Locking and Unlocking Controls 12
Transmitter (lock/unlock) 12
Receiver (lock/unlock) 12
Tips to Improve Wireless System Performance 12
Getting Good Sound 13
Correct Microphone Placement 13
Wearing the Headworn Microphone 13
Adjusting Gain 14
BLX1 14
BLX2 15
Batteries 15
Wearing the Bodypack Transmitter 16
Power Off 16
Removing and Installing Identification Caps 17
Troubleshooting 17
Specifications 18
Certifications 21
Important Product Information 21
LICENSING INFORMATION 22
Information to the user 22
Australia Warning for Wireless 23
Frequency Range and Transmitter Output Level 23
Frequencies for European Countries 24
Shure Incorporated
3/28
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
18.
19.
20.
21.

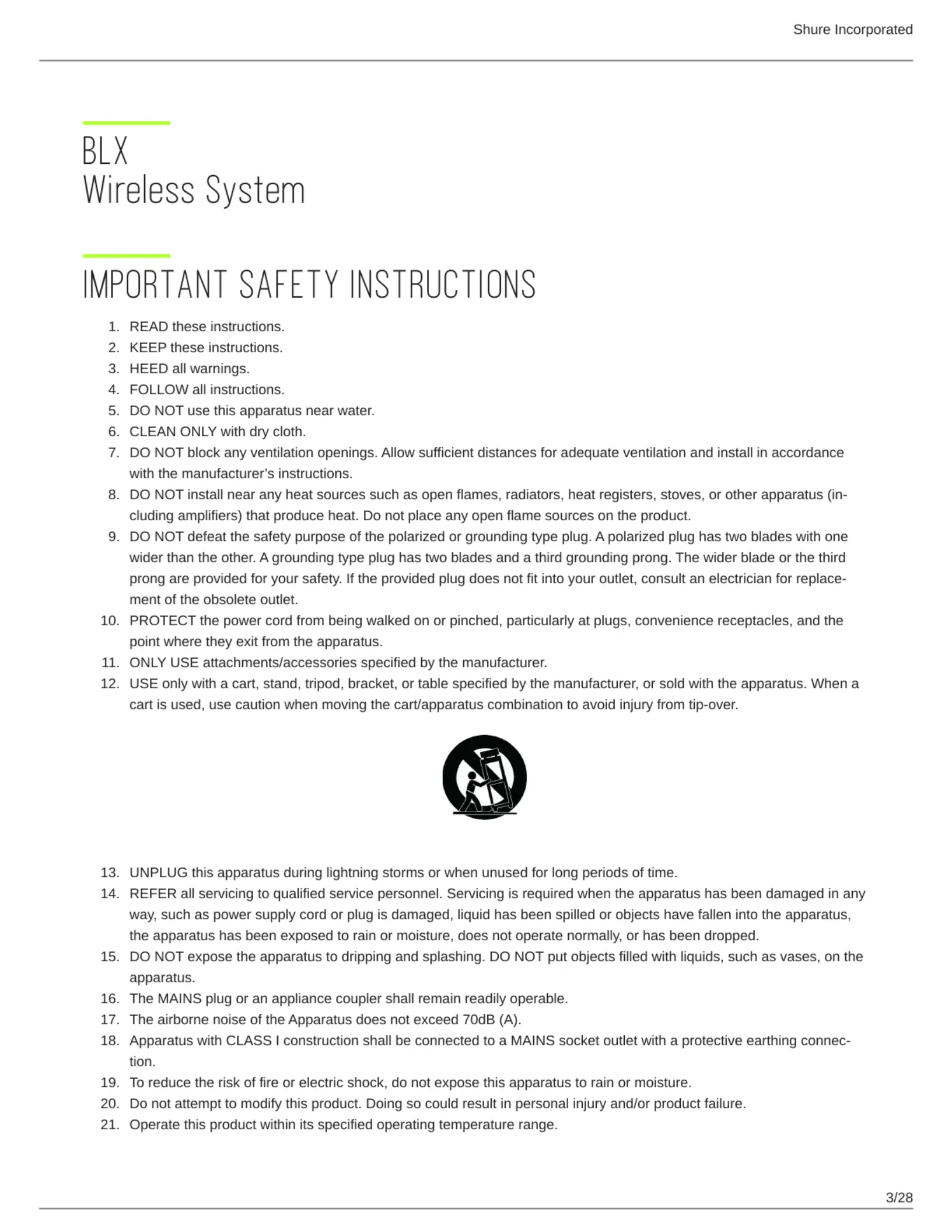

BLX
Wireless System
IMPORTANT SAFETY INSTRUCTIONS
READ these instructions.
KEEP these instructions.
HEED all warnings.
FOLLOW all instructions.
DO NOT use this apparatus near water.
CLEAN ONLY with dry cloth.
DO NOT block any ventilation openings. Allow sufficient distances for adequate ventilation and install in accordance
with the manufacturer’s instructions.
DO NOT install near any heat sources such as open flames, radiators, heat registers, stoves, or other apparatus (in
cluding amplifiers) that produce heat. Do not place any open flame sources on the product.
DO NOT defeat the safety purpose of the polarized or grounding type plug. A polarized plug has two blades with one
wider than the other. A grounding type plug has two blades and a third grounding prong. The wider blade or the third
prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replace
ment of the obsolete outlet.
PROTECT the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the
point where they exit from the apparatus.
ONLY USE attachments/accessories specified by the manufacturer.
USE only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a
cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
UNPLUG this apparatus during lightning storms or when unused for long periods of time.
REFER all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any
way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus,
the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
DO NOT expose the apparatus to dripping and splashing. DO NOT put objects filled with liquids, such as vases, on the
apparatus.
The MAINS plug or an appliance coupler shall remain readily operable.
The airborne noise of the Apparatus does not exceed 70dB (A).
Apparatus with CLASS I construction shall be connected to a MAINS socket outlet with a protective earthing connec
tion.
To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.
Do not attempt to modify this product. Doing so could result in personal injury and/or product failure.
Operate this product within its specified operating temperature range.
