Model Variations

CVB-B/C: Black, Cardioid

CVB-B/O: Black, Omnidirectional

CVB-W/C: White, Cardioid

CVB-W/O: White, Omnidirectional

Note: Model availability depends on region. See your

local Shure dealer or distributor for details.

Centraverse Boundary

Microphone

The Shure Centraverse CVB is a professional boundary

electret condenser microphone for use in desktop installed

sound reinforcement applications. Available in cardioid and

omnidirectional polar patterns and black or white color op-

tions, its low-profile design fits seamlessly within any design

aesthetic.

Features

• Superior Shure design and rugged, dependable

construction

• Available in cardioid or omnidirectional polar patterns

• Attached 12 ft XLR cable

• Mounting holes for secure installation

• Commshield® technology guards against unwanted

RF interference from portable wireless devices

(smartphones, etc.)

Installation

1. Install two screws into the mounting surface, exactly 24 mm

(15/16 in.) apart. Leave a 5 mm (3/16 in.) gap between the

screw head and the mounting surface. Only use screws with

a flat-bottom head.

2. Place the microphone onto the screws and slide backwards

to lock into place.

3. Connect the XLR cable to a mixer or P.A. system.

Note: This microphone requires +48V phantom power to

operate.

5 mm

(3/16 in.)

24 mm

(15/16 in.)

Microphone Placement

Use the following information to achieve the best results for

each model variation.

① Cardioid

The cardioid model captures sound in front of the microphone

and rejects off-axis sounds. It is best suited to capture one

person or a small group in close proximity to one another.

② Omnidirectional

The omnidirectional model captures sound from all angles. It

is ideal for capturing larger groups and sounds coming from

multiple directions.

Centraverse™ Series

Installed Sound Microphones

CVB

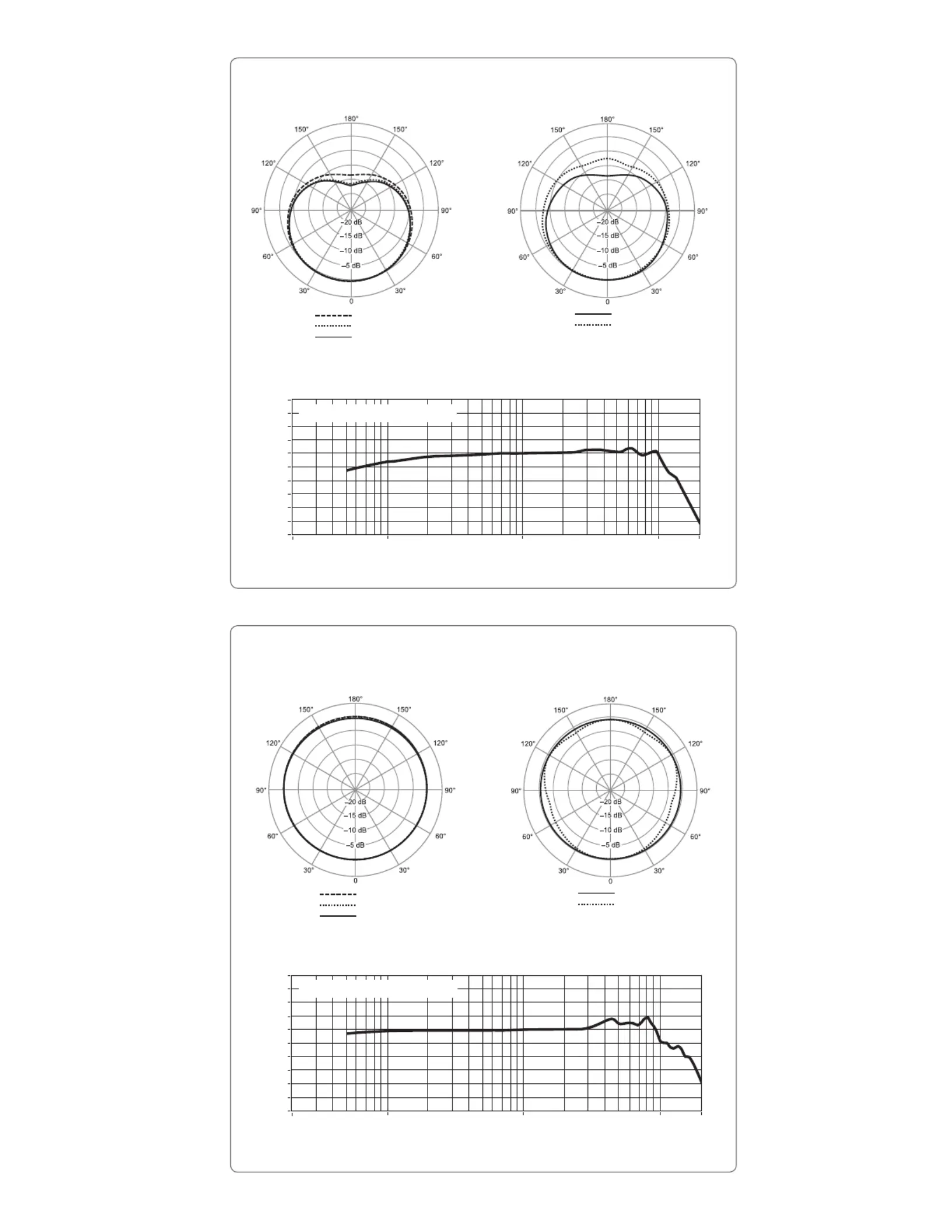

500 Hz

250 Hz

1,000 Hz

4,000 Hz

2,000 Hz

-30

-25

-20

-15

-10

-5

20 100 1k 10k 20k

2 ft. (0.6 m) from sound source

500 Hz

250 Hz

1,000 Hz

4,000 Hz

2,000 Hz

-30

-25

-20

-15

-10

-5

20 100 1k 10k 20k

2 ft. (0.6 m) from sound source

CVB / C

CVB / O

Cartridge Type

Electret Condenser

Polar Pattern

CVB/O Omnidirectional

CVB/C Cardioid

Frequency Response

70–16000 Hz

Output Impedance

180Ω

Sensitivity

open circuit voltage, @ 1 kHz, typical

CVB/O –28 dBV/Pa[1] (40 mV)

CVB/C –32.5 dBV/Pa[1] (23 mV)

Maximum SPL[2]

1 kHz at 1% THD

CVB/O 117 dB SPL

CVB/C 120 dB SPL

Signal-to-Noise Ratio[3]

Ref. 94 dB SPL at 1 kHz

CVB/O 74 dB

CVB/C 67 dB

Dynamic Range

CVB/O 97 dB

CVB/C 93 dB

Self Noise

equivalent SPL, A-weighted, typical

CVB/O 20 dB SPL

CVB/C 27 dB SPL

Preamplifier Output Clipping Level

@ 1 kHz, at 1% THD

CVB/O -6 dBV

CVB/C -7 dBV

Common Mode Rejection

10 Hz to 100 kHz

>45 dB

Specifications Certifications

Meets essential requirements of all applicable European Directives.

Eligible for CE marking.

The CE Declaration of Conformity can be obtained from Shure Incorporated

or any of its European representatives. For contact information please visit

www.shure.com

The CE Declaration of Conformity can be obtained from: www.shure.com/

europe/compliance

Authorized European representative:

Shure Europe GmbH

Headquarters Europe, Middle East & Africa

Department: EMEA Approval

Jakob-Dieffenbacher-Str. 12

75031 Eppingen, Germany

Phone: 49-7262-92 49 0

Fax: 49-7262-92 49 11 4

Email: EMEAsupport@shure.de

Polarity

Positive pressure on diaphragm pro-

duces positive voltage on pin 2 with

respect to pin 3

Environmental Conditions

Operating

Temperature

–18 to 57°C (0

to 135°F)

Storage

Temperature

–29 to 74°C

(–20 to 165°F)

Relative

Humidity

0 to 95%

Power Requirements

11–52 V DC[4], 2.0 mA

Weight

8 oz. (227 g)

[1] 1 Pa=94 dB SPL

[2] THD of microphone preampli-

fier when applied input signal level

is equivalent to cartridge output at

specified SPL

[3] S/N ratio is the difference be-

tween 94 dB SPL and equivalent

SPL of self noise, A-weighted

[4] All specifications measured with

a 48 Vdc phantom power supply.

The microphone operates at lower

voltages, but with slightly decreased

headroom and sensitivity.

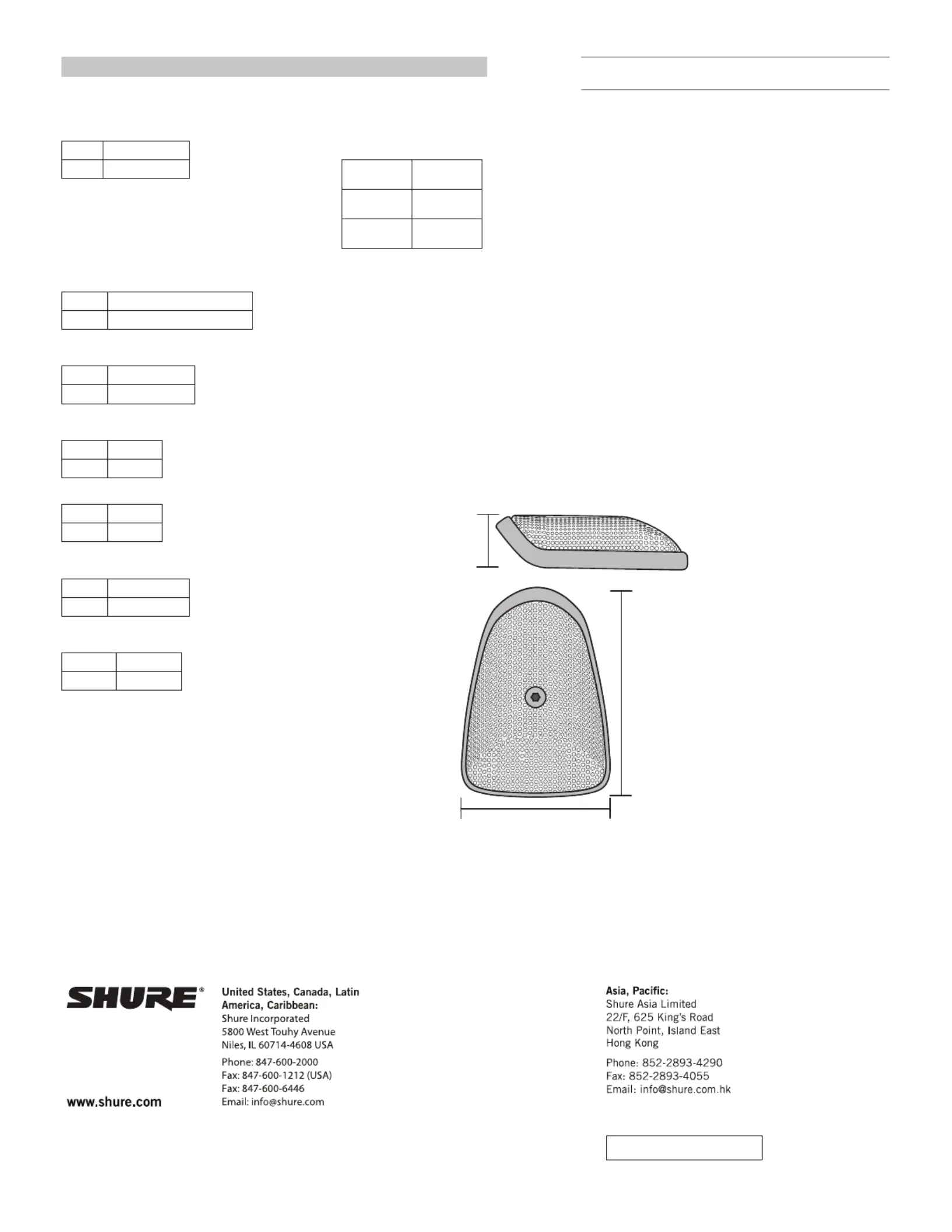

3.5 in.

(88 mm)

2.5 in.

(63 mm)

0.9 in.

(24 mm)
