General Description

The Shure Centraverse CVG is a professional gooseneck electret condenser

microphone for use in general installed sound reinforcement applications.

With dual gooseneck sections for full articulation, the CVG12/18 provides

scalable, best-in-class performance in a wide variety of locations, including

podiums and desktops.

Features

• Cardioid polar pattern with tailored response for speech

• Dual-section gooseneck enables ease of positioning and placement op-

tions

• Three model variations with inline preamps: standard, mute switch, and

light ring indicator

• Available in 12” (30.4 cm) and 18” (45.7 cm) gooseneck lengths

• Commshield technology guards against unwanted RF interference from®

portable wireless devices (smartphones, etc.)

• Included flange mount and snap-fit windscreen

Model Variations

 Gooseneck Length

12: 12" gooseneck

18: 18" gooseneck

 Mute Button and LED Indicator*

S: Includes mute button and bi-color LED on microphone body

RS: Includes mute button and On/Off colored indicator ring

*The Standard model does not feature a mute switch or LED

 Color

B: Black

 Polar Pattern

C: Cardioid

Note: Model availability depends on region. See your local Shure dealer or

distributor for details.

Installation

1. Drill a 22 mm (7/8 in.) hole in the mounting surface for the flange and three additional holes for the screws.

2. Screw the flange into place, and then set the microphone into the center hole.

3. Connect the microphone to a mixer or P.A. system using an XLR cable.

Note: This microphone requires +48V phantom power to operate.

22 mm

(7/8 in.)

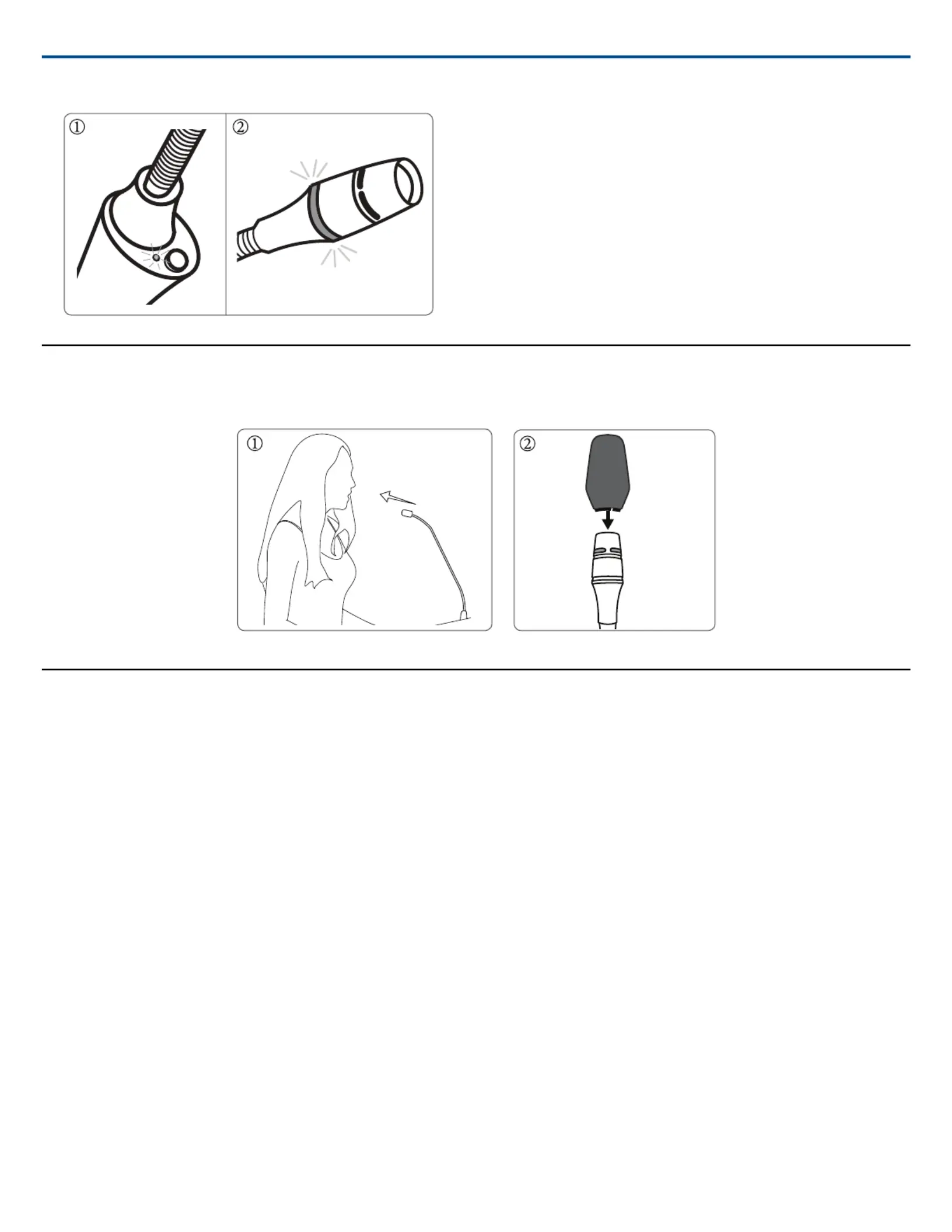

Mute Button Operation

Press the button on the microphone body to turn the mute on/off. The standard

model does not feature a mute button.

1. CVG12S: Mute is indicated by an LED on the microphone body:

⁃ Green = Microphone is on

⁃ Red = Microphone is muted

2. CVG12RS: Mute is indicated by a light ring on the microphone head:

⁃ Red = Microphone is on

⁃ Off = Microphone is muted

CVG

Gooseneck Condenser Microphone

Guidelines For Use

1. Maintain a distance of approximately 15 - 30 cm (6 - 12 in.) between the sound source and the microphone.

2. Always use the supplied windscreen to control plosives and wind noise.

15 – 30 cm

(6 – 12 in.)

Specifications

Cartridge Type

Electret Condenser

Polar Pattern

Cardioid

Frequency Response

70 Hz to 16,000 Hz

Output Impedance

180 Ω

Sensitivity

open circuit voltage,at 1kHz,typical

-33 dBV/Pa[1](22 mV)

Maximum SPL[2]

1 kHz at 1% THD

120 dBSPL

Signal-to-Noise Ratio[3]

Ref. 94 dB SPLat 1kHz

67 dB

Shure IncorporatedCVG Gooseneck Condenser Microphone

2017/10/052/4

Dynamic Range

93 dB

Self Noise

equivalent SPL, A-weighted, typical

27 dBSPL

Preamplifier Output Clipping Level

at 1 kHz,at 1% THD

–7 dBV

Common Mode Rejection

10 Hz to 100 kHz

>45 dB

Polarity

Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3

Environmental Conditions

-18° to 57° C (0° to 135° F)Operating Temperature

-29° to 74° C (-20° to 165° F)Storage Temperature

0 to 95%Relative Humidity

Power Requirements

11–52 V DC[4],2.0 mACVGD

11–52 V DC[4],5.5 mACVGD/S

11–52 V DC[4],5.0 mACVGD/RS

Weight

1202 g (42.4 oz.)CVGD/12

1216 g (42.9 oz.)CVGD/18

0123

0[1] 1 Pa=94 dB SPL

1[2] THD of microphone preamplifier when applied input signal level is equivalent to cartridge output at specified SPL

2[3] S/N ratio is the difference between 94 dB SPL and equivalent SPL of self-noise, A-weighted

3[4]All specifications measured with a 48 Vdc phantom power supply. The microphone operates at lower voltages, but with slightly decreased headroom and

sensitivity.
