Sida 1/20

IMPORTANT SAFETY INSTRUCTIONS

1. READ these instructions.

2. KEEP these instructions.

3. HEED all warnings.

4. FOLLOW all instructions.

5. DO NOT use this apparatus near water.

6. CLEAN ONLY with dry cloth.

7. DO NOT block any ventilation openings. Allow sufficient distances for

adequate ventilation and install in accordance with the manufacturer’s

instructions.

8. DO NOT install near any heat sources such as open flames, radiators,

heat registers, stoves, or other apparatus (including amplifiers) that pro-

duce heat. Do not place any open flame sources on the product.

9. DO NOT defeat the safety purpose of the polarized or grounding type

plug. A polarized plug has two blades with one wider than the other. A

grounding type plug has two blades and a third grounding prong. The

wider blade or the third prong are provided for your safety. If the provided

plug does not fit into your outlet, consult an electrician for replacement

of the obsolete outlet.

10. PROTECT the power cord from being walked on or pinched, particularly

at plugs, convenience receptacles, and the point where they exit from

the apparatus.

11. ONLY USE attachments/accessories specified by the manufacturer.

12. USE only with a cart, stand, tripod, bracket, or table specified by the

manufacturer, or sold with the apparatus. When a cart is used, use caution

when moving the cart/apparatus combination to avoid injury from tip-over.

13. UNPLUG this apparatus during lightning storms or when unused for long

periods of time.

14. REFER all servicing to qualified service personnel. Servicing is required

when the apparatus has been damaged in any way, such as power

supply cord or plug is damaged, liquid has been spilled or objects have

fallen into the apparatus, the apparatus has been exposed to rain or

moisture, does not operate normally, or has been dropped.

15. DO NOT expose the apparatus to dripping and splashing. DO NOT put

objects filled with liquids, such as vases, on the apparatus.

16. The MAINS plug or an appliance coupler shall remain readily operable.

17. The airborne noise of the Apparatus does not exceed 70dB (A).

18. Apparatus with CLASS I construction shall be connected to a MAINS

socket outlet with a protective earthing connection.

19. To reduce the risk of fire or electric shock, do not expose this apparatus

to rain or moisture.

20. Do not attempt to modify this product. Doing so could result in personal

injury and/or product failure.

21. Operate this product within its specified operating temperature range.

Explanation of Symbols

Caution: risk of electric shock

Caution: risk of danger (See note.)

Direct current

Alternating current

On (Supply)

Equipment protected throughout by DOUBLE INSULATION or

REINFORCED INSULATION

Stand-by

Equipment should not be disposed of in the normal waste stream

WARNING: Voltages in this equipment are hazardous to life. No user-ser-

viceable parts inside. Refer all servicing to qualified service personnel. The

safety certifications do not apply when the operating voltage is changed from

the factory setting.

WARNING: Battery packs shall not be exposed to excessive heat such as

sunshine, fire, or the like.

WARNING: Danger of explosion if incorrect battery replaced. Operate only

with AA batteries.

WARNING: This product contains a chemical known to the State of California

to cause cancer and birth defects or other reproductive harm.

WARNING

• Battery packs may explode or release toxic materials. Risk of fire or

burns. Do not open, crush, modify, disassemble, heat above 140°F

(60°C), or incinerate

• Follow instructions from manufacturer

• Never put batteries in mouth. If swallowed, contact your physician or local

poison control center

• Do not short circuit; may cause burns or catch fire

• Do not charge or use battery packs with other than specified Shure

products

• Dispose of battery packs properly. Check with local vendor for proper

disposal of used battery packs

Note:

• This equipment is intended to be used in professional audio applications.

• EMC conformance is based on the use of supplied and recommended

cable types. The use of other cable types may degrade EMC perfor-

mance.

• Use this battery charger only with the Shure charging modules and battery

packs for which it is designed. Use with other than the specified modules

and battery packs may increase the risk of fire or explosion.

• Changes or modifications not expressly approved by Shure Incorporated

could void your authority to operate this equipment.

GLXD4R

Half-Rack Wireless Receiver

Note: Use only with the included power supply or a Shure-approved equiva-

lent.

System Overview

GLX-D Advanced Digital Wireless Systems combine Automatic Frequency

Management technology with a rack mountable metal receiver, rechargeable

lithium-ion batteries, world-renowned microphones, and unparalleled design

and construction. New GLX-D Advanced Frequency Managers (available

separately) connect multiple GLXD4R receiver systems for increased channel

count and improved RF reliability, consolidating RF to one pair of antennas.

New antenna accessories help improve reception by letting you mount anten-

nas closer to transmitters, with directional reception for improved performance.

Available in a variety of bodypack and handheld configurations, GLX-D Ad-

vanced Digital Wireless sets the standard for ease of operation and digital

audio clarity.

Features

• Exceptional digital audio clarity

• Operates in globally unlicensed 2.4 GHz spectrum

• Optional GLX-D Frequency Manager allows operation of up to 11 systems

• New antenna accessories for remote mounting and improved reception

• Half-rack size and metal chassis

• Rechargeable batteries deliver cost efficiency and up to 16 hours of

runtime

• Adjustable transmitter gain to optimize audio signal

• Automatically moves away from interference without audio interruption

• RF back-channel for remote control of transmitter functions

• Automatic transmitter power-off to conserve battery life when transmitter

is not in use

Furnished Accessories

95A32436Reverse SMA Bulkhead Adapters, lockwasher, nut (2)

UA802-RSMA0.6 m (2 ft.) Reverse SMA Cable (2)

PS43Power Supply

95B13528UA8-2.4 GHz 1/2 Wave Antenna (2)

90AZ8100Rack-mounting hardware kit

SB902Shure Lithium-Ion Rechargeable Battery*

95A21651USB Cable, Type A to Micro-B*

* Only included with GLXD14 or GLXD24 systems.

Optional Accessories

UA846Z2-LCGLX-D Frequency Manager

PA805Z2-RSMAPassive Directional Antenna 2.4 GHz

UA221-RSMA

Reverse SMA Passive Antenna Splitter (900 MHz

ISM, DECT, 2.4 GHz)

UA505-RSMAWall Mount for PA805Z2-RSMA and UA8-2.4GHZ

UA8-2.4GHZ1/2 Wave Antenna, 45 deg. (2.4 GHz)

UA802-RSMA0.6 m (2 ft.) Reverse SMA Cable

UA806-RSMA1.8 m (6 ft.) Reverse SMA Cable

UA825-RSMA7.6 m (25 ft.) Reverse SMA Cable

UA850-RSMA15.2 m (50 ft.) Reverse SMA Cable

UA8100-RSMA30.4 m (100 ft.) Reverse SMA Cable

95A32436Reverse SMA Bulkhead Adapters

SBC10-902Stand Alone Single Battery Charger

SBC-CARCar Battery Charger

Quick Start for Single Receiver

To reduce set-up time, the transmitter and receiver automatically link to form an audio channel the first time they are powered on and never have to be linked

again.

Shure IncorporatedGLXD4R Half-Rack Wireless Receiver

2017/11/282/20

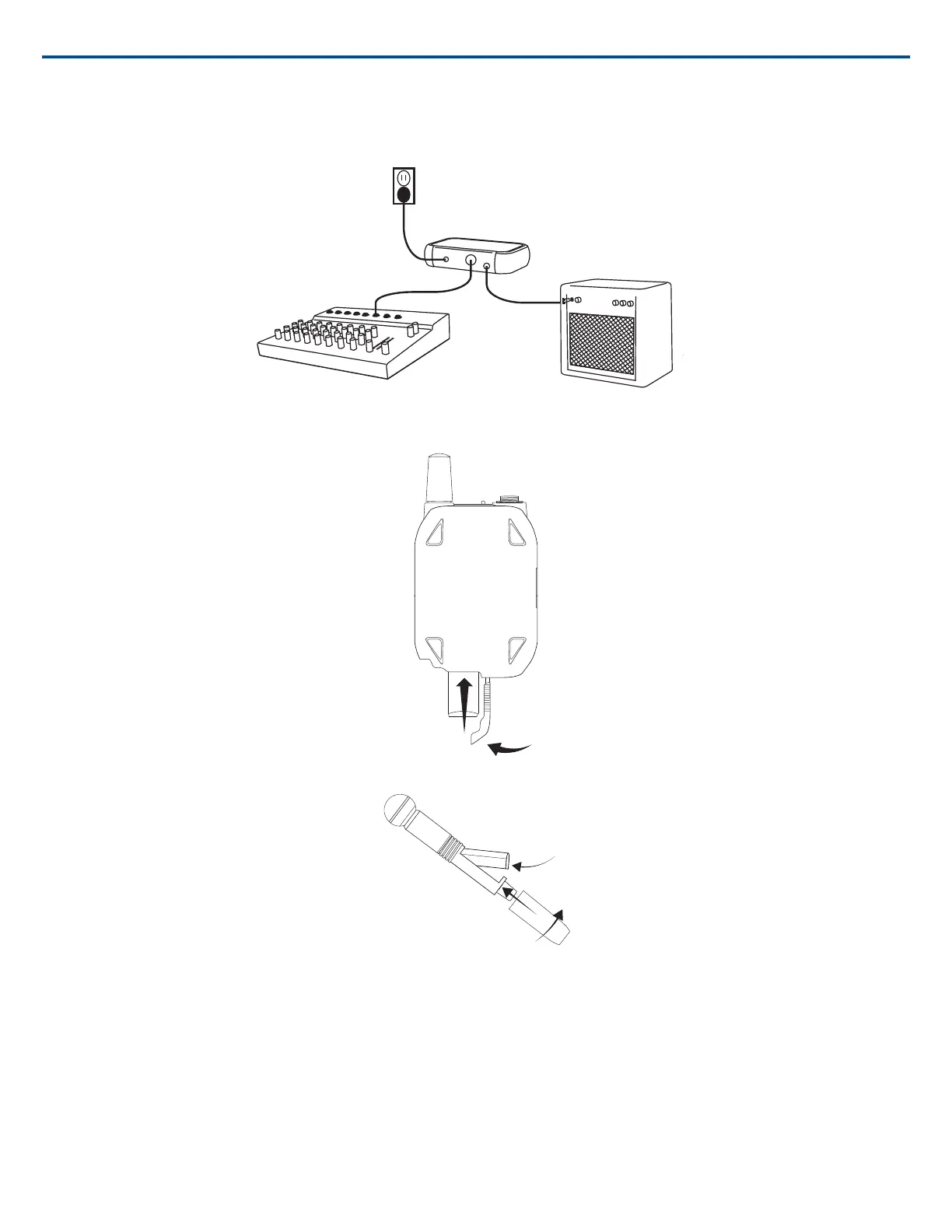

Step ①

Connect power supply to the receiver and plug cord into an AC power source. Connect the audio output to an amplifier or mixer.

Step ②

Install charged transmitter batteries.

Step ③

Turn on the transmitter and receiver. The blue LED will flash while the transmitter and receiver form a link. The LED turns solid blue when the link has suc-rf rf

cessfully formed.

Shure IncorporatedGLXD4R Half-Rack Wireless Receiver

3/202017/11/28
