Overview

General Description

The Microflex®Advance™ Ceiling Array is a premium networked array microphone for AV conferencing environments, including boardrooms, huddle rooms,

and multi-purpose spaces. Revolutionary technology from the IntelliMix

®DSP suite includes Steerable Coverage™ , with eight highly directional pickup lobes

that capture participant audio from overhead. Browser-based control software provides an intuitive user interface for microphone attributes, including lobe con-

figuration, automatic mix settings, and preset templates. The microphone integrates seamlessly with Dante™ digital networked audio and third-party preset

controllers, including Crestron and AMX, to deliver a high-quality AV conferencing experience that appeals equally to integrators, consultants, and meeting

participants.

MXA910

Microﬂex Advance Ceiling Array Microphone

Features

Configurable Coverage

• Steerable Coverage™ delivers precise pickup for up to 8 independent lobes

•IntelliMix®DSP Suite provides fast-acting automatic mixing, echo reduction, and channel equalization

Software Control

• Intuitive software interface provides comprehensive microphone and pattern control

• Includes templates to speed initial set-up and 10 customizable presets to import or export configurations between multiple microphones

Network Connectivity

• Discrete audio channels for each lobe and an automix channel are delivered over a single network cable

• Dante™ digital audio coexists safely on the same network as IT and control data, or can be configured to use a dedicated network

• Control strings available for third-party preset controllers including Crestron and AMX

Professional Design

• Sleek industrial design blends with contemporary board rooms and meeting spaces

• Seamless flush-mount with standard ceiling tiles

• Available in white, black, and aluminum finishes (detachable grille can be custom painted)

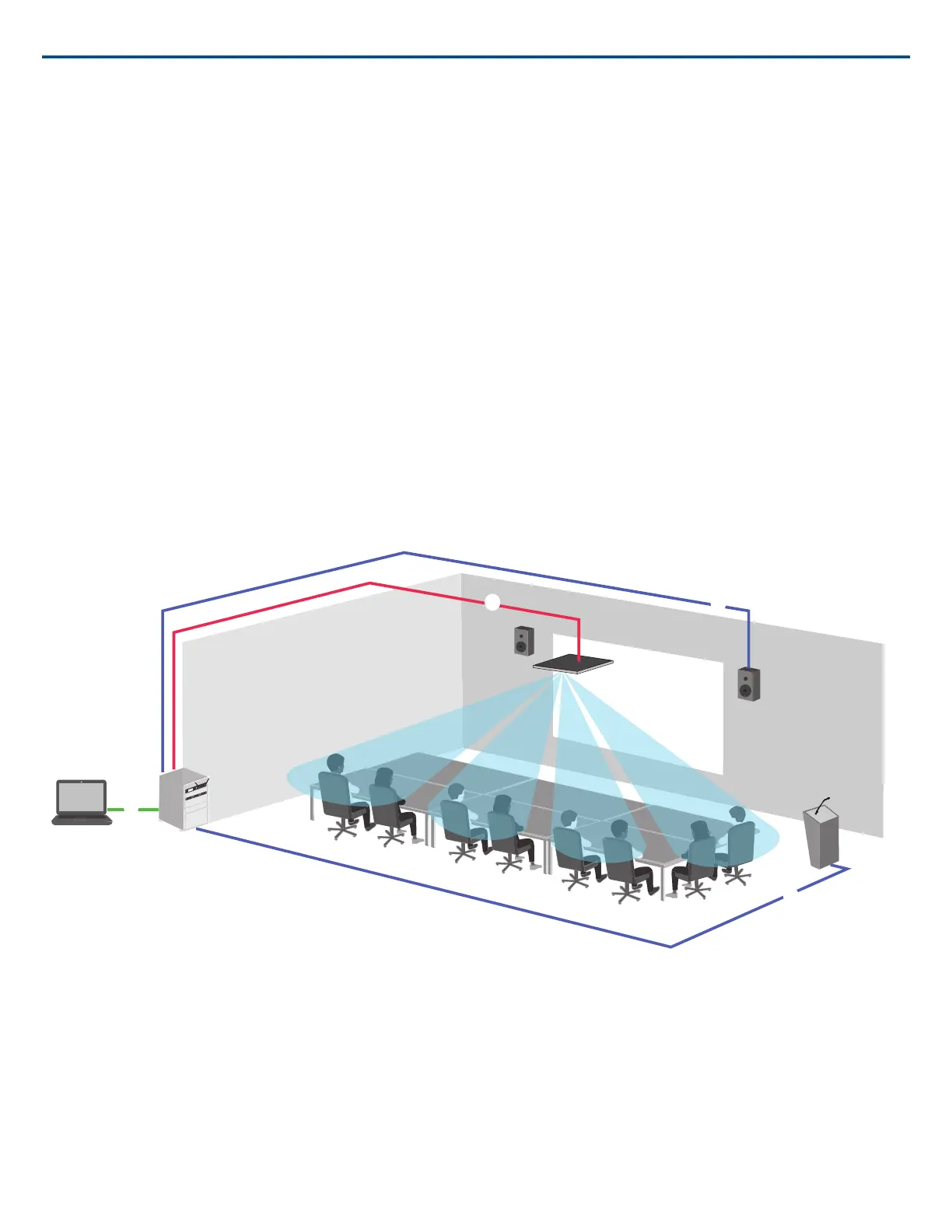

System Overview

௟

௠

௡

௢

① Dante audio, power, and control

Each array microphone connects to the network over a single network cable, which carries Dante™ audio, Power over Ethernet (PoE), and control information

to adjust coverage, audio levels, and processing.

② Analog audio (microphone to network)

Analog equipment, such as a wireless microphone system or a gooseneck microphone on a podium, connects to the Dante™ audio network through a Shure

Network Interface (model ANI4IN) for a completely networked conferencing system.

③ Far-end audio (network to loudspeakers)

Dante™ -enabled loudspeakers and amplifiers connect directly to a network switch. Analog loudspeakers and amplifiers connect through a Shure Network In-

terface (model ANI4OUT), which converts Dante™ audio channels into analog signals, delivered through 4 discrete XLR or block connector outputs.

④ Device control and Dante™ audio

Shure IncorporatedMXA910 Microﬂex Advance Ceiling Array Microphone

2016/08/162/49

Control: A computer connected to the network controls the microphone through a web-based control application. Coverage, muting, LED behavior, lobe settings,

gain, and network settings are controlled remotely.

Audio: Dante™ audio is routed through Dante™ controller software. Dante™ Virtual Soundcard enables audio monitoring and recording directly on the

computer.

System Planning and Gear Requirements

Setting up the Audio Network

Shure are comprised ofnetworked conferencing systems Microﬂex Advance network interfacesmicrophones and , which operate entirely on a Dante™ network.

Additional hardware, including network switches, computers, loudspeakers, and audio processors are described in the hardware component index.

Shure components shown in this diagram:

Microﬂex Advance Microphones

The MXA910 and MXA310 are equipped with Dante outputs, and connect directly to a network switch.

Audio Network Interfaces

The interfaces are used to connect analog devices such as loudspeakers and analog microphones to the network.

ANI4IN: Converts 4 analog signals (separate XLR and block connector models available) into Dante™ digital audio signals.

ANI4OUT: Converts 4 channels of Dante™ audio from the network into analog signals.

res et

PoE

INPUT

res et

PoE

INPUT

s ig/clip

power

res et

PoE

network

network audio

encryption

OUTPUT

s ig/clip

power

res et

PoE

network

network audio

encryption

OUTPUT

ULXD 4Q

Digital Wireless Rec eiver

push

control

ENTER

EXIT

SCAN

power

RFA B

gainaudio

RFA B

gainaudio

RFA B

gainaudio

RFA B

gainaudio

RX1 RX2 RX3 RX4

sync sync sync sync

S E L S E L

ULXD 4Q

Digital Wireless Rec eiver

push

control

ENTER

EXIT

SCAN

power

A B

gainaudio

A B

gainaudio

A B

gainaudio

A B

gainaudio

RX1 RX2 RX3 RX4

sync sync sync sync

S E L S E L

ULXD1 ULXD1

ULXD2

ULXD 4Q

Digital Wireless Rec eiver

push

control

ENTER

EXIT

SCAN

power

RFA B

gainaudio

RFA B

gainaudio

RFA B

gainaudio

RFA B

gainaudio

RX1 RX2 RX3 RX4

sync sync sync sync

S E L SE L

ULXD 4Q

Digital Wireless Rec eiver

push

control

ENTER

EXIT

SCAN

power

A B

gainaudio

A B

gainaudio

A B

gainaudio

A B

gainaudio

RX1 RX2 RX3 RX4

sync sync sync sync

S E L SE L

ULXD1 ULXD1

ULXD2

Dante

Analog

Microflex Advance microphones

Analog microphones

Loudspeakers

Option 1 (VOIP/TELCO)

Option 2 (Internet/DVS)

Near end Far end

Network switch

Network interface (ANI4IN)

Network interface (ANI4OUT)

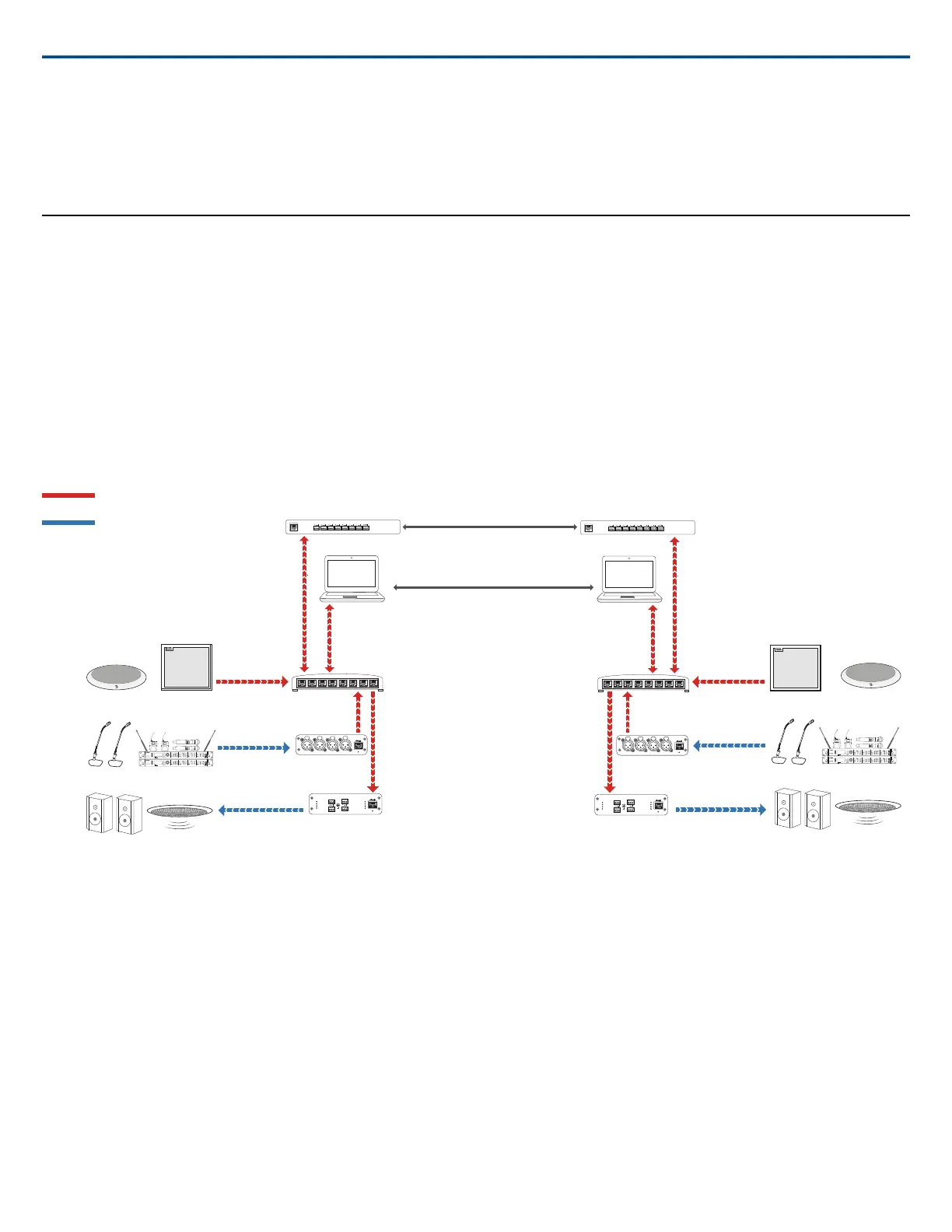

This diagram shows the entire signal path through a networked conference system. Signals from the and are exchanged through an audionear end far end

processor connected to a phone system, or through a computer connected to the internet. Analog microphones connect to the network through the Shure ANI4IN,

while loudspeakers connect through the Shure ANI4OUT.

Shure IncorporatedMXA910 Microﬂex Advance Ceiling Array Microphone

3/492016/08/16
