Sida 1/4

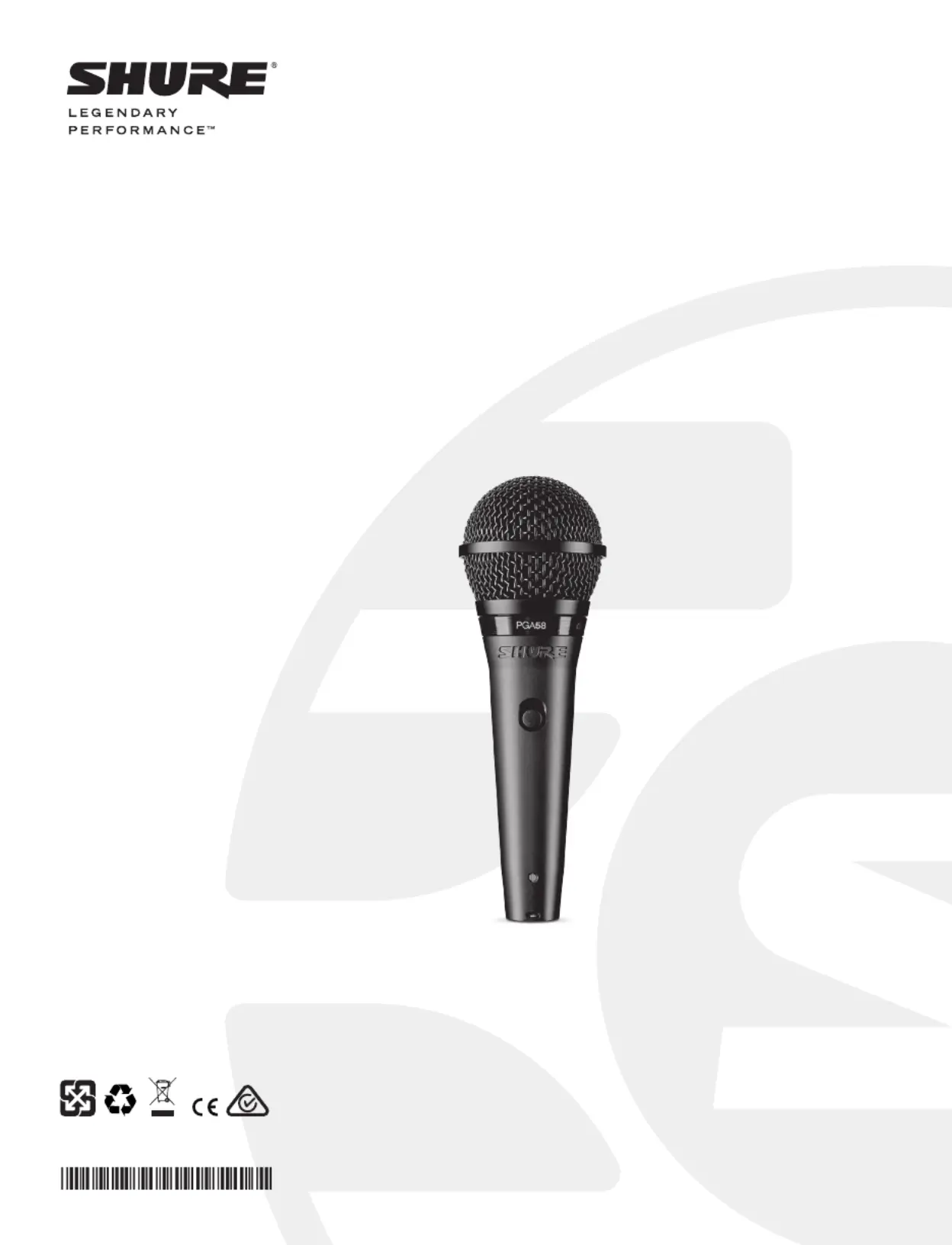

© 2015 Shure Incorporated
27A24476 (Rev. 3)
WIRED MICROPHONE
PGA 58
USER GUIDE
PG ALTA SERIES
TM
2
PGA58
Proximity Effect
Directional microphones progressively boost bass frequencies as
the microphone is placed in closer proximity to the source. This
phenomenon, known as proximity effect, can be used to create a
warmer, more powerful sound.
Avoiding Pickup of Unwanted Sound
Sources
Place the microphone so that unwanted sound sources, such as
monitors and loudspeakers, are directly behind it. To minimize
feedback and ensure optimum rejection of unwanted sound,
always test microphone placement before a performance.
MONITOR
P.A. LOUDSPEAKER
Recommended Loudspeaker Locations for Cardioid
Microphones
On/Off Switch
On
Off
PG Alta Microphones
Congratulations on the purchase of a new Shure PG Alta series
microphone. The PG Alta series delivers professional quality
audio at an affordable price, with solutions for capturing nearly
any source, including voice, acoustic instruments, drums,
and amplified electric instruments. Suitable for live and studio
applications, PG Alta microphones are built to last, and meet
the same rigorous quality testing standards that make all Shure
products trustworthy and reliable.
General Rules for Use
• Do not cover any part of the microphone grille with your hand,
as this will adversely affect microphone performance.
• Aim the microphone toward the desired sound source (such
as the talker, singer, or instrument) and away from unwanted
sources.
• Place the microphone as close as practical to the desired
sound source.
• Work close to the microphone for extra bass response.
• Use only one microphone to pick up a single sound source.
• For better gain before feedback, use fewer microphones.
• Keep the distance between microphones at least three times
the distance from each microphone to its source (“three to one
rule”).
• Place microphones as far as possible from reflective surfaces.
• Add a windscreen when using the microphone outdoors.
• Avoid excessive handling to minimize pickup of mechanical
noise and vibration.
3
Certifications
This product meets the Essential Requirements of all relevant
European directives and is eligible for CE marking.
The CE Declaration of Conformity can be obtained from:
www.shure.com/europe/compliance
Authorized European representative:
Shure Europe GmbH
Headquarters Europe, Middle East & Africa
Department: EMEA Approval
Jakob-Dieffenbacher-Str. 12
75031 Eppingen, Germany
Phone: 49-7262-92 49 0
Fax: 49-7262-92 49 11 4
Email: EMEAsupport@shure.de
Specifications
Type
Dynamic (moving coil)
Frequency Response
50 to 16,000 Hz
Polar Pattern
Cardioid
Output Impedance
150 Ω
Sensitivity
at 1 kHz, open circuit voltage
-55 dBV/Pa¹ (1.79 mV)
Polarity
Positive pressure on diaphragm produces positive voltage on pin 2
with respect to pin 3
Weight
294 g (10.37oz.)
Switch
On/Off Switch
Connector
Three-pin professional audio (XLR), male
Environmental Conditions
Operating Temperature -20° to 165°F (-29° to 74°C)
Relative Humidity 0 to 95%
1 Pa=94 dB SPL
Optional Accessories and
Replacement Parts
Microphone Clip A25D
5/8" to 3/8" Thread Adapter 31A1856
7.6 m (25 ft.) Cable (XLR-XLR) C25J
TRIPLE-FLEX® Cable and Plug 7.6 m (25
ft.)
C25F
Grille RPMP58G
PGA58 Replacement Grille RPM150
20
15
10
5
0
-30
-25
-20
-15
-10
-5
dB
Hz
20 100 1k 10k 20k
0,6 m (2 ft .) from sound source
Typical Frequency Response
1000 Hz
Typical Polar Pattern
166 mm (6.54 in)
55.1 mm diameter
(2.17 in.)
Overall Dimensions
