General Description
The Shure UA860V is a passive, ground-reference omnidirectional VHF an-
tenna for use with VHF wireless systems.
Features
• Greatly improves reception of wireless signal
• Omnidirectional dipole reception pattern
• Integrated microphone stand adapter
• Includes UA8-174-216 antenna, thread adapter, and a 3m (10ft) coaxial
antenna cable
Installation
• Choose a location for installing the antenna that follows the proper
guidelines for cabling and antenna placement.
• Connect the provided UA8 antenna to the top plate of the UA860V.
• Connect the UA860V to the receiver or antenna distribution system.
• Mount the UA860V to a microphone stand. For best performance, keep
the antenna upright and the grounding plate horizontal.

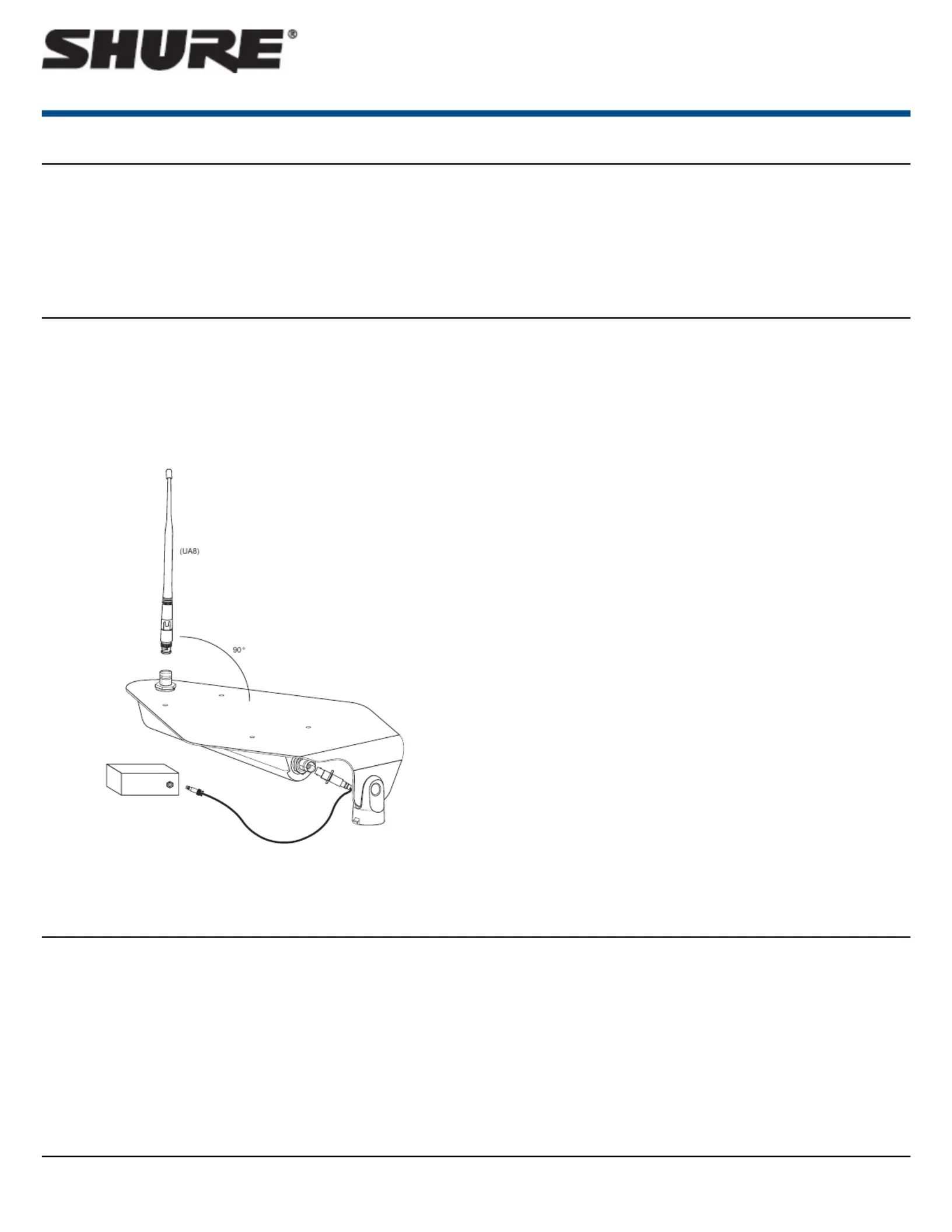

UA860V Installation
Cable Maintenance
To maintain top performance for antenna cables:
• Avoid sharp bends or kinks in the cables.
• Do not deform cables with makeshift clamps, such as bending a nail over
the cable.
• Do not use in permanent outdoor installations.
• Do not expose to extreme moisture.
Selecting Antenna Cables
Use 50 ohm low-loss coaxial cable, such as RG-8U. Shure offers pre-termi-
nated antenna cables ranging from 6 to 100 feet.
Antenna Placement
Use the following guidelines when mounting antennas:
• Receivers, amplifiers, and other accessories must be rated for use within
the same frequency range as the antenna.
• Mount antennas one wavelength (1.75 m) apart.at least
• Keep antennas away from metal objects.
• Position antennas so there is nothing obstructing a line of sight to the
transmitter (including the audience).
• Place antennas as close as possible to transmitter, such as to the side
of the stage (instead of a front of house location).
• For cable runs exceeding 50 feet (15 meters), an in-line amplifier (Shure
UA834) might be necessary to compensate for signal loss.
Important: Always perform a "walk around" test to verify coverage before
using a wireless system during a speech or performance. Experiment with
antenna placement to find the optimum location. If necessary, mark "trouble
spots" and ask presenters or performers to avoid those areas.
Find More Information Online
For more information, visit http://www.shure.com
1/2©2017 Shure Incorporated
UA860V
Passive Omnidirectional Antenna
Specifications
RF Frequency Range
174 to 216 MHz
Reception Pattern
Omnidirectional, Dipole
Voltage Standing Wave Ratio (VSWR)
referenced to 50 Ω
<2:1
Connector
Female, BNC
Dimensions
284 mm x 39 mmdia.
Net Weight
without cable
275 g (9.72 oz.)
Accessories
Furnished Accessories
PA72510 ft. BNC-BNC Coaxial Cable
31A18565/8" to 3/8" Thread Adapter
Certifications
This product meets the Essential Requirements of all relevant European di-
rectives and is eligible for CE marking.
The CE Declaration of Conformity can be obtained from:
www.shure.com/europe/compliance
Authorized European representative:
Shure Europe GmbH
Headquarters Europe, Middle East & Africa
Department: EMEA Approval
Jakob-Dieffenbacher-Str. 12
75031 Eppingen, Germany
Phone: +49-7262-92 49 0
Fax: +49-7262-92 49 11 4
Email: info@shure.de
