©2014 Shure Incorporated
27A15788 (Rev. 4)

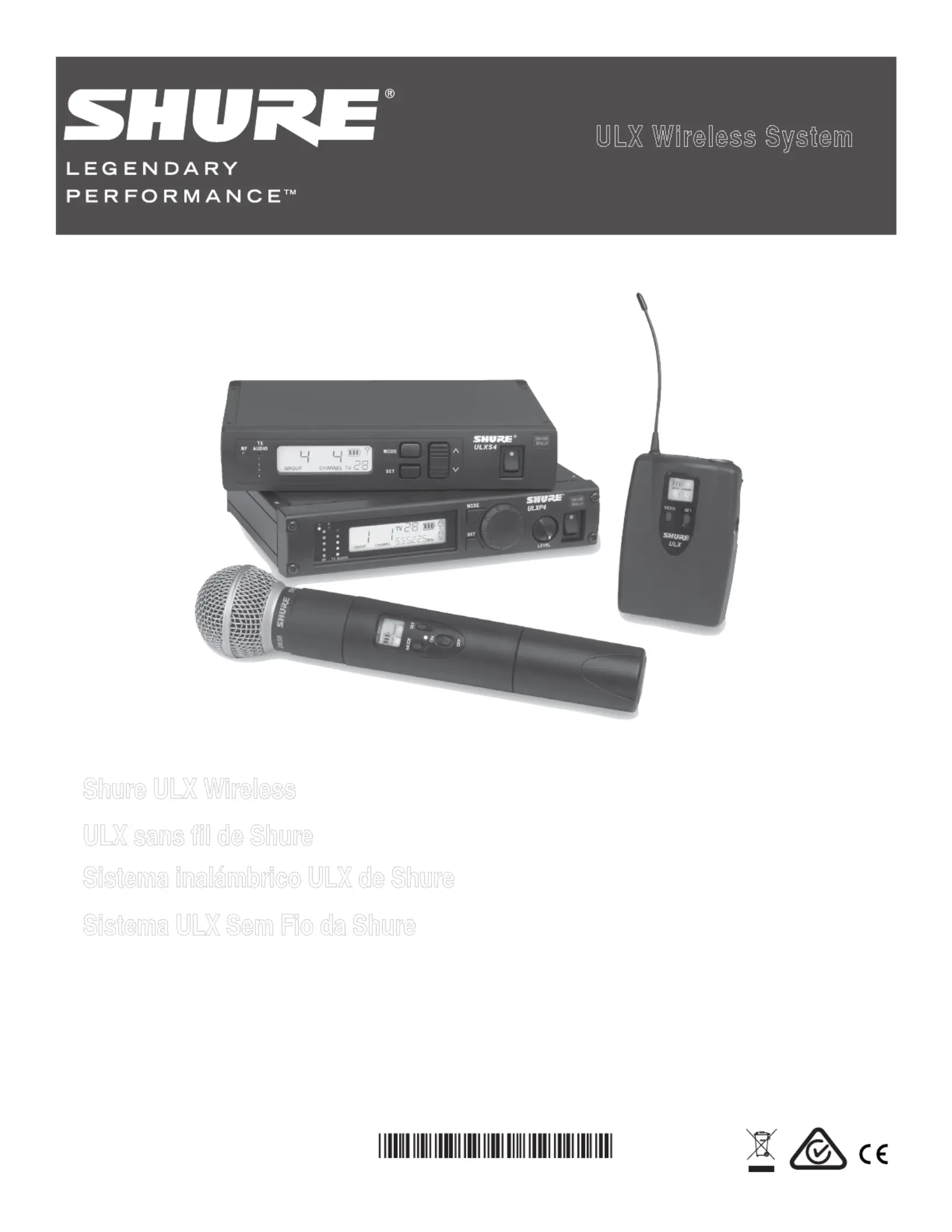

ULX Wireless System
Shure ULX Wireless
ULX sans fil de Shure
Sistema inalámbrico ULX de Shure
Sistema ULX Sem Fio da Shure
3
ULX System Components
All systems include either a ULXS4 Standard
Diversity Receiver or ULXP4 Professional
Diversity Receiver.
Bodypack systems include a choice of lavalier,
headworn, or instrument microphones.
WB98H/C
WH30, WCM16, WBH53/54
WL93, WL183/184/185, WL50/51
Handheld systems include a choice of inter-
changeable microphone heads.
SM58, SM86, SM87A,
Beta 58, Beta 87C
Guitar systems include a 1/4” to mini 4-pin
cable.
WA302
ULXP4 receivers include rack-mounting
hardware.
FUL CK MOUL RA NT HARDWARE
UA507
1/ RA MOUNT RD2 CK HA WARE
UA506
Active Antennas
The antenna connectors on the
ULX receiver provide 12 V DC for
active circuit antennas.
Caution: Use only Shure antenna accessories
to ensure the best operation. Do not use split-
ters, combiners, or antennas that provide a
DC ground, as this can cause the receiver to
function improperly.
Antenna Combiners and Accessories
The supplied antennas can be connected directly to the
BNC-type ANTENNA connectors. However, optional antenna
mounting accessories from Shure can improve reception and
reduce rack clutter. Use the following guidelines:
Antennas and receivers must be from the same band.
Mount antennas more than 40 cm (16 inches) apart.
Use Shure UA825 or UA850 low-loss coaxial antenna cable
(or any 50 ohm, low-loss cable such as RG-8U).
Visit www.shure.com for more information on wireless antenna
accessories.
Coaxial Cables
Front Mount Antenna Kit
1/2-Wave Antenna included with ULXP4
systems
Inline Antenna Amplifier
for long antenna cable runs
Antenna Rack Mount Kit
Active Directional Antenna
for more focused reception
Distribution Amplifier
combines antennas and power supplies for
multiple receivers
Antennas
