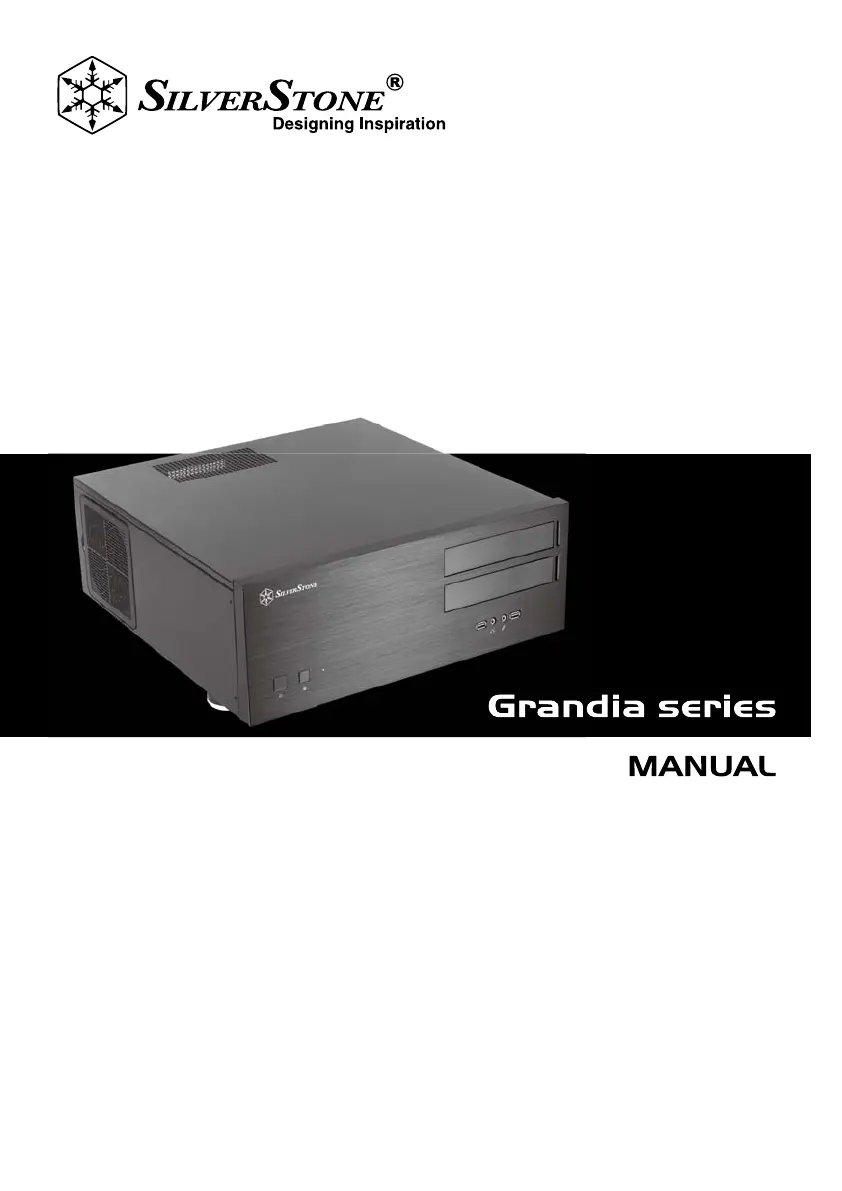

SilverStone Grandia GD08 Bruksanvisning
SilverStone
Computerbehuizing
Grandia GD08
Läs nedan 📖 manual på svenska för SilverStone Grandia GD08 (49 sidor) i kategorin Computerbehuizing. Denna guide var användbar för 5 personer och betygsatt med 4.5 stjärnor i genomsnitt av 2 användare
Sida 1/49
1
Installation and system optimization guide:
The following manual and guides were carefully prepared by the SilverStone engineering team to help
you maximize the potential of your SilverStone product. Please keep this manual for future reference
when upgrading or performing maintenance on your system. A copy of this manual can also be
downloaded from our website at:
http://www.silverstonetek.com
Disassemble chart
Connector denition
Front I/O connector guide
Component size limitations
Recommended cooling device setup & selection
Installation guide
Specication P.2
P.3
P.4
P.17
P.19
P.20
P.33
Protect your computer P.43
Q&A P.44
Amazing home theater server case with
incredible storage and cooling capacity
2
Material
Model
Motherboard
Drive Bay
Cooling System
Expansion Slot
Front I/O Port
Power Supply
Expansion Card
Limitation of CPU cooler
Dimension
*1: Motherboard size will aect the size and amount of fans that can be tted in the bottom panel.
Please refer to manual for details.
*2: With optical drive installed, the deepest PSU recommended is 180mm.
Aluminum front panel, steel body
SST-GD08B (black)
SSI EEB, SSI CEB, Extended ATX, ATX, Micro ATX *1
Exposed
Internal
Side
Rear
Top
Bottom
7 + 1
USB 3.0 x 2, audio x 1, MIC x 1
Support standard PS2 (ATX) up to 220mm, recommend
depth is under 180mm *2
Support graphic cards up to 13.6 inches
138mm
440mm(W) x 175mm(H) x 425mm(D)
5.25" x 2 (support optical drive only)
3.5" x 8, 2.5” x 2
1 x 120mm intake fans, 900rpm, 18dBA
1 x 120mm fan slot
2 x 80mm fan slot
oversized vents
3 x 120mm intake fans, 900rpm, 18dBA
(backwards compatible with 1 x 120mm fan
+ 3 x 80mm fans, or 6 x 60mm fans)
