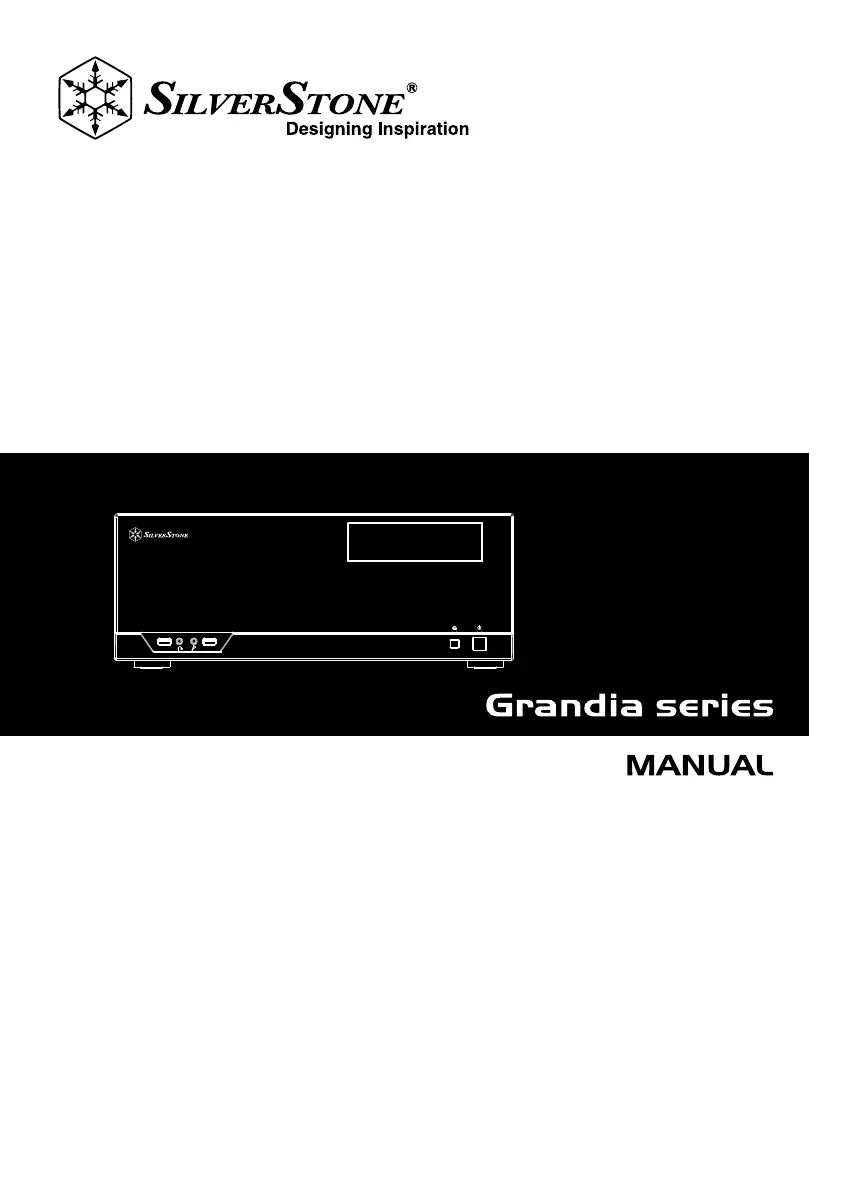

SilverStone Grandia GD09 Bruksanvisning
SilverStone
Computerbehuizing
Grandia GD09
Läs nedan 📖 manual på svenska för SilverStone Grandia GD09 (36 sidor) i kategorin Computerbehuizing. Denna guide var användbar för 10 personer och betygsatt med 4.5 stjärnor i genomsnitt av 2 användare
Sida 1/36


Product Overview
Installation and system optimization guide:
The following manual and guides were carefully prepared by the SilverStone
engineering team to help you maximize the potential of your SilverStone product.
Please keep this manual for future reference when upgrading or performing
maintenance on your system. A copy of this manual can also be downloaded from
our website at:
www.silverstonetek.com
Specication
Disassemble Chart
Installation Guide
Connector Denition
Componet Size Limitations
Recommended Cooling Device Setup And Selection
Upgrade And Maintenance
P.1
P.1
P.2
P.3
P.15
P.18
P.25
P.28
Protect Your Computer P.32
Q&A P.33
Warranty Information

The perfect HTPC case for everyone
Material
Model
Motherboard
Drive Bay
Cooling System
Expansion Slot
Front I/O Port
Power Supply
Expansion Card
Limitation of CPU cooler
Dimension
Plastic front panel with faux aluminum nish, 0.8mm steel body
SST-GD09B (black)
SSI CEB, ATX, Micro ATX*
Exposed
Internal
Right
Rear
Top
Left
7 + 1
USB 3.0 x 2, audio x 1, MIC x 1
Standard PS2 (ATX)
220mm maximum, 180mm recommended
Support cards up to 12.2”, width restriction 5.25”
138mm
440mm (W) x 170mm (H) x 358mm (D), 26.8 liters
5.25" x 1 (compatible with 3.5” x 1 or 2.5” x 2)
3.5" x 2 (one compatible with 2.5”), 2.5” x1
1 x 120mm intake fan, 900rpm, 18dBA
1 x 120mm fan slot
2 x 80mm fan slot
Expansion card vent
1 x 120mm fan slot, compatible with 80mm fan
Product Overview
Specication
1
Introduction
The Grandia GD09 is a culmination of SilverStone’s decade-long experience in HTPC case design and manufacturing into a product
that every PC enthusiast can enjoy. The incredible efficiency in which it utilizes all available space results in a case that is close in
size externally to Micro-ATX based GD04 and GD05, yet capable of fitting most important full size standard components including
wider ATX motherboards (SSI-CEB) such as ROG or other gaming-centric models. All drive cages have been designed similarly to
those from the popular ML03 case to provide maximum flexibility in drive configuration without the need for additional adapters. For
cooling, all positive pressure and smooth airflow designs were retained from previous Grandia models while improvements were made
to filter access for even easier maintenance. With the GD09, there has never been a more attractively sized HTPC case that is as
capable and user-friendly. So whether one is looking to build an affordable or a powerful PC, this case can definitely satisfy both
ends of the requirement.
