Sirui K-30X Bruksanvisning
Läs nedan 📖 manual på svenska för Sirui K-30X (4 sidor) i kategorin Stativ. Denna guide var användbar för 5 personer och betygsatt med 4.5 stjärnor i genomsnitt av 2 användare
Sida 1/4
2.Attaching Your Ball Head
UNC3/8"
Mounting
Screw
4.Attaching and Removing the
Quick Release Plate
3.Know your Quick Release
Clamp and Quick Release Plate
Figure 2-1 Figure 2-2
UNC3/8"
Screw Hole
Tighten
Quick Release Clamp:
Clamp Jaw
Loosen
Bubble Level
Clamp Plate
Security Pin
Clamp locking knob
Security Pin
Release Button
Quick Release Plate:
Common Plate
Tighten
Loosen
Stop
Stop Loosen Press

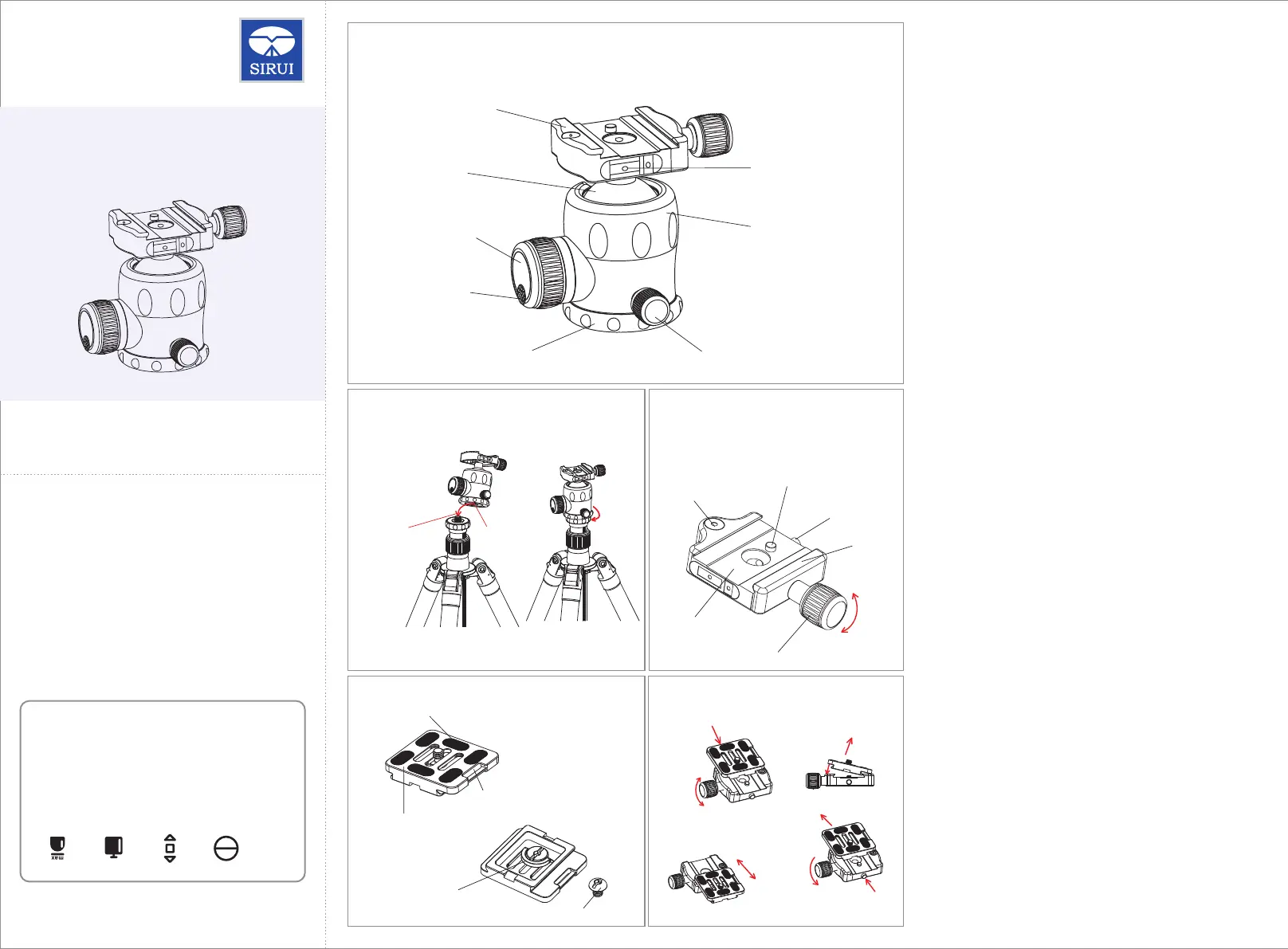

1.Know Your Ball Head
Friction Adjuster
Dial
Quick Release
Clamp
Main Body
Main Locking
Knob
Panning Base
Support Ball
Panning Base Locking Knob
Figure 4-1
Figure 2-2
Figure 4-3 Figure 4-4
Slide-proof Rubber Mat
KX Series:
Strap holder
Bubble Levels
Figure 3-1
Figure 3-2
1/4" screw with buckle
standard 1/4" screw
1.Know Your Ball Head
2.Attaching Your Ball Head
a.To attach the ball head onto the tripod, you must make
sure that the mounting screw of your tripod is 3/8". If it is
1/4" you will need to get a 3/8" screw or adapter.Many
professional tripods have reversible screws.Please check
your tripod manual for more details.
b.Lock the Panning Base Locking Knob by turning it in a
clockwise direction. As shown on Figure 2-1 & 2-2, align the
3/8" thread hole at the bottom of the Ball Head with the
mounting screw on the tripod. Hold by the base of the Ball
Head and rotate in a clockwise direction until it is locked
tightly.
3.Know your Quick Release Clamp and Quick Release
Plate
4.Attaching and Removing the Quick Release Plate
a.Attaching the QR Plate to Your Camera
Select the QR Plate that matches the base of your
camera.(To prevent excessive wear to the camera's tripod
socket, you should not frequently attach and remove the
Quick Release Plate. It is quite common to leave the QR
Plate permanently attached to the camera.)
The side of the Quick Release Plate with the slide-proof
rubber mat must be facing the base of the camera. Make
sure the QR Plate screw aligns with the tripod socket on the
bottom of the camera.
Position the QR plate on the camera body and tighten the
screw with a coin or allen key. If you plan to keep the quick
release plate on your camera for a long period of time or you
are using medium or large format cameras, you should
tighten the screw with the allen key.
b.Attaching the camera with QR Plate onto the Ball Head
Slightly loosen the Clamp Locking Knob by turning it
counter-clockwise, slide the QR plate laterally into the Quick
Release Clamp (Figure 4-1) and tighten the clamp by turning
clockwise. Another method is to fully open the Clamp
Locking Knob and place the plate in from the top (Figure 4-
2). Tighten the knob to lock the camera in place.
c.Security Pin on the Quick Release Clamp
There is a safety lock on the top of the Quick Release Clamp
that effectively prevents the camera from sliding off of the
clamp if it is slightly loosened (Figure 4-3). This allows you to
make minor adjustments of the camera position on the Ball
Head without worrying about the camera sliding off of the
Quick Release Clamp. This feature is available with all Sirui
QR plates. (Warning: While other styles of QR plates can be
used on Sirui Ball Heads, this safety feature may not be
available with other brands of QR plates. Even with the Sirui
QR Plates,you should hold your camera while loosening the
Quick Release Clamp).
d.Removing the Camera with QR Plate from the Ball Head
While holding the camera, loosen the Clamp Locking Knob
by slightly turning it counter-clock-wise. Push in the
Security Pin Release Button and slide the camera off of the
Clamp Plate (Figure 4-4). You can also remove the camera
by fully opening the clamp and lifting the camera out of the
clamp.
KX B H Series all ead
INSTRUCTIONS
Professional Photographic Equipment
Address: The Third ndustrial District,Wuguishan Town,Zhongshan City,Guangdong,China
E-mail: info@sirui-photo.com http://www.sirui-photo.com http://www.zssirui.com
Tel: 0086-760-88897373 Fax: 0086-760-88207062 P.C: 528458
Service Hotline: (0086)400 830 2299
I
SIRUI Photographic Equipment Industry(Zhongshan) CO.,Ltd
K 10X-
K-20X
K-30X
K-40X
0.35/0.77
0.4/0.88
0.5/1.10
0.8/1.76
20/44.1
25/55.1
30/66.1
35/77.2
Diameter
mm/inch
Weight
kg/lb
Maximum
Load
kg/lb
KX Series Ball Head Data Char t
Height
mm/inch
93/3.7
98/3.9
106/4.2
124/4.9
33/1.3
38/1.5
44/1.7
54/2.1
7.Adjusting the Ball Head
8.Unlocking the Ball Head：
Figure 5-1 Figure 5-3
Figure 5-2 Figure 5-4
Tighten
Loosen
Tighten
Loosen
Loosen
Tighten
Tighten
Loosen
Figure 7-1
Figure 7-2 Figure 8-1 Figure 8-2
Tighten
Loosen
6 Basic Operation. :5 Factory Setting.
Specifications are subject to change without notice.
Announcements
Do not exceed the recommended load limit of the ball head and/or tripod. (Please refer to product specifications)
Please make sure that the locks are securely tightened when in use.
This product should not be used in environments that exceed the following conditions (-40 ~ +100°C/-40 ~212°F).
When used in damp, dirty or dusty environments, please clean and dry thoroughly after use, to assure proper functioning in the
future.
Please keep from high temperatures and direct exposure to bright sunlight for extended periods of time.
To protect your camera gear, please remove it from the tripod/ball head when transporting from place to place.
Prevent sand, grit and other foreign matter from getting into the interior of the Ball Head. If the Ball Head does not move smoothly,
please use a clean, soft cloth to gently wipe the Ball mechanism.
There is no need to lubricate any parts of this product. The addition of lubricants will gum up the mechanisms and reduce their
normal gliding characteristics. The construction of Sirui professional Ball Heads is very precise, so extra maintenance is not
needed.
Please keep this product away from all electrical power sources.
e.Camera Screw Usage
The 1/4" screw with buckle can only be used in the middle
slot of the QR Plate. The standard 1/4” screw can be used in
the left or right slot, if the position of your camera's 1/4"
tripod socket is off-center , as shown in Figure 3-2.
5.Factory Setting
a.As shown in Figure 5-1, turn the Main Locking Knob in a
clockwise direction about 1/2 turn. Next, turn the Friction
Adjustment Dial in a counter-clockwise direction until it
stops. Loosen the Main Locking Knob by turning in a
counter-clockwise direction until it stops.
b.As shown in Figure 5-2, while slowly rocking the camera,
turn the Main Locking Knob clockwise until you feel the
resistance you desire. Then turn the Friction Adjustment Dial
clockwise until it stops (Figure 5-3).
c.Turn the blue Calibration Ring (around the Main Locking
Knob) to the 0 position (Figure 5-4).
6.Basic Operation
7.Adjusting the Ball Head
Mount your camera onto the Ball Head. While holding the
camera, loosen the Main Locking Knob (Figure 7-1). The ball
head will be very loose, so you will need to adjust the
amount of resistance you prefer. Rotate the Friction
Adjustment Knob that is in the Main Locking Knob in a
counter-clockwise position until it stops. While slowly rocking
the camera, tighten the Main Locking Knob until you feel the
resistance you desire. The friction adjustment should be set
so that there is enough resistance to prevent the camera
from easily tipping over, while giving you the ability to make
adjustments to camera position without having to use
excessive force. This becomes very useful when using
telephoto lenses and when critical alignments need to be
made. When the resistance level you want is achieved, stop
turning the Main Locking Knob. Turn the Friction Adjustment
Knob in a clockwise position until it stops (Figure 7-2).
You may want to start shooting immediately or you can
tighten the Main Locking Knob to firmly lock the head in
place. Before locking the Ball Head, you may want to use
the bubble levels to make sure it will be horizontal.
8.Unlocking the Ball Head
You may find that the Ball Head is locked in position (usually
from excessive force) and needs to be released. Please
follow the below instructions, paying attention to the turning
directions.
If possible, mount the Ball Head on the tripod and turn the
Main Locking Knob in a clockwise direction (Figure 8-1).
Turn the Friction Adjustment Dial in a counter-clockwise
direction until it stops (Figure 8-2).
Note: the Quick Release plate has a strap holder that allows
you to attach many popular camera straps directly onto
the plate. Please make sure that the Quick Release
plate is securely attached to the camera, to prevent the
possibility of the camera detaching from the plate.
Please check this attachment regularly.
Professional Photographic Equipment
www.sirui-photo.com / www.zssirui.com
KX B H Series all ead
INSTRUCTIONS
SIRUI Photographic Equipment Industry(Zho ngshan) CO.,Ltd
Address: The Third Industrial District,Wuguishan Town,Zhongshan
City,Guangdong,China
Tel: 0086-760-88897373
Fax: 0086-760-88207062
P.C: 528458
E-mail: info@sirui-photo.com
http://www.sirui-photo.com http://www.zssirui.com
Service Hotline: (0086)400 830 2299
