Sida 1/28

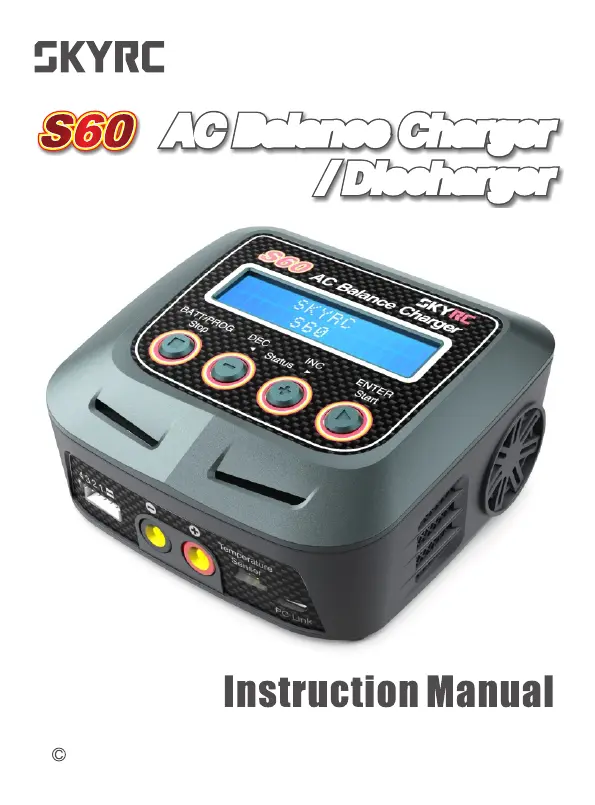

SkyRC Technology Co., Ltd. 2015 Version 1.0

AC Balance Charger

/ Discharger

TABLE OF CONTENTS

INTRODUCTION

SPECIAL FEATURES

WARNING AND SAFETY NOTES

PROGRAM FLOW CHART

OPERATION

OPERATING PROGRAM

CHARGING PROGRAM

BATTERY MEMORY SET AND CALL OUT

SYSTEM SETTING

BATTERY METER

BATTERY RESISTANCE METER

WARNING AND ERROR MESSAGE

USING THE CHARGE CONTROL SOFTWARE “CHARGE MASTER”

THE SET CONTAINS

SPECIFICATION

CONFORMITY DECLARATION

COMMONLY USED TERMS

WARRANTY AND SERVICE

Congratulations on your choice of SKYRC S60 AC Input Professional

Balance Charger/Discharger. This unit is simple to use, but the operation

of a sophisticated automatic charger such as SKYRC S60 does require

some knowledge on the part of the user. These operating instructions are

designed to ensure that you quickly become familiar with its functions. It is

therefore important that you read right through the Operating Instructions,

Warning and Safety Notes before you attempt to use your new charger for

the first time. We hope you have many years of pleasure and success with

your new battery charger.

SkyRC S60 is an AC input charger/discharger with compact size

(112x106x54mm). Like most SkyRC chargers, it supports TVC (Terminal

Voltage Control), Battery Meter and can be connected to PC for PC

control and firmware upgrade. And there are Automatic Charging Current

Limit, Capacity Limit, Temperature Threshold and Processing Time Limit

for maximum safety.

The maximum charging power of S60 is 60W with maximum charging

current 6A and discharging current 2A. It is a high-performance micro

processor control charge/discharge station with battery management

suitable for use with all current battery types, LiPo, Lilon, LiFe, NiCd,

NiHM, PB and also new generation LiHV with end voltage 4.35V.

Please BE SURE to read these INSTRUCTIONS, WARNING and

SAFETY NOTES before you use the charger for the first time.

It can be dangerous to mis-handle batteries and battery chargers, as there

is always a risk of batteries catching fire and exploding.

INTRODUCTION

01 ·S60
