Sida 1/16

AMPLIFIER 5.1 SURROUND HT-510

103.153 / 103.156

Instruction Manual

Gebruiksaanwijzing

Mode d’Emploi

Gebrauchsanleitung

Brugsanvisning

Downloaded from manuals search enginewww.Manualslib.com

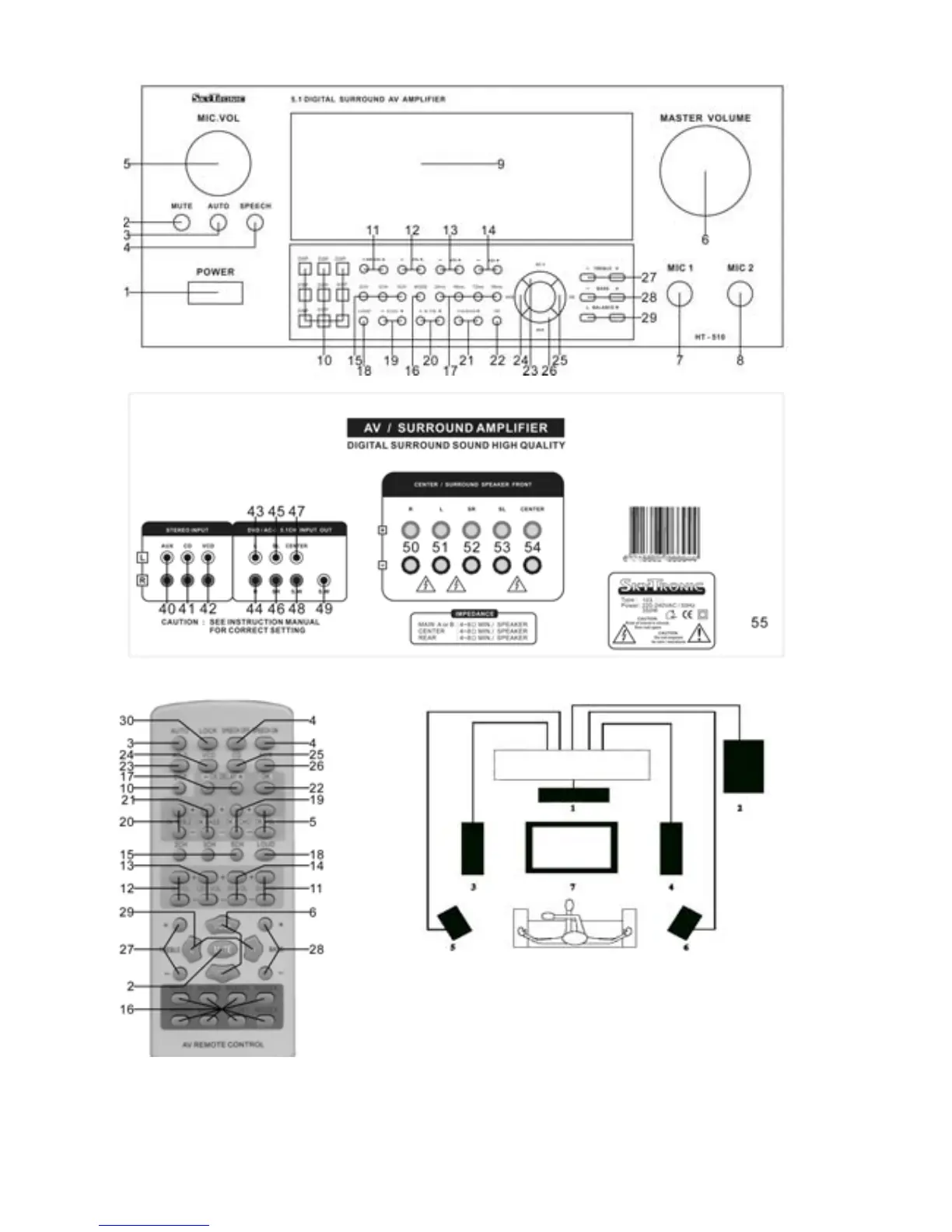

1.Center

2.Subwoofer

3.Front Left

4.Front Right

5.Rear Left

6.Rear Right

7.TV

Downloaded from manuals search enginewww.Manualslib.com

Congratulations on the purchase of this SkyTronic Karaoke ampliﬁer.

Please read this manual carefully prior to using the unit.

Warning:

- Read the manual prior to using the unit.

- Keep the manual for future reference.

- Keep the packaging for safer transport in its original packaging

- For indoor use only.

- Prior to the first use, have the unit checked by a qualiﬁed person.

- The unit contains voltage carrying parts. DO NOT open the unit.

- When you unplug the unit from the mains always pull the plug, never the lead.

- Never plug or unplug the unit with wet hands.

- If the plug and/or mains lead are damaged, they need to be repaired by a qualified technician.

- If the unit is damaged to an extent that you can see internal parts, do not plug the unit into a mains

outlet.

- Repairs have to be carried out by a qualified technician.

- Only connect this unit to an earthed mains outlet of 230Vac/50Hz and 10-16A.

- Do no place the unit near heat sources.

- Always unplug the unit during a thunderstorm or when it is not in use.

- If the unit has not been used for a longer period of time, condensation can occur inside the housing.

Please let the unit reach room temperature prior to use.

- All volume controls must be set to zero prior to switching the unit on.

- Set the volume controls slowly. Fast variation can overload the speakers.

- Do not use cleaning sprays for the slider controls. The residues of these spray cause dust deposits

in the controls. If a problem occurs, please consult a specialist.

- Do not wind the power cables around the audio cables. This can cause interferences.

General Description:

This karaoke ampliﬁer in 43cm version ﬁts easily between any audio set that is made up from separate units.

The amplifier features microphone inputs on the front panel for use with karaoke.

Connections:

Unpack the amplifier and place it in such a way that you can easily access the rear panel to make the

connections. Connect the source units to the amplifier via a stereo RCA lead that you plug into the inputs

(40-42).

If you have a source unit fitted with a 5.1 decoder, you can connect it to the DVD/AC-3 input (43-48).

According to your source, you will need either a SCART – 6 x RCA lead or 3 RCA stereo leads.

After connecting the source units, connect the speakers to the screw terminals (50-54). Refer to fig. 4 for the

set up of the speaker boxes. Observe the + and - side of the speakers, leads and ampliﬁer. The active

subwoofer has to be connected to the RCA output S.W (49).

The amplifier is now ready for use. Insert the plug (55) into the wall outlet and press the On/Off switch (11) to

switch the unit on.

Downloaded from manuals search enginewww.Manualslib.com
