www.smartavi.com
Installation
Manual
For WUXGA, Component Video, Composite Video and
S-Video with full stereo audio matrix switching
Switch up to 16 remote devices to 16 remote displays
located up to 1,000 feet away.

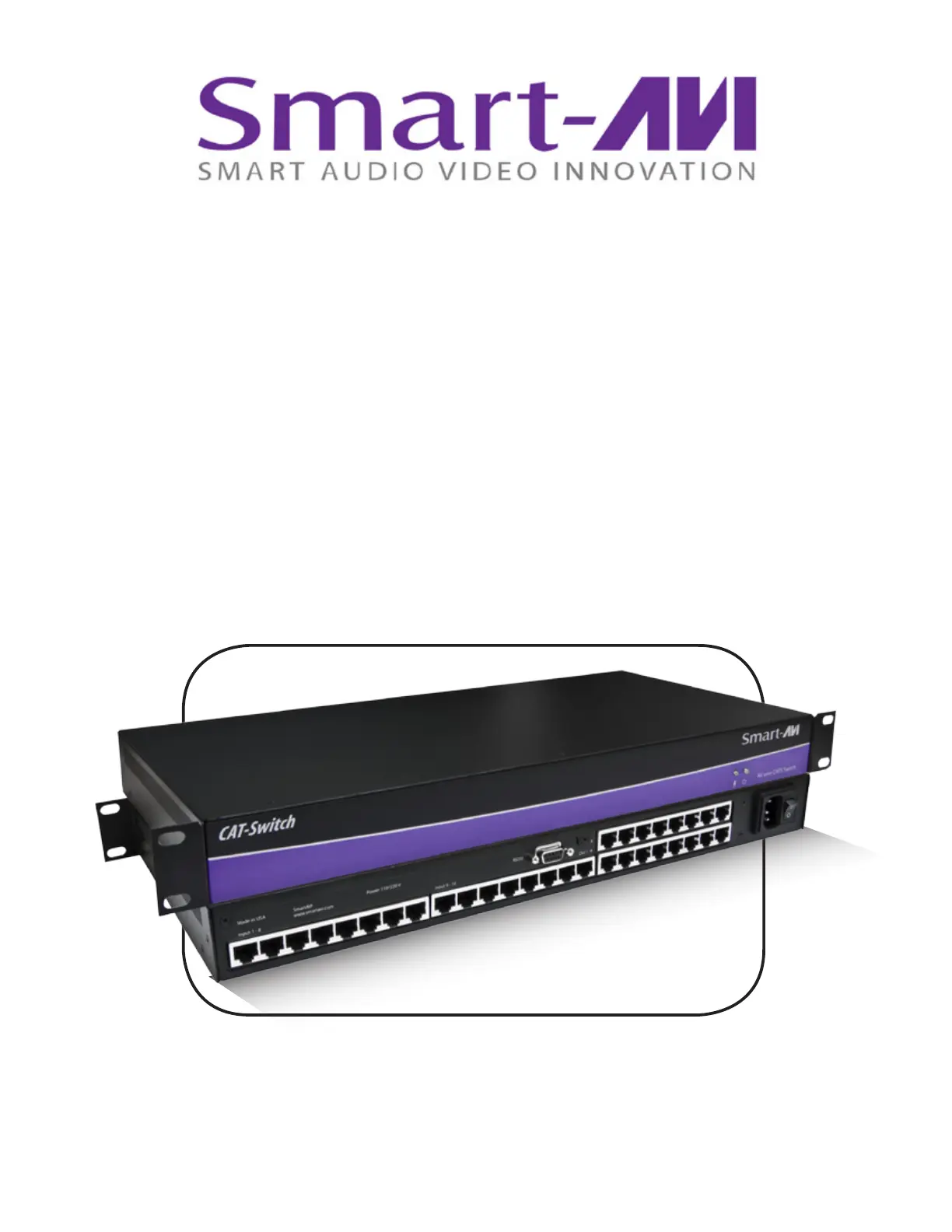

CATSwitch
16-port HDTV CAT5 Matrix Switch
with RS-232, IR, USB, and TCP/IP Control

2www.smartavi.com
Introduction
CATSwitch routes audio and video signals from several dierent video sources out to
multiple displays (projectors, monitors, etc.) and speakers via inexpensive Cat5/6 UTP
cable.
CATSwitch is capable of connecting to as many as 16 video sources via transmitters and
16 video displays via receivers with a maximum extension of 1,000 feet between the
transmitter and receiver units.
A single audio/video output can be routed to one or multiple destinations. Video is
transmitted at a resolution of 1920 x 1200 to insure high resolution images. Buered video
outputs and analog delivery of stereo audio maintains optimum integrity throughout
the system. Special remote boxes oer compatibility with Video Composite , UXGA,
Component Video and S-Video.
Features
• Supports high resolution video up to 1920x1200
• High quality audio switching
• Infrared, RS232 and TCP/IP control
• PC Windows software control
• Integral UTP distribution
• 1U rackmounted chassis
• Uses easy to install, inexpensive CAT-5/5e/6/7/8
• Maximum extension of 1,000 feet (500m) between the local and remote units
• HDTV compatible. (720p, 1080i,1080p)
• 300 MHz bandwidth
• Compatible with VGA, XGA, Sun, MAC and SGI
• Sync Format / Polarity Preservation
• Compatible with Line Level Stereo Audio Signals
• High ground loop immunity
• Built-in power surge and transient protection
• Designated trimmer in the remote unit to compensate for length
QuadKVM Rear

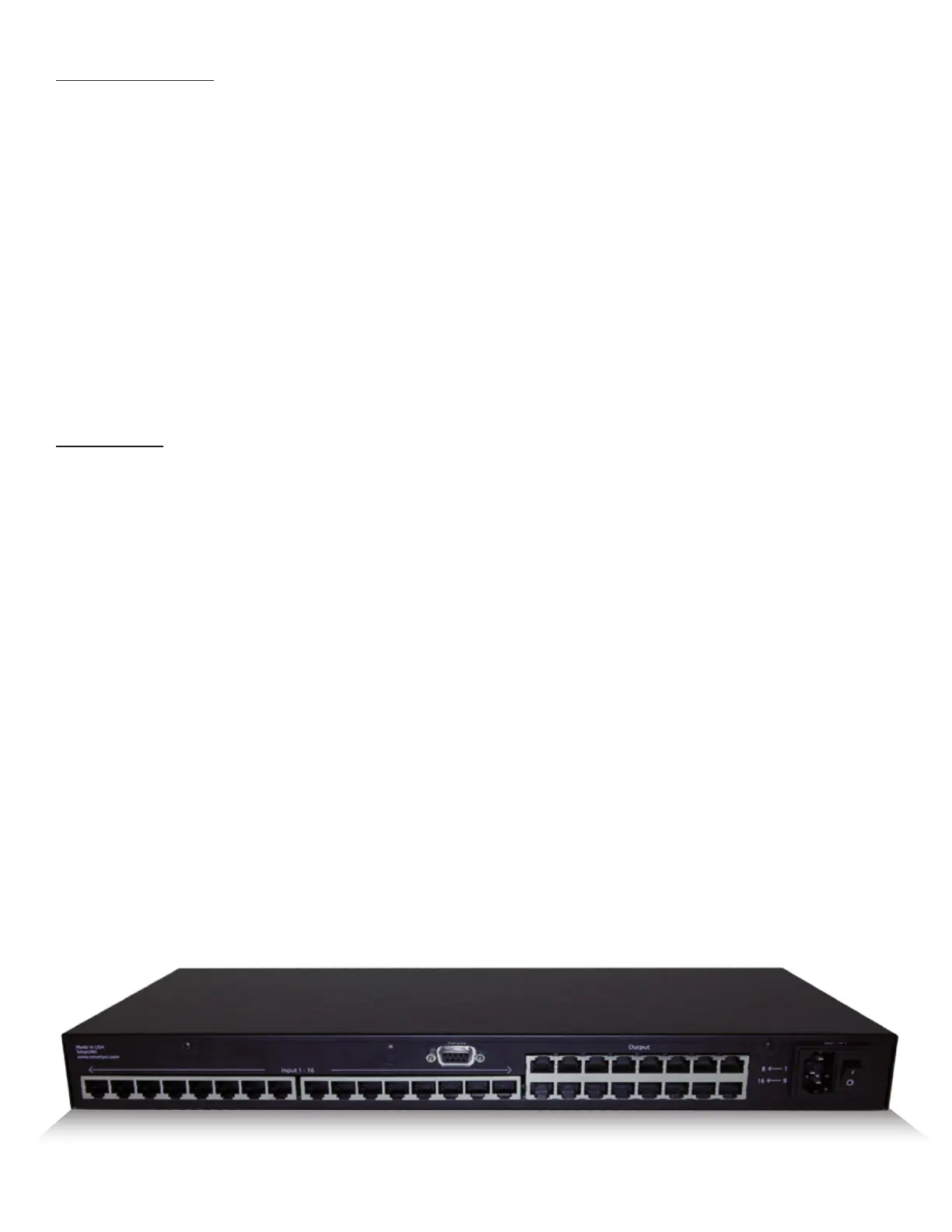

CATSwitch Rear

3
www.smartavi.com
Ordering Information
Technical Specications
VIDEO
Bandwidth 250MHz
Input Signal Level 1 Volt pk pk into 75R
Output Impedance 100 Ohms
Input Impedance 75 Ohms
Connector RJ45
Format VGA/SVGA/XGA/WUXGA/RGB/Hv/RGsB
AUDIO
Bandwidth 20KHz
Signal Level 0dB
Output Impedance 100 Ohms
Input Impedance 10K Ohms
Connector RJ45
CONTROL
RS232 Via Software @ 9600 bps
IR Via Remote Control with IR-EYE Type 3
USB Via TCP/IP (optional)
OTHER
Power Internal 100-240 VAC
Dimensions 17”W x 1.75”H (1U) x 8”D
Weight 4 lbs.
Approvals UL, CE, ROHS Compliant
Operating Temp. 32-131°F (0-55 °C)
Storage Temp. -4-185 °F (-20-85 °C)
Humidity Up to 95%
Part Number Description
CSW08X08S CAT5 Matrix audio/video 8x8 matrix with RS232 control. Includes: [CSW08X08 (SM-CSW) and (CCPWR06US) or (CCPWR06EU]
CSW16X08S CAT5 Matrix audio/video 16x8 matrix with RS232 control. Includes: [CSW16X08 (SM-CSW) and (CCPWR06US) or (CCPWR06EU]
CSW16X16S CAT5 Matrix audio/video 16x16 matrix with RS232 control. Includes: [CSW16X16 (SM-CSW) and (CCPWR06US) or (CCPWR06EU]
CSWP08X08S CAT5 Matrix audio/video/IR and R232 8x8 matrix with RS232 control. Includes: [CSWP08X08 (SM-CSW) and (CCPWR06US) or (CCPWR06EU)
CSWP16X08S CAT5 Matrix audio/video/IR and R232 16x8 matrix with RS232 control. Includes: [CSWP16X08 (SM-CSW) and (CCPWR06US) or (CCPWR06EU)
CSWP16X16S CAT5 Matrix audio/video/IR and R232 16x16 matrix with RS232 control. Includes: [CSWP16X16 (SM-CSW) and (CCPWR06US) or (CCPWR06EU)
Part Number Receivers and Accessories
XTP-TXS XTPRO UXGA/Audio/RS232/IR tranmitter with Local Video . Includes:[ XTP-RX and (PS5VD1A)]
XTP-RXS XTPRO UXGA/Audio/RS232/IR receiver with Dual Video Includes:[ XTP-RX and (PS5VD1A)]
XTP-RXLS UXGA/Audio/RS232/IR Long Range receiver. Includes:[ XTP-RXL and (PS5VD1A)]
XTX-RXS XT Xpress UXGA/Audio receiver. Includes:[ XTJ-RX and (PS5VD1A)]
XTJ-TXS XT UXGA/Audio tranmitter. Includes:[ XTJ-RX and (PS5VD1A)]
SM-TCPS TCP/IP Control include SMTCP, (CCRS232MM ) and (PS5VD1A)]
SM-EYE External infrared receiver. IR range of 10’ to 30’
RMT-2 Remote control device
XTP-RXXS Xtreem UXGA/Audio/RS-232/IR CAT5 1699ft Receiver with Remote Control for Skew Setting. Includes: [XTP-RXX, SMRMT, & (PS5VD2A)]
