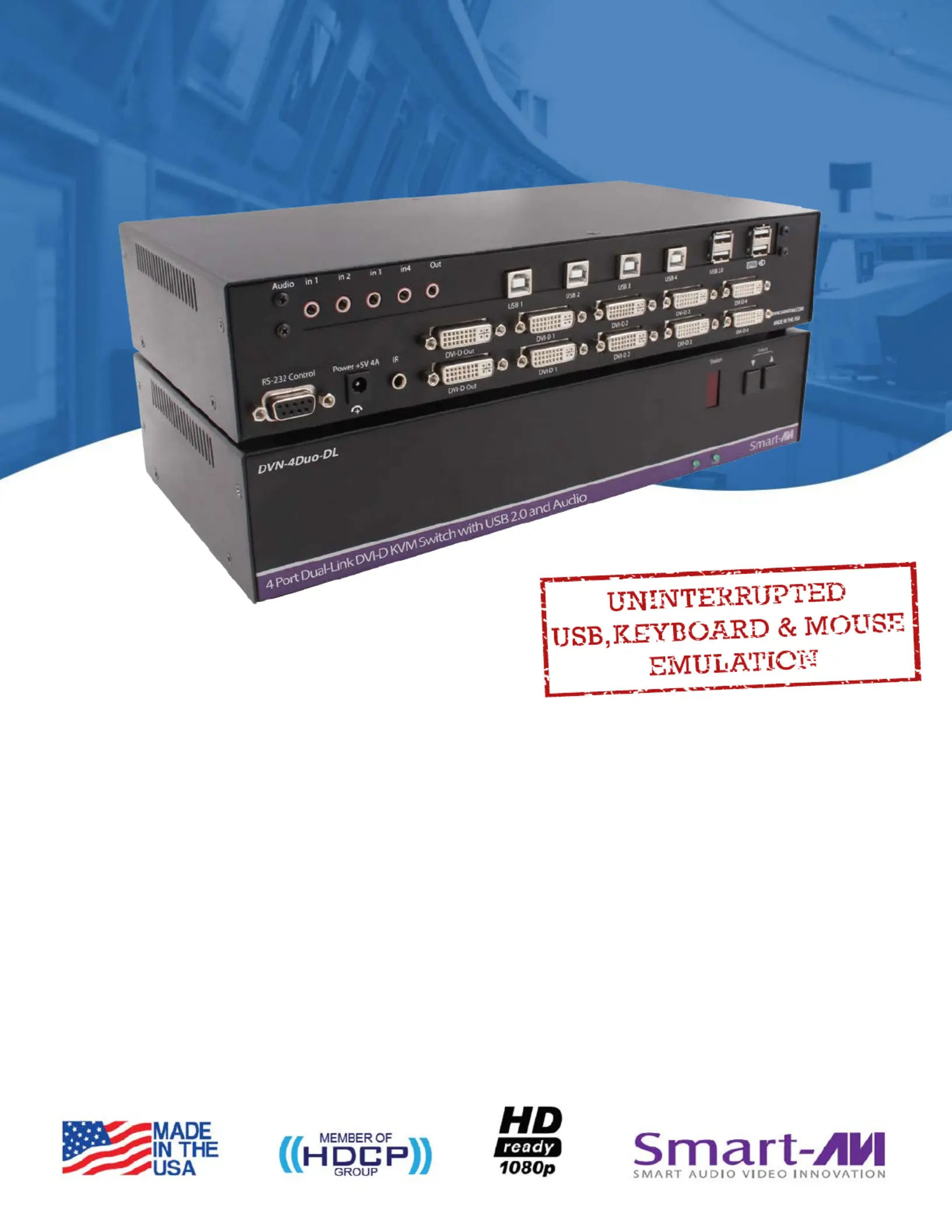

4-Port Dual-Display, Dual-Link DVI-D KVM Switch

with USB 2.0 Sharing and Audio

Access and Control 4 Dual-Display. Dual-Link Computers Using

Only One USB Keyboard and One USB Mouse

DVN-4Duo-DL

REAL-WORLD APPLICATIONS

FEATURES

• SupportsMac,PC,LinuxandSunMacOS,SunOS,Unix

• Supportsdual-linkresolutionsupto2560x1600(@60Hz)

andsingle-linkresolutionsupto1920x1200(@60Hz)

• UsesuniversalDVIDual-Linkconnectors

• ZeropixellosswithTMDSsignalcorrection

• SupportsallUSB2.0Devices

• ControlSun,MacorPCcomputersfromacommonKVMconsole

• CompatiblewithallmajorsoftwareincludingWindows,Linux,

MacOS,SunOS,Unix

• Rackmountableinastandard19inchrack

• Flashupgradeablermware

• Frontpanelkeysforselectingusersandchannels

manually

• SupportsUSBkeyboardandmouse

• Balancedstereoaudiooutput

• RS-232controlforremotecontrol

• OptionalTCP/IPcontrol

• Hot-keycommandsforquickchannelselection.

• Independent(asynchronous)switchingofKVMand

peripheralUSB/audioports.Userscanlistentoaudio

fromonecomputerwhileworkingontheotheror

scanadocumentandsaveinanothercomputer.

• Completekeyboardemulationforerrorfreebooting

SOURCESWITCHINGMADEEASY

TheDVN-4Duo-DLprovidesasimpliedmanagementapproachtoupfourcomputerswithDVI-D,audio,andUSB2.0outputs.

ThisdynamicKVMconsolecanbecontrolledremotelyfromeasilyaccessiblekeyboardhotkeysorRS-232commands,aswellas

directlythroughtheconsole’seasytoreadfrontpanel.

EDIDLEARNING&PROGRAMMING

DetectionofDDCsignalsforallattacheddevicesiseffortlesswithDVN-4Duo-DLduetoitsrealEDIDlearningand

programming.Thisisvitalinoptimizingtheresolutionoftheselectedgraphicscardtoproperlydisplayontheremotemonitor.

Furthermore,theEDIDlearningfeaturecontinuestoreplicatetherightDDCforthecomputertoenablethedisplaycardto

effectivelyworkwhenunusedportsarenotselected.

FULLUSBKEYBOARDANDMOUSEEMULATION

TheUSBkeyboardandmouseemulationutilizedbyDVN-4Duo-DLprovidesaccurateandquicksourceswitchingbymeans

ofkeyboardhotkeysandmouseactions.DVN-4Duo-DLimitatesthepresenceofakeyboardandmouseforeveryattached

computerthroughaUSBcable.Thisisessentialasitsimulatestheexistenceofthekeyboardandmousetoallthecomputers

whileswitchingwithoutinterruptions.

DVN-4Duo-DLisadedicatedmulti-platformKVMswitchcapableofmanaginguptofourdifferentdualheaddual-linkcomputers

throughtwoDVI-Dmonitors,oneUSBkeyboard&mouse,asinglesetofspeakersandaUSB2.0Device.

TheUSBemulationtechnologyutilizedbyDVN-4Duo-DLenablesimmediatehotkeysourceswitchingthrougharemoteUSB

keyboardandmouse.DVN-4Duo-DLusesdual-linkconnectorsprovidinghighresolutionsofupto2560x1600(@60Hz)orupto

1920x1200(@60Hz)forsingle-linkconnections.

• ControlRooms

• Audio/VisualPresentations

• ShoppingCenters

• Hotels/Resorts

• KVMSwitches

TheDVN-4Duo-DLhasabroadrangeofapplications,butthemainfunctionofthisKVMswitchistocentralizetheaccess

ofseveralcomputersintoonecomprehensivePC.NotonlydoesitfunctionasaKVMconsole,italsosupportsUSB2.0

functionality.ThisallowsauserattheconsoletouseUSBdevicesthatwouldotherwisebeunavailablewithconventionalKVM

devices.Forexample,itallowsausertouseaashmemorydriveorcamerawithouthavingtoplugitdirectlyintotheremote

computer.DVN-4Duo-DLisaperfectsolutionforthemedicalorindustrialeld,whereitmaynotbepracticalorsafetohave

oneormoreCPUsinthegeneralvicinity.

• ServerCollocation

• DigitalSignage

• Education

• Airports

• DealerRooms

OVERVIEW

4 Port Dual DVI-D KVM Switch with USB 2.0 and Audio

INDEPENDENTSIMULTANEOUSDEVICESELECTION:FlexibilityiskeywiththeDVN-4Duo-DL.ItenablestheuseofaUSB

keyboardandmouseofonecomputerwhileotherUSBperipheralssuchasspeakers,scannersandprintersareconnectedto

othercomputersources.DVN-4Duo-DLmaintainstheabilitytoswitchallconnecteddevicestoanyoneofthecomputersources

aswithanyotherKVMswitches.

FLEXIBLE CONTROL

FLEXIBLE SHARING

RS-232:AnyexternaldeviceorprogramsupportingRS-232cancontroltheDVN-4Duo-DL.TheDVN-4Duo-DLusesverysimple

protocol,thatenableseasyintegrationwithotherdevices.

USB/KEYBOARD:HotkeysenabletheusertoswitchandcontrolallthedifferentfunctionsoftheKVMsystem.

TCP/IP:SMTCP-2isaSmartAVIoptionalTCP/IPconverterthatenablesuserstoswitchandcontroltheDVN-4Duo-DLcontrol

fromanywhereintheworldusingaLANorWANconnection.

DVI 2

DVI 1

DVN-4 Duo-DL

4 Computers
