Edition 1, March 11, 2004
Copyright 2004 Smart-AVI (USA)
Notice
The information contained in this document is subject to change
without notice. Smart-AVI (USA) makes no warranty of any kind
with regard to this material, including but not limited to, implied
warranties of merchantability and fitness for any particular
purpose.
Smart-AVI (USA) will not be liable for errors contained herein or for
incidental or consequential damages in connection with the
furnishing, performance or use of this material.
No part of this document may be photocopied, reproduced or
translated into another language without prior written consent
from Smart-AVI (USA).
The DVIplus DVX100 extends
any DVI–D to signal up to 100 feet
DVX-100
www.smartavi.com
User Manual
3111 Winona Ave., Suite 101
Burbank, California 91504
Tel: (818) 565-0011 Fax : (818) 765-0020

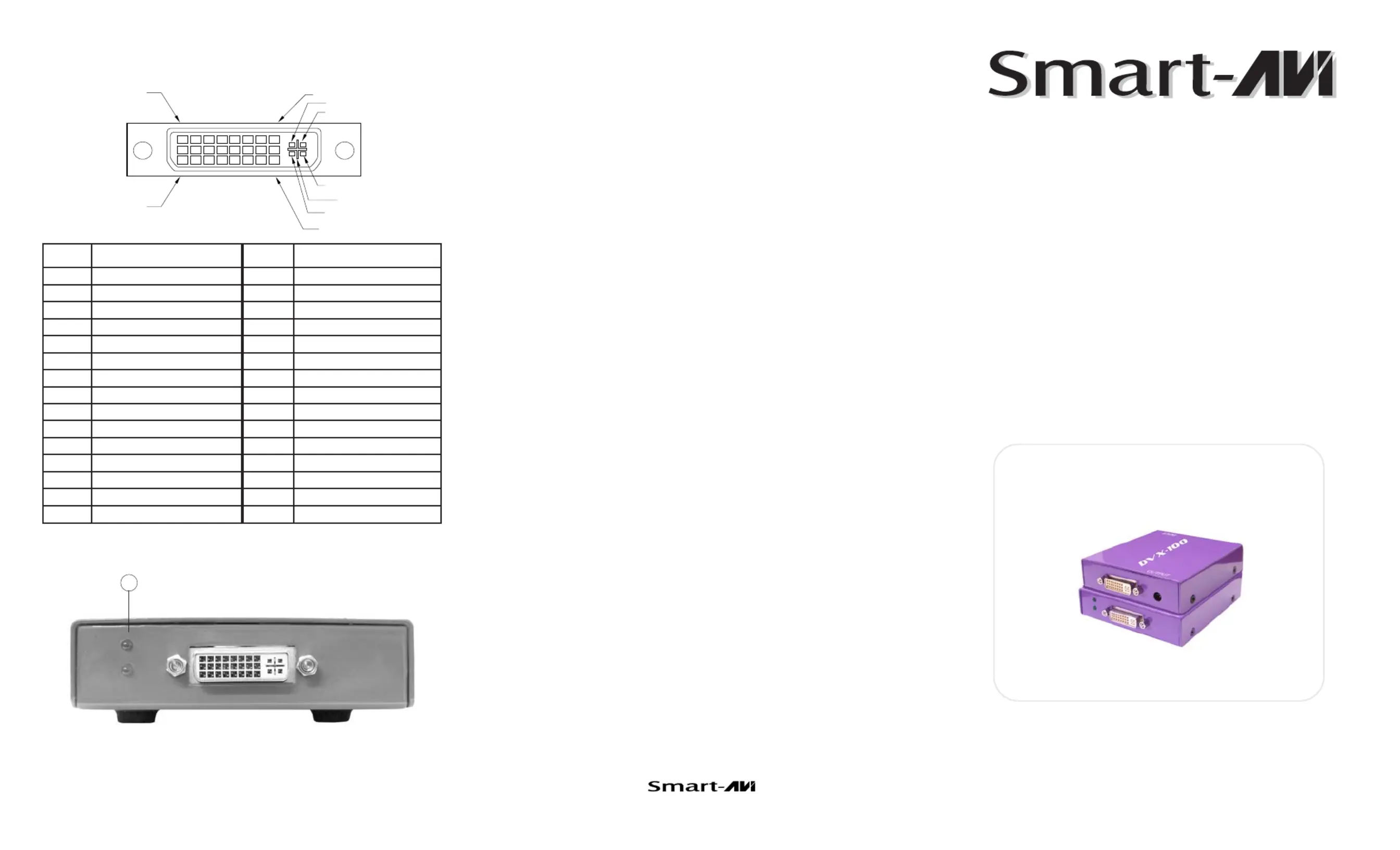

Technical Specifications
Input/Output Signal
Front View
1. Power LED
2. “DVI Out” Port
#niP langiS #niP langiS
1 -2ataDS.D.M.T 61 tceteDgulPtoH
2 +2ataDS.D.M.T 71 -0ataDS.D.M.T
3 dleihS4/2ataDS.D.M.T 81 +0ataDS.D.M.T
4 -4ataDS.D.M.T 91 dleihS5/0ataDS.D.M.T
5 +4ataDS.D.M.T 02 -5ataDS.D.M.T
6 kcolCCDD 12 +5ataDS.D.M.T
7 ataDCDD 22 dleihSkcolCS.D.M.T
8 cnyS.treVgolanA 32 +kcolCS.D.M.T
9 -1ataDS.D.M.T 42 -kcolCS.D.M.T
01 +1ataDS.D.M.T
11 dleihS3/1ataDS.D.M.T 1C deRgolanA
21 -3ataDS.D.M.T 2C neerGgolanA
31 +3ataDS.D.M.T 3C eulBgolanA
41 rewoPV5+ 4C cnySzroHgolanA
51 DNG 5C dnuorGgolanA
PIN 17
PIN 1
PIN 24
PIN 8
C 4
C 1
C 2
C 5
C 3
1
3MART!UDIO6IDEO)NTEGRATION
3MART!UDIO6IDEO)NTEGRATION
Introduction
The DVX100 extends the distance between any computer
supporting DVI-D and monitors or projectors up to 50ft. The system
features daisy chain capabilities that can extend the limit up to 100ft.
Features
Supports MAC and PC DVI-D
Resolution up to 1920 x 1080
No loss of pixel
Maintains highest DVI single link video resolution
DVI output regenerates TMDS digital video
Output can drive long cable up to 50 feet
Green led for power
Yellow led signal indicator
External power supply
Provides noiseless operating environment at the remote station
Places CPU outside of harsh environment
Saves space on your desktop
Applications
PresentationsPresentations
PresentationsPresentationsPresentations DVX100 enhances any presentation from
commercial products to corporate financial data. It can be used in
show rooms, board rooms, trade shows and window displays.
Data BroadcastingData Broadcasting
Data BroadcastingData BroadcastingData Broadcasting Data such as news, stock prices, sports
results, and flight information can be broadcast in real time to
various monitors and/or speakers.
Learning and TrainingLearning and Training
Learning and TrainingLearning and TrainingLearning and Training DVX100 can be used in educational
presentations to multiple locations, in schools and in other training
facilities.

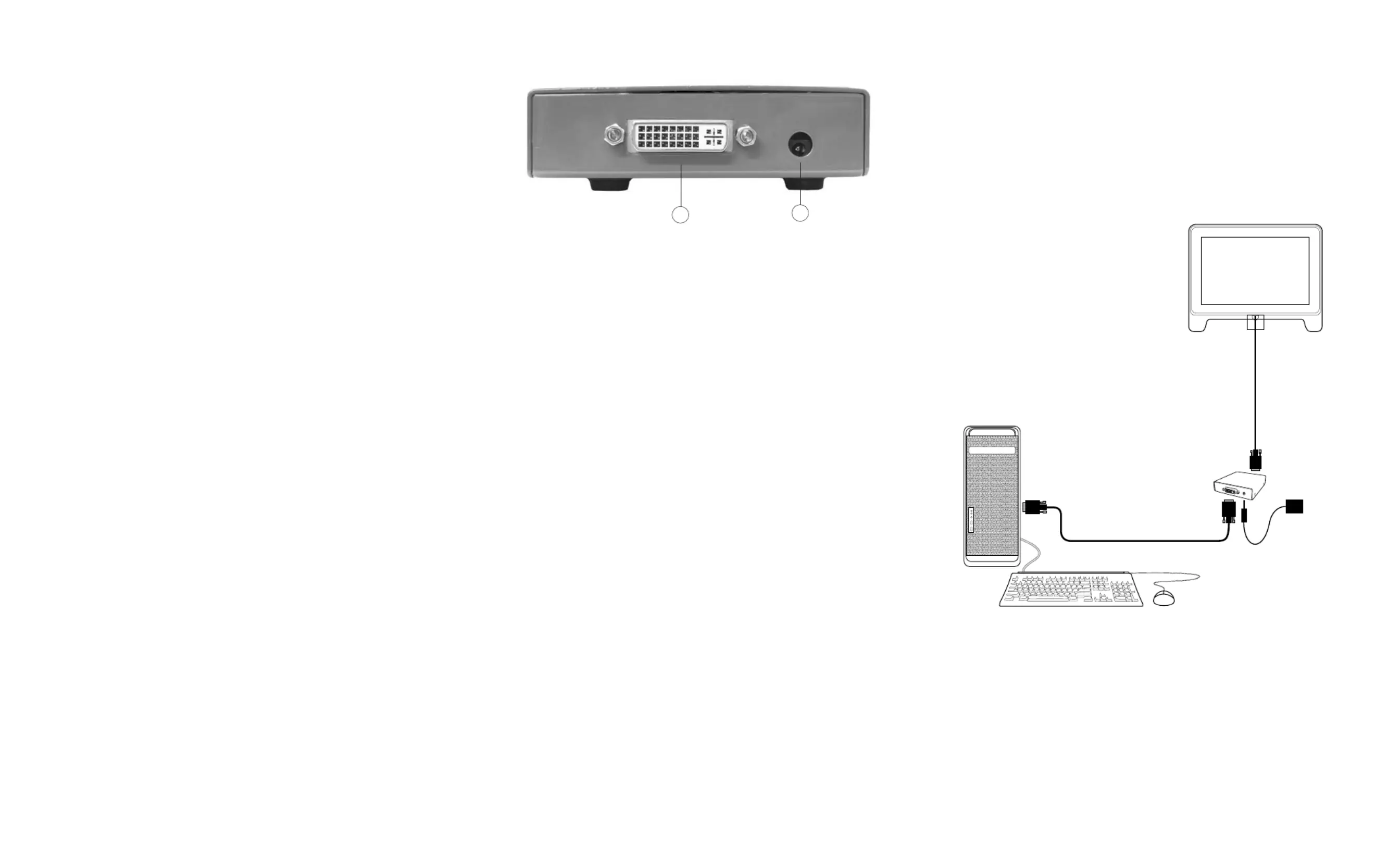

Rear View
1. “Video In” Port
2. Input Power Jack
Installation
1. Turn off the PC and monitors.
2. Connect the DVI male extension cable between the PC and the
“video in” port of splitter.
3. Connect the DVI male/female extension cables between the
monitors and the “DVI out” ports of splitter.
4. Connect the power cord and turn on the splitter.
5. Turn on the PC and monitors.
Operation for Cascade:
1. Attach extender in order to extend longer cables.
2. Connect the DVI male/female extension cable between the
former splitter of the “DVI out 1” port and the latter splitter of
the “video in” port.
Note:
Even though you are allowed to cascade the DVX-100 with varied
ports, the image might become unstable if cascade too many tiers
of DVX-100.
Installation Diagram
Apple Display
G5
or
compatible
DVX-100
5VDC
Power
Keyboard Mouse
DVI Male/Male
DVI-D
Monitor
12
