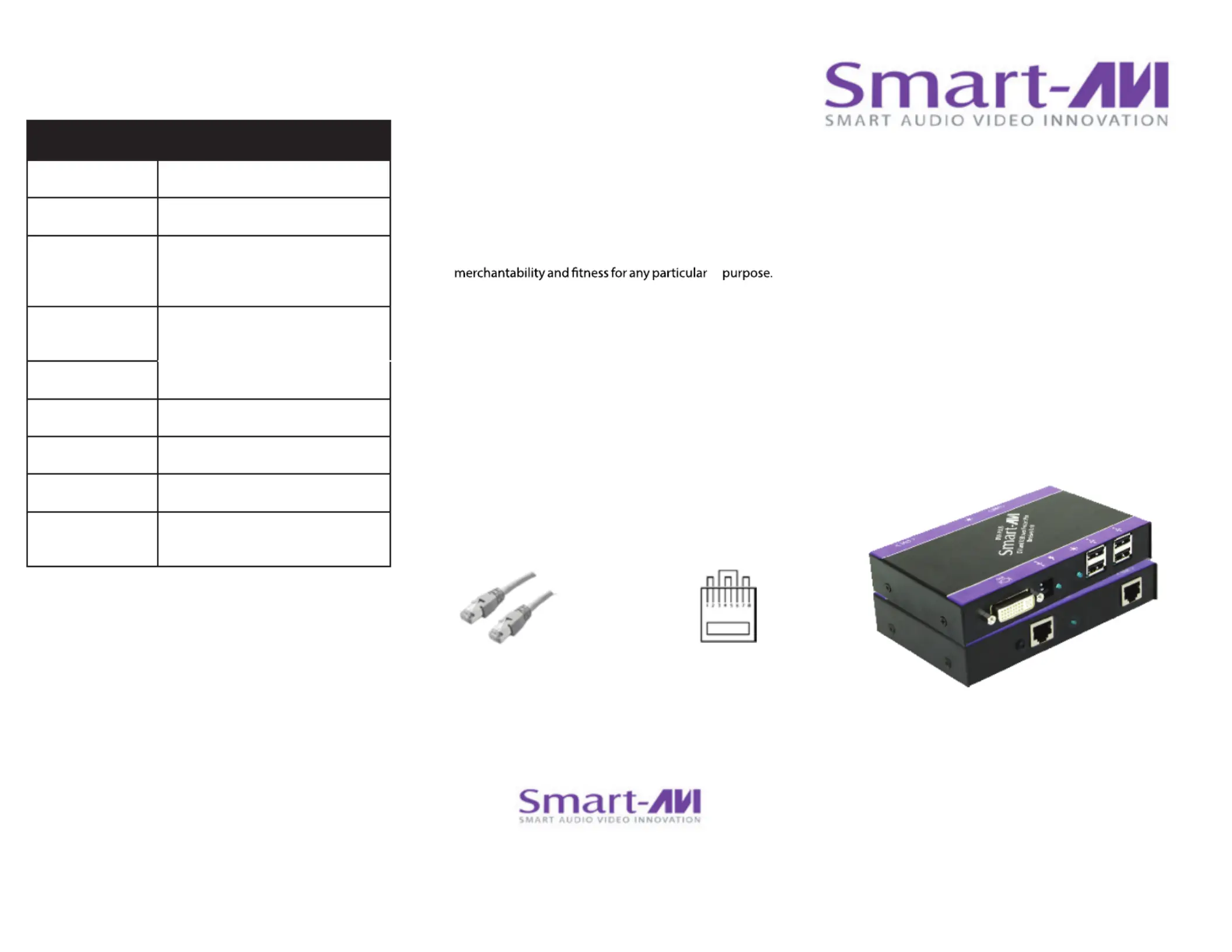

DVI-D and USB extension

via Twisted Pair

DVX Plus

www.smartavi.com

Notice

The information contained in this document is

subject to change without notice. Smart-AVI makes

no warranty of any kind with regard to this material,

including but not limited to, implied warranties of

Smart-AVI will not be liable for errors contained herein or

for incidental or consequential damages in connection

with the furnishing, performance or use of this material.

No part of this document may be photocopied,

reproduced or translated into another language without

prior written consent from Smart-AVI.

For more information, visit www.smartavi.com.

QUICK START

GUIDE

SmartAVI, Inc. / Twitter: smartavi

11651 Vanowen St., North Hollywood, CA 91605

Tel: (818) 503-6200 Fax: (818) 503-6208

http://www.SmartAVI.com

The following is the wiring standard for terminating UTP/STP

cable using RJ-45 connector:

Connectors: RJ-45

Capacitance: 14 pf/ft (46.2 pf/m)

Conductor Gauge: 24 AWG

Impedance: 100 +/- 15 ohms

Pair 1 Pins 1 & 2

Pair 2 Pins 3 & 6

Pair 3 Pins 4 & 5

Pair 4 Pins 7 & 8

DVX PLUS SPECIFICATIONS

Video Interface Single Link Range

Video Data Rate 1.65 Gbps

Resolution

1920 x 1200 @ 60 Hz, Reso

lution up to 1280 x 1024

min. 75H

Power Supply Universal Switch mode PSU

(90-240V Input) 5VDC 2A

Input Interface DVI-D

USB Data

USB max data rate 12Mbps

USB compatibility 1.0 and 1.1

Connector Type Type A (Transmitter)

Type B (Receiver)

Technical Specifications

Introduction

Preparing & Connecting System CAT5 Cable

Following is the wiring standard for terminating CAT 5 cable

using RJ-45 connector:

Pair 1 Pins 1 & 2

Pair 2 Pins 3 & 6

Pair 3 Pins 4 & 5

Pair 4 Pins 7 & 8

Connectors: RJ-45

Capacitance: 14 pf/ft (46.2 pf/m)

Conductor Gauge: 24 AWG

Impedance: 100 +/- 15 ohms

4 - Pair

Operating Instructions

Once installation is completed verify that the power is

present at all devices in the system. If computer was on

during the set up it might be necessary to reboot the

computer. The peripheral devices should be ready for

use.

Connecting The Transmitter

Connect the transmitter to the host using an A-B 1.

USB cable.

Connect the transmitter to the host DVI-D using 2.

male to male DVI cable.

The A side of the USB connector would go to the 3.

computer host and the B side would be connected

to the transmitter.

Check that power LED is lit. The TX/RX LED should 4.

not be flashing at this time.

In the back of the unit connect the CAT5 cable that 5.

will connect to the receiver (DVXU-RX).

Connecting The Receiver

Connect the receiver to the peripheral device using 1.

A-B USB cable. In this case the A side of the connec-

tor will go to the receiver unit and the B side of the

connector will go the peripheral. Use a USB Hub if

needed.

Connect the receiver unit to the monitor.2.

Join the DVX Plus units using shielded cable for 3.

DVI-D and standard CAT5/6 UTP cable for USB.

Once connected check that the Power LED on both

receiver and transmitter is on and the TX/RX LED is

flashing, indicating that communication exists be-

tween the two units. If receiver LED is not on, make

sure the power supply is connected.

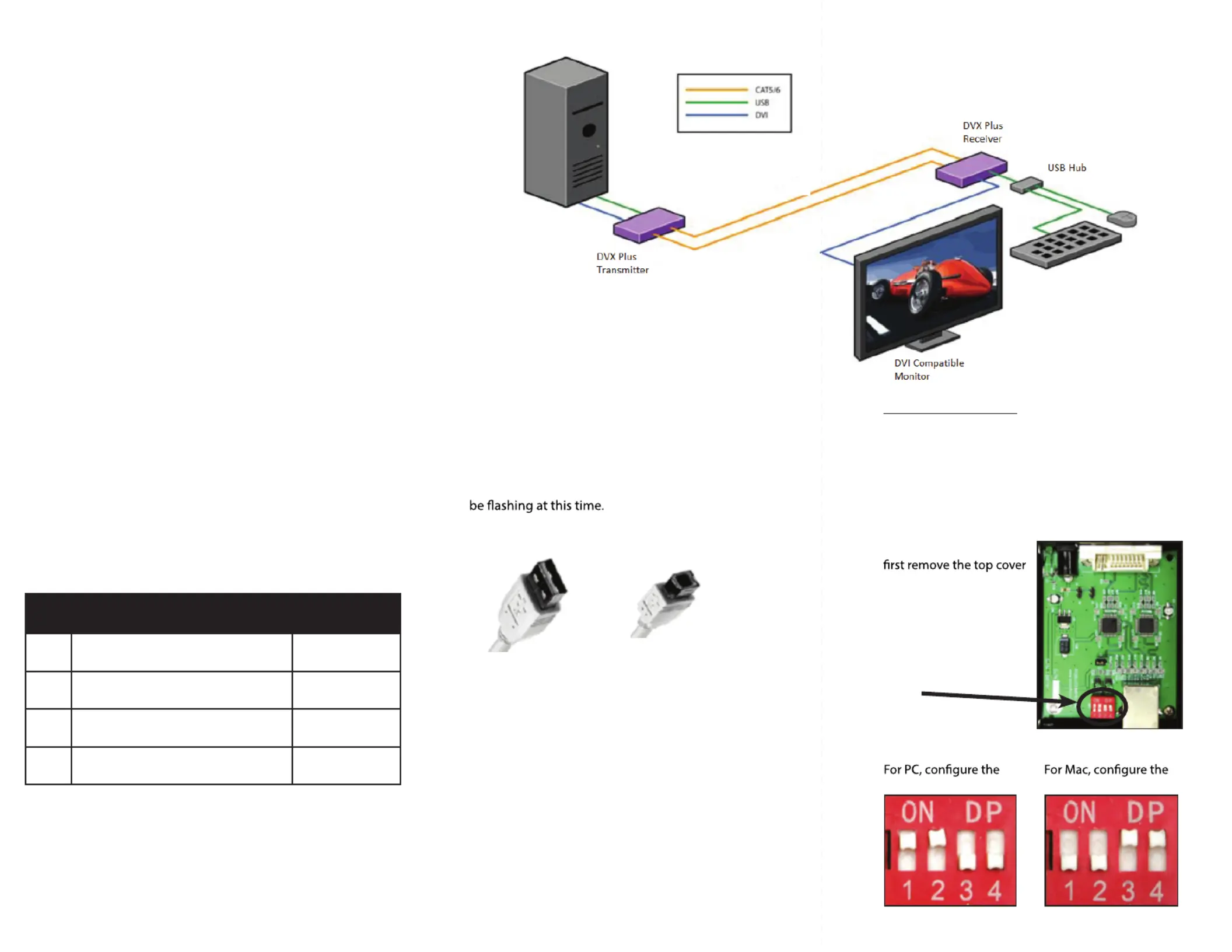

Installation Diagram

Setting the DDC

DDC provides plug-and-play capability to your

displays. When you plug a display into your computer,

the DDC table in the display tells the computer the

optimal resolution to use. This device is capable of

supporting two primary types of displays: PC and Mac.

The default setting is PC.

switches as shown below:switches as shown below:

1&2 ON, 3&4 OFF 1&2 OFF, 3&4 ON

To change this setting,

fr e TRANSMITTER om th

by removing the four side

screws. Next, locate the

DIP switches near the rear

of the device next to the

Data Port (RJ45 Ethernet

Port).

STP

STP6

Introduction

DVX Plus extends Universal Serial Bus (USB 1.1) and

Digital Visual Interface (DVI-D) signals via com-

mon twisted pair cable. Using a unique method of

transparent data transfer, the system allows a USB

peripheral and a DVI display to be located up to 225

feet from the CPU.

Features

• Extends USB and DVI-D signals up to 225ft from

the computer.

• U easy to ses in tall,s inexpens e twisted piv air cable.

• Data recovery for digital video.

• Supports 1920x1200 digital video resolution.

• Fully compliant with USB 1.1 specifications.

• Supports 1.5 and 12 Mbps data rates.

• Compatible with all operating systems.

• Ext r pter r er re-ernal powe ada fo tran ittsm and

ceiver unit.

• Fully transparent (does not use any emulation).

• Plug and play.

DVX Plus Package Contents

Qty Items Part No.

1 DVX Plus Transmitter unit DVXU-TX

1 DVX Plus Receiver unit DVXU-RX

2 5 volt dc power supply PS5VDC2A

Connecting The Transmitter

1. Connect the transmitter to the host using an A-B USB

cable.

2. Connect the transmitter to the host DVI-D using male

to male DVI cable.

3. The A side of the USB connector would go to the

computer host and the B side would be connected to

the transmitter.

4. Check that power LED is lit. The TX/RX LED should not

5. In the back of the unit connect the CAT5 cable that will

connect to the receiver (DVXU-RX).

Connecting The Receiver

1. Connect the receiver to the peripheral device using A-B

USB cable. In this case the A side of the connector will

go to the receiver unit and the B side of the connector

will go the peripheral. Use a USB Hub if needed.

2. Connect the receiver unit to the monitor.

3. Join the DVX Plus units using shielded cable for DVI-D

and standard CAT6 STP cable for USB. Once con-

nected check that the Power LED on both receiver and

transmitter is on and the , indicating RX LED goes OFF

that communication exists between the two units. If

receiver LED is not on, make sure the power supply is

connected.
