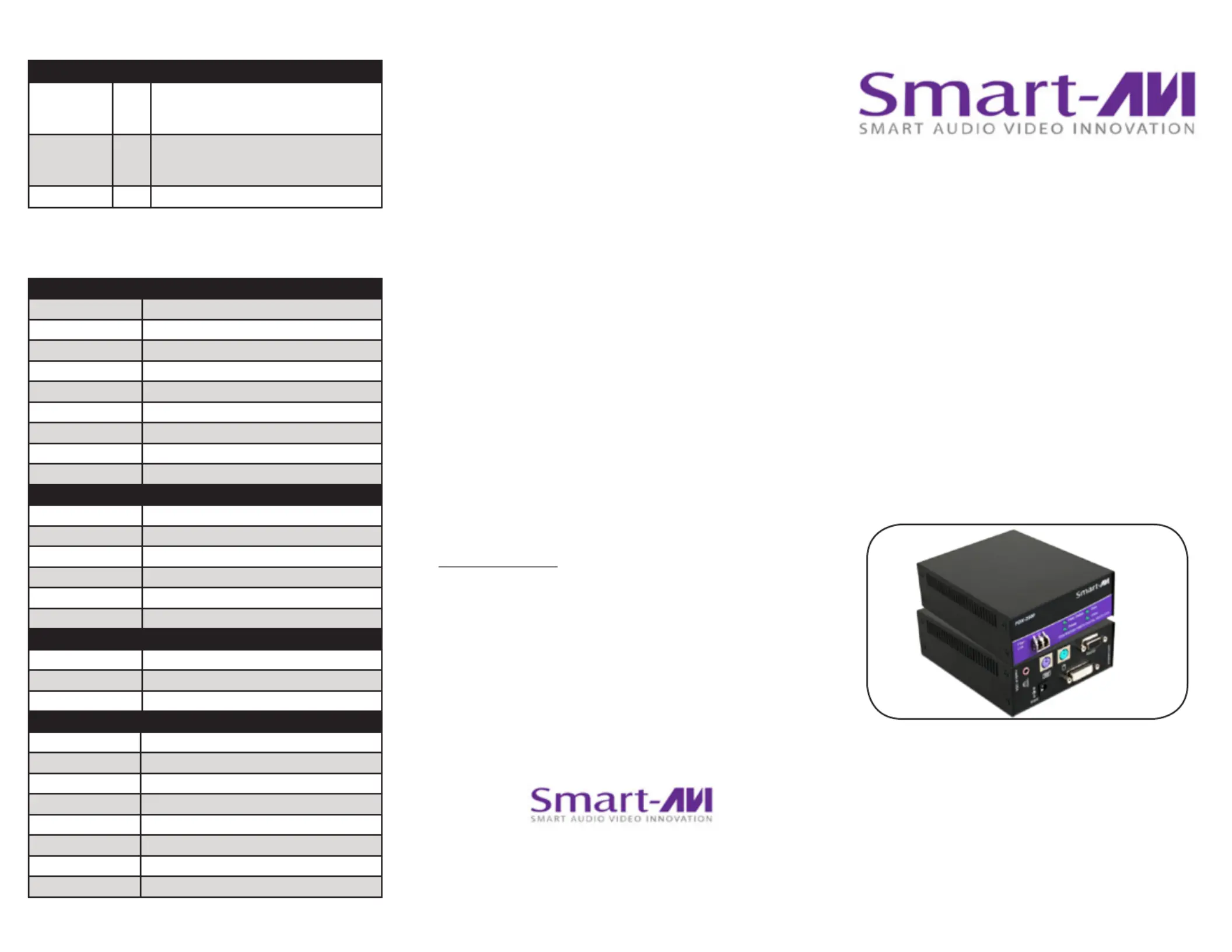

© Copyright 2011 Smart-AVI, All Rights Reserved
NOTICE
T h e i n f o r m at i o n c o nt a i n e d i n t h i s d o c u m e n t
is subject to change without notice. Smart-AVI makes
no warranty of any kind with regard to this material,
including but not limited to, implied warranties of
merchantability and fitness for any particular purpose.
Smart-AVI will not be liable for errors contained herein or for
incidental or consequential damages in connection with the
furnishing, performance or use of this material.
No part of this document may be photocopied, reproduced or
translated into another language without prior written consent
from Smart-AVI.
For more information, visit www.smartavi.com.
SmartAVI, Inc. / Twitter: smartavi
11651 Vanowen St., North Hollywood, CA 91605
Tel: (818) 503-6200 Fax: (818) 503-6208
http://www.SmartAVI.com
The FDX-2500 consists of a transmitter
and receiver that extend KVM, DVI-D,
audio and RS-232 signals. It is a
professional quality KVM capable of
extending signals up to 15 kilometers
over a single singlemode ber optic cable.
FDX-2500
DVI-D Video, Stereo Audio, PS/2
Keyboard/Mouse and RS-232
Extender over Fiber Optic Cable
www.smartavi.com
Installation
Manual
What’s in the Box?
PART NO. QTY DESCRIPTION
FDX-TX2500 1 FDX-2500 Transmitter Unit - DVI-D, Stereo
Audio, PS/2 Keyboard/Mouse and RS-232
Extender over Fiber Optic Cable
FDX-RX2500 1 FDX-2500 Receiver Unit - DVI-D, Stereo
Audio, PS/2 Keyboard/Mouse and RS-232
Extender over Fiber Optic Cable
Power Supply 2 PS5VDC4A
Technical Specications
VIDEO
Format DVI-D Single Line
Maximum Pixel Clock 165 MHz
Input Interface (1) DVI-D 29-pin female
Output Interface (1) DVI-D 29-pin female
Resolution Up to 1920 x 1200 @60Hz
DDC Internal
Input Equalization Automatic
Input Cable Length Up to 20 ft.
Output Cable Length Up to 20 ft.
AUDIO
Frequency Response 20 Hz to 20 KHz
Impedance 600 ohm
Nominal Level 0-1.0 V
Common Mode Rejection at 60dB
Input Interface (1) 3.5 mm Stereo Audio
Output Interface (1) 3.5 mm Stereo Audio
PS/2
Signaling PS/2 Keyboard and Mouse ONLY
Input Interface (2) PS/2 Female
Output Interface (2) PS/2 Female
OTHER
Power External 100-240 VAC/5VDC4A @20W
Dimensions 4.5”W x 5.375”H x 1.75”D
Weight 1 lb.
Approvals UL, CE, ROHS Compliant
Operating Temp. 32-131°F (0-55 °C)
Storage Temp. -4-185 °F (-20-85 °C)
Humidity Up to 95%
RS-232 Data up to 115,000 bps
Why Fiber Optic?
SmartAVI has created a full line of ber optic extender products,
understanding that this technology is superior to traditional
cabling.
Fiber optic cables are:
• capable of transmitting over very long distances with no
signal loss.
• immune to electromagnetic interference. In situations where
there is considerable interference, ber optic cabling is the
only solution.
• much more secure because they cannot be easily tapped.
For this reason, military and law enforcement agencies use
ber optic cables for the transmission of sensitive data.
• relatively inexpensive and small enough to be routed
through small spaces.

Introduction
The FDX-2500 consists of a transmitter and receiver
that extend KVM, DVI-D, audio and RS-232 signals. It is
a professional quality KVM capable of extending signals
up to 15 kilometers over a single singlemode ber optic
cable.
Features
• Top Signal Quality at Maximum Extension Over
Singlemode Fiber (15 Km)
• Superior Image Quality at all Resolutions
• Video Resolutions up to 1920 x 1200 at 60Hz (1280
x 1024 at 75Hz)
• Customizable/Programmable DDC Table
• Supports PS/2 Keyboard/Mouse
• Supports Stereo Audio
• Supports DVI-D
• Supports RS-232 Control from 300bps to 115,000bps
• Supports all PS/2 Keyboards
• Fiber Plug Type LC
• Compatible With all Operating Systems
• Compatible With all Major KVM Switches
• Compact Metal Casing
Applications
• Corporate or Educational Presentations
• Financial (Remote Servers/User Control)
• Call Centers
• Industrial (Long-Range Workstation Isolation)
• Information Terminals/Kiosks
• Airport Installations (Air Trac Control/Passenger
Information)
• KVM Extension where Exceptional Quality of Signal
is Crucial
• Medical (Remote Operation Away from Sensitive/
Magnetic Equipment)
• Recording (for Large Studios where Editing/Mixing
Stations are Compact and/or Require Complete
Silence)
Installation
1. Turn o the computer, display, and speakers.
2. Connect the DVI extension cable, PS/2 keyboard and mouse cables, and audio cable
(not included) to the computer and to the ports on the FDX-2500-TX.
3. Connect the display to the DVI connector on the FDX-2500-RX.
4. Connect PS/2 mouse and keyboard to the PS/2 connectors on the FDX-2500-RX.
5. Connect speakers to the audio connector on the FDX-2500-RX.
6. Connect the power cord and power on the FDX-2500TX and the FDX-2500-RX.
7. The FIBER STATUS and POWER lights should illuminate.
8. Power on the computer, display and speakers.
Receiver Transmitter
Fiber Optic Cable up to 15 Km
Product - Installation Diagram
FDX-2500 Receiver Front
FDX-2500 Receiver Rear
DDC provides plug-and-play capability to your
displays. When you plug a display into your
computer, the DDC table in the display tells the
computer the optimal resolution to use. In order
to preserve this plug-and-play capability, we have
integrated DDC learning into all of our DVI Solutions.
ABOUT DDC
Learning the DDC
1. Plug in the ber connection.
2. DO NOT connect the computer to the transmitter.
3. Power on the transmitter and recevier.
4. Verify the FIBER STATUS and POWER lights are
illuminated.
5. Power o the transmitter and receiver.
6. Power on the display and plug it into the recevier.
7. Power on the receiver.
8. Power on the transmitter and wait for approximately
30 seconds. The VIDEO light on the transmitter
will blink on and o for approximately 10 seconds
indicating the DDC has been learned.
9. Plug the computer into the transmitter and power it on.
