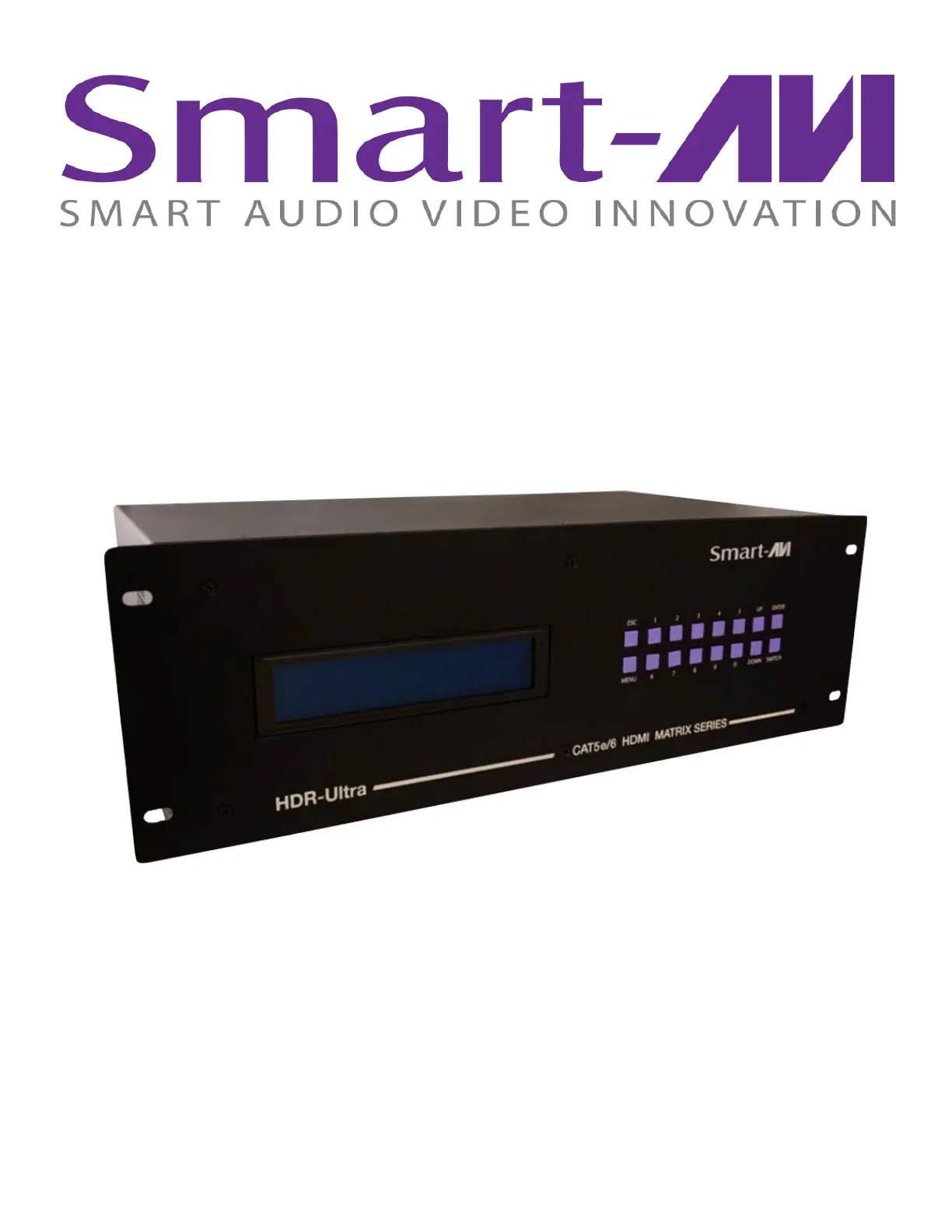

HDR-ULTRA

HDMI 16x16 Matrix over Cat 5e/6

QUICK INSTALLATION GUIDE

www.smartavi.com

INTRODUCTION

The HDR-ULTRA is a High Definition video router that enables users to route HD signals up to 425 feet over

CAT 5e/6 cables, providing the ultimate solution to create clean and efficient video and digital signage

systems in configurations up to 16x16.

Pristine high definition video has become the standard for entertainment, video systems and digital

signage, but HD video routing has been confined by the necessity of short, bulky and unsightly cables. The

HDR-ULTRA, utilizing HDBaseT technology, breaks the distance limits that have tethered users as it

facilitates the routing of crystal clear 1080p HD video, multi-channel audio, Ethernet, IR and power up to

an incredible 425 feet through the use of inexpensive CAT 5e/6 cables. With unprecedented flexibility and

convenience, the HDR-ULTRA is overhauling the old challenges of HD Matrix routers with an elegant and

easy-to-install solution.

The HDR-ULTRA can direct as many as 16 HD inputs and 16 HD outputs effortlessly. Routing HD signals

across long distances from the user-friendly HDR-ULTRA exponentially increases users’ ability to create the

ideal digital video and audio experience in any environment.

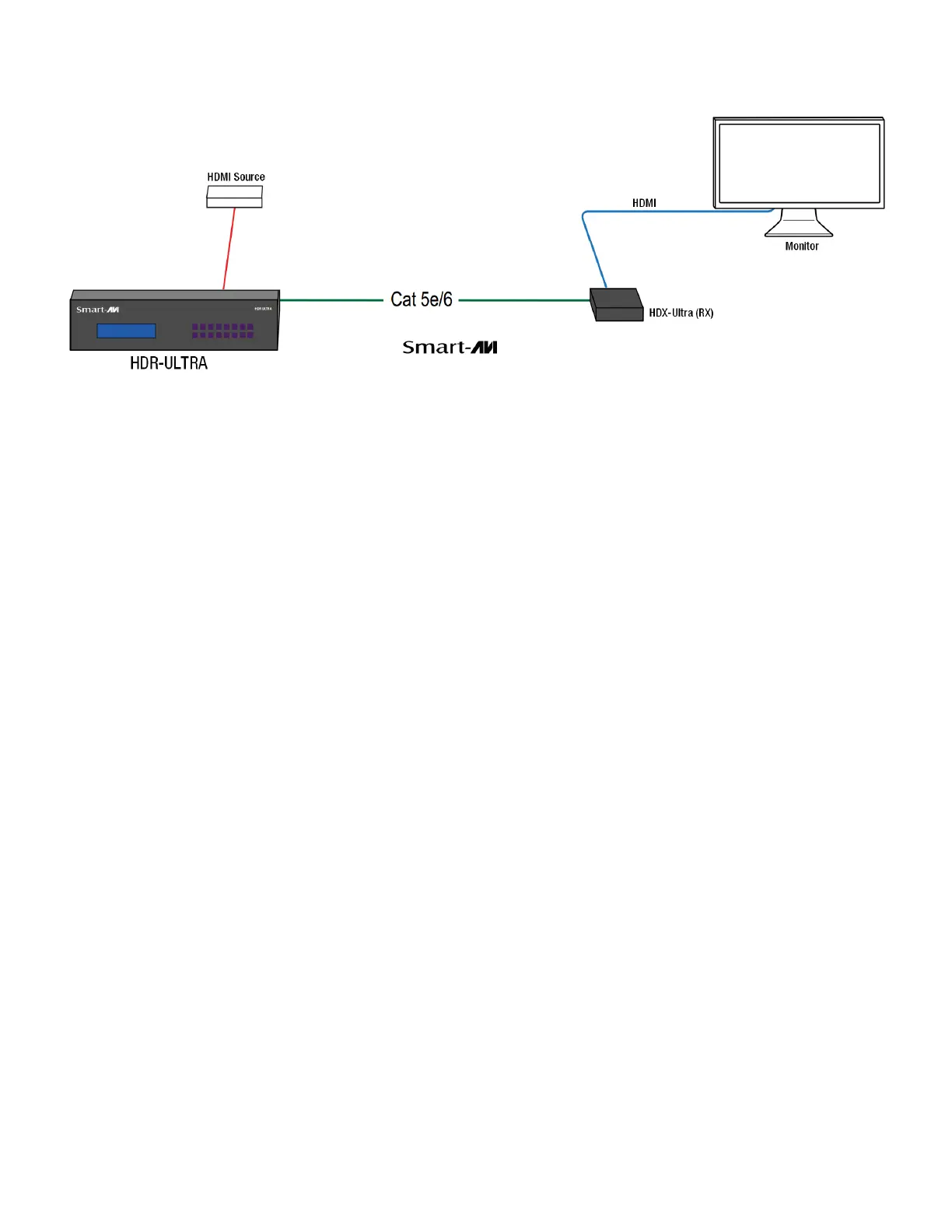

APPLICATION DIAGRAM

www.smartavi.com

INSTALLATION

1. Turn

off all input devices and

displa

2. Connect the

HDMI

cables from the input devices and to

the “IN”

ports on the HDR-ULTRA matrix.

3. Connect the HDMI cables from the HDMI port of the HDX-Ultra Receivers to the HDMI displays.

4. Connect the RJ-45 port of each HDX-Ultra Receivers to the respective “OUT”

ports on the HDR-ULTRA

using CAT5e/6 cables.

5. Power on the HDX-Ultra Receivers by plugging in their power adapters (5VDC2A).

6. Connect the power cord and power-on the HDR-ULTRA.

7. Power on the input devices and the

displa

CONTROLLING THE HDR-ULTRA

There are multiple ways to control the HDR8X8/HDR16X16:

• Front panel

• SmartControl software

• RS-232 commands

• TCP-IP module (NET-IP-Pro)

Front Panel

The HDR ULTRA front panel enables one to switch directly from the Matrix without the use of any software.

Its LCD (40x4) offers detailed information about the status of the switch at any given moment.

SmartControlPro Software

SmartConrolPro is the Windows® GUI application that enables users to control SmartAVI matrixes using

graphic user interface without having to write the codes and send serial commands to the devices. The

software enables configuration of the size and type of the Matrix, including a preset defined at macro. The

software also enables identification by name for each source and display.

RS-232 Commands

There are two primary modes of operation for the RS-232 control of the HDR-ULTRA: Command Mode and

Debug Mode. When connecting to the HDR-ULTRA via RS-232, it will start in Command Mode, in which raw

commands are allowed to be sent matrix to control its various functions without the use of a menu or

prompt. This mode is intended for advanced Debug mode is a more user-friendly way of operating the

HDR-ULTRA and it also includes instructional menus.

Produktspecifikationer

Varumärke:	Smart-AVI
Kategori:	AV extender
Modell:	HDRULT-0816
Färg på produkten:	Grijs
Vikt:	30 g
Förpackningens bredd:	122 mm
Djuppackning:	220 mm
Förpackningshöjd:	18.80 mm
Typ av seriell anslutning:	RS-232
Hållbarhetscertifikat:	RoHS
Internera:	Ja
Värdgränssnitt:	IDC
Seriell port(ar):	1
Utgångsgränssnitt:	Serie
