HDMI Splitter/Extender
HDX-400
www.smartavi.com
User Manual
2840 N. Naomi Ave.
Burbank, California 91504
Phone: (818) 565-0011
Facsimile: (818) 565-0020
HDX-400 Specifications
Function/Model HDX-400
Video Input
Bandwidth 1.65Gps
Connector HDMI Connector x1
HDMI Output Display
HDMI Connector x 1
RJ45 Jack x 3
Max. Resolution 1920 x 1200 or 480p/720i/720p/1080i/
1080p
Bandwidth 1.65Gps
Storage
Temperature
-20˚C~60˚C
Power adaptor DC 5V 1A
Housing Metal
Dimension(mm) 6.375”W x 5.18”L x .875”H
Technical Specications
4-Port HDMI Splitter with 3 Remote
Ports over CAT6 STP
HDX-RX100
Receiver
HDX-400
HDTV
PS3
HD Camera
DVD CAT6-STP
HDMI
Receiver
HDX-400
Transmitter

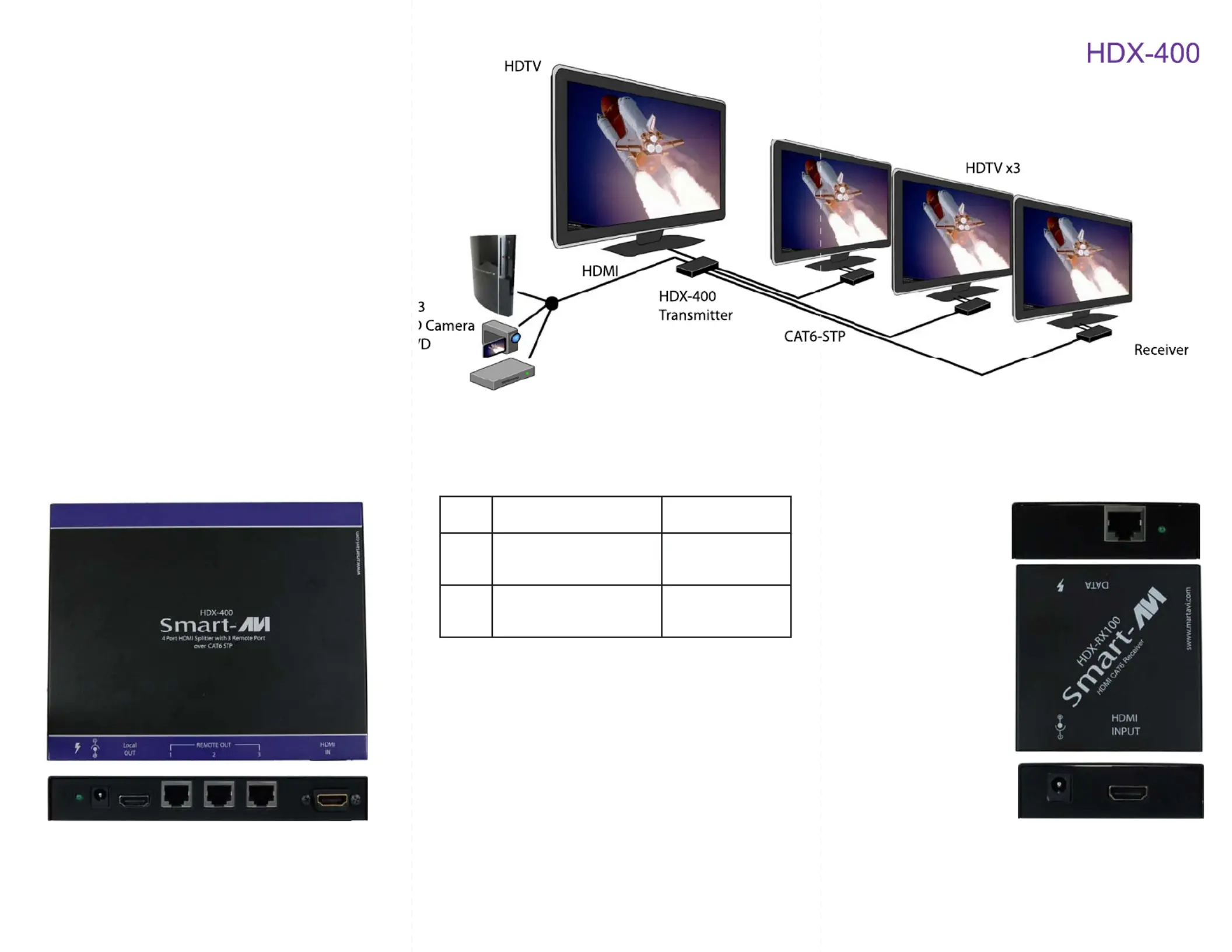

HDTV x3
Qty Description Part Number
1Transmitter and Receiver
for HDMI over CAT6 HDX-400
1HDX Receiver, Receiver HDMI
over STP Cable HDX-RX100
Whats in the box?
HDX-400
Please check the contents of the package before
beginning installation.
Installation and Operation
Connecting the Splitter/Extender.
1. Connect the HDX-400 to the Component/TV/Monitor
with HDMI cable (included with the unit).
2. Connect HDX-400 to HDX-RX via CAT6 STP.100
3. Connect HDX-RX 0 to monitor(s).10
4. Connect the power.
t$PNQBDU5SBOTNJUUFS3FDFJWFS6OJUT
t-PDBM)%.*0VUQVU
t1FSGFDU*NBHF2VBMJUZBUBMM3FTPMVUJPOT
(1920 x 1200, 480p, 720i, 720p, 1080i, 1080p)
t7JEFP3FTPMVUJPOTVQUPYBU)
(1280 x 1024 at 75Hz) on all Distances to th
Maximum Limit
t#BOEXJEUIUP(QT
t"VUPNBUJD -FBSOJOHGSPN-PDBM.POJUPSHDCP
t6OJU0QFSBUFT3FHBSEMFTTPG-PDBM.POJUPS
Connectivity
t%JTUBODFTVQUP'FFUVTJOH$"5451$BCMJOH
t$PNQBUJCMFXJUIBMM0QFSBUJOH4ZTUFNT
t1MVHBOE1MBZo/P4PGUXBSF3FRVJSFE
Features
The HDMI signal transmission unit is placed near the HDMI
source. Connect the HDMI source to the transmission unit,
which will extend the signal up to 50M over a single CAT6
cable.
Introduction
HDX-RX100

Produktspecifikationer

Varumärke: Smart-AVI
Kategori: AV extender
Modell: HDX-400
Färg på produkten: Zwart
Vikt: 762 g
Bredd: 110 mm
Djup: 258 mm
Höjd: 26 mm
Förpackningens vikt: 1200 g
Förpackningens bredd: 260 mm
Djuppackning: 325 mm
Förpackningshöjd: 70 mm
LED-indikatorer: Ja
Nuvarande: 0.6 A
Videolägen som stöds: 720p, 1080p
Maximal upplösning: 3840 x 2160 Pixels
Certifiering: CE, FCC, REACH
HDCP: Ja
Maximal uppdateringshastighet: 60 Hz
HD typ: 4K Ultra HD
HDMI-version: 2.0
Grafikupplösningar som stöds: 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA)
Hållbarhetscertifikat: RoHS
Förvaringstemperatur: -10 - 70 °C
Ström LED: Ja
Utström: 3 A
Spännande: 5 V
Video av: 8x HDMI
Videoanslutning: HDMI
AC-ingångsspänning: 100 - 240 V
Strömförbrukning (typiskt): 15 W
Drifttemperatur (TT): 0 - 45 °C
Relativ luftfuktighet i drift (VV): 10 - 85 procent
Harmoniserad systemkod (HS): 85176990
Ljudkanaler som stöds: 7.1
Inkluderade typer av nätkontakter: AU, EU, NA, UK
Antal videoportar: 8
Ljudstöd: Ja
