HDX-400- Pro

Quick Star

Quick StarQuick Start Guide

t Guide

t Guide t Guide

800.AVI.2131

Tel: (818) 503- Fax: (818) 503- 6200 |

|| 6208

11651 Vanowen St. North Hollywood, CA 91605

SmartAVI.com

NOTICE

The information contained in this document is subject

to change without notice. SmartAVI makes no

warranty of any kind with regard to this material,

including but not limited to, implied warranties of

merchantability and fitness for particular purpose.

SmartAVI will not be liable for errors contained herein

or for incidental or consequential damages in

connection with the furnishing, performance or use of

this material.

No part of this document may be photocopied,

reproduced, or translated into another language

without prior written consent from SmartAVI

Technologies, Inc.

20170308 Ext

Ext

ExtExtend One HDMI Signal up to

end One HDMI Signal up to

end One HDMI Signal up to end One HDMI Signal up to

180 F

180 F180 Feet t

eet t

eet teet to up t

o up t

o up to up to 4 Displa

o 4 Displa

o 4 Displao 4 Displays

ys ys

using CA

using CAusing CAT 5e/6 Cabling

T 5e/6 Cabling

T 5e/6 Cabling T 5e/6 Cabling

TECHNICAL SPECIFICATIONS

VIDEO

HDMI Resolution

(Input and Output)

24/50/60fs/1080p/1080i/720

p/576p/576i/480p/480i

Maximum Signal

Extension Up to 180 ft.

Maximum Pixel Clock 225MHz

Maximum Rate 6.75Gbps

Input Video Signal 0.5~1.5Volts p- p

Output DDC signal 5Volts p-p (TT1L)

Current 3000mA

AUDIO

Audio Input Formats DTS-HD/Dolby-TrueHD/

LPCM7.1/DTS/Dolby-AC3/DSD

Audio Output Formats LPCM7.1/DTS/Dolby-AC3/DSD

OTHER

Power Adapter 5VDC 4A

Weight .4 lbs.

Dimensions 9.25”W X 3.25”D X 1”H

Working Temperature 32 to 122°F (0 to 50 °C )

Working Humidity Up to 85% RH (no condensation)

Storage Temperature -4 to 149 °F (-20 to 65 °C )

Storage Humidity Up to 90% RH (no condensation)

WHAT’S IN THE BOX?

PART NO. QTY DESCRIPTION

HDX- -PROS 1 400 HDMI 4-Port Transmitter over

Cat5e/Cat6/Cat6 STP cables

PS5VDC4A 1 Power Adapter

1 Quick Start Guide

HDMI Ext

HDMI ExtHDMI Extender o

ender o

ender oender over

ver

verver CA

CA CAT 5e/6

T 5e/6

T 5e/6 T 5e/6

Cables

Cables Cables

INTRODUCTION

SmartAVI’s HDX- -Pro is an innovative solution to 400

extending any HDMI signal over inexpensive Cat5e/

Cat6 cabling up to 180 feet away to four remote

display screens at once.

This is the perfect solution for broadcasting high-

definition media easily and inexpensively from a

source to four display screens for customers to view

while keeping the CPU in a remote, secure location,

such as a computer room or the back office of a

business.

The HDX- -Pro utilizes four HDX-RX100 receivers 400

(not included) and enables the user to send the same

HDMI signal to four remote displays. The HDX-RX100

is a compact unit that is easily integrated into a digital

display network such as in a retail store or bar/

lounge. The transmitter and receiver units are

extremely compact, which makes inclusion into a

user’s infrastructure very easy.

FEATURES

 Distribute and Extend one HDMI Source to up to

4 Displays via Cat5e/Cat6 Cables (Cables not

included)

 Local HDMI Output for Easy Monitoring

 Maximum Signal Extension up to 180 feet

 Supports 3D Signals

 Supports HDMI Resolutions up to 1080p

 Supports Audio Formats of DTS-HD/

DolbyTrueHD/LPCM7.1/DTS/Dolby-AC3/DSD

 No Loss of Signal Quality up to the Maximum

Distance

 LED Status Lights

 Plug- -Play Ready and

APPLICATIONS

 Retail Locations

 Bars/Lounges

 Showroom Floors

 Convention Booths

 Hotel/Resort Check-In Counters

 Corporate/Educational Demonstrations

 Houses of Worship

 Medical Facilities

 Recording/Editing Studios

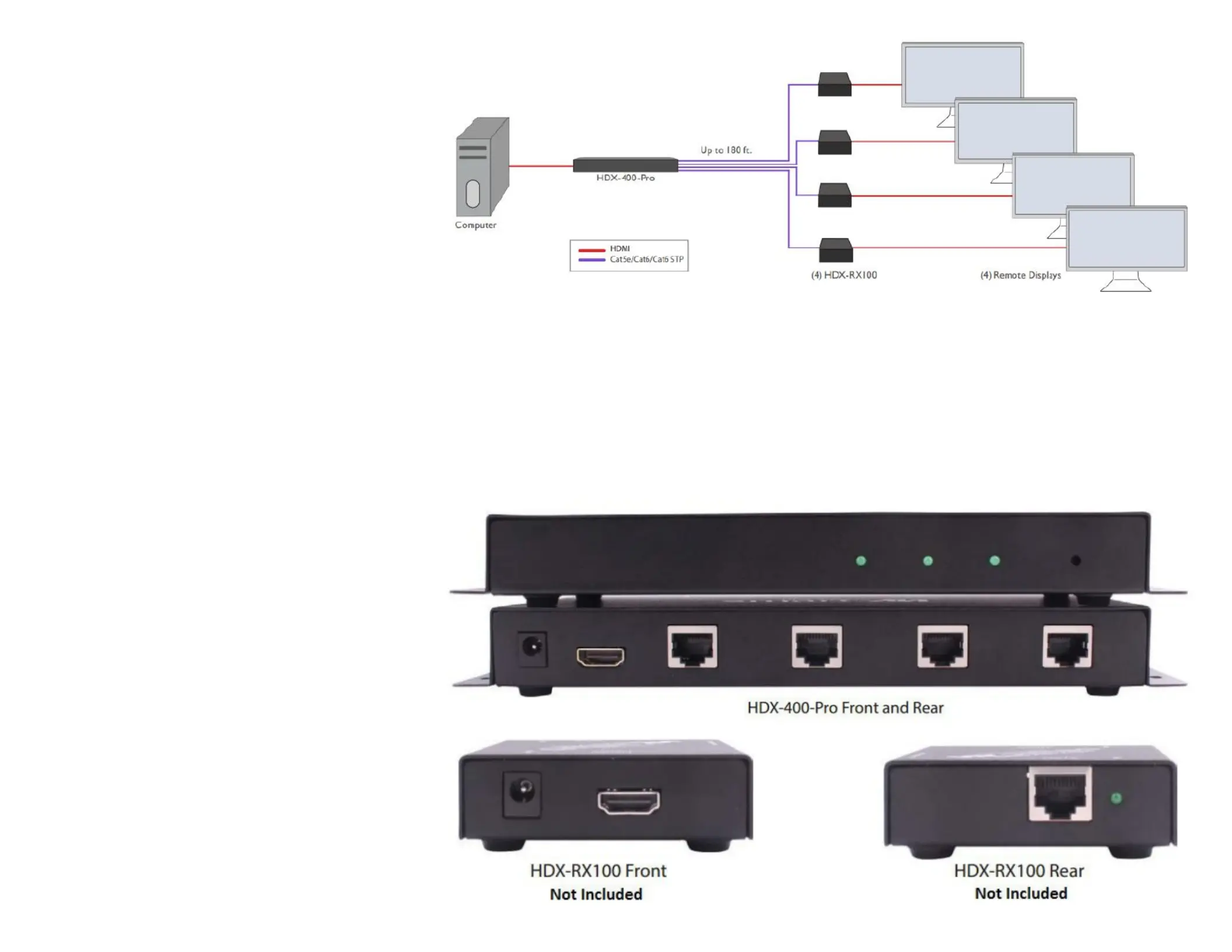

HARDWARE INSTALLATION

1. Connect the HDX-400-Pro to the local source.

2. Connect the HDX-400 to up to 4 HDX-RX100 receivers with CAT 5e/6 cables. (HDX-RX100

receivers and CAT 5e/6 cables not included.)

3. Connect the HDX-RX100s to remote displays.

4. Connect power to all the devices.

NOTE: The recessed SET button on the front of the HDX- -Pro resets the HDMI input port. 400
