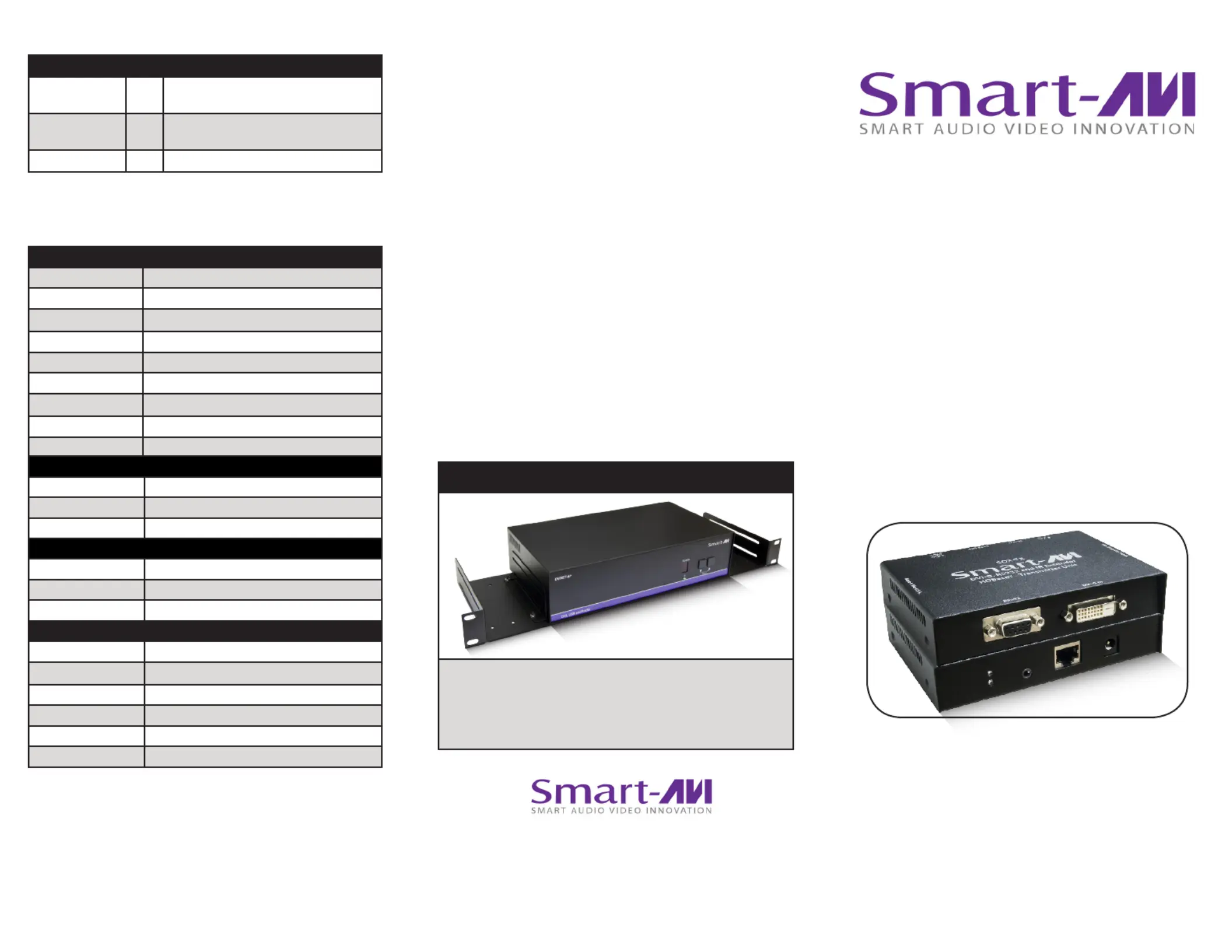

SDX

Super Range DVI-D, RS232 and IR

Extender

www.smartavi.com

Installation

Manual

What’s in the Box?

PART NO. QTY DESCRIPTION

SDX-RX 1 SDX Receiver. DVI-D + RS232 + IR Re-

ceiver over CAT5/5e/6

SDX-TX 1 SDX Transmitter. DVI-D + RS232 + IR

Transmitter over CAT5/5e/6

Power Supply 2 PS5VDC2A

NOTICE

T h e i n f o r ma t i o n c o n t a i n e d i n t h i s d oc u m e nt

is subject to change without notice. Smart-AVI makes

no warranty of any kind with regard to this material,

including but not limited to, implied warranties of

merchantability and fitness for any particular purpose.

Smart-AVI will not be liable for errors contained herein or for

incidental or consequential damages in connection with the

furnishing, performance or use of this material.

No part of this document may be photocopied, reproduced or

translated into another language without prior written consent

from Smart-AVI.

For more information, visit www.smartavi.com.

SmartAVI, Inc. / Twitter: smartavi

11651 Vanowen St. North Hollywood, CA 91605

Tel: (818) 503-6200 Fax: (818) 503-6208

http://www.SmartAVI.com

Extend DVI-D video, RS232 and

IR up to 330 feet (100m) over a

single CAT5/5e/6 cable

Rack Mountable Option

Our SmartRack is the perfect solution to allow

virtually all SmartAVI devices to be custom mounted

in a standard 19” server rack. The SmartRack is fully

adjustable and can secure/organize several devices.

Technical Specications

VIDEO

Format DVI-D Single Link

Maximum Pixel Clock 165 MHz

Input Interface (TX) (1) DVI-D 29-pin (Female)

Output Interface (RX) (1) DVI-D 29-pin (Female)

Resolution Up to 1920 x 1200 @60Hz

DDC 5 volts p-p(TTL)

Input Equalization Automatic

Input Cable Length Up to 20 ft.

Output Cable Length Up to 20 ft.

OTHER

Power External 100-240 VAC/5VDC2A

Dimensions 5.125 in W x 1 in H x 3.625 in D

Weight 0.5 lb

Operating Temp. 0-55 °C (32-131°F)

Storage Temp. -20-85 °C (-4-185 °F)

Humidity Up to 95%

RS232

Input Interface DB9 (Female)

Output Interface DB9 (Female)

Control @ 115 Kbps

Frequency Response 30KHz to 80KHz

Input Interface (RX) (1) 3.5 mm (Female)

Output Interface (TX) (1) 3.5 mm (Female)

Introduction

Using HDBaseT technology, the SDX DVI extender is

capable of sending a DVI-D signal up to 330 feet over a

single conventional and inexpensive CAT5/5e/6 cable.

HDBaseT technology is superior to older DVI extenders

that require special CAT6 sheilded cable to go a short

distance. The SDX also has RS232 and IR extension,

giving you the ability to control your displays or devices

remotely.

Features

• Extends DVI-D up to 330 feet (100m) from

the source

• Data recovery for digital video

• Supports up to 1920x1200 digital video

resolution

• Automatic DDC Learning

• Uncompressed Video HDBaseT

• IR and RS232 extension allows for remote

control of displays

• External power adapter for transmitter and

receiver unit

• Plug and play

Product - Installation Diagram

Connecting the SDX

1. Power o all devices.

2. Connect a DVI-D source (computer) to the DVI-D

port on the rear of the SDX-TX.

3. Optionally connect RS232 and IR for control

functions.

4. Connect the SDX-TX to the the SDX-RX with one

CAT5 UTP (Unsheilded Twisted Pair) cable.

5. Connect a DVI-D compatible display to the DVI-D

port on the rear of the SDX-RX.

6. Optionally connect RS232 and IR for control

functions.

7. Connect the power to the SDX-RX and the SDX-TX.

8. Power on the display and then the computer.

The DDC of your display will be learned

automatically. The following is the wiring standard for terminating UTP/STP

cable using RJ-45 connector:

Connectors: RJ-45

Capacitance: 14 pf/ft (46.2 pf/m)

Conductor Gauge: 24 AWG

Impedance: 100 +/- 15 ohms

Pair 1 Pins 1 & 2

Pair 2 Pins 3 & 6

Pair 3 Pins 4 & 5

Pair 4 Pins 7 & 8

SDX-TX SDX-RX

330 ft over CAT5/5e/6 UTP DVI

COMPUTER

DISPLAY

APPLICATIONS

• Security

• PC Networking

• Conference Center Systems

• Point of Sale

• Camera Surveillance

• Video Phone

• Control Room Systems

• Recording Studio

• PC KVM Extension

SDX-TX Front

SDX-RX Front

SDX-TX Rear

SDX-RX Rear

To reach maximum distances with HDBaseT technology,

it is recommended to use the best possible quality

cable available. CAT5e/6 shielded cabling is ideal for

best performance.
