Notice

The information contained in this document is

subject to change without notice. Smart-AVI makes

no warranty of any kind with regard to this material,

including but not limited to, implied warranties of

merchantability and fitness for any particular

purpose.

Smart-AVI will not be liable for errors contained herein

or for incidental or consequential damages in

connection with the furnishing, performance or use

of this material.

No part of this document may be photocopied,

reproduced or translated into another language with

out prior written consent from Smart-AVI.

For the complete manual, visit www.smartavi.com.

Use a single CAT5 to broadcast high

resolution UXGA and stereo audio

1000ft away at the most affordable

price in the market.

VCA100

www.smartavi.com

User Manual

3111 Winona Ave., Suite 101

Burbank, California 91504

Phone: (818) 565-0011

Facsimile: (818) 565-0020

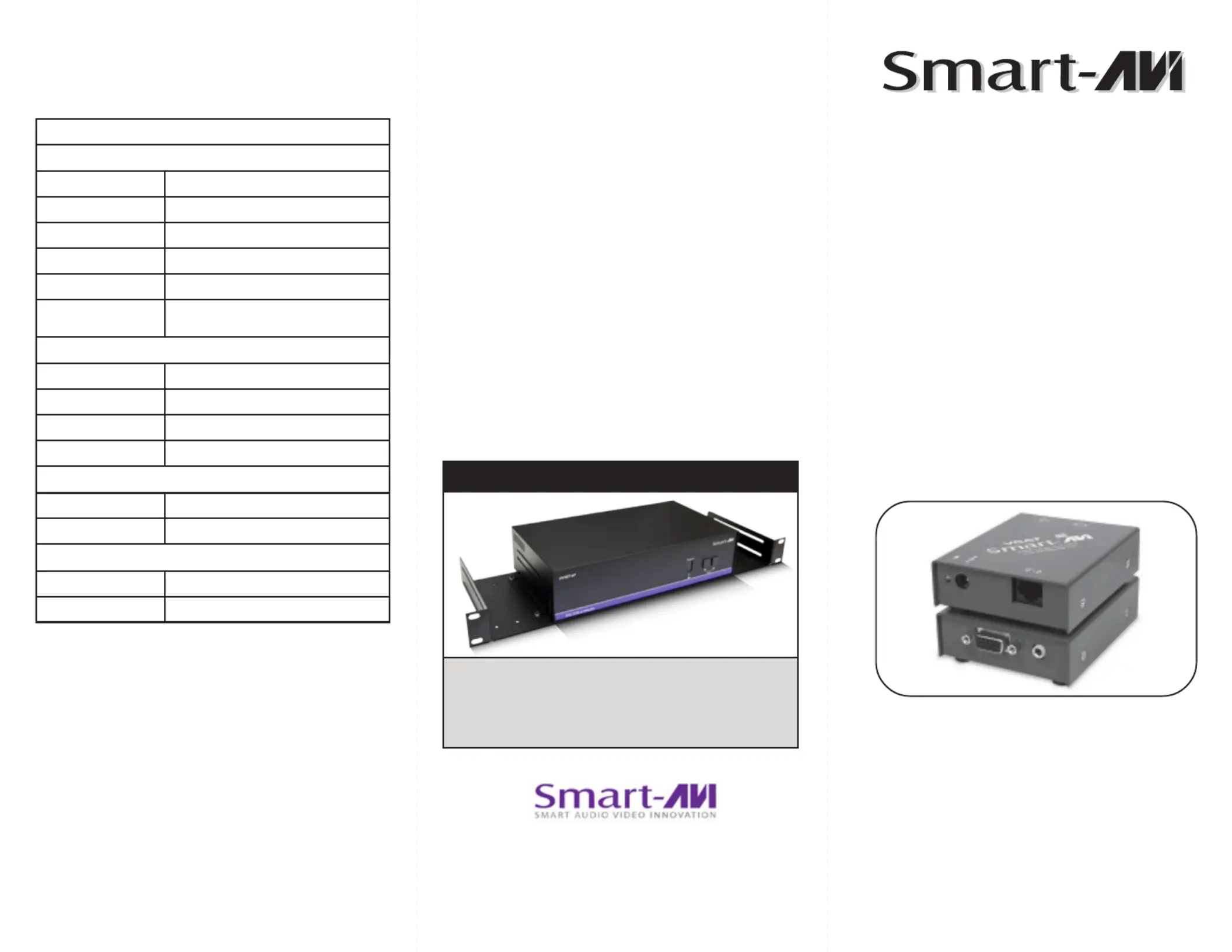

Technical Specifications

3MART!UDIO6IDEO)NTEGRATION

reviecerdnarettimsnarT reviecerdnarettimsnarT reviecerdnarettimsnarT reviecerdnarettimsnarT reviecerdnarettimsnarT

oediV oediV oediV oediV oediV

htdiwdnaB zHM004

leveLlangisgolanA tlov1

ecnadepmI smho57

rotcennoC 51DHytisnedhgiH

tamroF BsGR/HBGR/AGXU/AGX/AGVS/AGV

cnyS zHK031ot51:egnaRcnySlatnozirohLTT

zH021ot03egnaRcnySlacitreV

oiduA oiduA oiduA oiduA oiduA

htdiwdnaB zHK02

levellangiS BdO

ecnadepmI smhoK01

rotcennoC tekcoskcajmm5.3

elbaCmetsyS elbaCmetsyS elbaCmetsyS elbaCmetsyS elbaCmetsyS

epyT A865AIEPTU5taC

rotcennoC 54JR

rewoP rewoP rewoP rewoP rewoP

stnemeriuqeR Am005@CDV5

rotcennoC kcaJCD1.2x5

NOTICE

T h e i n f o r m a t i o n c o n t a i n e d i n t h i s d o c u m e n t

is subject to change without notice. Smart-AVI makes

no warranty of any kind with regard to this material,

including but not limited to, implied warranties of

merchantability and fitness for any particular purpose.

Smart-AVI will not be liable for errors contained herein or for

incidental or consequential damages in connection with the

furnishing, performance or use of this material.

No part of this document may be photocopied, reproduced or

translated into another language without prior written consent

from Smart-AVI.

For more information, visit www.smartavi.com.

SmartAVI, Inc. / Twitter: smartavi

11651 Vanowen St. North Hollywood, CA 91605

Tel: (818) 503-6200 Fax: (818) 503-6208

http://www.SmartAVI.com

Rack Mountable Option

Our SmartRack is the perfect solution to allow

virtually all SmartAVI devices to be custom mounted

in a standard 19” server rack. The SmartRack is fully

adjustable and can secure/organize several devices.

Introduction

The VCA100 allows transmission of high definition

video and stereo audio signals over a standard CAT-

5 UTP cable over distances of up to 1000 ft.

Features

 Uses easy to install, inexpensive CAT5.

 Output reaches up to 1,000 feet.

 Resolutions up to 1900x1200.

 300 MHz Bandwidth.

 Compatible with VGA, XGA, Sun, MAC and SGI

signals.

 Sync Format / Polarity Preservation.

 High ground loop immunity.

 Built-in lightning, power surge and transient

protection.

 Designated trimmer in the remote unit to

compensate for cable length.

 Compact Metal Case Enclosure.

 Remote Units come with Buffered Outputs.

 External power supply.

What’s in the box?

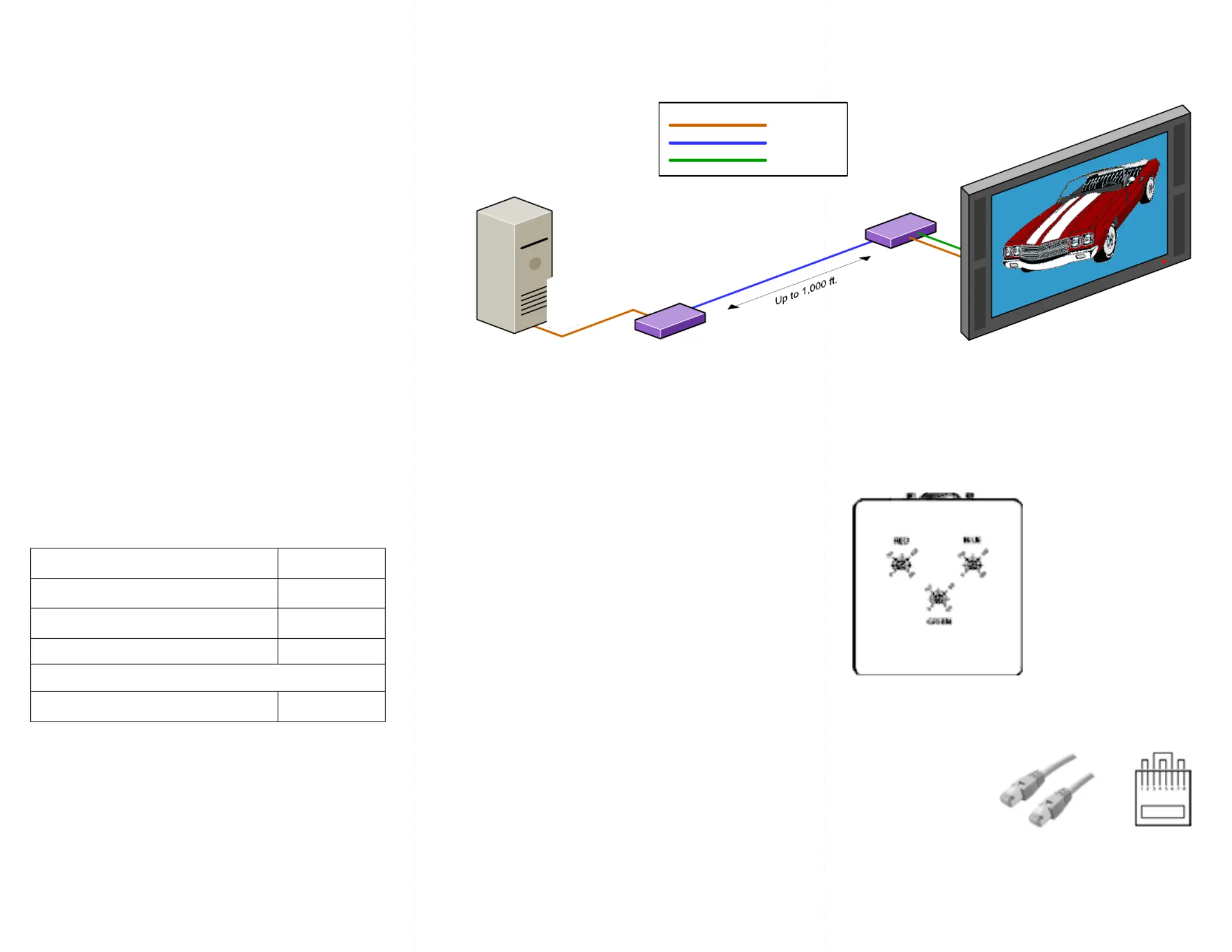

Installation Diagram

VCA100 Receiver Installation Diagram

Connecting The TransmitterConnecting The TransmitterConnecting The TransmitterConnecting The TransmitterConnecting The Transmitter

1. Connect the output of the computer video card to the

video input of the transmitter using the included male

to male video cable.

2. Connect local monitor to the VGA out of the

transmitter.

3. Connect the audio output cable from the computer

to the transmitter

4. In the back of the unit connect the CAT5 cable that

will connect to the receiver unit.

5. Connect the power supply.

*NOTE: You can not use RS232 and IR at the same time.

Connecting The ReceiverConnecting The Receiver

Connecting The ReceiverConnecting The ReceiverConnecting The Receiver

1. Connect CAT5 cable (coming from the transmitter) to

the back of the receiver.

2. Connect monitors to the VGA out connectors on the

front of the receiver.

3. Connect the speakers to the audio out connectors on

the front of the receiver unit.

4. Connect the power supply.

noitpircseD rebmuNtraP

rettimsnarToiduA/AGXUACV 001XT-ACV

ylppuSrewoPA1CDV5 SU-A1D5-SP

elameFotelaMelbacAGV 60-MMAGV-CC

tnempiuqElanoitpO tnempiuqElanoitpO tnempiuqElanoitpO tnempiuqElanoitpO tnempiuqElanoitpO

tinUrevieceRXR-TACV 001XR-ACV

Adjusting and Fine Tuning the SignalAdjusting and Fine Tuning the SignalAdjusting and Fine Tuning the SignalAdjusting and Fine Tuning the SignalAdjusting and Fine Tuning the Signal
