Use a single CAT5 to broadcast high
resolution UXGA to 4 locations
1000ft away
VCT400
www.smartavi.com
User Manual
2840 N. Naomi Ave.,
Burbank, California 91504
Phone: (818) 565-0011
Facsimile: (818) 565-0020

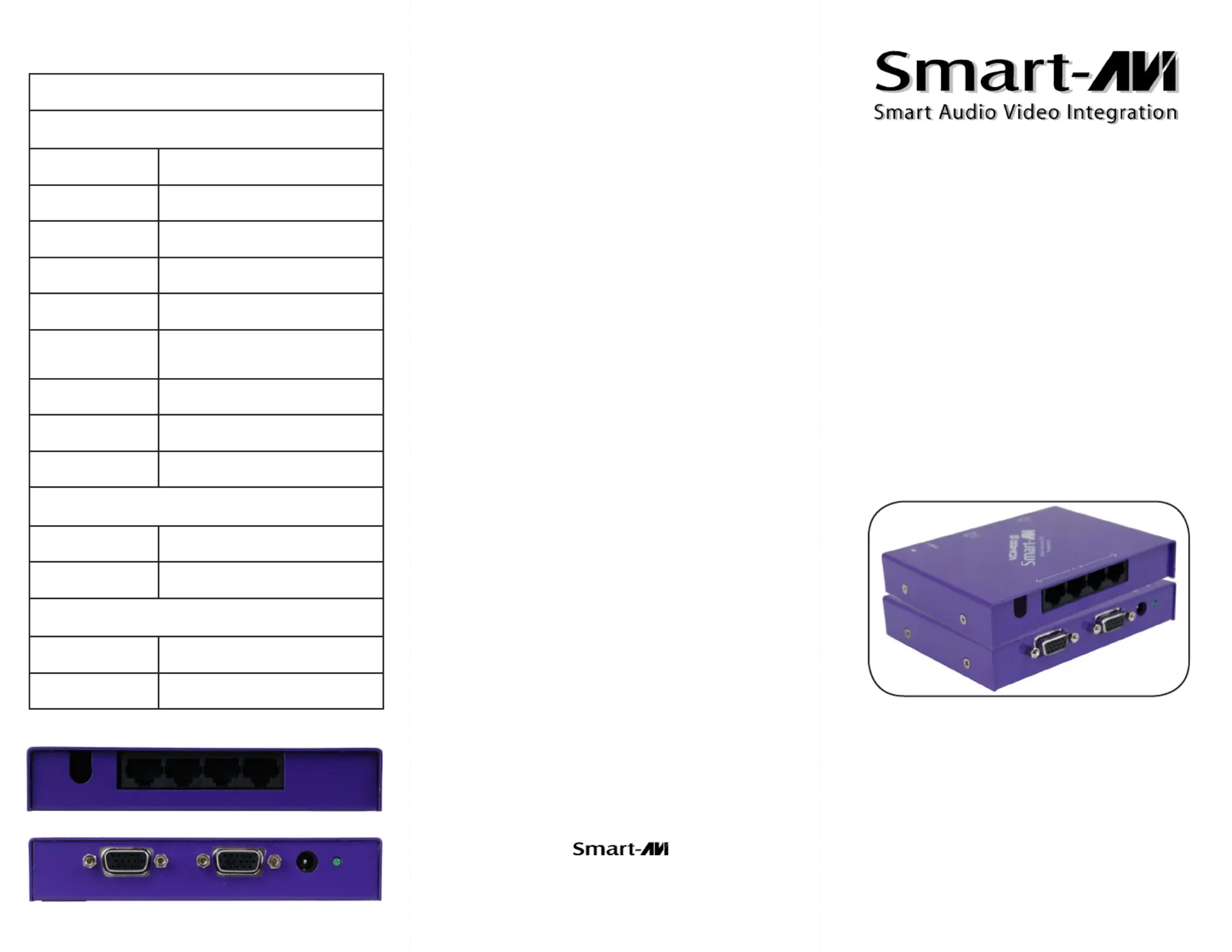

Technical Specications
Transmitter and receiver
Video
Bandwidth 400MHz
Analog signal Level 1 volt
Impedance 75 ohms
Connector High density HD15
Format VGA/SVGA/XGA/UXGA/RGBH/RGsB
Sync TTL horizontal SyncRange: 15 to 130 KHz Verti-
cal Sync Range 30 to 120 Hz
Signal level OdB
Impedance 10K ohms
Connector 3.5mm jack socket
System Cable
Type Cat5 UTP EIA 568A
Connector RJ45
Power
Requirements 5V DC @500mA
Connector 5x2.1 DC Jack
Introduction
The VCT400 allows transmission of high denition
video signals over a standard CAT-5 UTP cable over
distances of up to 1000 ft.
Features
Uses easy to install, inexpensive CAT5.
Output reaches up to 1,000 feet.
Resolutions up to 1900x1200.
300 MHz Bandwidth.
Sends high-resolution VGA signals from
one source to up to 4 devices.
Compatible with VGA, XGA, Sun, MAC and SGI
signals.
Sync Format / Polarity Preservation.
High ground loop immunity.
Built-in lightning, power surge and transient
protection.
Designated trimmer in the remote unit to
compensate for cable length.
Compact Metal Case Enclosure.
Remote Units come with Buered Outputs.
External power supply.
What’s in the box?
Installation Diagram
VCT Receiver Installation Diagram
Connecting The Transmitter
1. Connect the output of the computer video card to the
video input of the transmitter using the included male
to male video cable.
2. Connect local monitor to the VGA out of the
transmitter.
3. In the back of the unit connect the CAT5 cable that
will connect to the receiver unit.
4. Connect the power supply.
*NOTE: You can not use RS232 and IR at the same time or Audio.
Connecting The Receiver
1. Connect CAT5 cable (coming from the transmitter) to
the back of the receiver.
2. Connect monitors to the VGA out connectors on the
front of the receiver.
3. Connect the power supply.
Description Part Number
4 port VCA UXGA VCA-TX400
5VDC 1A Power Supply PS-5D1A-US
VGA cable Male to Female CC-VGAMM-06
Optional Equipment
VCAT-100-RX Receiver Unit VCT-100-RX
Adjusting and Fine Tuning the Signal
Preparing & Connecting System CAT5 Cable
Following is the wiring standard for terminating CAT 5
cable using RJ-45 connector:
Pair 1 Pins 1 & 2
Pair 2 Pins 3 & 6
Pair 3 Pins 4 & 5
Pair 4 Pins 7 & 8
Connectors: RJ-45
Capacitance: 14 pf/ft (46.2 pf/m)
Conductor Gauge: 24 AWG
Impedance: 100 +/- 15 ohms
4 - Pair
In order to ne tune the signal,
adjust the individual dials
one at a time starting with
GREEN, then BLUE and lastly
RED. As you turn the dials you
will notice the colors slightly
change as you increase or
decrease the strength.
VCT Transmitter Installation Diagram
Up to 1,000 ft.
VCA-TX400
Transmitter
VCT-100-RX
Transmitter’s
