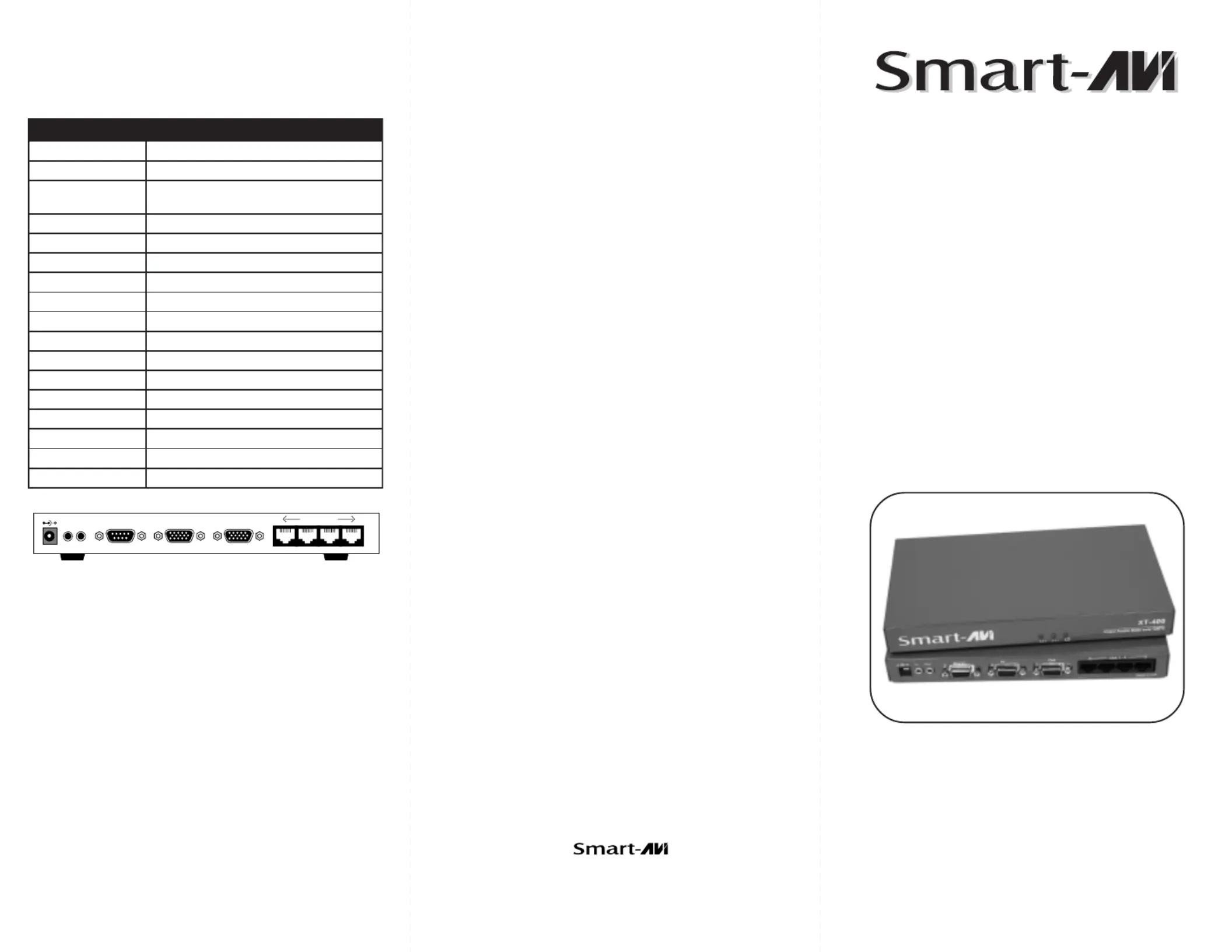

Use a single CAT5 cable to broadcast
high resolution SXGA, Stereo Audio
and RS232 up to 4 stations up to
1000ft away.
XT-400
www.smartavi.com
User Manual
2840 N. Naomi Ave.
Burbank, California 91504
Phone: (818) 565-0011
Facsimile: (818) 565-0020
Technical Specifications
3MART!UDIO6IDEO)NTEGRATION
3MART!UDIO6IDEO)NTEGRATION
SNOITACIFICEPS004-TX SNOITACIFICEPS004-TX SNOITACIFICEPS004-TX SNOITACIFICEPS004-TX SNOITACIFICEPS004-TX
ataDAGV ataDAGV ataDAGV ataDAGV ataDAGV
tamroF SBVC,C/Y,VUY,BsGR,VHBGR
noituloseR 0021x0091otpU
)AGXS,AGX,AGVS,AGV
epytrotcennoC tekcos51DH
oiduA oiduA oiduA oiduA oiduA
epyTlangiS decnalabnuoeretS
rotcennoC tekcoskcajmm5.3
232SR 232SR 232SR 232SR 232SR
M9BD
.dnG,DXR,DXT
spb0069
rewoP rewoP rewoP rewoP rewoP
stnemeriuqeR A5.@CDV5
rotcennoC )ev+retnec(kcajCDmm1.2
lacisyhP lacisyhP lacisyhP lacisyhP lacisyhP
snoisnemiD )sgephtiw1.3(mc7.2x8.11x22
thgieW gk63.rosbl8.
Sending an RS232 command to remoteSending an RS232 command to remoteSending an RS232 command to remoteSending an RS232 command to remoteSending an RS232 command to remote
monitormonitormonitormonitormonitor
In order to send a command to a remote monitor, you
will need to use The following query at 9600 baud
rate;
<CR>//M1<CR>
After sending this query, any command sent from
the PC will go directly to monitor 1
To send a command to monitor 2 replace "M1"
with "M2" etc...
To send the same command to all monitors ( but
only monitor 1 will answer) Use the following
command;
<CR>//M0<CR>
*
<CR> = Carriage return
In Out In OutRS23 2 Out 1-4
Introduction
The XT400 range of products allows the extension of
a wide range of video and audio formats and RS232
up to 4 locations using Category 5 Unshielded
Twisted Pair (UTP) cables.
With RS232 communication support the XT400
allows users to send commands to single or
multiples devices. This allows the user to change
volume, channel or turn on/off the remote LCD TV.
Features
Supports Dual Screens.
Uses easy to install, inexpensive CAT-5/5e/6/7/8.
Each output reaches up to 1,000 feet (300 m).
Supports high resolution video up to 1900x1200
HDTV Compatible (720p, 1080i,1080p)
300 MHz Bandwidth.
Sends high-resolution VGA, Stereo Audio signals,
RS232 or IR from one source to 4 locations.
Compatible with VGA, XGA, Sun, MAC and SGI
Sync Format / Polarity Preservation.
Compatible with Line Level Stereo Audio Signals.
High ground loop immunity.
Built-in power surge and transient protection.
Designated trimmer in the remote unit to
compensate for cable length.
Compact Metal Case Enclosure.
External power supply.
RS-232c Communication support to single or
multiple Displays.
IR command to single or multiple Displays.
What’s in the box?
XT400XT400
XT400XT400
XT400
Please check the package contents before installing.

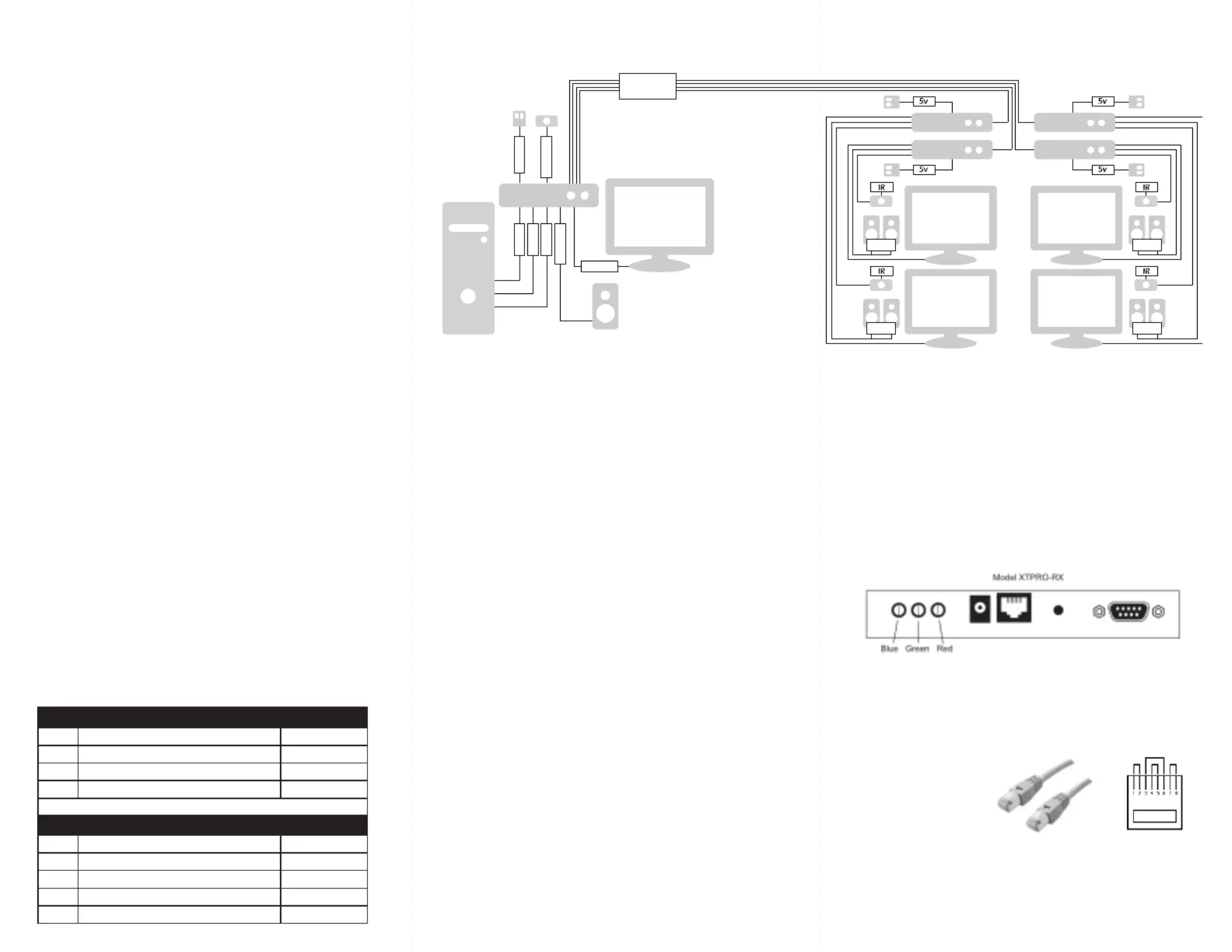

Installation Diagram
XT400 Transmitter Installation Diagram XT400 Receiver Installation Diagram
Adjusting and Tuning the SignalAdjusting and Tuning the SignalAdjusting and Tuning the SignalAdjusting and Tuning the SignalAdjusting and Tuning the Signal
In order to fine tune the signal, adjust the individual
dials one at a time starting with GREEN, then BLUE,
and lastly RED. As you turn the dials you will notice the
colors slightly change as you increase or decrease the
strength. All dials should be around the same distance.
Preparing & Connecting System CAT5 CablePreparing & Connecting System CAT5 Cable
Preparing & Connecting System CAT5 CablePreparing & Connecting System CAT5 CablePreparing & Connecting System CAT5 Cable
Following is the wiring standard for terminating CAT 5
cable using RJ-45 connector:
Pair 1 Pins 1 & 2
Pair 2 Pins 3 & 6
Pair 3 Pins 4 & 5
Pair 4 Pins 7 & 8
C o n ne c to r s :C o n ne c to r s :
C o n ne c to r s :C o n ne c to r s :
C o n ne c to r s : RJ-45
C a p a c i t a n c e:C a p a c i t a n c e:
C a p a c i t a n c e:C a p a c i t a n c e:
C apac i t anc e : 14 pf/ft (46.2 pf/m)
Conductor Gauge:Conductor Gauge:
Conductor Gauge:Conductor Gauge:
Conductor Gauge: 24 AWG
I m p e d a n c e :I m p e d a n c e :
I m p e d a n c e :I m p e d a n c e :
I m p e d a n c e : 100 +/- 15 ohms
4 - Pair
Connecting The TransmitterConnecting The Transmitter
Connecting The TransmitterConnecting The Transmitter
Connecting The Transmitter
1. Connect the output of the computer video card to the
video input of the transmitter using the included male
to male video cable.
2. Connect the output of the computer audio card to the
audio input of the transmitter using 3.5mm audio
male to male audio cable.
3. Connect local monitor to the VGA out of the
transmitter.
4. Connect external speakers to the transmitter’s audio
out (Standard 3.5mm stereo miniplug).
5. In the back of the unit connect the CAT5 cable that
will connect to the receiver (XT400-RX).
*NOTE: You can not use RS232 and IR at the same time.
Connecting The ReceiverConnecting The ReceiverConnecting The ReceiverConnecting The ReceiverConnecting The Receiver
1. Connect CAT5 cable (coming from the transmitter) to
the back of the receiver.
2. Connect 1-4 display monitors to the VGA out
connectors on the front of the receiver.
3. Connect 1-4 sets of external speakers to the audio
output connections on the front of the unit.
(Standard 3.5mm stereo Miniplug)
stnetnoCegakcaP004TX stnetnoCegakcaP004TX stnetnoCegakcaP004TX stnetnoCegakcaP004TX stnetnoCegakcaP004TX
ytQ ytQ ytQ ytQ ytQ smetI smetI smetI smetI smetI .oNtraP .oNtraP .oNtraP .oNtraP .oNtraP
1 tinurettimsnarT004TX XT-004TX
1 ylppusrewopcdtlov5 SU-A1D5-SP
1 )tf6(elbacAGVelamotelam51DDH 60-MMAGV-CC
lanoitpO lanoitpO lanoitpO lanoitpO lanoitpO
1 elbacgulpinimoeretsmm5.3oiduA 60-MMAMM-CC
1 tinurevieceRORPTX XR-ORPTX
1 revieceREYERI EYE-MS
1 rettimERI DEL-MS
1 elbac232SR'6 60-232SRCC
RS232
Audio In
VGA In
VGA Out
4 lines
of CAT5
IR Emmiter
Audio Out
5V DC
XT400
XTPRO-RX
XTPRO-RX
XTPRO-RX
XTPRO-RX
VGA
VGA
VGA
VGA
Audio Audio
Audio Audio
