Powersmith Ltd, BA22 8RT

Please retain this information for future reference

CORRECT DISPOSAL OF PRODUCT

(Waste Electrical & Electronic Equipment)

This marking on the product or its literature indicates the product should not be

disposed with other household waste at the end of its serviceable life.

To prevent possible harm to the environment or human health from uncontrolled waste

disposal, please separate this product from other waste types and recycle it responsibly to

promote the sustainable reuse of material resources. Household users should contact either

and how to recycle this product in an environmentally friendly way. Business users should

contact their supplier and check the terms and conditions of the purchase contract. This

product should not be mixed with other commercial waste for disposal. Dispose of used

batteries to one of a designated collection points. If the battery is built into the product,

open it and remove the battery.

GUARANTEE

2 YEARS

LED

NOT REPLACEABLE

220-240V~

50Hz

SL1-C20-B

Contents:

1x Light

1x Wall bracket

2x Screws & wall plugs

Instruction Manual

1x Hex key for bracket adjustment

1.5mm, 3-core flex cable pre-fitted to the device

Required:

Drill & drill bits for wall mounting

Terminal screwdriver for wiring

DO NOT open this device, this device is maintenance free

and contain no user servicable parts.

The Guarantee becomes void if the device is opened.

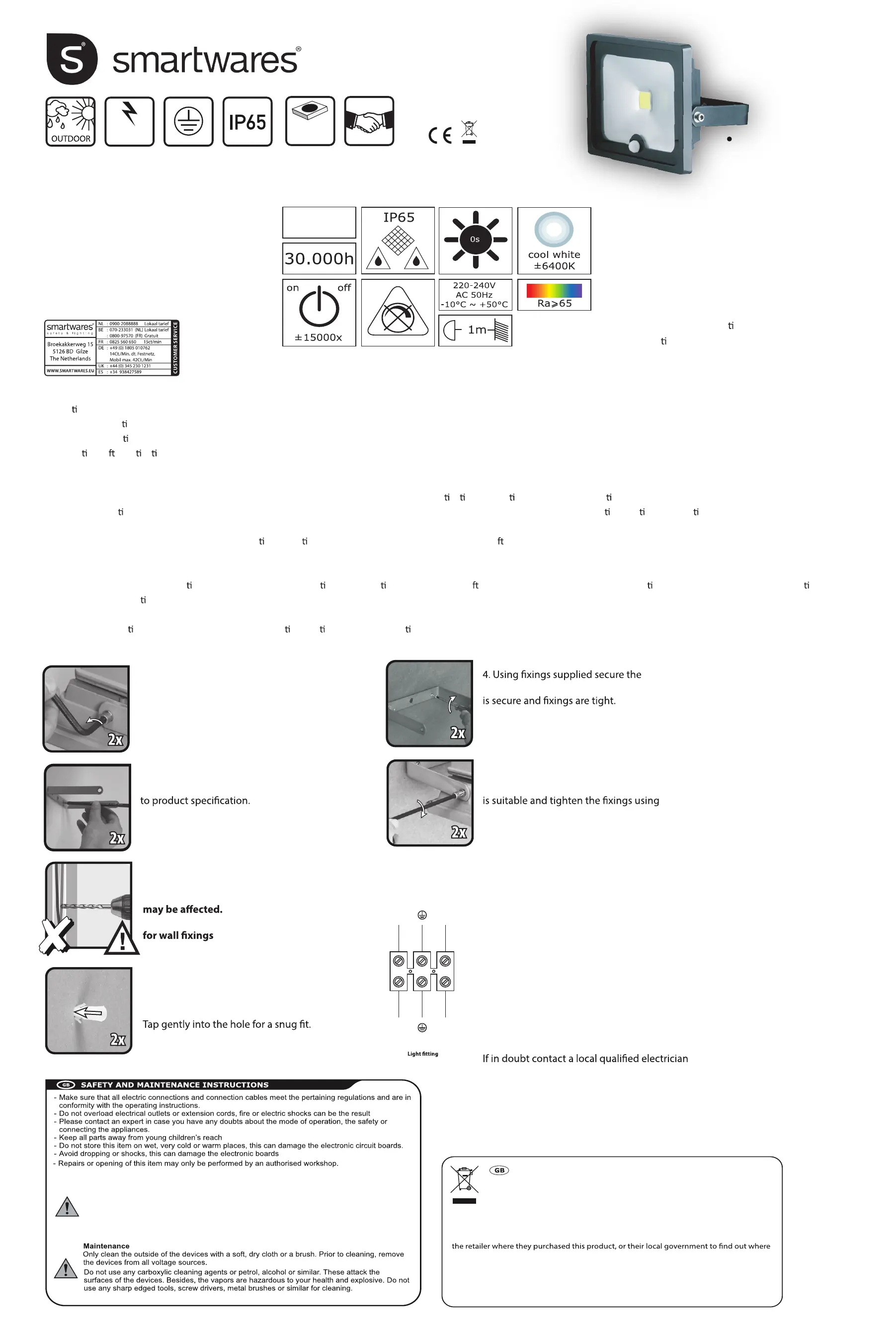

1. Using Hex key provided

remove wall bracket from

the device

2. Select the ideal position for

wall mounting, paying attention

Use wall bracket as a template,

mark holes.

WARNING

Be careful when drilling to

ensure no cables or pipework

Ensure correct drill is used suitable

3. Insert wall plugs into the drilled hole.

The hole needs to be deep enough to

contain the entire wall plug.

wall bracket to the wall ensuring it

5. Attach the device onto the wall

bracket, check the angle of the device

the Hex key provided.

6. Wiring.

Drill a hole into the wall and feed the supplied

cable through the wall into the property.

If connecting the power externally please

ensure a suitable outdoor electrical

connection is made.

Connect Live (Brown wire) to mains supply

Neutral (Blue wire) to Neutral supply

Earth (Yellow / Green) to Earth supply

All wiring must be in accordance with IEE

Wiring Regulations 17th Edition.

1500lm

DO NOT OPEN THE DEVICE, THIS WILL VOID THE WARRANTY

This device is pre-set and cannot be adjusted.

Opera on period: Night only

PIR angle of detec on: 100 ˚

PIR range of detec on: 5 metres

Light on me a er ac va on: Approximately 4 minutes

IMPORTANT

When powered on from the mains the light will turn on for approximately 4 minutes. Avoid ac va ng the mo on sensor during this me. Should the light remain on for more than 6

minutes then mo on is being detected, turn o the light for seconds and on again. Once light goes out it will not turn back on unﬀ10 l night me and mo on is detected.

TIP: Cover the light & PIR with a towel to avoid mo on detec on. Turn on the light and allow it to turn o a er 4 mi tes then remove the towel.ﬀnu

IMPORTANT

The light will remain on while mo on is being detected, once mo on stops the mer will begin and a er approximately 4 minutes of no detec on the light will turn o . Should moﬀon

be detected again the mer will reset.
