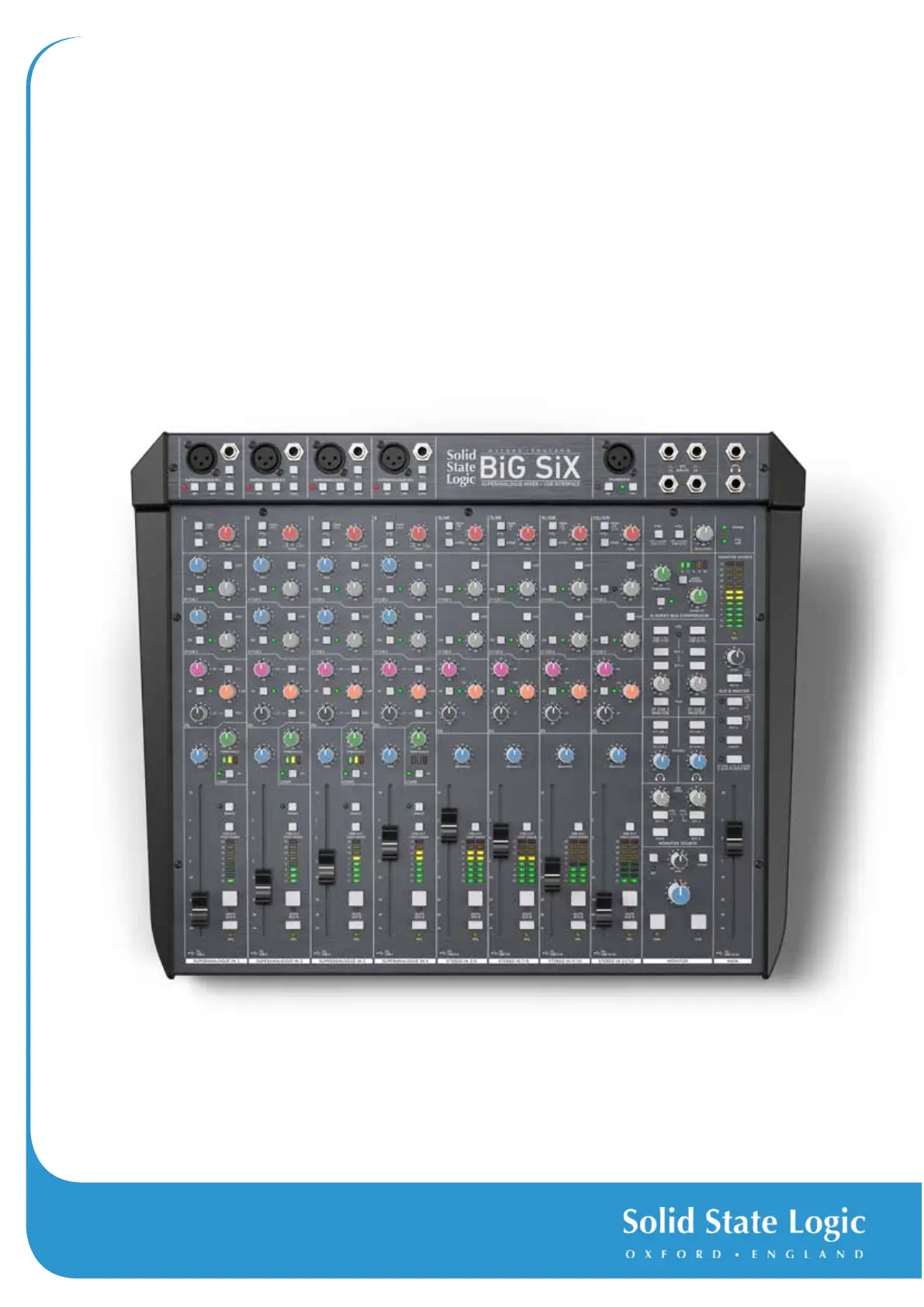

BiG SiX
www.solidstatelogic.com
BiG SiX
User Guide
Visit SSL at:
www.solidstatelogic.com
© Solid State Logic
All rights reserved under International and Pan-American Copyright Conventions
SSL® and Solid State Logic® are ® registered trademarks of Solid State Logic.
BiG SiX™, SiX™ and SuperAnalogue™ are trademarks of Solid State Logic.
All other product names and trademarks are the property of their respective owners and are hereby acknowledged.
No part of this publication may be reproduced in any form or by any means, whether mechanical or electronic,without the written
permission of Solid State Logic, Oxford, OX5 1RU, England.
As research and development is a continual process, Solid State Logic reserves the right to change the features and
specications described herein without notice or obligation.
Solid State Logic cannot be held responsible for any loss or damage arising directly or indirectly from any error or omission in
this manual.
PLEASE READ ALL INSTRUCTIONS, PAY SPECIAL HEED TO SAFETY WARNINGS.
E&OE
November 2021
Revision History
Revision V1.0, September 2021 - Initial Release
Revision V1.1, November 2021 - Updated 'Sum to Mix Bus' details
Revision V1.2, November 2021 - Updated compressor details
Introduction to BiG SiX
In the mid '70s Solid State Logic designed the rst A Series Console and Studio Computer. The idea behind the project was to
build a system for the company’s studio which was buried deep in the Oxfordshire countryside, in a small village called Stoneseld.
SSL’s development of advanced analogue mixing consoles has been continuous since those early days.
As the name implies, BiG SiX is the natural expansion of SSL’s successful SiX desktop console. Both BiG SiX and SiX are studio
grade, SuperAnalogue consoles that deliver all of the quality and exibility audio professionals expect from SSL, but in very
compact footprints. SiX is designed to be small enough to t into hand luggage or a half 19” rack space, BiG SiX is over twice the
size, ts a full 9U of 19” rack space and has many additional features, but with the same focus on audio quality and exibility of use.
Like SiX, but bigger...
BiG SiX is the big sister to SSL's acclaimed SiX console. Although both BiG SiX and SiX are small by SSL standards they carry
the same values and inherited DNA. What follows are some of the key elements that make BiG SiX a professional product for the
highest quality audio applications.
Fully balanced inputs and outputs
All of BiG SiX’s inputs and outputs are fully balanced (with the exception of the Phones output). This means professional equipment
with balanced connections can be properly interfaced allowing longer cable lengths without noise/hum pick-up penalties and the
best signal to noise performance from the whole signal chain.
Short is beautiful…
To provide the purest audio signal paths, BiG SiX has several features not normally found on small footprint mixing consoles e.g.
the channel processing is switched, allowing it to be removed from the signal path if it’s not being used. It’s denitely worth taking
some time to understand the BiG SiX block diagram and reading the examples later in this manual. We hope you’ll really unlock
the versatility of the console when discovering the many signal paths that are available and the multiple ways they can be used.
Meter scales and response
The upper LED meter points on BiG SiX’s main meters have been carefully chosen. The console is designed with a huge +27
dBu headroom and the meters have dened segments for +24 dBu and +18 dBu, this is to match the two most common 0 dB
Full Scale (dBFS) alignment standards, i.e. European/EBU at 0 dBFS=+18 dBu and the US/SMPTE standard at 0 dBFS=+24 dBu
ensuring optimum performance for converters and proper gain structure throughout the signal chain. The meters in BiG SiX have
been designed with a fast ‘peak’ response (rise time to 60% Full Scale Deection approx 1 ms @ 1 kHz) and a slower release time
to give the ability to meter fast peaks while still being able to show useful signal levels.
Converter alignment levels
The sixteen A to D and D to A converters in BiG SiX are aligned for 0 dBFS=+24 dBu to give the optimal performance from the
console's dynamic range.
Power and power management
You will have noticed that BiG SiX is powered by an external power supply with a multipin connector. This signicantly helps the
design and performance of BiG SiX. It moves the power supply's electromagnetic interference away from the SuperAnalogue
circuits inside BiG SiX. This allows us to design the internal electronics to have a bandwidth as wide as possible and thus deliver
the great phase and transient response SSL large format console users have come to expect in a very small footprint package.
Another thoughtful design feature for an analogue console is how the power rails are ramped on power-up to minimise thumps
on monitor and headphone outputs.
