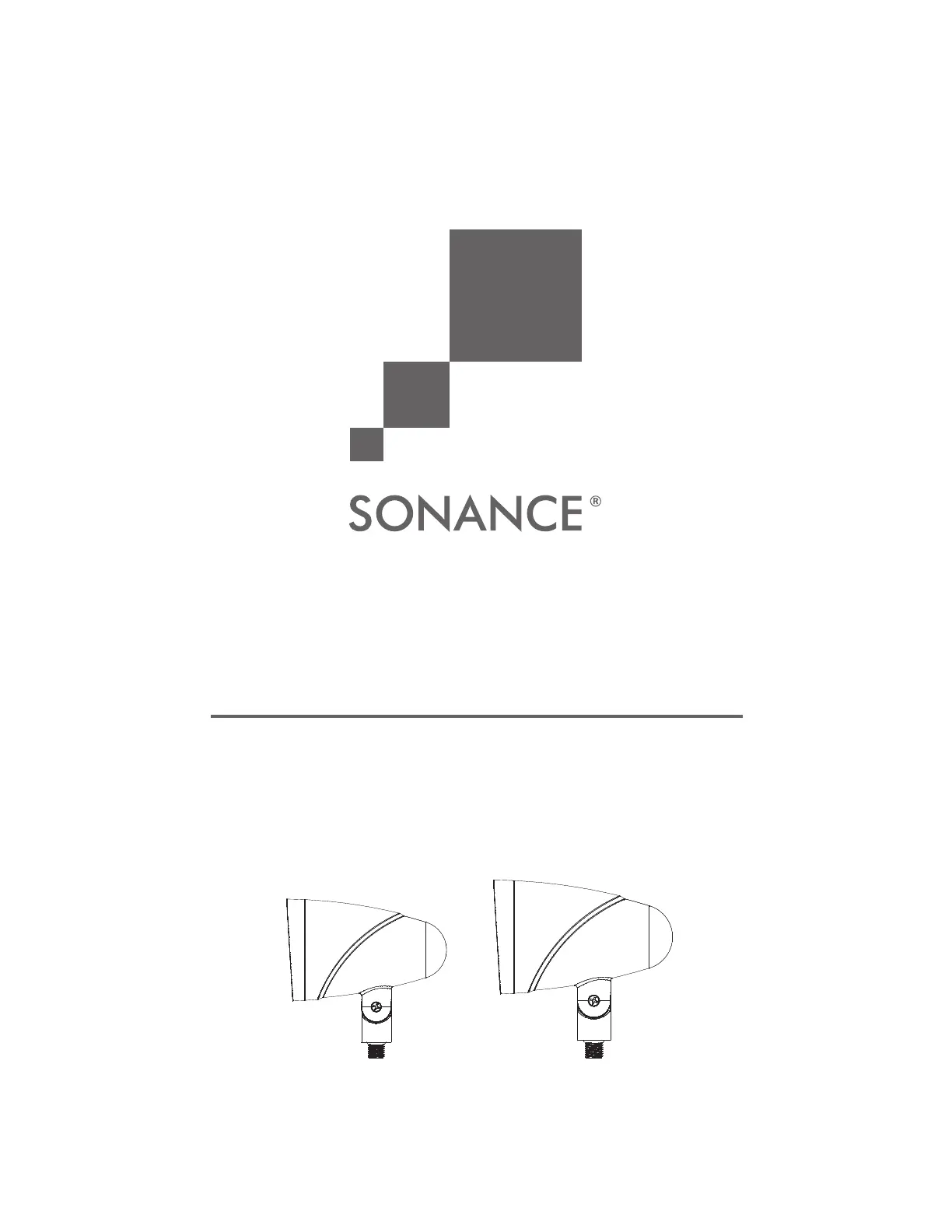

SATELLITE SPEAKERS

I N S T R U C T I O N M A N U A L

LS4T SAT | LS6T SAT

Figure 2

Figure 1: Placement

Introduction

Thank you for purchasing SLS Speakers. When properly installed,

these speakers will provide you with years of outdoor entertainment

pleasure. To get the most out of your new speakers, please read

this manual thoroughly before you begin installation.

Satellite Placement

The SLS system is designed to deliver a seamless, evenly

dispersed sound eld in an ‘open air’ environment. An array of

multiple Satellite speakers and Subwoofers should be strategically

placed to minimize ‘hot spots’ and ‘nulls’ as you move around the

outdoor entertainment area. Recommended placement of the SLS

Satellite models is every 8-10 feet around the area of coverage.

The shorter spacing is recommended for higher SPL and closer

listening applications. After every 4-5 satellites, install one SLS

Subwoofer of choice within the speaker wire chain. This will

allow the output of the satellite speakers and subwoofer to blend

together more seamlessly. See Figure 1.

Use care to select satellite locations that are equally distant from

the main listening area. When possible, use high and low locations

to centralize the acoustic stage. See Figure 2.

Sonamp DSP 2-750 Amplier Power Planning

The maximum number of satellites and subwoofers that can be

used in a system will depend on the amplier power. It is important

to calculate the amplier power your installation will require before

you begin. Multiple ampliers may be required in large installations.

Refer to the SLS wattage calculator on the Sonance website:

www.sonance.com/outdoor/new-sls/satellite-speakers.

Adjustable Tap

This Sonance Landscape Series product features a wide bandwidth

Sonance Laminated Core Transformer (SLCT) with an adjustable

tap, allowing the system to be congured for 70V/100V or 8 ohm.

If using this SLS product in an 8 ohm application, ensure the tap

switch is positioned to the 8 ohm setting. If using this product in

a 70V/100V system, ensure the tap is positioned to one of the

70V/100V settings.

Some 70V/100V system designs will require variations of higher

and lower output in dierent areas of the landscaping. The SLCT

adjustable tap allows each satellite or subwoofer to be individually

dialed to the desired output. Adjusting the tap settings will impact

your wattage calculations. Please review the Wattage Calculator

on the Sonance website: www.sonance.com/outdoor/new-sls/

satellite-speakers for more information.

NOTE: AS A GENERAL GUIDELINE, (1) SATELLITE WILL COVER ABOUT 250

SQUARE FEET OF LISTENING AREA

Box Contents

(1) Satellite Speaker

(2) Silicone lled wire nuts

LS4T SAT

Landscape Series Satellite Speaker

NOTE: THIS PRODUCT SHIPS WITH THE SLCT ADJUSTABLE TAP SET

TO 40W. ADJUSTMENTS CAN BE MADE TO THE TAP SWITCH ONCE ALL

THE SATELLITES AND SUBWOOFERS ARE CONNECTED TO ACHIEVE THE

APPROPRIATE OUTPUT LEVEL.

NOTE: ENSURE THAT ALL SATELLITES AND SUBWOOFERS ARE SET TO

EITHER 70V/100V OR 8 OHM TAP SETTINGS TO AVOID ANY DAMAGE TO

YOUR AMPLIFIER. DO NOT COMBINE PRODUCTS SET TO ANY OF THE

70V/100V SETTINGS WITH PRODUCTS SET TO THE 8 OHM SETTING ON A

SINGLE AMPLIFIER.

Figure 4: SLS Wiring Diagram

Conguration: 4 SATs:1 SUB or up to 8 SATs:1 SUB

Figure 3: Connect

7. After all the speaker connections are completed, connect the

wires to your amplier. See Figure 4.

8. Turn your amplier on and test the system with your favorite

music. If the speakers are operating properly, rell the wire

trench and enjoy your new system.

Satellite Wiring and Installation

Sonance Landscape Series systems allow for speakers to be

daisy chained together. In a typical system with one zone of audio,

simply run a stereo or 4 conductor speaker wire from the amplier

to the closest speaker. Designate the rst speaker as either left

or right and connect the appropriate positive and negative wires

to the speaker terminals. Continue alternating the wires between

the left and right channels for each speaker, creating a daisy chain

of stereo satellites. The Subwoofer can be wired anywhere in the

chain and will receive either left or right speaker wires. See Figure 4.

Twist wires

together

Waterproof

Wire Nuts

To next

speaker/subwoofer

Amplifier

Positive

+Negative

Expandable

Sonamp DSP 2-750 Amplifier

LS4T SATs & LS12T SUB/LS15T SUB or LS6T SATs & LS12T SUB/LS15T SUB

LeftLeft RightRight LeftLeft RightRight

4OHMSMIN

2. Once the accessories have been mounted at the desired

locations, mount the satellites by threading the mounting shaft

into the corresponding opening of the accessory.

NOTE: DO NOT STAKE SLS SPEAKERS WITHIN DIRECT SPRAY RANGE OF

SPRINKLER HEADS. KEEP AT A DISTANCE OF 2 FEET OR GREATER FROM

DIRECT WATER STREAMS.

NOTE: SONANCE STRONGLY RECOMMENDS THE USE OF 14/4 DIRECT

BURIAL WIRE FOR DISTANCES UP TO 200 FEET AND 12/4 DIRECT BURIAL

FOR LONGER RUNS. KEEP WIRES AS SHORT AS POSSIBLE TO MINIMIZE

RESISTIVE WIRE LOSSES.

CAUTION: THE AMPLIFIER SHOULD NOT BE CONNECTED TO AC POWER

UNTIL ALL SPEAKER WIRE CONNECTIONS ARE COMPLETED. HIGH POWER

70 VOLT AMPLIFIERS PRESENT A SERIOUS SHOCK HAZARD.

NOTE: BEFORE INSTALLING SATELLITE SPEAKERS, ENSURE THAT EACH

ONE HAS BEEN SET TO THE APPROPRIATE 70V/100V OR 8 OHM TAP

SETTING FOR YOUR SYSTEM DESIGN AND REQUIREMENTS.

1. Once Locations have been established, choose the appropriate

mounting accessories for the project. PLEASE NOTE: Always

use a #3 Phillips head screwdriver when ne tuning the height

adjustment screw.

• For applications on at surfaces, such as the side of a

building or structure, use the SM1 Round Surface Mount.

See instruction manual included with accessory for precise

mounting instructions.

• For placement directly into the ground, use the GS9 ABS

in-ground stake for the LS4T SAT, and/or the GP19 PVC

Ground Post for the LS6T SAT. See Instruction Manual

included with accessory for precise instructions.

• For in-tree Mounting, use the TSMJB Tree / Surface Mounting

Junction Box. See Instruction Manual included with accessory

for precise instructions.

NOTE: ATTENTION MUST BE PAID TO THE ELECTRICAL LEADS TO AVOID

NICKS AND CUTS THAT MIGHT SHORT THE SYSTEM.

3. Prepare individual leads to be connected to main leads.

4. Dig a 4” – 5” deep trench for running the speaker wires.

5. Run the wire through the trench from the amplier to the rst

speaker location.

6. Connect the direct burial wire to each speaker wire;

connections should be made with either silicone lled wire

connectors or appropriate junction boxes. See Figure 3.

IMPORTANT: BE SURE NOT TO LET ANY STRAY ‘+’ & ‘–’ STRANDS TOUCH

EACH OTHER. TOUCHING STRANDS CAN CAUSE A SHORT-CIRCUIT THAT

COULD DAMAGE YOUR AMPLIFIER AND DEGRADE SOUND QUALITY.

NOTE: THE SUBWOOFER

CAN BE CONNECTED

AT ANY POINT IN THE

DAISY CHAIN.
